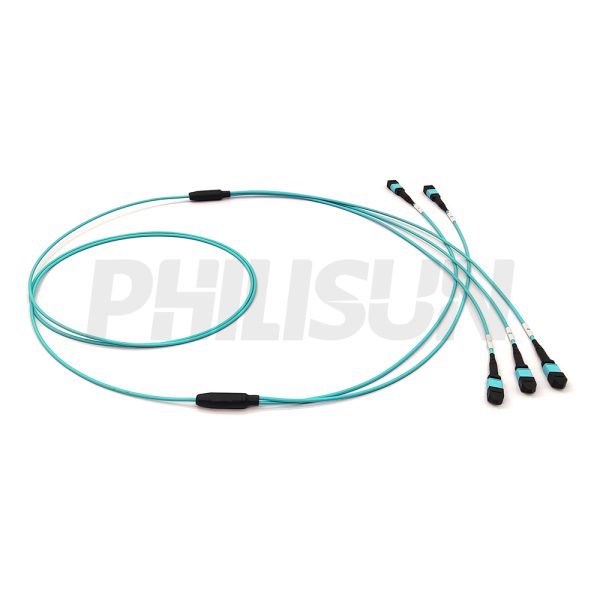

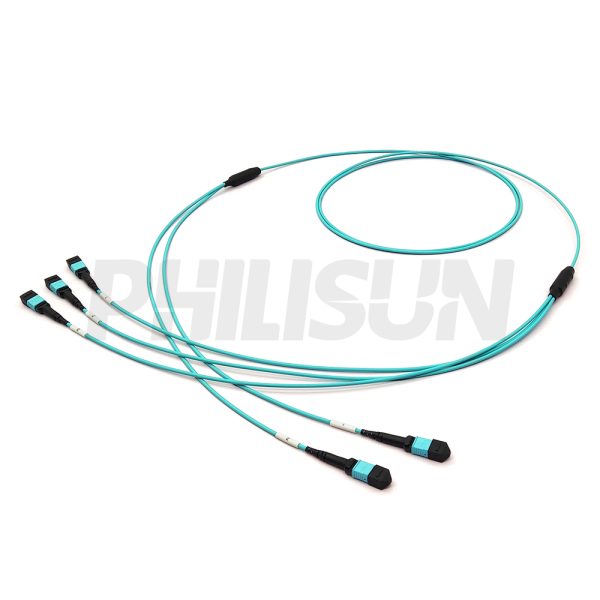

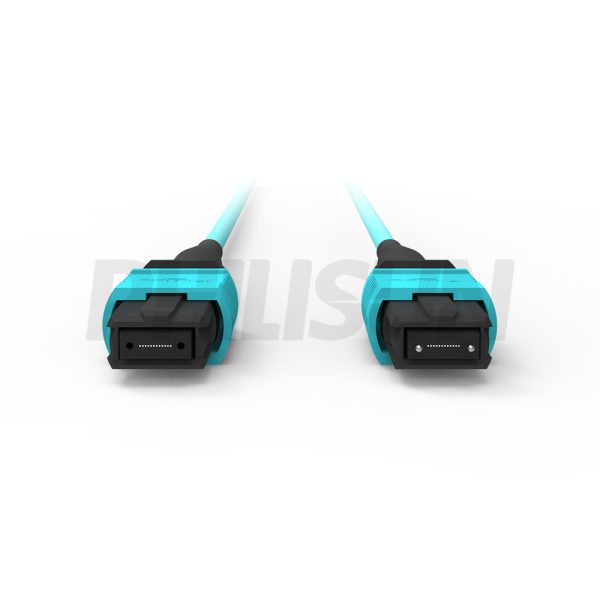

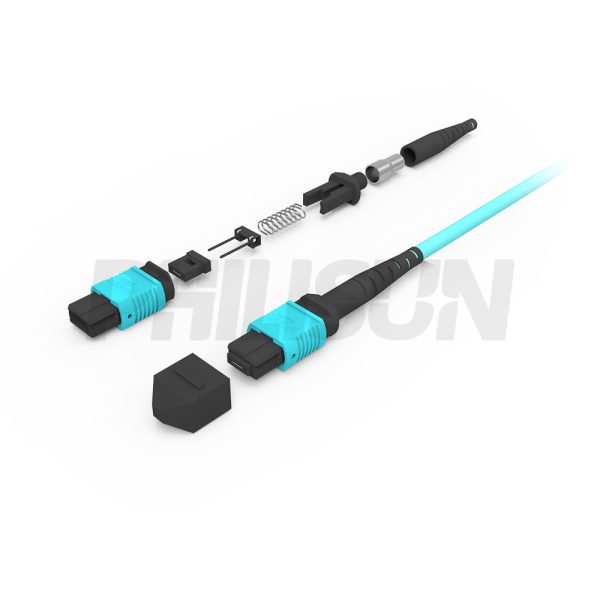

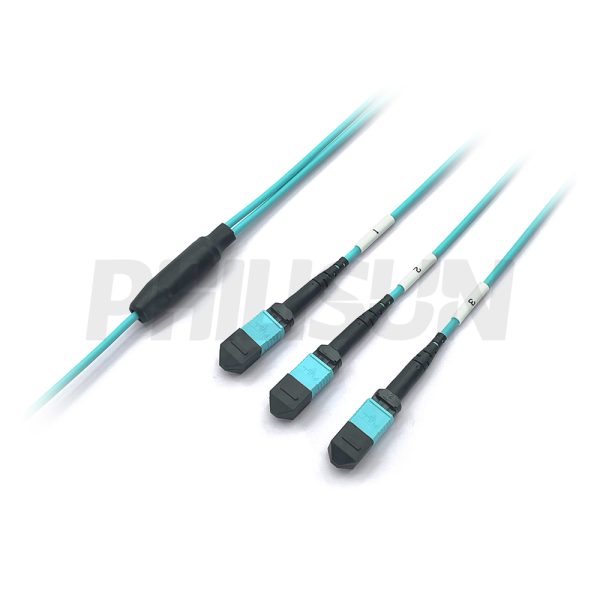

MPO Breakout Cable, 2 x MPO-12 PC/APC(Female/Male) to 3 x MPO-8 PC/APC(Female/Male), 24 Fibers, Multimode(OM3),0.35dB Max, Aqua
Applicable to multiple applications based on MPO 4-channel dual-fiber bidirectional transmission
Applicable to multiple applications based on MPO 8-channel single-fiber bidirectional transmission
Optical transceiver interconnection
- High Quality
- Factory Outlet
- Satisfaction Guarantee
- Global Shipping
| SPECIFICATIONS | |||
|---|---|---|---|
| Connector A | 2*MPO | Connector B | 3*MPO |
| Fiber type | OM3 | Fiber number | 24 Fibers |
| MPO IL | Standard loss/low loss | Polishing | PC or APC |
| Branching type | 2*3 | Connector boot type | Round fiber |
| Connctor type | Female/Male | RL | ≥20dB (MM) |
| IL(Typical) | 0.1/0.2dB | IL(Max. value) | 0.35/0.6dB |
| Breakout outside diameter (OD) | 2.0/3.0mm | Cable color | Aqua |
| Breakout length | 0.3-1.5m | Flame retardant grade | OFN/OFNR/OFNP |
| Cable material | LSZH/PVC/TPU | Fiber loss | 2.4dB@850nm/0.6dB@1300nm |
| Fiber brand | Corning/YOFC | Min.bending radius(long term) | 20D |
| Working wavelength | 850/1300(MM) | Durability | ≥500 times |
| Min.bending radius(short term) | 10D | Polarity | Consistent with the main cable |
| Operating temperature | -10 to 70℃ (14 to 158℉) | Storage temperature | -40 to 85℃ (-40 to 185℉) |

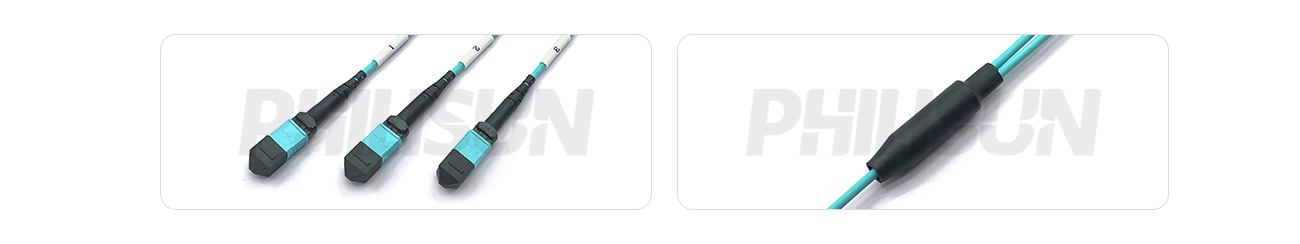

PRODUCT PRESENTATION
This 24-Fiber 2 x MPO-12 to 3 x MPO-8 OM3 Multimode Breakout Cable is the flexible solution for aggregating traffic from multiple sources in high-density racks. Its dual MPO-12 to triple MPO-8 fan-out is highly applicable to multiple applications, allowing network architects to streamline Optical transceiver interconnection for systems based on both MPO 4-channel dual-fiber bidirectional transmission and high-capacity MPO 8-channel single-fiber bidirectional transmission. This pre-terminated assembly minimizes field errors and ensures consistent Elite Low Loss (IL Max ≤ 0.35dB) Multimode performance.
