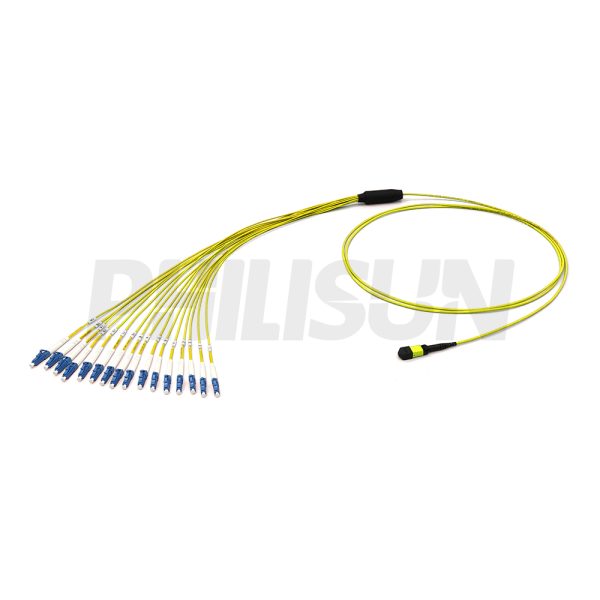

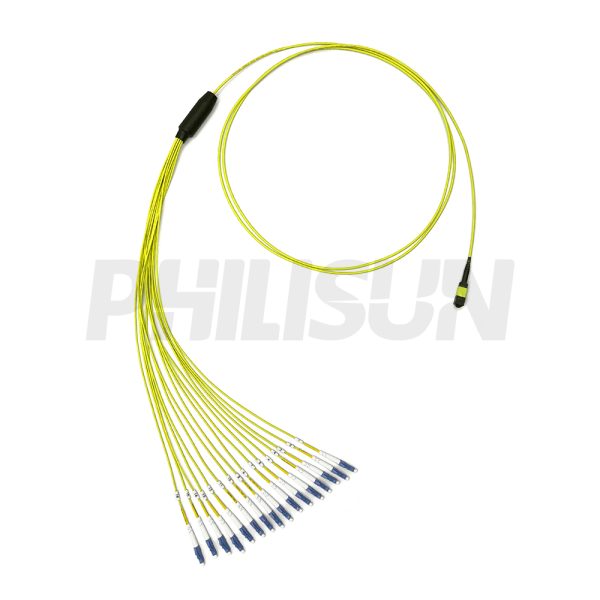

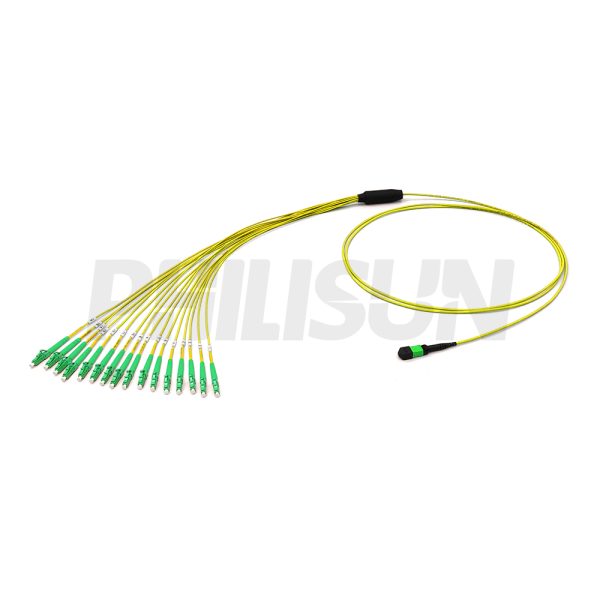

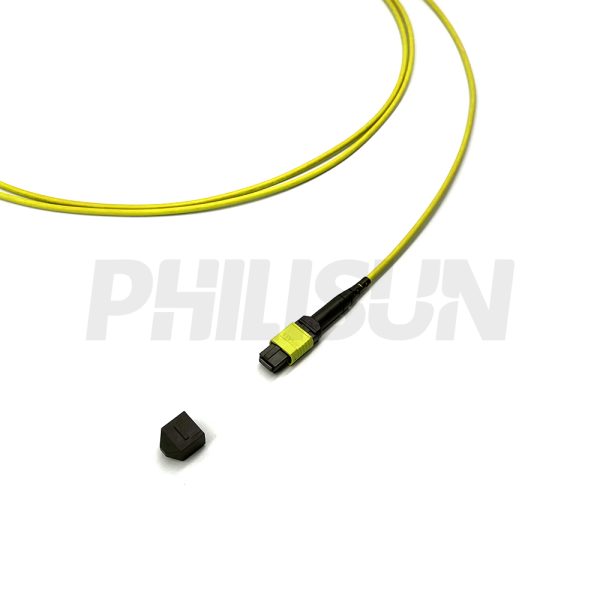

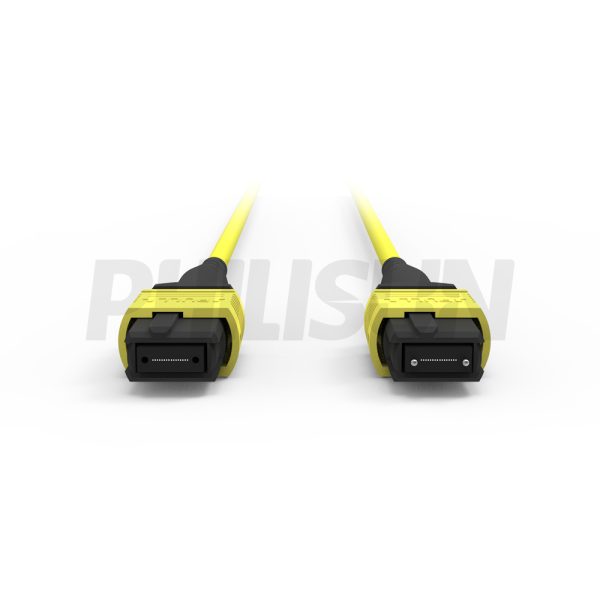

MPO Harness Cable, MPO-16 APC(Female/Male) to LC APC, 16 Fibers, Singlemode, 0.35dB Max, Type B, Yellow

Alternative MPO Jumper+MPO Cassette combination

Category: Brand:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Connector AMPOConnector BLC
Fiber typeG657A1Fiber number16 Fibers
MPO ILStandard loss/low lossPolishingAPC
Branching typeEqual length/Unequal lengthConnector boot typeRound fiber
Connctor typeFemale/MaleRL≥60dB (SM)
IL(Typical)0.1/0.2dBIL(Max. value)0.35/0.6dB
Breakout outside diameter (OD)2.0/3.0mmCable colorYellow
Breakout length0.3-1.5mFlame retardant gradeOFN/OFNR/OFNP
Cable materialLSZH/PVC/TPUFiber loss0.35db@1310nm/0.2dB@1550nm
Fiber brandCorning/YOFCMin.bending radius(long term)20D
Working wavelength1310/1550(SM) Durability≥500 times
Min.bending radius(short term)10DPolarityTYPE B
Operating temperature-10 to 70℃ (14 to 158℉)Storage temperature-40 to 85℃ (-40 to 185℉)



PRODUCT PRESENTATION

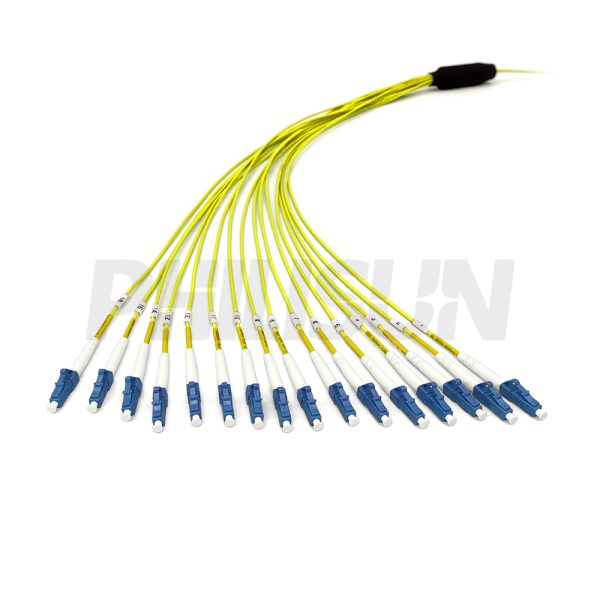

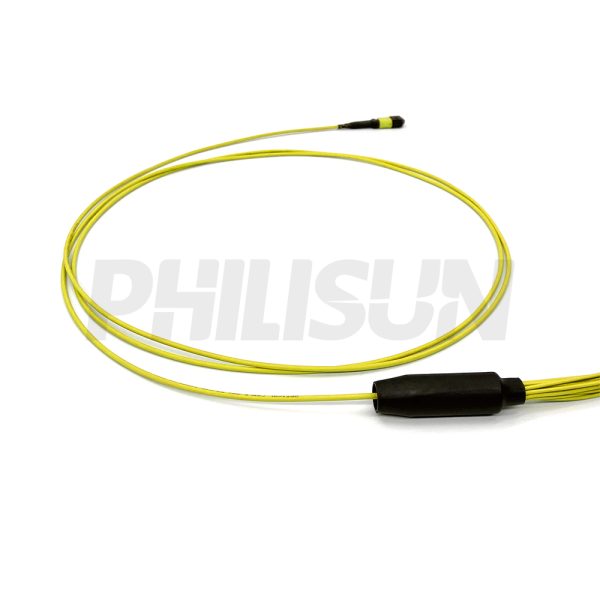

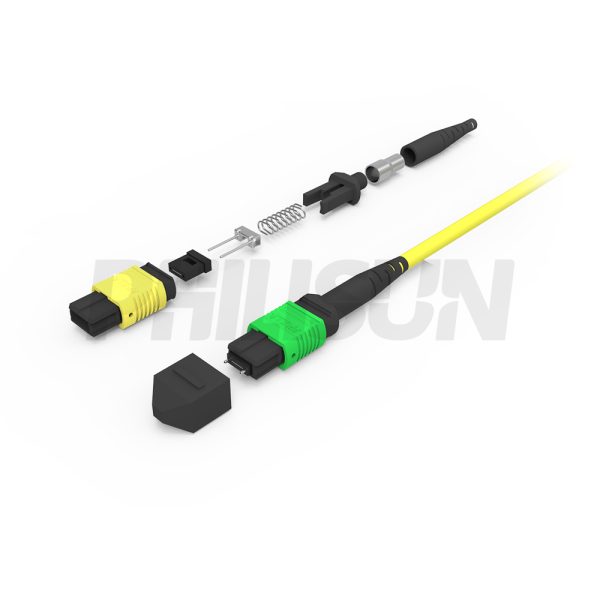

This 16-Fiber MPO OS2 Singlemode Harness Cable is engineered to meet the demands of high-density interconnects, offering a direct and efficient fan-out solution for applications like 400G-DR4 and other high-speed parallel optics. It is a highly effective Alternative to the MPO Jumper + MPO Cassette combination. The cable transitions from a single MPO-16 APC (Female/Male) connector to 16 individual LC APC connectors. Utilizing premium Corning/YOFC G657A1 fiber, it ensures Elite Low Loss performance with an IL Max of ≤ 0.35dB (RL ≥ 60dB), providing stable, future-proof Singlemode links.



MPO HARNESSES SERIES PRODUCTS



PRODUCTION & TESTING EQUIPMENT



PERFORMANCE PARAMETER
Technical Performance
Ferrule typeInsertion lossReturn loss
TypicalMaximum
SM standard loss0.20dB≤0.75dB≥ 60dB （APC 8°）
SM low loss0.10dB≤0.35dB
MM standard loss0.20dB≤0.6dB≥ 20dB
MM low loss0.10dB≤0.35dB
MT Ferrule Options
Fiber modePerformanceFiber count
Single modeStandard loss12 (1x12)
24 (2x12)
Low loss12 (1x12)
MultimodeStandard loss12 (1x12)
16 (1x16)
24 (2x12)
32 (2x16)
Low loss12 (1x12)
24 (2x12)

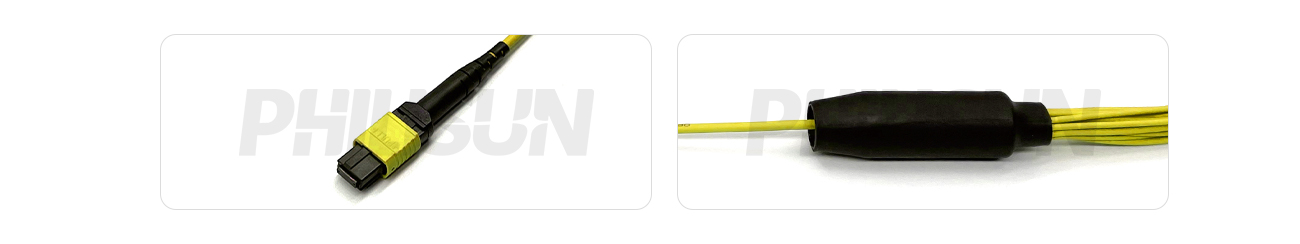

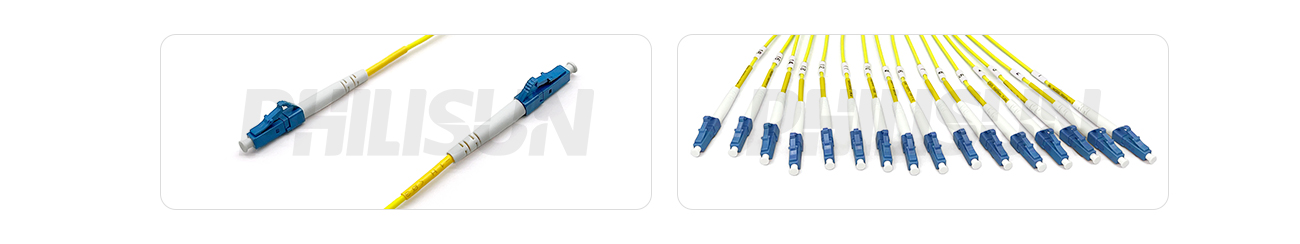

DETAIL DISPLAY



FIBER OPTIC CABLE STRUCTURE & PARAMETER
Cable Parameter
ItemsSpecifications
Fiber Count24681224
FiberDiameter250±15μm
ColorBlue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua
Strength MemberAramid Yarn
Outer JacketDiameter3.0±0.2mm
MaterialPVC /LSZH
ColorBlue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua
Mechanical Performance
ItemsSpecifications
Fiber Count24681224
Tensile Strength (Long Term) / N80
Tensile Strength (Short Term)/ N150
Crush Resistance (Long Term) / N/10cm150100
Crush Resistance (Long Term) / N/10cm500
Min. Bend Radius (Dynamic) / mm20D
Min. Bend Radius (Static)/ mm10D
Operating Temperature/℃-20～+60
Storage Temperature/℃-20～+60



FIBER PARAMETER
SM Fiber Parameter
ItemsUnitG.652DG.657A1G.657A2
Mode Field Diameter1310nmμm9.1±0.48.8±0.48.8±0.4
1550nmμm10.4±0.59.8±0.59.8±0.5
Cladding Diameterμm125±1125±0.7125±0.7
Cladding Non-Circularity%≤1≤0.7≤0.7
Core-Cladding Concentricity Errorμm≤0.6≤0.5≤0.5
Coating Diameterμm245±7245±5245±5
Coating Non-Circularity%≤6.0≤6.0≤6.0
Cladding-Coating Concentricity Errorμm≤12.0≤12.0≤12.0
Cable Cutoff Wavelengthnmλcc≤1260λcc≤1260λcc≤1260
Cable Attenuation Coefficient1310nmdB/km≤0.4≤0.4≤0.4
1550nmdB/km≤0.3≤0.3≤0.3
MM Fiber Parameter
Itemsunit62.5/12550/125OM3-150OM3-300OM4
Core Diameterμm62.5±2.550±2.550±2.550±2.550±2.5
Cladding Diameterμm125±1.0125±1.0125±1.0125±1.0125±1.0
Core Non-Circularity%≤5.0≤5.0≤5.0≤5.0≤5.0
Cladding Non-Circularity%≤1.0≤1.0≤1.0≤1.0≤1.0
Core-Cladding Concentricity Errorμm≤1.5≤1.5≤1.0≤1.0≤1.0
Coating Diameterμm245±7245±7245±7245±7245±7
Coating Non-Circularity%≤6.0≤6.0≤6.0≤6.0≤6.0
Cladding-Coating Concentricity Errorμm≤12.0≤12.0≤12.0≤12.0≤12.0
OFL Bandwidth850nmMHz·km≥160≥500≥700≥1500≥3500
1300nmMHz·km≥500≥500≥500≥500≥500
Cable Attenuation Coefficient850nmdB/km≤3.0≤3.0≤3.0≤3.0≤3.0
1300nmdB/km≤1.0≤1.0≤1.0≤1.0≤1.0



Product Certification



Quality Advantage



CONFIGURATION INFORMATION
