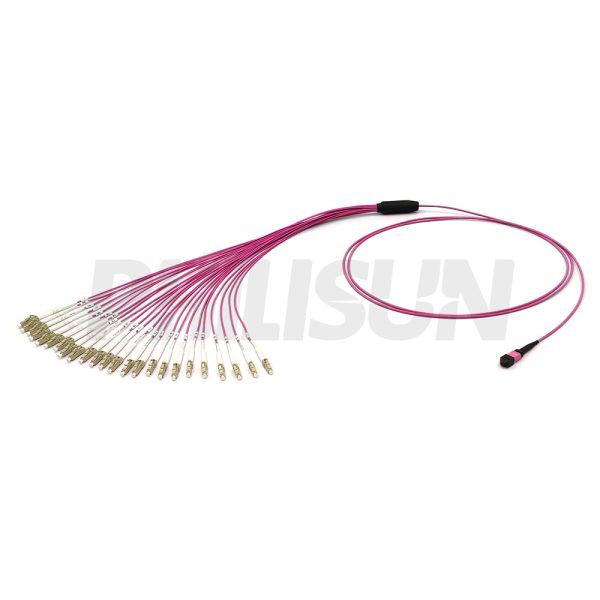

MPO Harness Cable, MPO-24 PC/APC(Female/Male) to LC PC/APC, 24 Fibers, Multimode(OM4), 0.35dB Max, Type A/B/C/U, Aqua/Violet

Alternative MPO Jumper+MPO Cassette combination

Category: Brand:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Connector AMPOConnector BLC
Fiber typeOM4Fiber number24 Fibers
MPO ILStandard loss/low lossPolishingPC or APC
Branching typeEqual length/Unequal lengthConnector boot typeRound fiber
Connctor typeFemale/MaleRL≥20dB (MM)
IL(Typical)0.1/0.2dBIL(Max. value)0.35/0.6dB
Breakout outside diameter (OD)2.0/3.0mmCable colorAqua/Violet
Breakout length0.3-1.5mFlame retardant gradeOFN/OFNR/OFNP
Cable materialLSZH/PVC/TPUFiber loss2.4dB@850nm/0.6dB@1300nm
Fiber brandCorning/YOFCMin.bending radius(long term)20D
Working wavelength 850/1300(MM)Durability≥500 times
Min.bending radius(short term)10DPolarityTYPE A/B/C/U
Operating temperature-10 to 70℃ (14 to 158℉)Storage temperature-40 to 85℃ (-40 to 185℉)



PRODUCT PRESENTATION
This 24-Fiber MPO OM4 Multimode Harness Cable delivers maximum fiber capacity for mission-critical deployments, expertly managing the transition from high-count MPO trunks to individual LC ports in high-speed 10G to 40G and 25G to 100G applications. It is engineered as a superior Alternative to the MPO Jumper + MPO Cassette combination. The harness effectively fans out from the MPO PC/APC (Female/Male) connector to LC PC/APC connectors. It is built for sustained high performance, featuring Elite Low Loss specifications (IL Max ≤ 0.35dB), using certified Corning/YOFC OM4 fiber.



MPO HARNESSES SERIES PRODUCTS



PRODUCTION & TESTING EQUIPMENT



PERFORMANCE PARAMETER
Technical Performance
Ferrule typeInsertion lossReturn loss
TypicalMaximum
SM standard loss0.20dB≤0.75dB≥ 60dB （APC 8°）
SM low loss0.10dB≤0.35dB
MM standard loss0.20dB≤0.6dB≥ 20dB
MM low loss0.10dB≤0.35dB
MT Ferrule Options
Fiber modePerformanceFiber count
Single modeStandard loss12 (1x12)
24 (2x12)
Low loss12 (1x12)
MultimodeStandard loss12 (1x12)
16 (1x16)
24 (2x12)
32 (2x16)
Low loss12 (1x12)
24 (2x12)

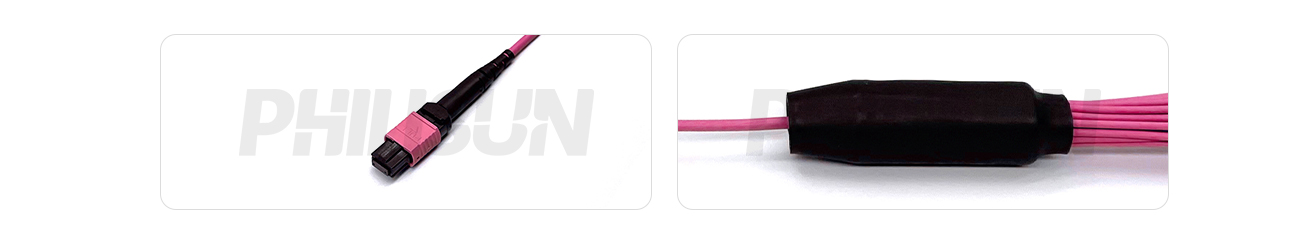

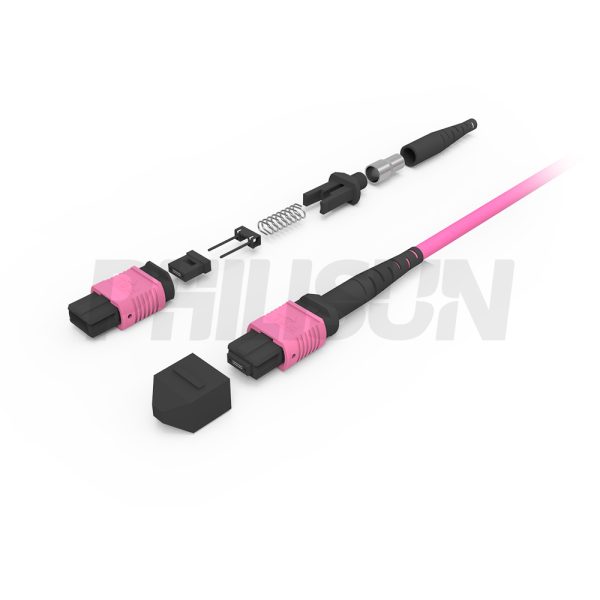

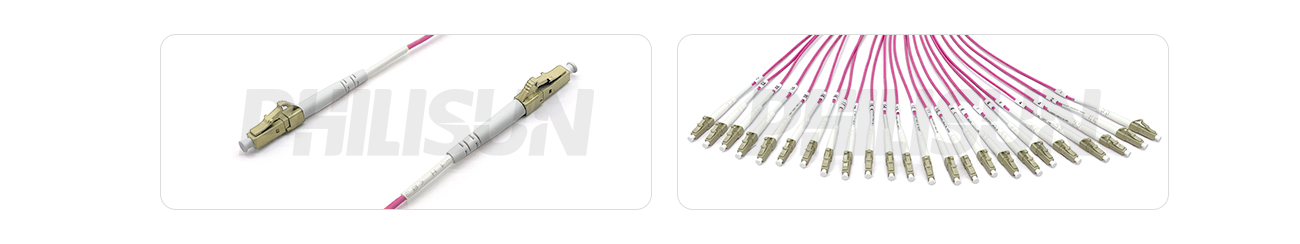

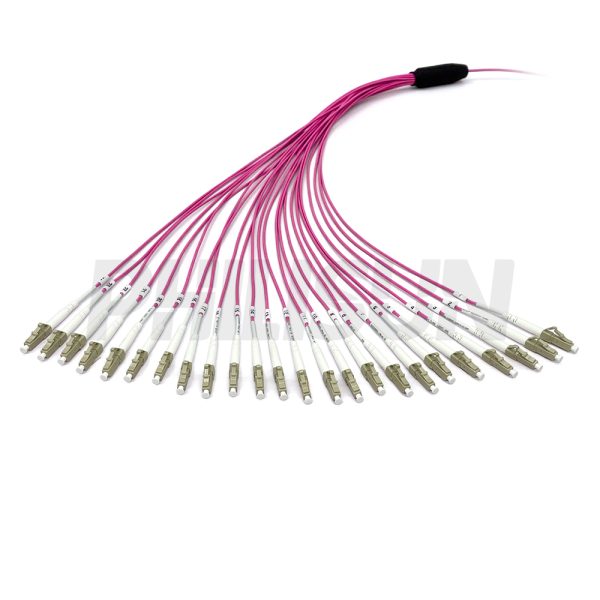

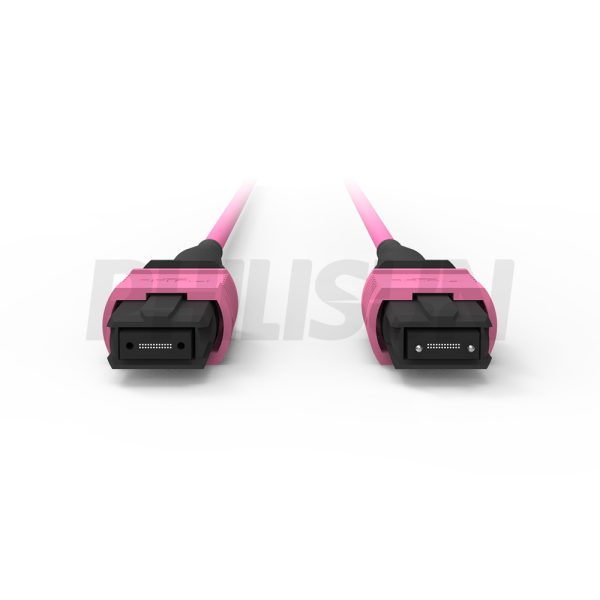

DETAIL DISPLAY



FIBER OPTIC CABLE STRUCTURE & PARAMETER
Cable Parameter
ItemsSpecifications
Fiber Count24681224
FiberDiameter250±15μm
ColorBlue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua
Strength MemberAramid Yarn
Outer JacketDiameter3.0±0.2mm
MaterialPVC /LSZH
ColorBlue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua
Mechanical Performance
ItemsSpecifications
Fiber Count24681224
Tensile Strength (Long Term) / N80
Tensile Strength (Short Term)/ N150
Crush Resistance (Long Term) / N/10cm150100
Crush Resistance (Long Term) / N/10cm500
Min. Bend Radius (Dynamic) / mm20D
Min. Bend Radius (Static)/ mm10D
Operating Temperature/℃-20～+60
Storage Temperature/℃-20～+60



FIBER PARAMETER
SM Fiber Parameter
ItemsUnitG.652DG.657A1G.657A2
Mode Field Diameter1310nmμm9.1±0.48.8±0.48.8±0.4
1550nmμm10.4±0.59.8±0.59.8±0.5
Cladding Diameterμm125±1125±0.7125±0.7
Cladding Non-Circularity%≤1≤0.7≤0.7
Core-Cladding Concentricity Errorμm≤0.6≤0.5≤0.5
Coating Diameterμm245±7245±5245±5
Coating Non-Circularity%≤6.0≤6.0≤6.0
Cladding-Coating Concentricity Errorμm≤12.0≤12.0≤12.0
Cable Cutoff Wavelengthnmλcc≤1260λcc≤1260λcc≤1260
Cable Attenuation Coefficient1310nmdB/km≤0.4≤0.4≤0.4
1550nmdB/km≤0.3≤0.3≤0.3
MM Fiber Parameter
Itemsunit62.5/12550/125OM3-150OM3-300OM4
Core Diameterμm62.5±2.550±2.550±2.550±2.550±2.5
Cladding Diameterμm125±1.0125±1.0125±1.0125±1.0125±1.0
Core Non-Circularity%≤5.0≤5.0≤5.0≤5.0≤5.0
Cladding Non-Circularity%≤1.0≤1.0≤1.0≤1.0≤1.0
Core-Cladding Concentricity Errorμm≤1.5≤1.5≤1.0≤1.0≤1.0
Coating Diameterμm245±7245±7245±7245±7245±7
Coating Non-Circularity%≤6.0≤6.0≤6.0≤6.0≤6.0
Cladding-Coating Concentricity Errorμm≤12.0≤12.0≤12.0≤12.0≤12.0
OFL Bandwidth850nmMHz·km≥160≥500≥700≥1500≥3500
1300nmMHz·km≥500≥500≥500≥500≥500
Cable Attenuation Coefficient850nmdB/km≤3.0≤3.0≤3.0≤3.0≤3.0
1300nmdB/km≤1.0≤1.0≤1.0≤1.0≤1.0



Product Certification



Quality Advantage



CONFIGURATION INFORMATION
MPO Harnesses产品详情订购信息
