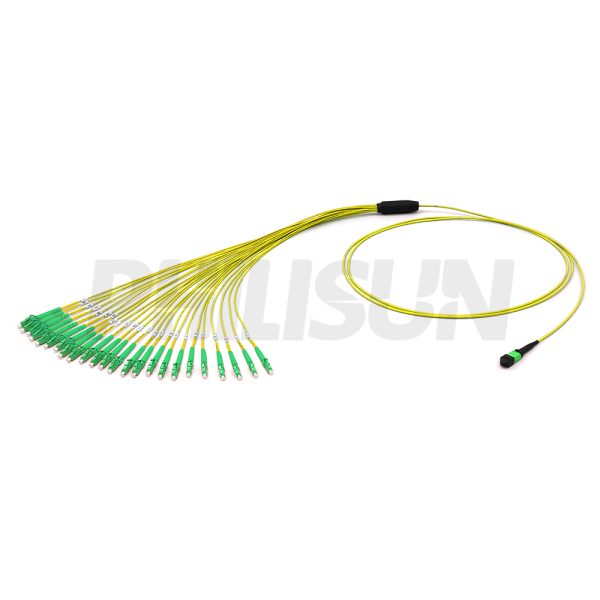

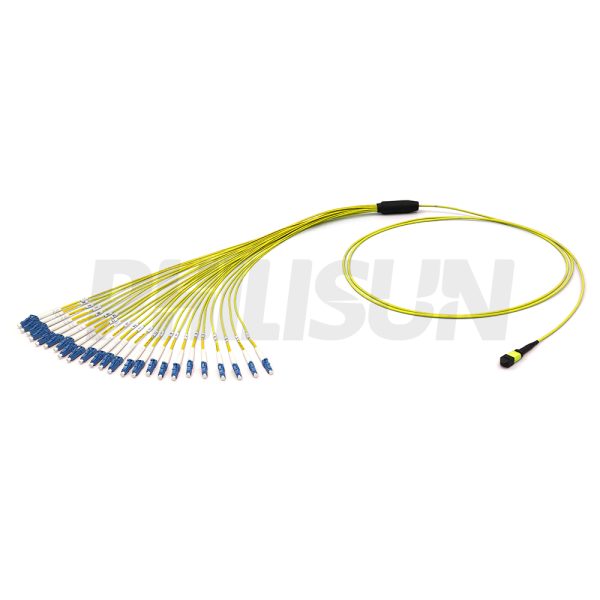

MPO Harness Cable, MPO-24 APC(Female/Male) to LC APC, 24 Fibers, Singlemode, 0.35dB Max, Type A/B/C/U, Yellow
50G to 400G（UP to 150M）
100G to 800G（UP to 100M）
Alternative MPO Jumper+MPO Cassette combination
- High Quality
- Factory Outlet
- Satisfaction Guarantee
- Global Shipping
| SPECIFICATIONS | |||
|---|---|---|---|
| Connector A | MPO | Connector B | LC |
| Fiber type | G657A1 | Fiber number | 24 Fibers |
| MPO IL | Standard loss/low loss | Polishing | APC |
| Branching type | Equal length/Unequal length | Connector boot type | Round fiber |
| Connctor type | Female/Male | RL | ≥60dB (SM) |
| IL(Typical) | 0.1/0.2dB | IL(Max. value) | 0.35/0.6dB |
| Breakout outside diameter (OD) | 2.0/3.0mm | Cable color | Yellow |
| Breakout length | 0.3-1.5m | Flame retardant grade | OFN/OFNR/OFNP |
| Cable material | LSZH/PVC/TPU | Fiber loss | 0.35db@1310nm/0.2dB@1550nm |
| Fiber brand | Corning/YOFC | Min.bending radius(long term) | 20D |
| Working wavelength | 1310/1550(SM) | Durability | ≥500 times |
| Min.bending radius(short term) | 10D | Polarity | TYPE A/B/C/U |
| Operating temperature | -10 to 70℃ (14 to 158℉) | Storage temperature | -40 to 85℃ (-40 to 185℉) |
PRODUCT PRESENTATION

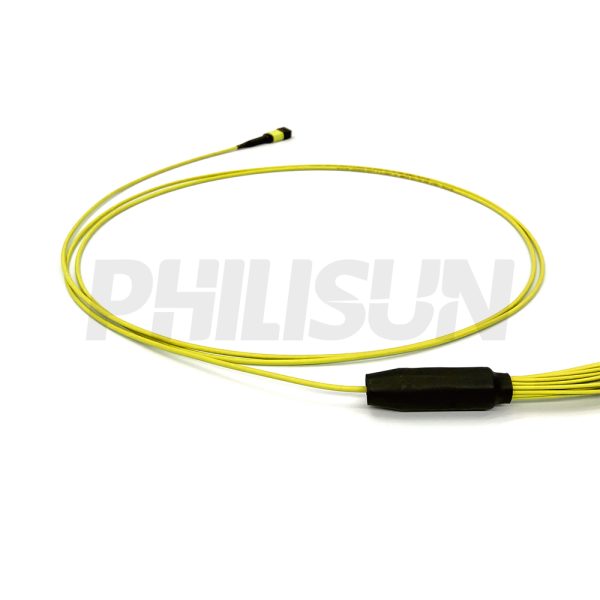

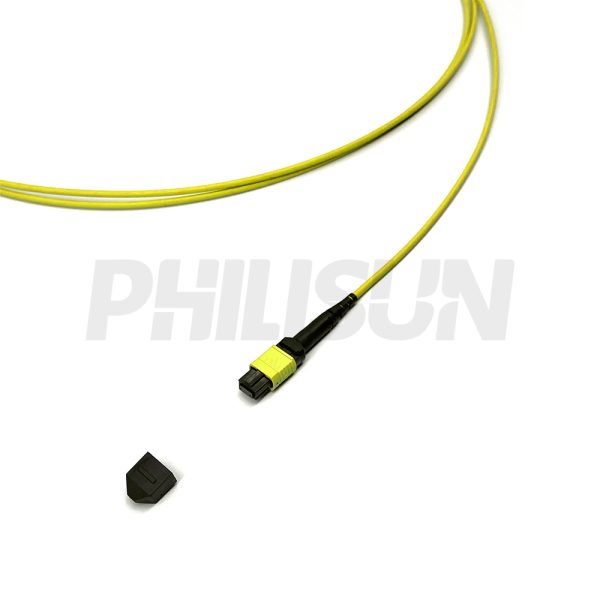

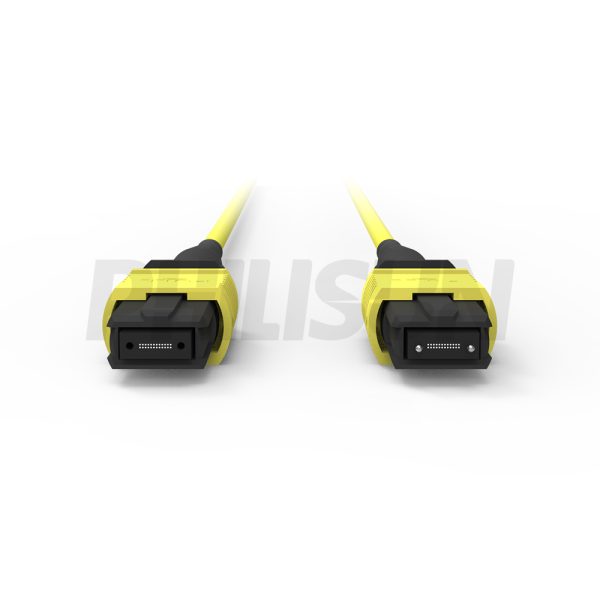

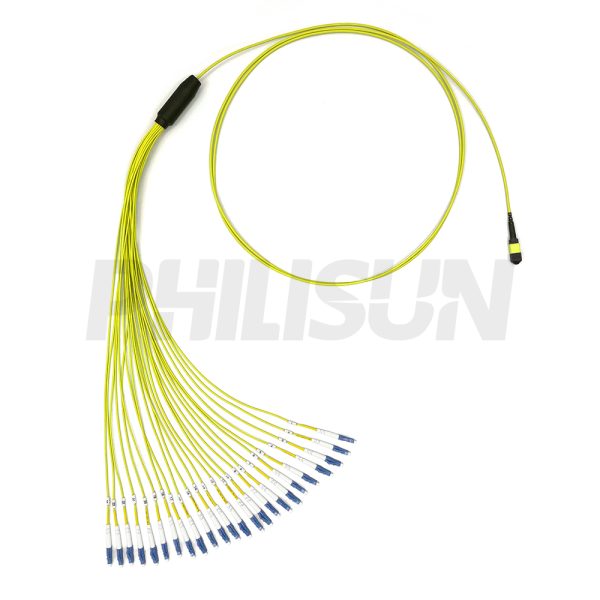

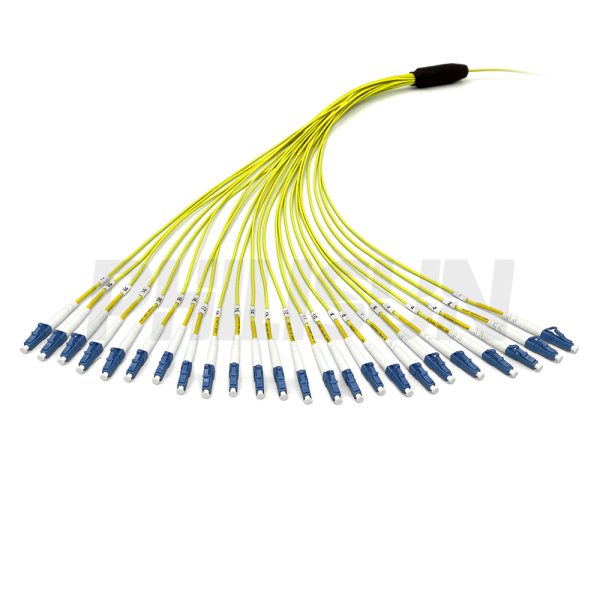

This 24-Fiber MPO OS2 Singlemode Harness Cable is specifically designed to maximize port density and simplify complex, high-fiber count installations in modern cloud and enterprise data centers. Optimized for large-scale 10G to 40G and 25G to 100G applications, it offers a superior, field-friendly Alternative to the MPO Jumper + MPO Cassette combination. The harness converts the 24 fibers from a single MPO APC (Female/Male) connector into LC APC connectors. It guarantees superior performance with Elite Low Loss (IL Max: ≤ 0.35dB), utilizing premium Corning/YOFC fiber.
MPO HARNESSES SERIES PRODUCTS
PRODUCTION & TESTING EQUIPMENT
PERFORMANCE PARAMETER
| Technical Performance | |||
|---|---|---|---|
| Ferrule type | Insertion loss | Return loss | |
| Typical | Maximum | ||
| SM standard loss | 0.20dB | ≤0.75dB | ≥ 60dB （APC 8°） |
| SM low loss | 0.10dB | ≤0.35dB | |
| MM standard loss | 0.20dB | ≤0.6dB | ≥ 20dB |
| MM low loss | 0.10dB | ≤0.35dB | |
| MT Ferrule Options | ||||||
|---|---|---|---|---|---|---|
| Fiber mode | Performance | Fiber count | ||||
| Single mode | Standard loss | 12 (1x12) | ||||
| 24 (2x12) | ||||||
| Low loss | 12 (1x12) | |||||
| Multimode | Standard loss | 12 (1x12) | ||||
| 16 (1x16) | ||||||
| 24 (2x12) | ||||||
| 32 (2x16) | ||||||
| Low loss | 12 (1x12) | |||||
| 24 (2x12) | ||||||

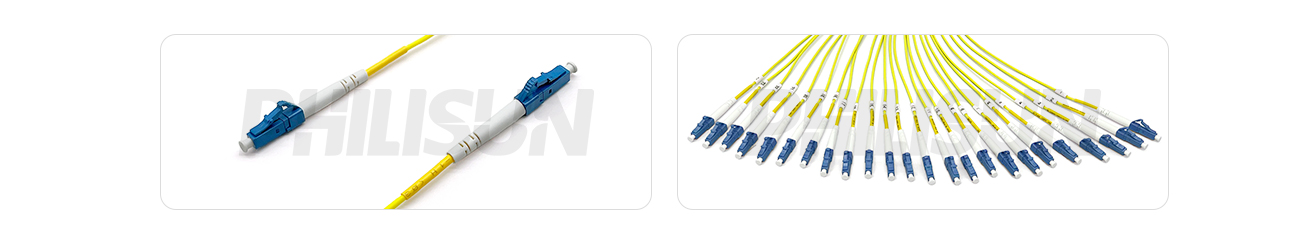

DETAIL DISPLAY
