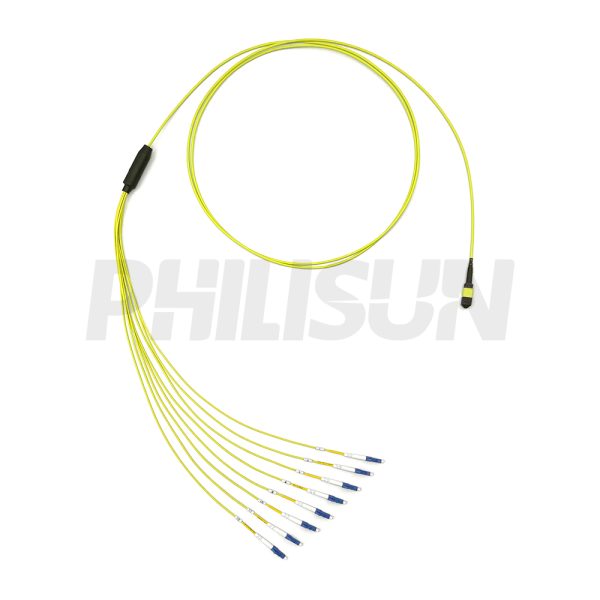

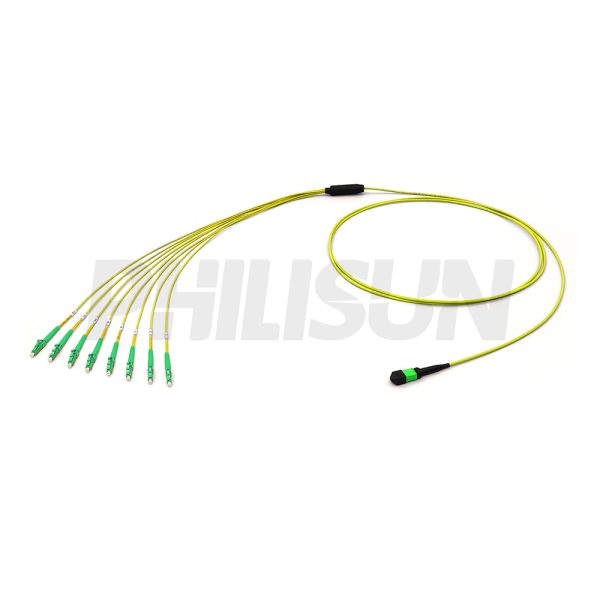

MPO Harness Cable, MPO-8 APC(Female/Male) to LC APC, 8 Fibers, Singlemode, 0.35dB Max, Type A/AF/B/U, Yellow
10G to 40G
25G to 100G
Alternative MPO Jumper+MPO Cassette combination
- High Quality
- Factory Outlet
- Satisfaction Guarantee
- Global Shipping
| SPECIFICATIONS | |||
|---|---|---|---|
| Connector A | MPO | Connector B | LC |
| Fiber type | G657A1 | Fiber number | 8 Fibers |
| MPO IL | Standard loss/low loss | Polishing | APC |
| Branching type | Equal length/Unequal length | Connector boot type | Round fiber |
| Connctor type | Female/Male | RL | ≥60dB (SM) |
| IL(Typical) | 0.1/0.2dB | IL(Max. value) | 0.35/0.6dB |
| Breakout outside diameter (OD) | 2.0/3.0mm | Cable color | Yellow |
| Breakout length | 0.3-1.5m | Flame retardant grade | OFN/OFNR/OFNP |
| Cable material | LSZH/PVC/TPU | Fiber loss | 0.35db@1310nm/0.2dB@1550nm |
| Fiber brand | Corning/YOFC | Min.bending radius(long term) | 20D |
| Working wavelength | 1310/1550(SM) | Durability | ≥500 times |
| Min.bending radius(short term) | 10D | Polarity | TYPE A/AF/B/U |
| Operating temperature | -10 to 70℃ (14 to 158℉) | Storage temperature | -40 to 85℃ (-40 to 185℉) |
PRODUCT PRESENTATION
This 8-Fiber MPO OS2 Singlemode Harness Cable is a pre-terminated, high-density fiber assembly designed for next-generation Singlemode interconnects. It is the ideal solution for high-speed network migrations, facilitating direct connectivity in 10G to 40G and 25G to 100G links, and serving as a streamlined Alternative to the MPO Jumper + MPO Cassette combination. The harness fan-outs the 8 fibers from a single MPO APC (Female/Male) connector directly to LC APC ports, significantly simplifying cable routing and reducing installation time. It utilizes premium Corning/YOFC fiber to deliver Elite Low Loss performance with an IL Max of ≤0.35dB(RL≥60dB), ensuring highly reliable multi-channel transmission. It supports Type A/AF/B/U Polarity and is available in a Yellow jacket with OFNP/OFNR/LSZH ratings.
MPO HARNESSES SERIES PRODUCTS
Production & Testing Equipment
PERFORMANCE PARAMETER
| Technical Performance | |||
|---|---|---|---|
| Ferrule type | Insertion loss | Return loss | |
| Typical | Maximum | ||
| SM standard loss | 0.20dB | ≤0.75dB | ≥ 60dB （APC 8°） |
| SM low loss | 0.10dB | ≤0.35dB | |
| MM standard loss | 0.20dB | ≤0.6dB | ≥ 20dB |
| MM low loss | 0.10dB | ≤0.35dB | |
| MT Ferrule Options | ||||||
|---|---|---|---|---|---|---|
| Fiber mode | Performance | Fiber count | ||||
| Single mode | Standard loss | 12 (1x12) | ||||
| 24 (2x12) | ||||||
| Low loss | 12 (1x12) | |||||
| Multimode | Standard loss | 12 (1x12) | ||||
| 16 (1x16) | ||||||
| 24 (2x12) | ||||||
| 32 (2x16) | ||||||
| Low loss | 12 (1x12) | |||||
| 24 (2x12) | ||||||

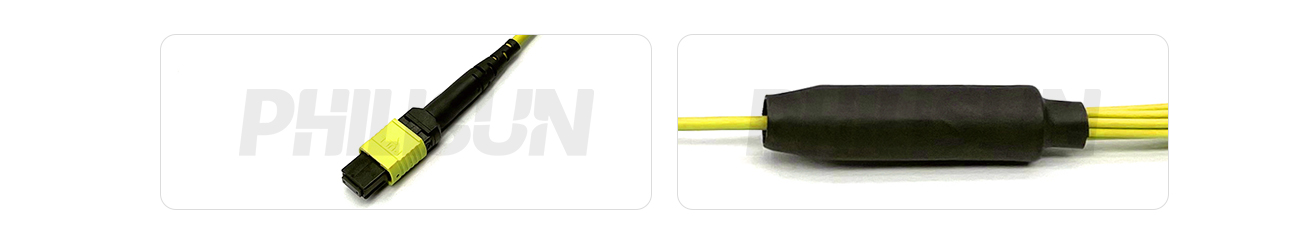

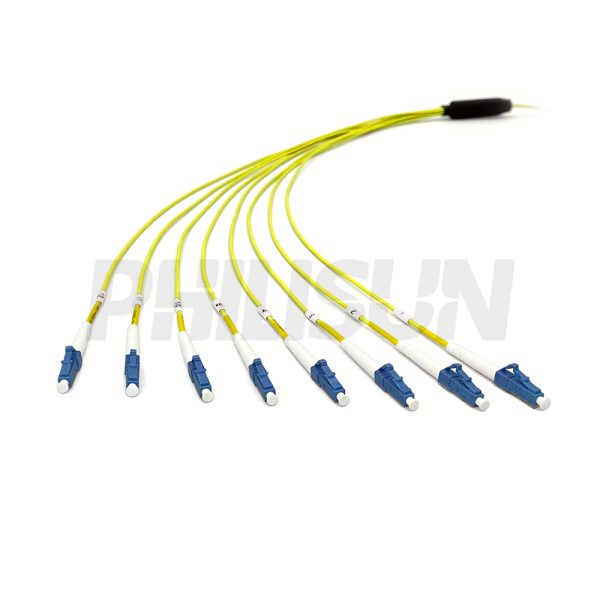

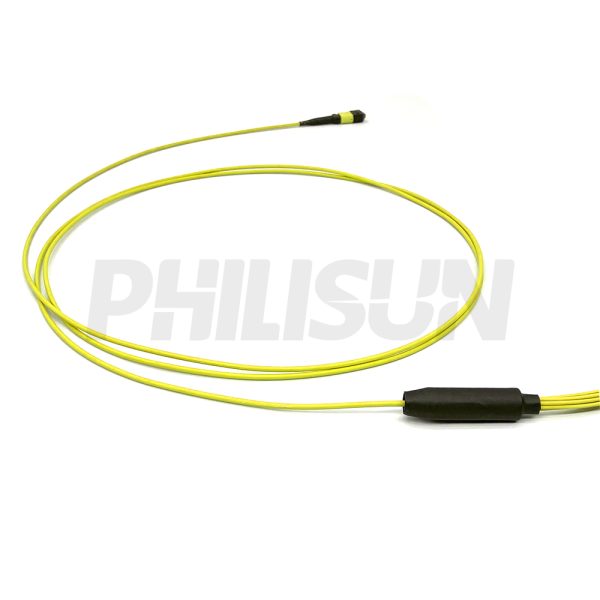

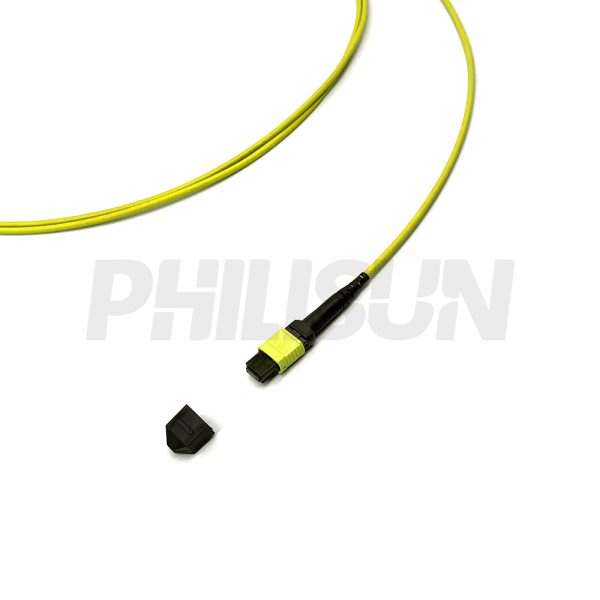

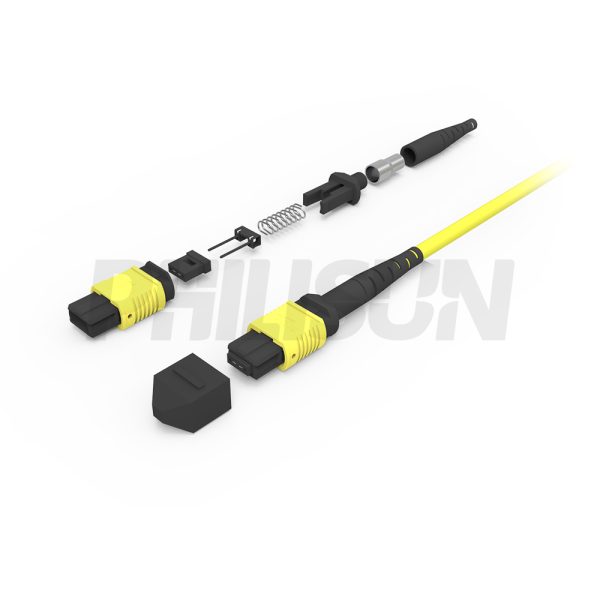

DETAIL DISPLAY
