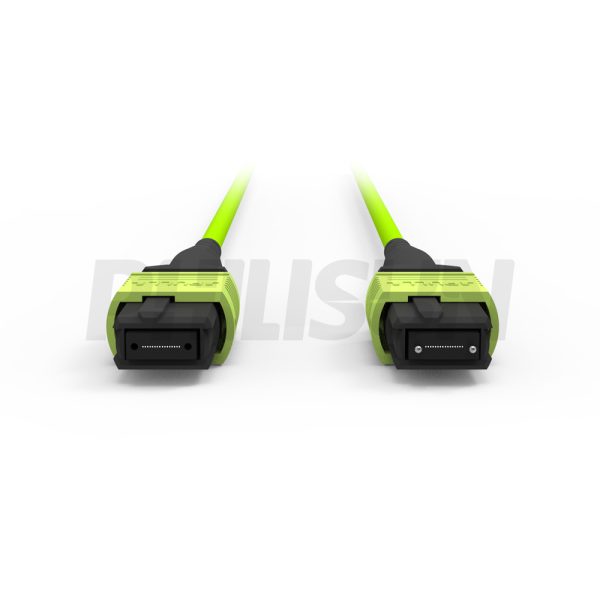

MPO Breakout Cable, MPO-16 PC/APC(Female/Male) to 2 x MPO-8 PC/APC(Female/Male), 16 Fibers, Multimode(OM4),0.35dB Max, Lime Green
InfiniBand 400G QSFP-DD / QSFP-DD / OSFP to 2*200GQSFP56或QSFP56
（UP to 150M）
- High Quality
- Factory Outlet
- Satisfaction Guarantee
- Global Shipping
| SPECIFICATIONS | |||
|---|---|---|---|
| Connector A | MPO | Connector B | 2*MPO |
| Fiber type | OM5 | Fiber number | 16 Fibers |
| MPO IL | Standard loss/low loss | Polishing | PC or APC |
| Branching type | 1*2 | Connector boot type | Round fiber |
| Connctor type | Female/Male | RL | ≥20dB (MM) |
| IL(Typical) | 0.1/0.2dB | IL(Max. value) | 0.35/0.6dB |
| Breakout outside diameter (OD) | 2.0/3.0mm | Cable color | Lime green |
| Breakout length | 0.3-1.5m | Flame retardant grade | OFN/OFNR/OFNP |
| Cable material | LSZH/PVC/TPU | Fiber loss | 2.4dB@850nm/0.6dB@1300nm |
| Fiber brand | Corning/YOFC | Min.bending radius(long term) | 20D |
| Working wavelength | 850/1300(MM) | Durability | ≥500 times |
| Min.bending radius(short term) | 10D | Polarity | Consistent with the main cable |
| Operating temperature | -10 to 70℃ (14 to 158℉) | Storage temperature | -40 to 85℃ (-40 to 185℉) |
PRODUCT PRESENTATION

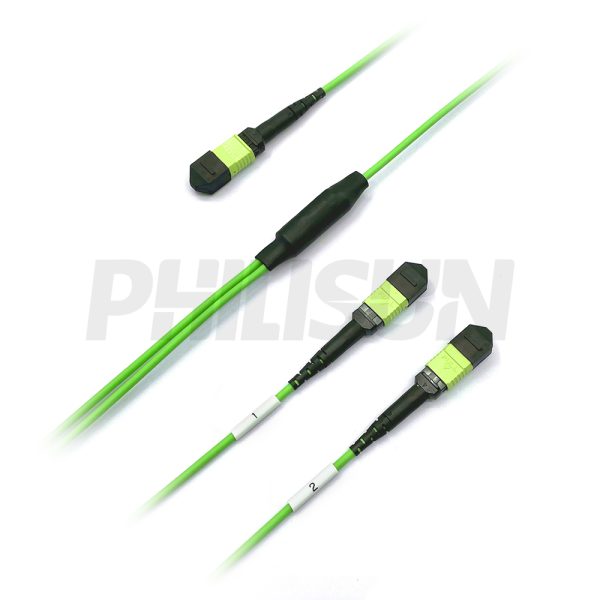

This 16-Fiber MPO-16 to 2 x MPO-8 OM5 Multimode Breakout Cable is the most future-proof component for long-haul Multimode breakout applications (up to 150 meters). Utilizing Wide-Band Multimode Fiber, it allows the seamless fan-out from 400G QSFP-DD / OSFP transceivers into two high-capacity 200G QSFP56 links. This specialized 16-fiber assembly ensures maximum signal integrity and reach, enabling effortless scaling of your high-density fabric with guaranteed Elite Low Loss (IL Max ≤ 0.35dB) performance.
MPO Breakouts SERIES PRODUCTS
Production & Testing Equipment
PERFORMANCE PARAMETER
| Technical Performance | |||
|---|---|---|---|
| Ferrule type | Insertion loss | Return loss | |
| Typical | Maximum | ||
| SM standard loss | 0.20dB | ≤0.75dB | ≥ 60dB （APC 8°） |
| SM low loss | 0.10dB | ≤0.35dB | |
| MM standard loss | 0.20dB | ≤0.6dB | ≥ 20dB |
| MM low loss | 0.10dB | ≤0.35dB | |
| MT Ferrule Options | ||||||
|---|---|---|---|---|---|---|
| Fiber mode | Performance | Fiber count | ||||
| Single mode | Standard loss | 12 (1x12) | ||||
| 24 (2x12) | ||||||
| Low loss | 12 (1x12) | |||||
| Multimode | Standard loss | 12 (1x12) | ||||
| 16 (1x16) | ||||||
| 24 (2x12) | ||||||
| 32 (2x16) | ||||||
| Low loss | 12 (1x12) | |||||
| 24 (2x12) | ||||||

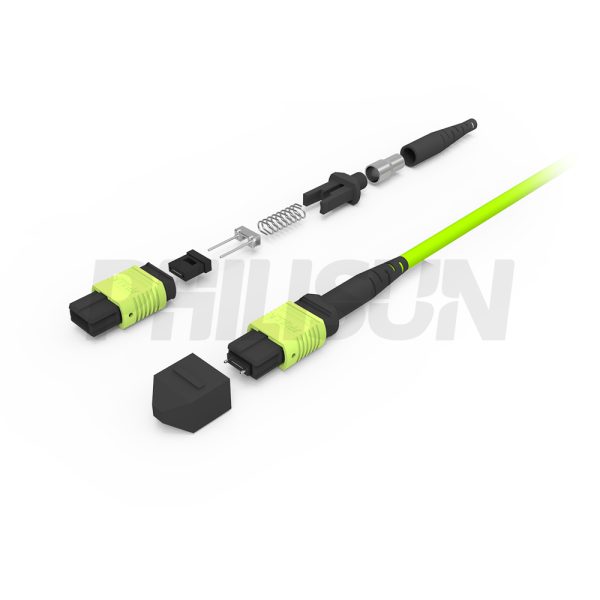

DETAIL DISPLAY
FIBER OPTIC CABLE STRUCTURE & PARAMETER
| Cable Parameter | ||||||||
|---|---|---|---|---|---|---|---|---|
| Items | Specifications | |||||||
| Fiber Count | 2 | 4 | 6 | 8 | 12 | 24 | ||
| Fiber | Diameter | 250±15μm | ||||||
| Color | Blue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua | |||||||
| Strength Member | Aramid Yarn | |||||||
| Outer Jacket | Diameter | 3.0±0.2mm | ||||||
| Material | PVC /LSZH | |||||||
| Color | Blue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua | |||||||
| Mechanical Performance | ||||||||
|---|---|---|---|---|---|---|---|---|
| Items | Specifications | |||||||
| Fiber Count | 2 | 4 | 6 | 8 | 12 | 24 | ||
| Tensile Strength (Long Term) / N | 80 | |||||||
| Tensile Strength (Short Term)/ N | 150 | |||||||
| Crush Resistance (Long Term) / N/10cm | 150 | 100 | ||||||
| Crush Resistance (Long Term) / N/10cm | 500 | |||||||
| Min. Bend Radius (Dynamic) / mm | 20D | |||||||
| Min. Bend Radius (Static)/ mm | 10D | |||||||
| Operating Temperature/℃ | -20～+60 | |||||||
| Storage Temperature/℃ | -20～+60 | |||||||
FIBER PARAMETER
| SM Fiber Parameter | ||||||||
|---|---|---|---|---|---|---|---|---|
| Items | Unit | G.652D | G.657A1 | G.657A2 | ||||
| Mode Field Diameter | 1310nm | μm | 9.1±0.4 | 8.8±0.4 | 8.8±0.4 | |||
| 1550nm | μm | 10.4±0.5 | 9.8±0.5 | 9.8±0.5 | ||||
| Cladding Diameter | μm | 125±1 | 125±0.7 | 125±0.7 | ||||
| Cladding Non-Circularity | % | ≤1 | ≤0.7 | ≤0.7 | ||||
| Core-Cladding Concentricity Error | μm | ≤0.6 | ≤0.5 | ≤0.5 | ||||
| Coating Diameter | μm | 245±7 | 245±5 | 245±5 | ||||
| Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ||||
| Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 | ||||
| Cable Cutoff Wavelength | nm | λcc≤1260 | λcc≤1260 | λcc≤1260 | ||||
| Cable Attenuation Coefficient | 1310nm | dB/km | ≤0.4 | ≤0.4 | ≤0.4 | |||
| 1550nm | dB/km | ≤0.3 | ≤0.3 | ≤0.3 | ||||
| MM Fiber Parameter | ||||||||
|---|---|---|---|---|---|---|---|---|
| Items | unit | 62.5/125 | 50/125 | OM3-150 | OM3-300 | OM4 | ||
| Core Diameter | μm | 62.5±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | ||
| Cladding Diameter | μm | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | ||
| Core Non-Circularity | % | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ||
| Cladding Non-Circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ||
| Core-Cladding Concentricity Error | μm | ≤1.5 | ≤1.5 | ≤1.0 | ≤1.0 | ≤1.0 | ||
| Coating Diameter | μm | 245±7 | 245±7 | 245±7 | 245±7 | 245±7 | ||
| Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ||
| Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ||
| OFL Bandwidth | 850nm | MHz·km | ≥160 | ≥500 | ≥700 | ≥1500 | ≥3500 | |
| 1300nm | MHz·km | ≥500 | ≥500 | ≥500 | ≥500 | ≥500 | ||
| Cable Attenuation Coefficient | 850nm | dB/km | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | |
| 1300nm | dB/km | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ||
Product Certification
Quality Advantage
CONFIGURATION INFORMATION
