MPO Breakout Cable, MPO-16 APC(Female/Male) to 2 x MPO-8 APC(Female/Male), 16 Fibers, Singlemode(OS2),0.35dB Max, Yellow

InfiniBand 800G QSFP-DD to 2*400G QSFP-DD

Category: Brand:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Connector AMPOConnector B2*MPO
Fiber typeG657A1Fiber number16 Fibers
MPO ILStandard loss/low lossPolishingAPC
Branching type1*2Connector boot typeRound fiber
Connctor typeFemale/MaleRL≥60dB (SM)
IL(Typical)0.1/0.2dBIL(Max. value)0.35/0.6dB
Breakout outside diameter (OD)2.0/3.0mmCable colorYellow
Breakout length0.3-1.5mFlame retardant gradeOFN/OFNR/OFNP
Cable materialLSZH/PVC/TPUFiber loss0.35db@1310nm/0.2dB@1550nm
Fiber brandCorning/YOFCMin.bending radius(long term)20D
Working wavelength1310/1550(SM) Durability≥500 times
Min.bending radius(short term)10DPolarityConsistent with the main cable
Operating temperature-10 to 70℃ (14 to 158℉)Storage temperature-40 to 85℃ (-40 to 185℉)



PRODUCT PRESENTATION

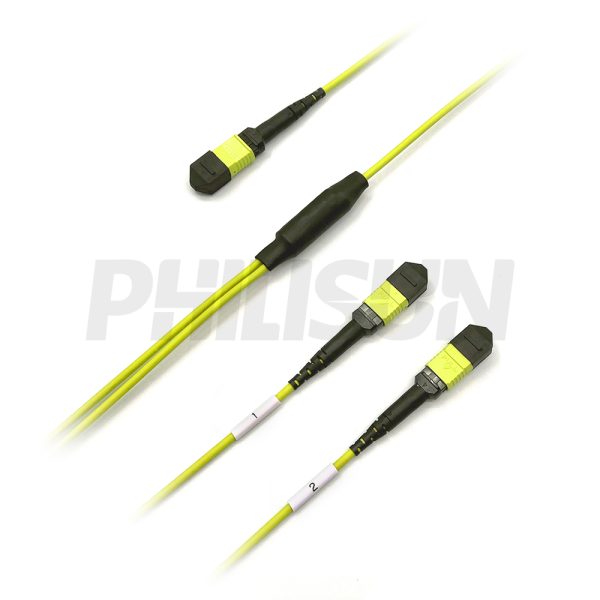

This 16-Fiber MPO-16 to 2 x MPO-8 OS2 Singlemode Breakout Cable is the high-density component for next-generation network spine and leaf architectures. It specializes in enabling the critical fan-out from an 800G InfiniBand QSFP-DD system into two dedicated 400G QSFP-DD links, maximizing the utility of 16-fiber Singlemode optics. This pre-terminated assembly is essential for simplifying complex cabling in core network areas while guaranteeing superior Elite Low Loss (IL Max ≤ 0.35dB) performance for reliable, long-distance transmission.



MPO Breakouts SERIES PRODUCTS



PRODUCTION & TESTING EQUIPMENT



PERFORMANCE PARAMETER
Technical Performance
Ferrule typeInsertion lossReturn loss
TypicalMaximum
SM standard loss0.20dB≤0.75dB≥ 60dB （APC 8°）
SM low loss0.10dB≤0.35dB
MM standard loss0.20dB≤0.6dB≥ 20dB
MM low loss0.10dB≤0.35dB
MT Ferrule Options
Fiber modePerformanceFiber count
Single modeStandard loss12 (1x12)
24 (2x12)
Low loss12 (1x12)
MultimodeStandard loss12 (1x12)
16 (1x16)
24 (2x12)
32 (2x16)
Low loss12 (1x12)
24 (2x12)

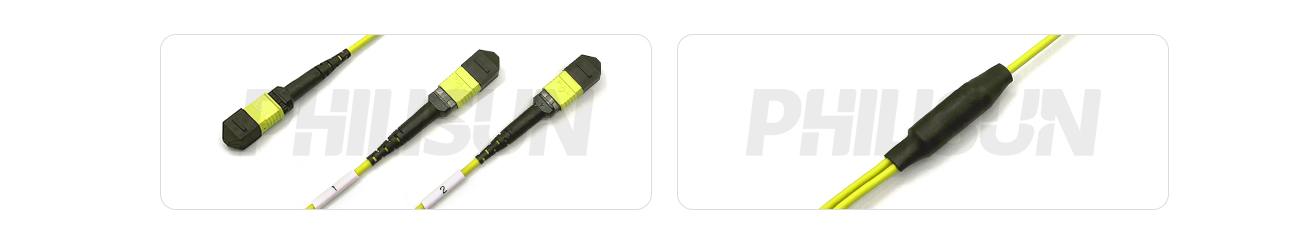

DETAIL DISPLAY



FIBER OPTIC CABLE STRUCTURE & PARAMETER
Cable Parameter
ItemsSpecifications
Fiber Count24681224
FiberDiameter250±15μm
ColorBlue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua
Strength MemberAramid Yarn
Outer JacketDiameter3.0±0.2mm
MaterialPVC /LSZH
ColorBlue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua
Mechanical Performance
ItemsSpecifications
Fiber Count24681224
Tensile Strength (Long Term) / N80
Tensile Strength (Short Term)/ N150
Crush Resistance (Long Term) / N/10cm150100
Crush Resistance (Long Term) / N/10cm500
Min. Bend Radius (Dynamic) / mm20D
Min. Bend Radius (Static)/ mm10D
Operating Temperature/℃-20～+60
Storage Temperature/℃-20～+60



FIBER PARAMETER
SM Fiber Parameter
ItemsUnitG.652DG.657A1G.657A2
Mode Field Diameter1310nmμm9.1±0.48.8±0.48.8±0.4
1550nmμm10.4±0.59.8±0.59.8±0.5
Cladding Diameterμm125±1125±0.7125±0.7
Cladding Non-Circularity%≤1≤0.7≤0.7
Core-Cladding Concentricity Errorμm≤0.6≤0.5≤0.5
Coating Diameterμm245±7245±5245±5
Coating Non-Circularity%≤6.0≤6.0≤6.0
Cladding-Coating Concentricity Errorμm≤12.0≤12.0≤12.0
Cable Cutoff Wavelengthnmλcc≤1260λcc≤1260λcc≤1260
Cable Attenuation Coefficient1310nmdB/km≤0.4≤0.4≤0.4
1550nmdB/km≤0.3≤0.3≤0.3
MM Fiber Parameter
Itemsunit62.5/12550/125OM3-150OM3-300OM4
Core Diameterμm62.5±2.550±2.550±2.550±2.550±2.5
Cladding Diameterμm125±1.0125±1.0125±1.0125±1.0125±1.0
Core Non-Circularity%≤5.0≤5.0≤5.0≤5.0≤5.0
Cladding Non-Circularity%≤1.0≤1.0≤1.0≤1.0≤1.0
Core-Cladding Concentricity Errorμm≤1.5≤1.5≤1.0≤1.0≤1.0
Coating Diameterμm245±7245±7245±7245±7245±7
Coating Non-Circularity%≤6.0≤6.0≤6.0≤6.0≤6.0
Cladding-Coating Concentricity Errorμm≤12.0≤12.0≤12.0≤12.0≤12.0
OFL Bandwidth850nmMHz·km≥160≥500≥700≥1500≥3500
1300nmMHz·km≥500≥500≥500≥500≥500
Cable Attenuation Coefficient850nmdB/km≤3.0≤3.0≤3.0≤3.0≤3.0
1300nmdB/km≤1.0≤1.0≤1.0≤1.0≤1.0
