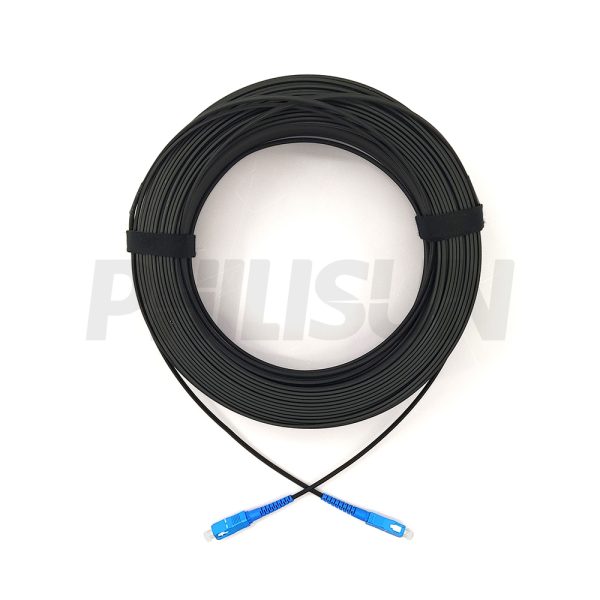

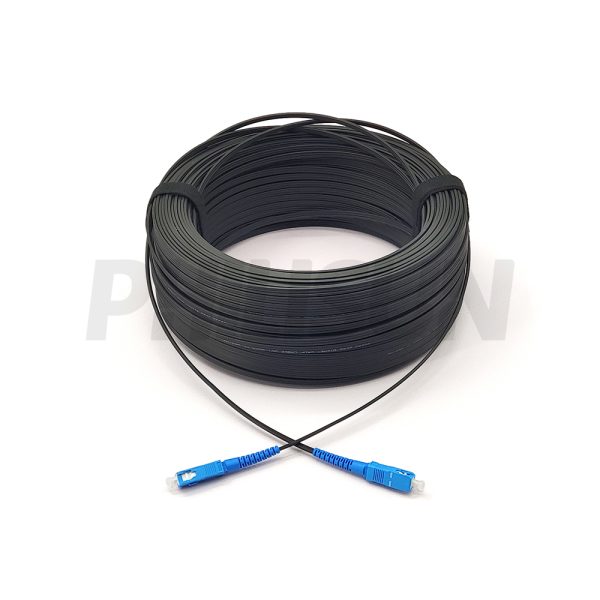

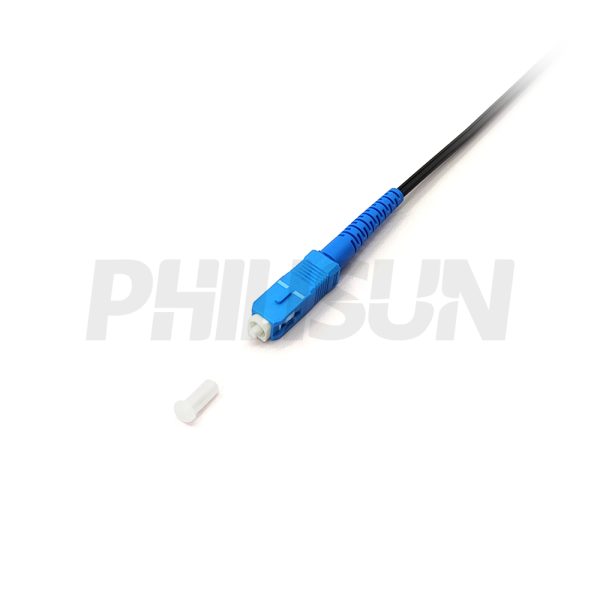

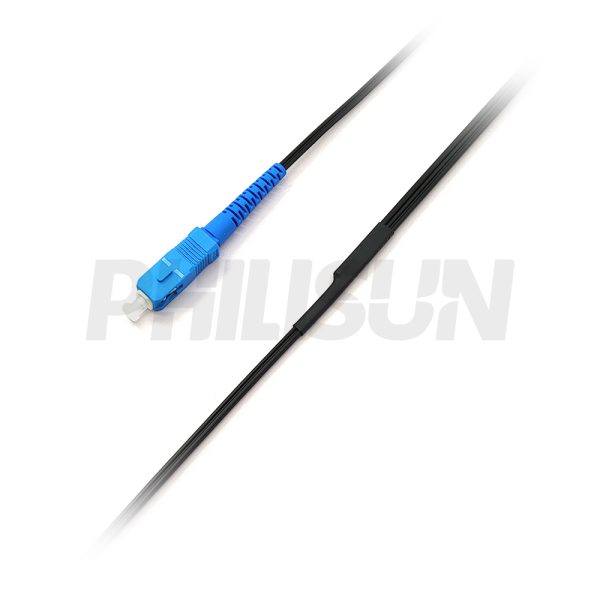

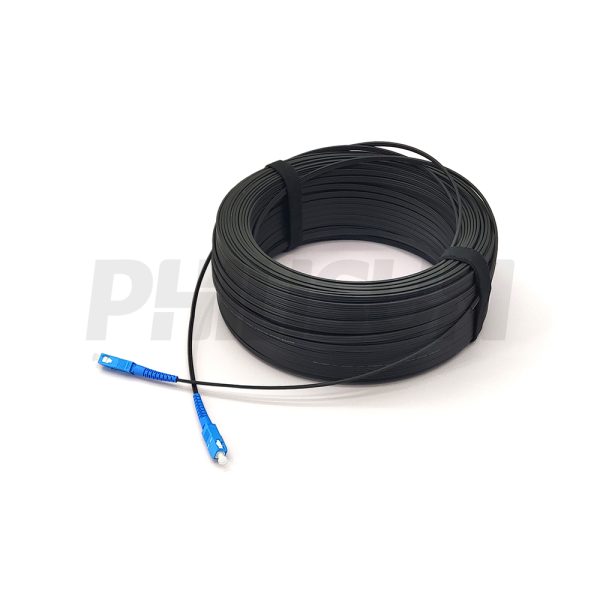

2.0×3.0mm/2.0×5.0mm, Indoor Butterfly Flat FTTH Drop Cable, 1 Fiber, Black/White
FTTH
Bending-resistant optical fiber
- High Quality
- Factory Outlet
- Satisfaction Guarantee
- Global Shipping
| SPECIFICATIONS | |||
|---|---|---|---|
| Connector Type | LC/SC/FC/ST/E2000 | Fiber Count | 1 |
| Connector Color | Blue/Green/Black/Beige | Fiber Count | Black/White |
| Strength Membe Material | FRP/Steel Wire | Fiber Type | SM OS2/OM3/OM4/OM5 |
| Laying Method | Indoor or Oudoor self-supporting | Polish Type | UPC or APC |
| Cable Size | 2.0*3.0mm/2.0*5.0mm(Self-Supporting) | Internal Structure | Bare fiber/Internal structure/Armored |
| IL | ≤0.3dB | RL | ≥50dB(UPC)≥60dB(APC) |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Flame Retardant Grade | OFN/OFNR/OFNP | Working Wavelength | 1310/1550 |
| Fiber Loss | 0.35db@1310nm/0.2dB@1550nm | Durability | ≥500 times |
| Jacket Material | LSZH/PE | Min. Bend Radius(Static) | 30mm |
| Fiber Brand | Corning/YOFC | Min. Bend Radius (Dynamic) | 60mm |
| Operating Temperature | -20 to 60℃ (-4 to 140℉) | Storage Temperature | -20 to 60℃ (-4 to 140℉) |
PRODUCT PRESENTATION
This 1-Fiber Butterfly Flat FTTH Drop Cable is an essential solution for last-mile connections in FTTH networks. It is specifically designed with Bending-resistant optical fiber to minimize attenuation when routed around tight corners, supporting a minimum static bend radius of 30mm and dynamic bend radius of 60mm. Its robust design ensures reliable, single-fiber service, maintaining an ultra-low Insertion Loss of maximum 0.3dB for quick indoor or outdoor self-supporting installation.
PATCH CORD SERIES PRODUCTS

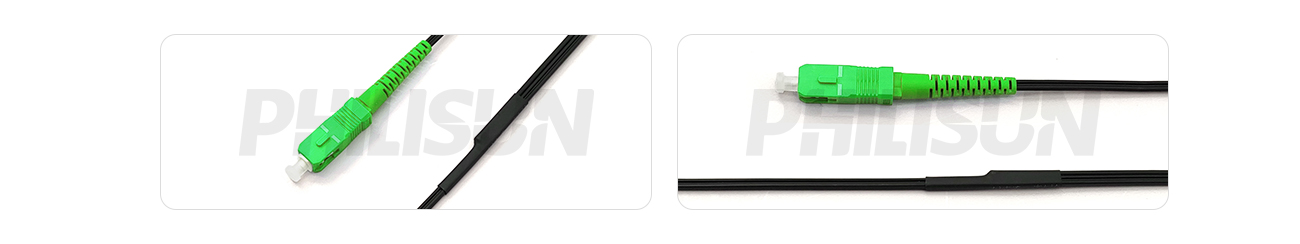

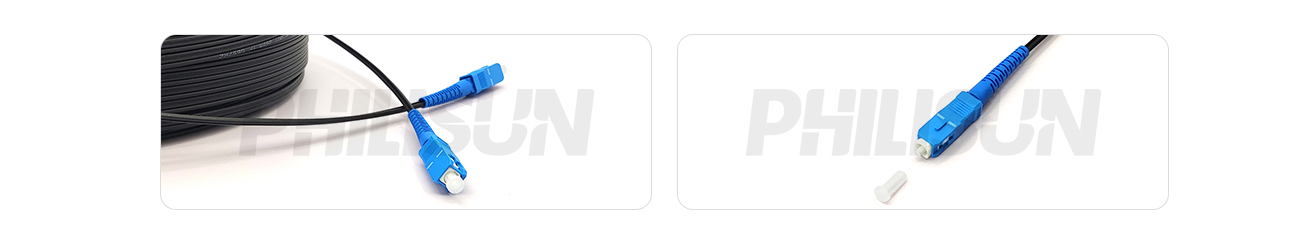

SC CONNECTOR

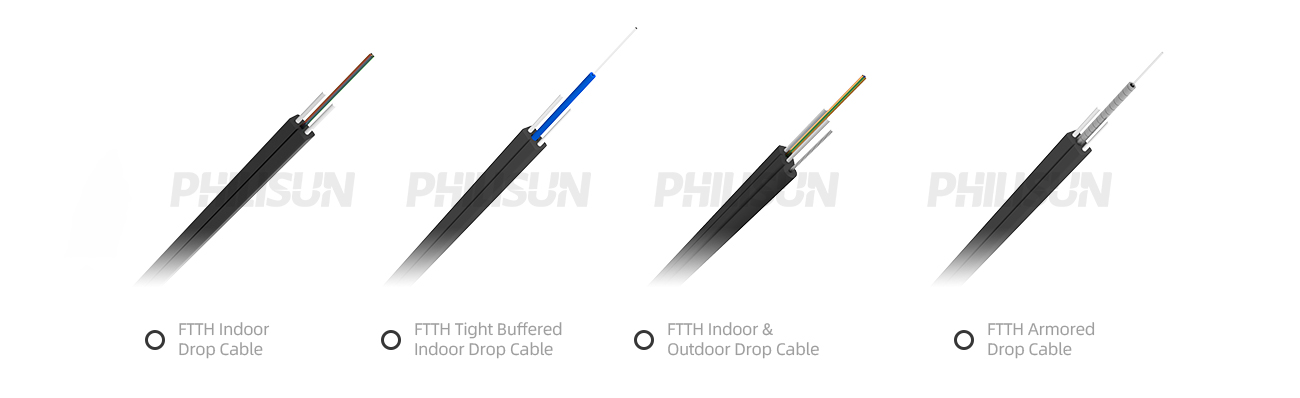

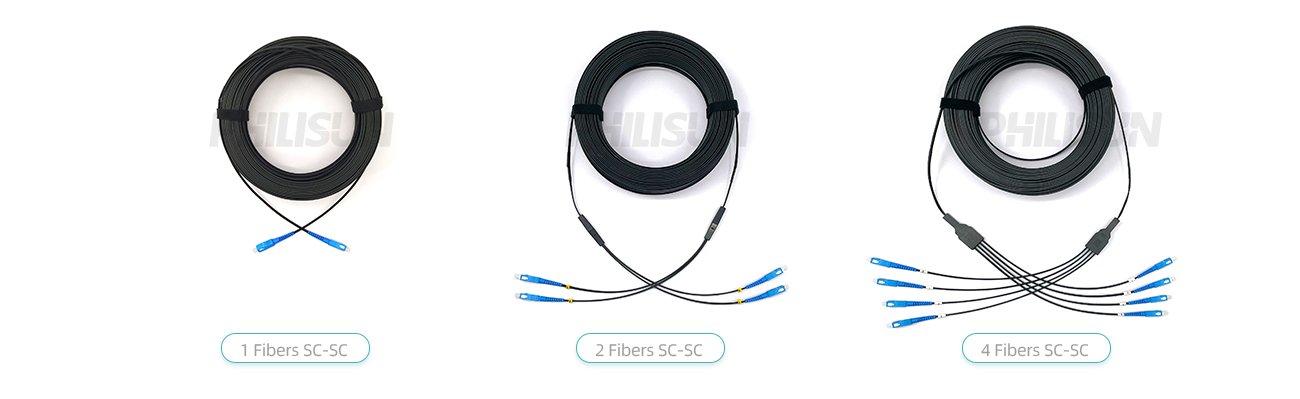

FIBER OPTIC CABLE TYPE

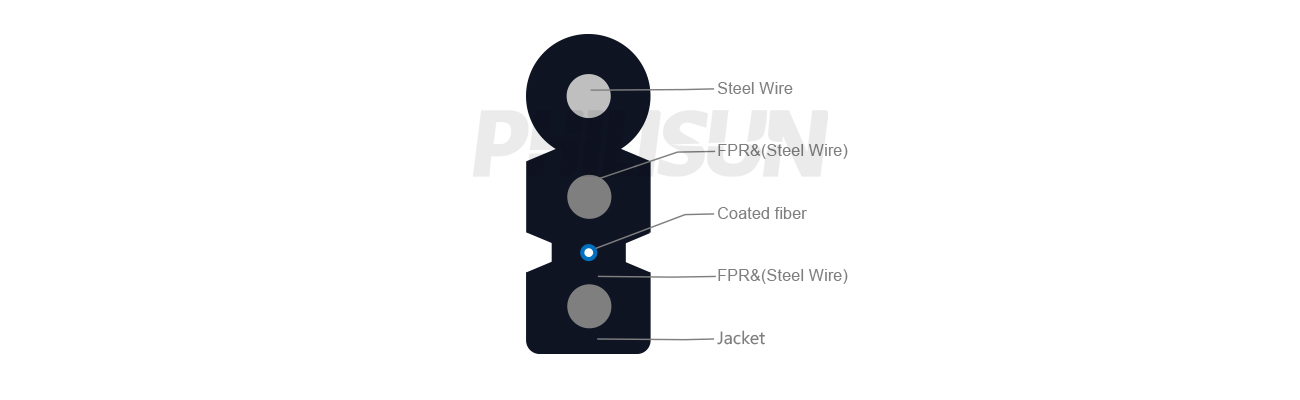

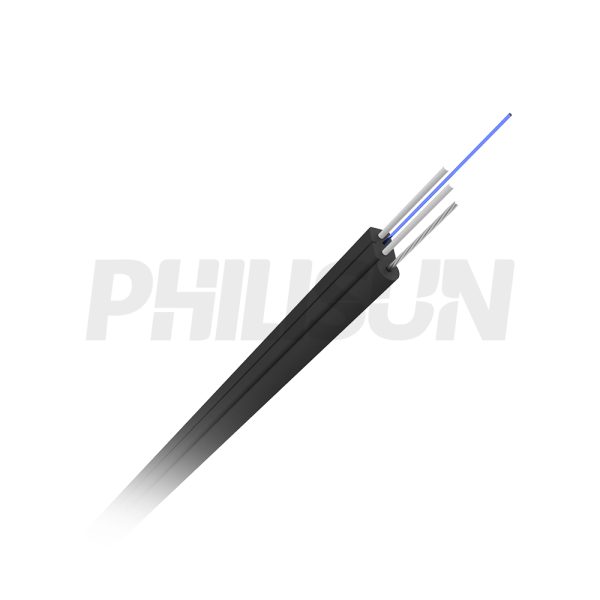

FIBER OPTIC CABLE STRUCTURE & PARAMETER
| Cable Parameter | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Items | Parameters | ||||||||
| Fiber Count | 1 | 2 | 4 | ||||||
| Fiber | Diameter | 0.25±0.015mm | |||||||
| Color | Blue | Blue/Orange | Blue/Orange/Green/Brown | ||||||
| Strength member | FRP/steel wire + steel wire | ||||||||
| Outer Sheath | Diameter | (2.0±0.1) × (5.1±0.2) mm | |||||||
| Material | LSZH | ||||||||
| Color | Black | ||||||||
| Mechanical Performance | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Items | Unit | Parameters | |||||||
| Tensile Strength (Long Term) | N | 300 | |||||||
| Tensile Strength (Short Term) | N | 600 | |||||||
| Crush Resistance (Long Term) | N/10cm | 1000 | |||||||
| Crush Resistance (Short Term) | N/10cm | 2200 | |||||||
| Bending Radius (Dynamic) | mm | 60 | |||||||
| Bending Radius (Static) | mm | 30 | |||||||
| Operating Temperature | ℃ | -20 ~ +60 | |||||||
| Storage Temperature | ℃ | -20 ~ +60 | |||||||
FIBER PARAMETER
| SM Fiber Parameter | ||||||||
|---|---|---|---|---|---|---|---|---|
| Items | Unit | G.652D | G.657A1 | G.657A2 | ||||
| Mode Field Diameter | 1310nm | μm | 9.1±0.4 | 8.8±0.4 | 8.8±0.4 | |||
| 1550nm | μm | 10.4±0.5 | 9.8±0.5 | 9.8±0.5 | ||||
| Cladding Diameter | μm | 125±1 | 125±0.7 | 125±0.7 | ||||
| Cladding Non-Circularity | % | ≤1 | ≤0.7 | ≤0.7 | ||||
| Core-Cladding Concentricity Error | μm | ≤0.6 | ≤0.5 | ≤0.5 | ||||
| Coating Diameter | μm | 245±7 | 245±5 | 245±5 | ||||
| Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ||||
| Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 | ||||
| Cable Cutoff Wavelength | nm | λcc≤1260 | λcc≤1260 | λcc≤1260 | ||||
| Cable Attenuation Coefficient | 1310nm | dB/km | ≤0.4 | ≤0.4 | ≤0.4 | |||
| 1550nm | dB/km | ≤0.3 | ≤0.3 | ≤0.3 | ||||
| MM Fiber Parameter | ||||||||
|---|---|---|---|---|---|---|---|---|
| Items | unit | 62.5/125 | 50/125 | OM3-150 | OM3-300 | OM4 | ||
| Core Diameter | μm | 62.5±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | ||
| Cladding Diameter | μm | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | ||
| Core Non-Circularity | % | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ||
| Cladding Non-Circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ||
| Core-Cladding Concentricity Error | μm | ≤1.5 | ≤1.5 | ≤1.0 | ≤1.0 | ≤1.0 | ||
| Coating Diameter | μm | 245±7 | 245±7 | 245±7 | 245±7 | 245±7 | ||
| Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ||
| Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ||
| OFL Bandwidth | 850nm | MHz·km | ≥160 | ≥500 | ≥700 | ≥1500 | ≥3500 | |
| 1300nm | MHz·km | ≥500 | ≥500 | ≥500 | ≥500 | ≥500 | ||
| Cable Attenuation Coefficient | 850nm | dB/km | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | |
| 1300nm | dB/km | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ||
