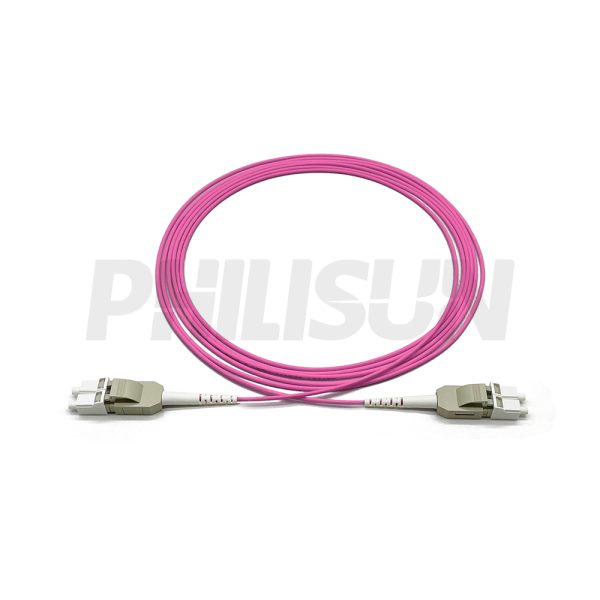

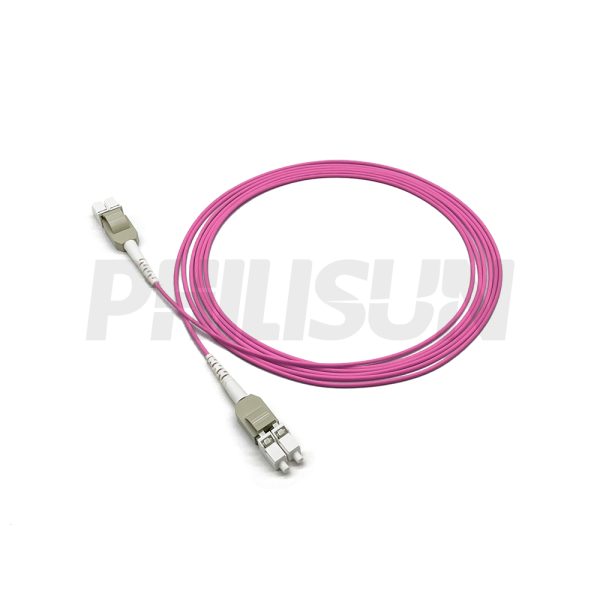

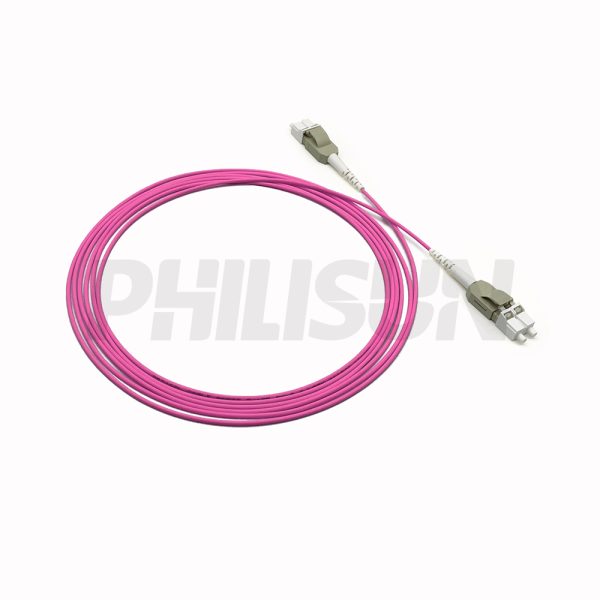

LC UPC Switchable Uniboot Duplex OM4 Patch Cable

SPECIFICATIONS
Connector A	LC UNIBOOT	Fiber Count	Duplex
Fiber Type	OM4	Polish Type	UPC
Ferrule Type	Grade A zirconia ceramic ferrule	IL	≤0.3dB
Connector Color	Aqua/Violet/Beige	RL	≥25dB(UPC）
Repeatability	≤0.2dB	Interchangeability	≤0.2dB
Function 1	UNIBOOT	Working Wavelength	850/1300(MM)
Function 2	Without Tab	Cable Color	Aqua/Violet
Function 3	Switchable	Flame Retardant Grade	OFN/OFNR/OFNP
Cable Material	PVC/LSZH/TPU or customized	Fiber Loss	2.4dB@850nm/0.6dB@1300nm
Fiber Brand	Corning/YOFC	Min.bending Radius(long term)	20D
Min.bending Radius(Short Term)	10D	Durability	≥500 times
Operating Temperature	-10 to 70℃ (14 to 158℉)	Storage Temperature	-40 to 85℃ (-40 to 185℉)

PRODUCT PRESENTATION

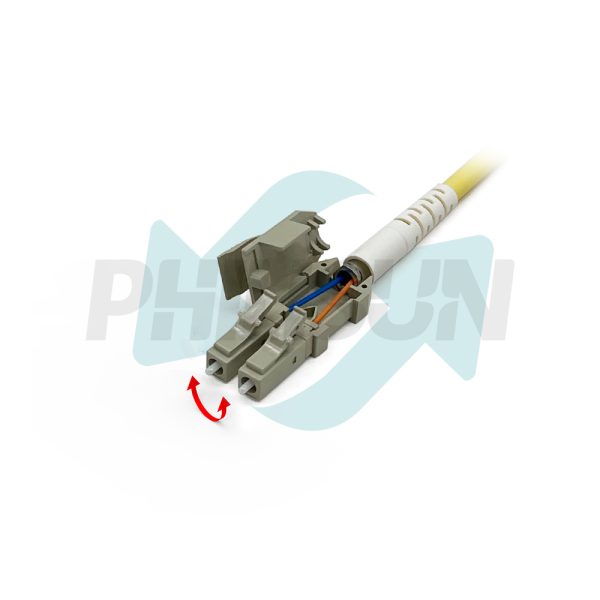

This LC Switchable Uniboot Cable is a high-performance interconnect for 40G/100G Multimode links, featuring the Switchable unique design that allows polarity to be reversed without having to re-terminate the connectors. The uniboot construction saves space, and the OM4 Multimode fiber is bend-insensitive to maintain low-loss performance (IL: ≤0.3dB) and superior signal integrity even under high stress.

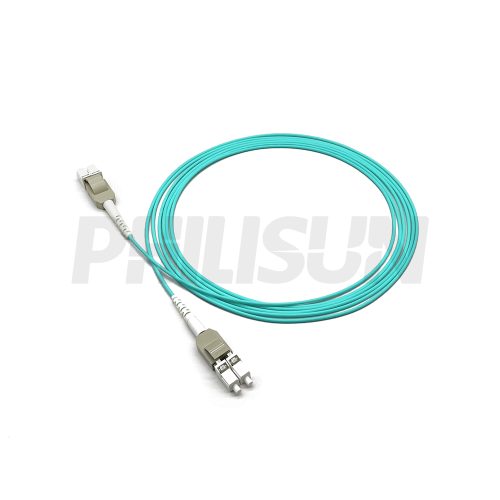

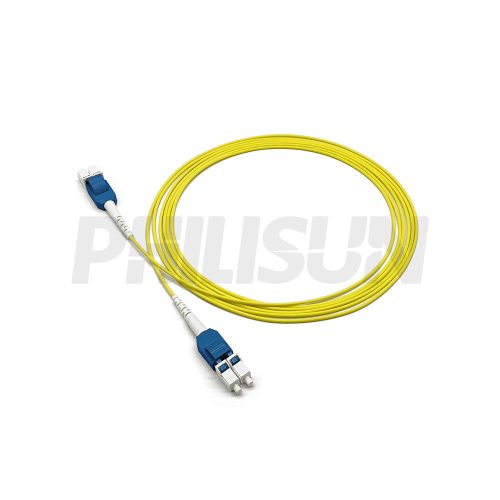

PATCH CORD SERIES PRODUCTS

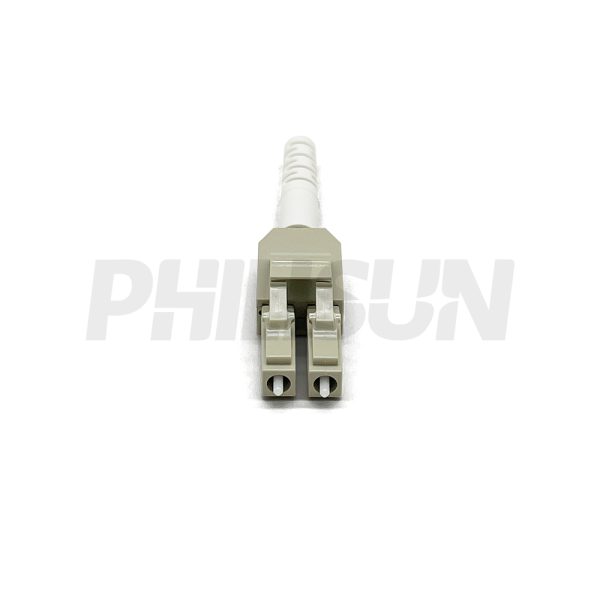

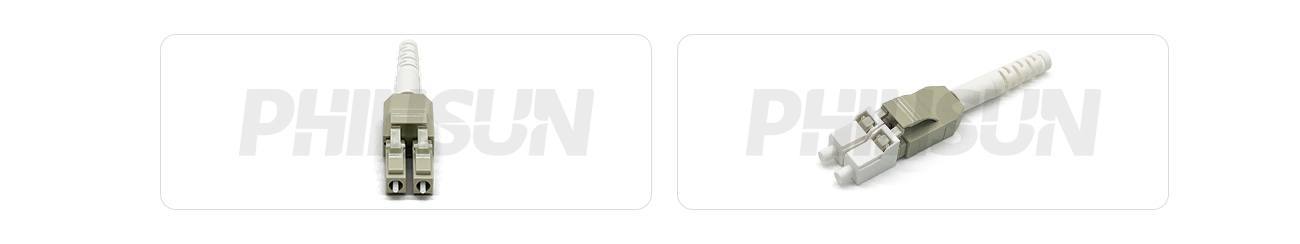

LC UNIBOOT CONNECTOR

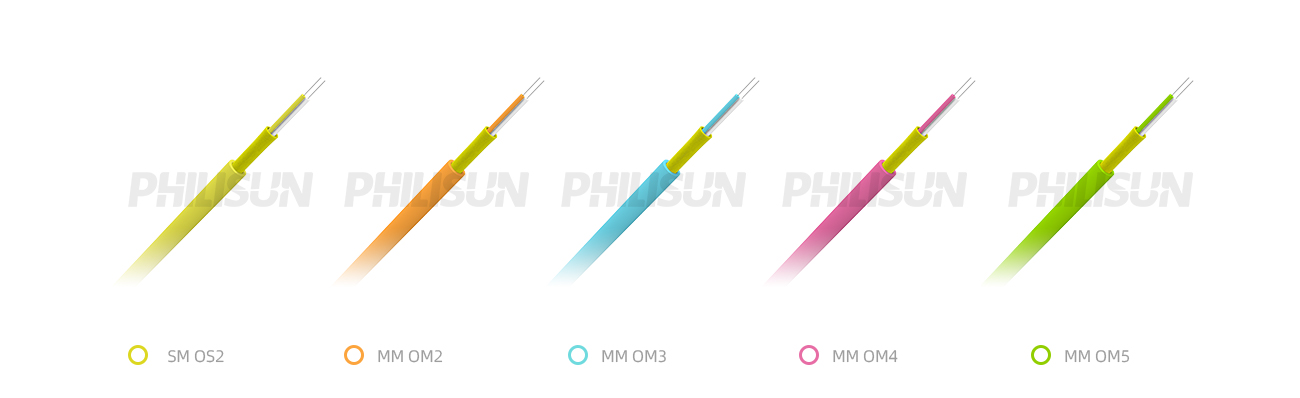

FIBER OPTIC CABLE TYPE

FIBER OPTIC CABLE STRUCTURE & PARAMETER

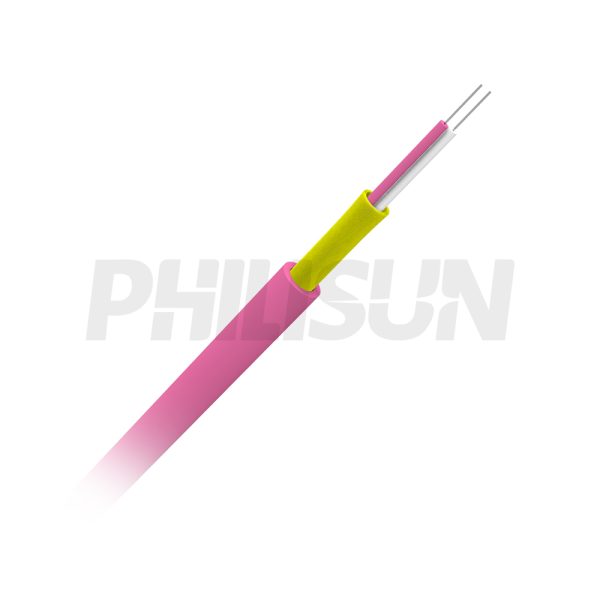

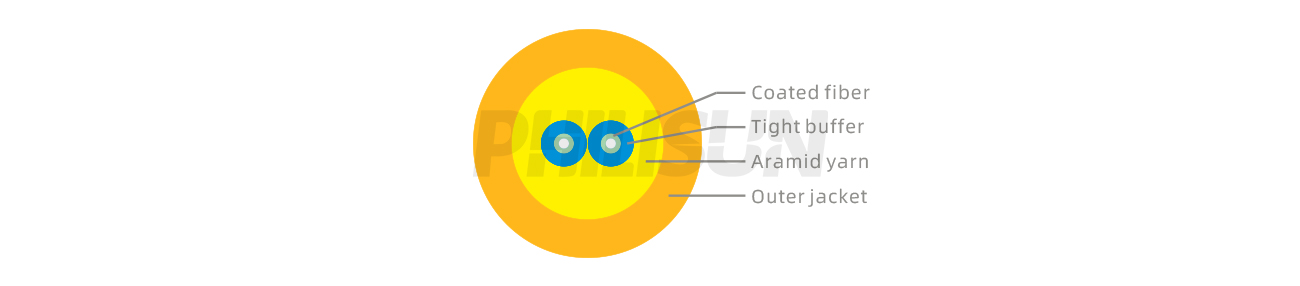

OM4 switchable LC uniboot cable structure diagram

Cable Parameter
Items		Specifications
Dimension		2.0mm	3.0mm
Fiber Count		2
Tight-buffered Fiber	Dimension	0.6±0.05mm
Tight-buffered Fiber	Material	PVC/LSZH
Jacket	Dimension	1.9±0.1mm	2.9±0.1mm
	Material	PVC/LSZH
	Color	Blue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua

Mechanical Performance
Items	Unit	Specifications
Tension（Long Term）	N	80
Tension（Short Term）	N	150
Crush（Long Term）	N/10cm	100
Crush（Short Term）	N/10cm	500
Min. Bend Radius（Dynamic）	mm	60
Min. Bend Radius（Static）	mm	30
Operating Temperature	℃	-20～+60
Storage Temperature	℃	-20～+60

FIBER PARAMETER

SM Fiber Parameter
Items		Unit	G.652D	G.657A1	G.657A2
Mode Field Diameter	1310nm	μm	9.1±0.4	8.8±0.4	8.8±0.4
Mode Field Diameter	1550nm	μm	10.4±0.5	9.8±0.5	9.8±0.5
Cladding Diameter		μm	125±1	125±0.7	125±0.7
Cladding Non-Circularity		%	≤1	≤0.7	≤0.7
Core-Cladding Concentricity Error		μm	≤0.6	≤0.5	≤0.5
Coating Diameter		μm	245±7	245±5	245±5
Coating Non-Circularity		%	≤6.0	≤6.0	≤6.0
Cladding-Coating Concentricity Error		μm	≤12.0	≤12.0	≤12.0
Cable Cutoff Wavelength		nm	λcc≤1260	λcc≤1260	λcc≤1260
Cable Attenuation Coefficient	1310nm	dB/km	≤0.4	≤0.4	≤0.4
Cable Attenuation Coefficient	1550nm	dB/km	≤0.3	≤0.3	≤0.3

MM Fiber Parameter
Items		unit	62.5/125	50/125	OM3-150	OM3-300	OM4
Core Diameter		μm	62.5±2.5	50±2.5	50±2.5	50±2.5	50±2.5
Cladding Diameter		μm	125±1.0	125±1.0	125±1.0	125±1.0	125±1.0
Core Non-Circularity		%	≤5.0	≤5.0	≤5.0	≤5.0	≤5.0
Cladding Non-Circularity		%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Core-Cladding Concentricity Error		μm	≤1.5	≤1.5	≤1.0	≤1.0	≤1.0
Coating Diameter		μm	245±7	245±7	245±7	245±7	245±7
Coating Non-Circularity		%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Cladding-Coating Concentricity Error		μm	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
OFL Bandwidth	850nm	MHz·km	≥160	≥500	≥700	≥1500	≥3500
OFL Bandwidth	1300nm	MHz·km	≥500	≥500	≥500	≥500	≥500
Cable Attenuation Coefficient	850nm	dB/km	≤3.0	≤3.0	≤3.0	≤3.0	≤3.0
Cable Attenuation Coefficient	1300nm	dB/km	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
