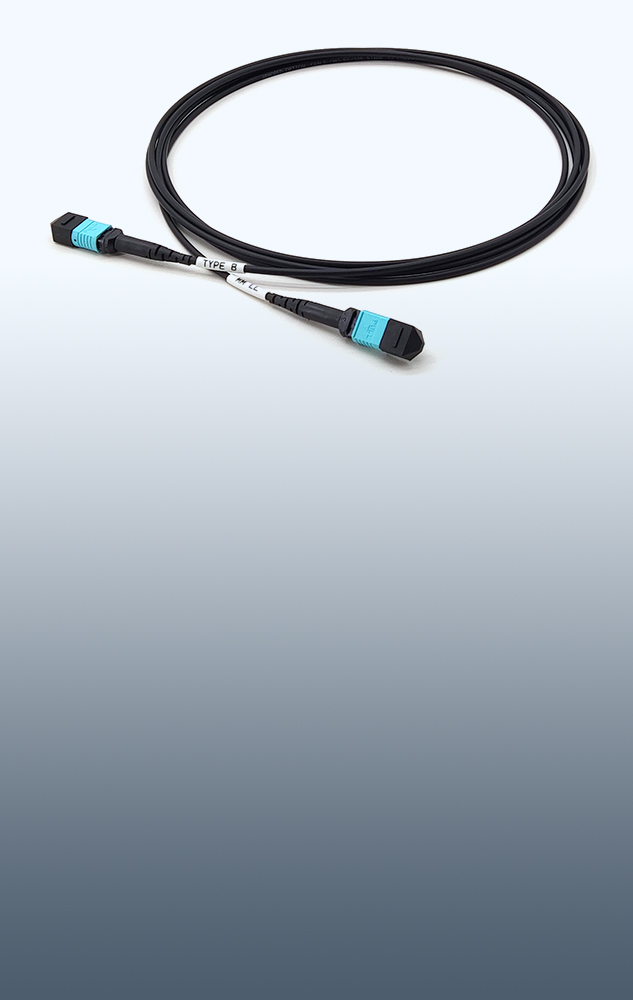

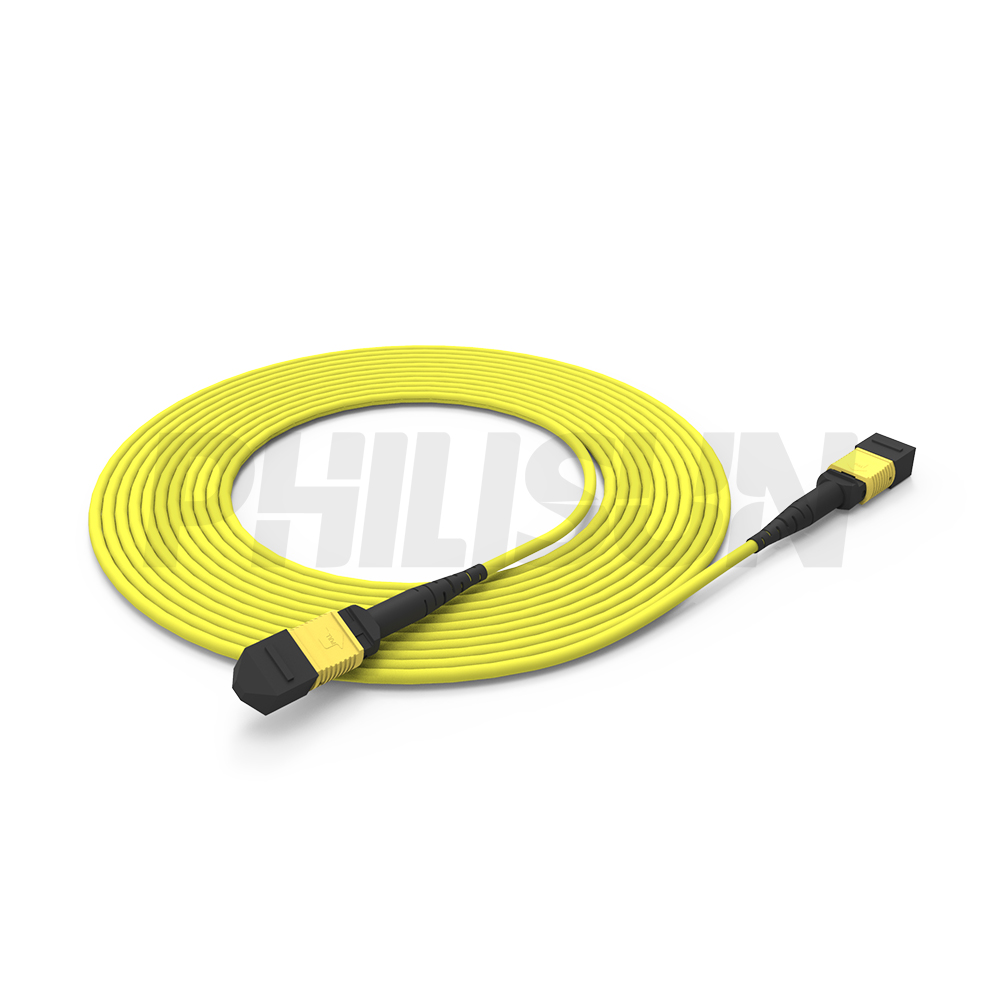

MPO Jumper
MPO-to-MPO patch cables for high-density fiber links. Choose fiber count, fiber type, polarity and connector gender.
MPO Armored Jumper
Armored MPO patch cables add crush protection for routed or exposed cabling. Match fiber type, polarity, jacket and length.

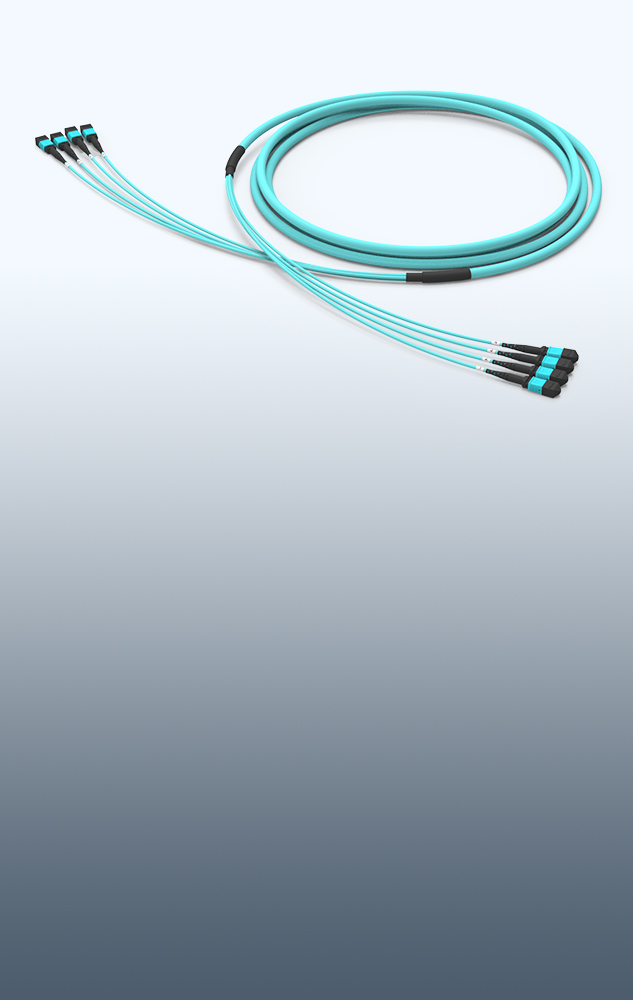

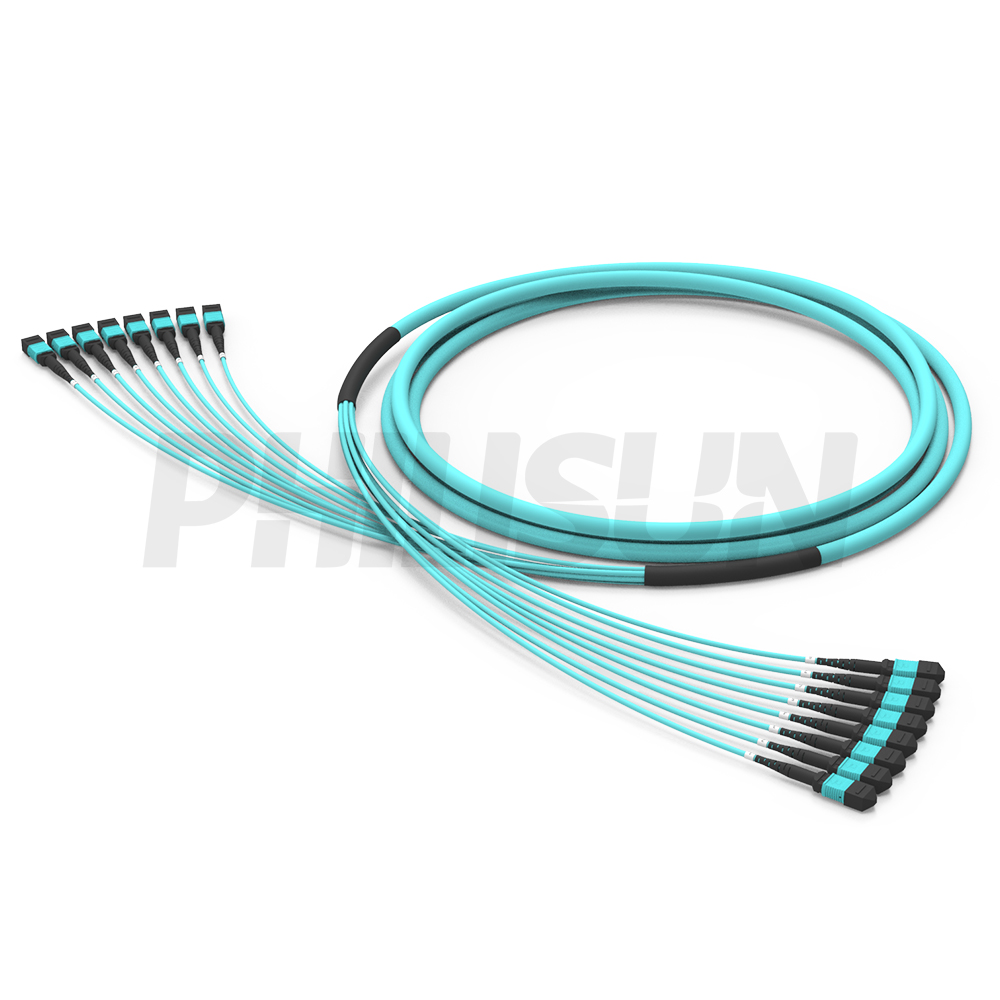

MPO Trunk Cable
High-fiber-count MPO trunk cables for backbone and data center links. Choose fiber count, polarity, length and cassette layout.

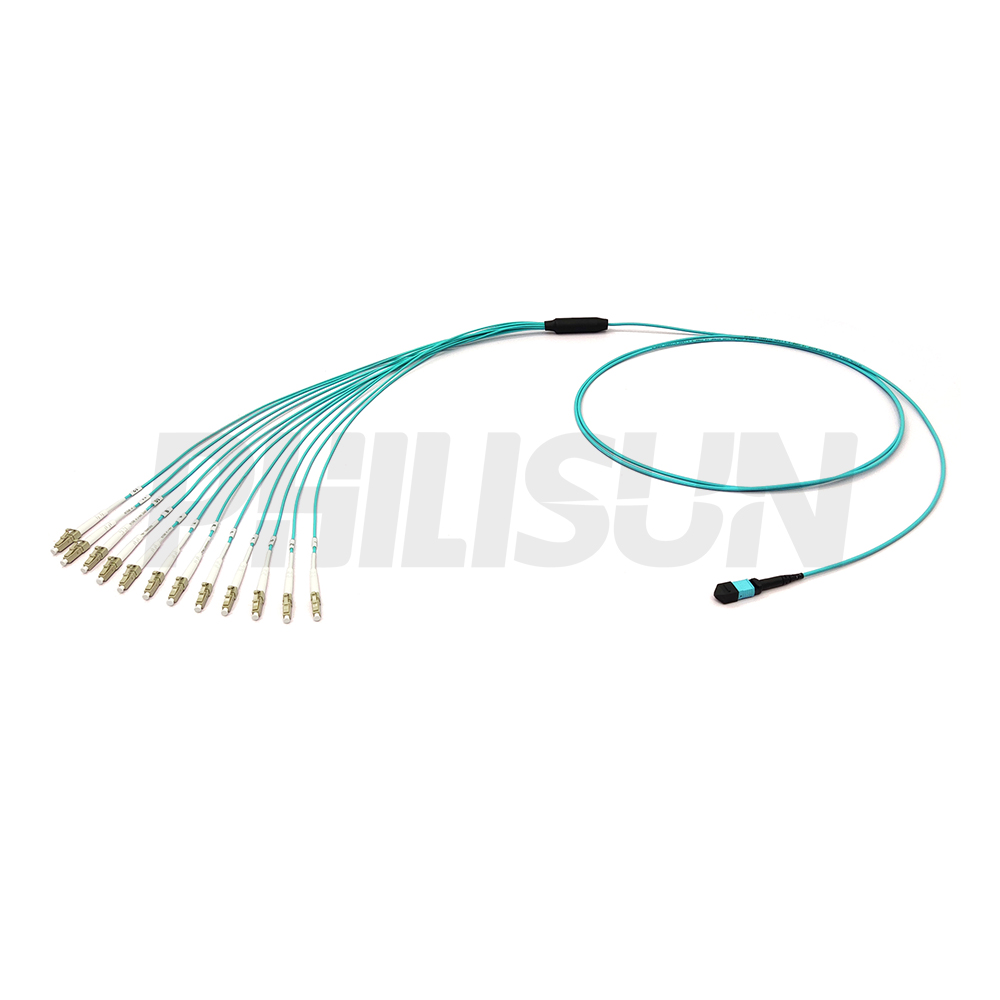

MPO Harness Cable
MPO-to-LC harness cables break out trunk links to equipment ports. Choose MPO fiber count, LC leg count and polarity.

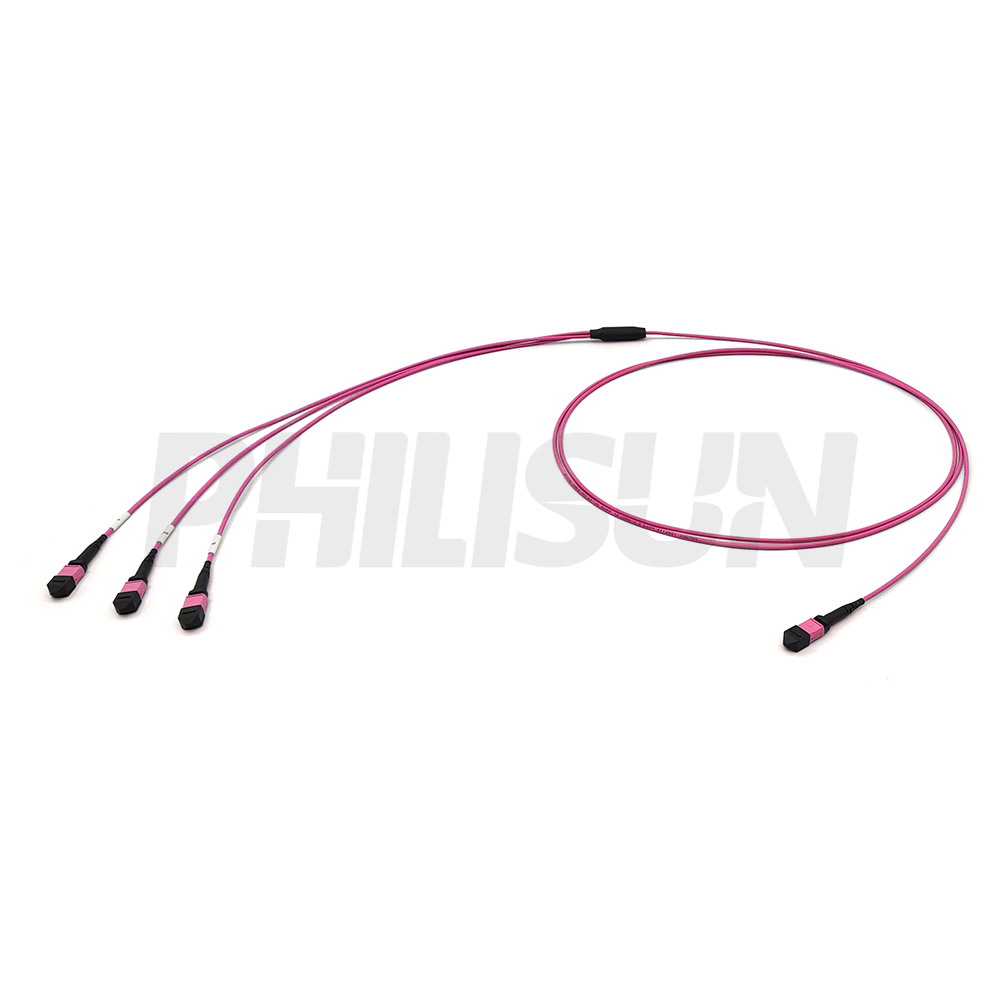

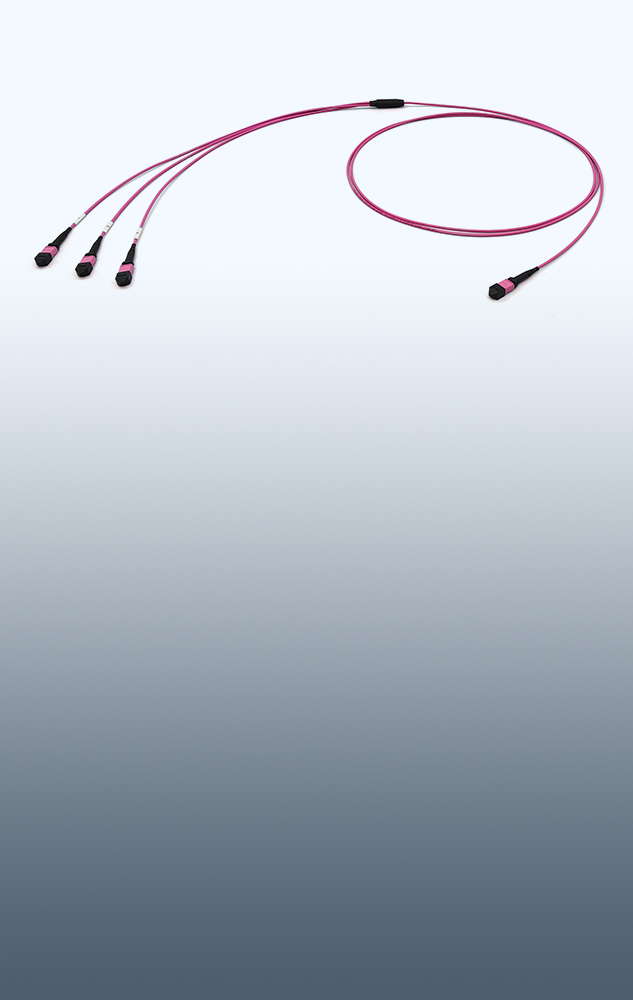

MPO Breakout Cable
MPO breakout cables split high-density links into smaller MPO groups. Match base-8/base-12 design and fiber mode.

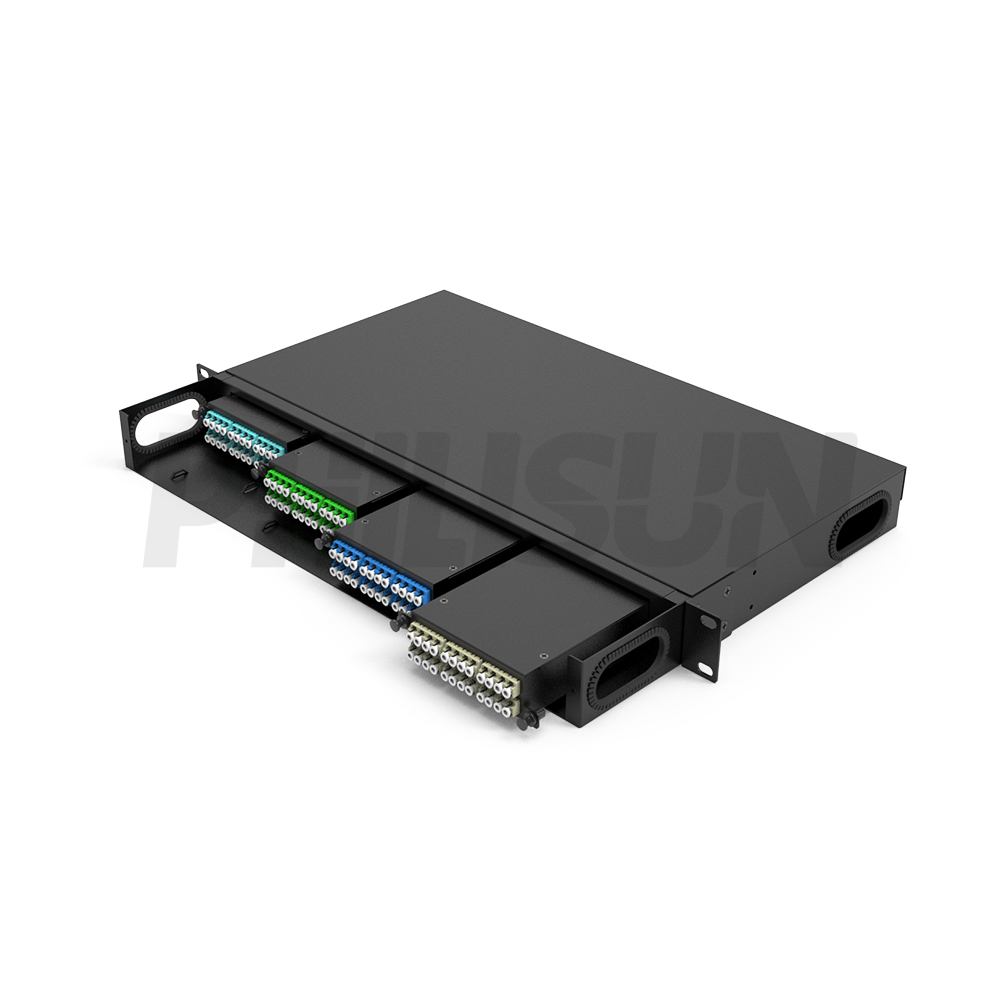

MPO Fiber Enclosure
Rack enclosures organize MPO cassettes and adapter panels. Choose rack height, module type and front-panel capacity.

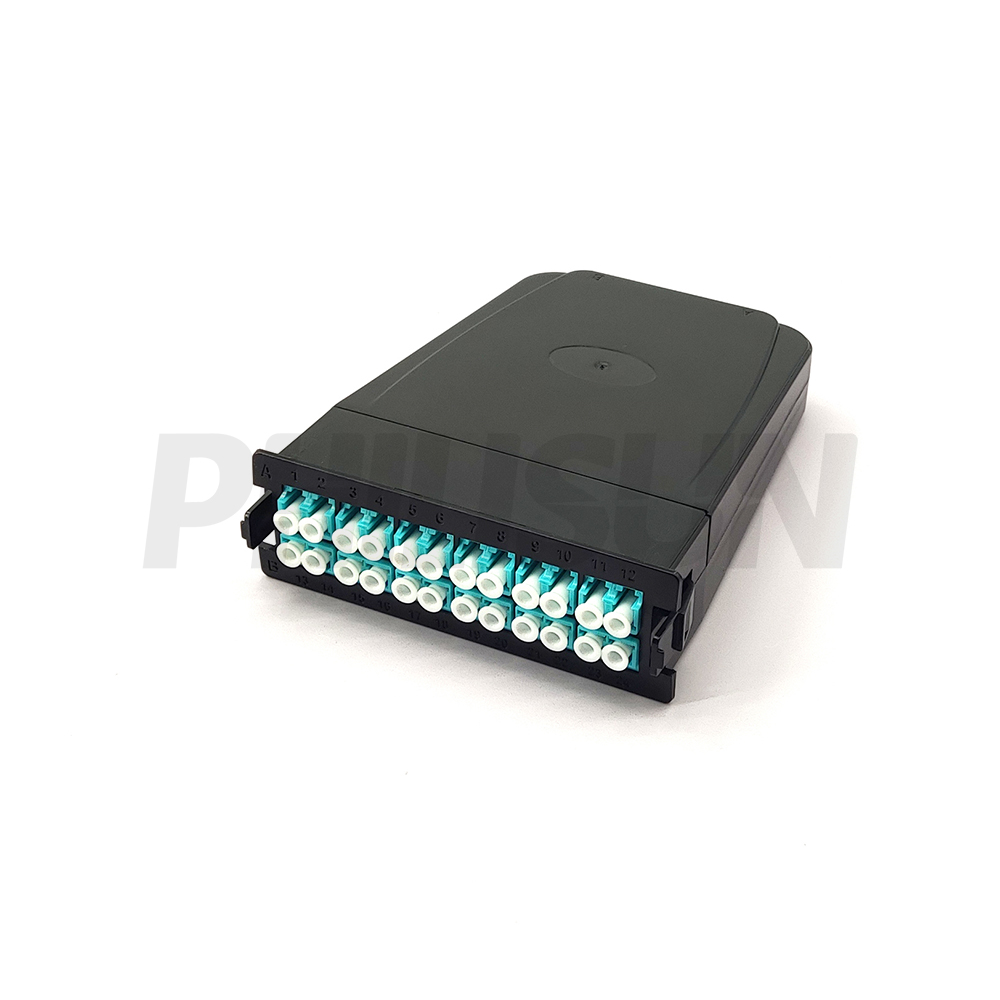

MPO Cassette
MPO cassettes convert trunk links to LC or other front adapters. Match polarity, fiber count and adapter layout.
MPO Cable Assembly Selection Guide
MPO cable assemblies connect high-density fiber routes for data centers, AI/HPC clusters, telecom rooms and enterprise backbones. Use this page as the main MPO buying path: choose trunk cables for backbone runs, harness cables for MPO-to-LC fanout, breakout cables for MPO-to-MPO lane mapping, jumpers for high-density patching, and cassettes or enclosures for modular rack handoff before specifying fiber count, polarity, gender, length, labels and test reports.
| Assembly type | Best fit | Key specification points | Start here |
|---|---|---|---|
| MPO jumper | Short high-density patching between MPO panels, modules and equipment ports. | Fiber count, gender, polarity, fiber mode, connector grade and length. | MPO Jumper |
| MPO trunk cable | Backbone routes, cabinet links, MDA-HDA paths and pre-terminated cable deployment. | Fiber count, Type A/B/C polarity, pulling eye, labels, route length and test reports. | MPO Trunk Cable |
| MPO harness cable | MPO-to-LC fanout links for direct equipment or patch panel connections. | MPO gender, LC leg grouping, polarity, fanout length, polish and route labels. | MPO Harness Cable |
| MPO breakout cable | MPO-to-MPO fanout mapping for parallel optics and 400G/800G link splitting. | MPO8/12/16/24 layout, lane map, gender, polarity and loss budget. | MPO Breakout Cable |
| MPO cassette or enclosure | Modular panel handoff, LC breakout, route management and staged expansion. | Adapter layout, module type, fiber count, cassette polarity and rack installation. | MPO Cassette |
For 400G and 800G deployments, confirm MPO-8, MPO-12, MPO-16 or MPO-24 lane mapping, OS2/OM4/OM5 fiber choice, and whether the link terminates into QSFP28, QSFP-DD or OSFP optics.
How to choose MPO cable assemblies
- Start with the network layout: backbone route, patch panel, transceiver, cassette, cabinet or direct equipment connection.
- Define the MPO interface: MPO-8, MPO-12, MPO-16 or MPO-24, pinned or unpinned gender, key orientation and connector grade.
- Confirm polarity and lane mapping: align trunk, harness, breakout, cassette and transceiver lanes before ordering.
- Choose fiber and construction: OS2, OM3, OM4 or OM5, jacket rating, armored or non-armored design, bend radius and route length.
- Request project documentation: insertion loss, return loss, polarity, end-face inspection, serial labels, packaging groups and route-specific test records.
For project planning, combine this page with data center fiber solutions, AI and HPC network fiber solutions and the MPO trunk vs harness vs breakout guide. PHILISUN can help translate lane mapping into a practical MPO cable assembly BOM.
MPO Cable Assemblies FAQ
What are MPO cable assemblies?
MPO cable assemblies are high-density fiber optic cables, modules and connectivity products built around MPO connectors. They include jumpers, trunk cables, harness cables, breakout cables, cassettes, panels and related fiber management products.
How do I choose between MPO trunk, harness and breakout cables?
Use MPO trunk cables for backbone routes, MPO harness cables for MPO-to-LC fanout, and MPO breakout cables for MPO-to-MPO fanout or parallel optics lane splitting. The right choice depends on connector layout, fiber count, polarity and equipment mapping.
Which fiber counts are common for MPO assemblies?
Common MPO assembly designs use MPO-8, MPO-12, MPO-16 and MPO-24 interfaces, with larger trunk routes using grouped fiber counts such as 48, 72, 96 or 144 fibers.
What polarity details are needed?
Provide the polarity method, key orientation, pinned or unpinned gender, lane map, cassette or adapter path and the products connected at each end. This reduces the risk of crossed channels during installation.
What information is needed for a custom MPO assembly quote?
Provide the application, fiber count, connector type, gender, polarity, fiber mode, jacket, length, labels, packaging group and required test reports. For project support, contact PHILISUN.
Not sure which MPO cable assembly you need?
Contact Philisun’s team for expert recommendations, customized fiber solutions, and professional technical support
Related MPO Cable Assemblies
Related MPO Cable Assembly Resources & Guides
What Is a Patch Panel? A Complete Network Guide
Everything you need to know about patch panels — from setup and wiring to benefits for network cabling and data center organization.
What Is A Patch Cord and Its Common Applications
Learn what patch cords are, explore their main types and applications, and see how PHILISUN’s SM OS2 MPO Jumpers ensure fast, reliable fiber connectivity.
Single Mode vs Multimode Fiber: Cost, Distance, Speed
Compare single mode vs multimode fiber cables—core size, distance, and cost. Learn how PHILISUN delivers precise fiber solutions for modern networks.
MPO cable assemblies specification checklist for serious buyers
MPO cable assemblies should be selected as part of a complete optical channel, not as an isolated SKU. For PHILISUN customers, the practical goal is to convert the network requirement into a repeatable specification that production, testing, packing and field installation can all follow. That means the buyer should define the link role, equipment interface, cable route, operating environment and acceptance records before comparing unit prices.
This checklist also helps teams compare alternatives consistently across repeated purchasing cycles.
In most projects, MPO cable assemblies serve as the high-density cabling family that includes trunks, harnesses, breakouts and cassette handoffs for modern data centers. The correct choice depends on the port type, required speed, route distance, density target, maintenance process and future migration plan. A product that looks suitable on a data sheet can still create field issues if the bend radius, label format, polarity, coding, packing group or test report does not match the real deployment.
Confirm the link role before requesting a quote
Start by naming where the assembly will be used: switch-to-server, rack-to-rack, panel-to-panel, equipment breakout, backbone, access link, AI cluster link or maintenance spare. This small step makes the rest of the selection much easier. A short high-density rack link may prioritize handling, airflow and connector density, while a backbone or pre-terminated route may prioritize length accuracy, pulling protection, loss budget and labeling discipline.
Also decide whether the order is for a one-time replacement, a pilot build, a repeat production batch or a multi-site deployment. Replacement orders need exact compatibility with existing stock. Pilot orders need enough detail to validate the architecture. Multi-site orders need stable naming, packing and test documentation so every site receives the same interpretation of the specification.
Lock down the technical options
The most common ordering mistakes happen when one important option is assumed instead of written down. Use the checklist below before finalizing a bill of materials:
- fiber count
- polarity
- gender
- loss grade
- jacket type
- labeling and packing
- required speed or application
- equipment brand and port type
- route length and service-loop allowance
- connector, polish, gender or polarity details
- fiber mode or cable construction
- jacket color, rating and diameter
- label format and packing group
- insertion loss, return loss or compatibility test requirement
When these details are known, PHILISUN can recommend whether the project should use standard stock, a custom length, a low-loss option, a different cable family or a different migration path. This is especially important for 100G, 400G and 800G environments, where a small mismatch in reach, connector type, polarity or host support can delay deployment.
Plan testing, labels and spares at the same time
Testing and documentation are part of the product, not an afterthought. For fiber assemblies, request the records that match the risk of the link: insertion loss, return loss, polarity or continuity verification, end-face inspection, DOM/DDM compatibility where relevant, and any serial or packing identifiers needed by the installation team. For repeated orders, keep the same naming rule across labels, packing lists and test files.
Spare planning should follow the same logic. Keep spares grouped by form factor, fiber type, length, polarity, coding and equipment platform. If two assemblies look similar but serve different routes or hosts, use labels and packing groups to prevent accidental mixing. This reduces troubleshooting time and makes future expansion easier.
When to request a custom review
Request a custom review when the project includes non-standard lengths, mixed equipment brands, high-density racks, special jacket requirements, strict loss limits, phased deployment, or a migration from 100G to 400G or 800G. These situations benefit from checking the full channel instead of approving the product line one item at a time. A short review can confirm whether the current specification is complete, whether a related product family would reduce risk, and whether the order needs special labels, packing groups or compatibility testing before shipment.
