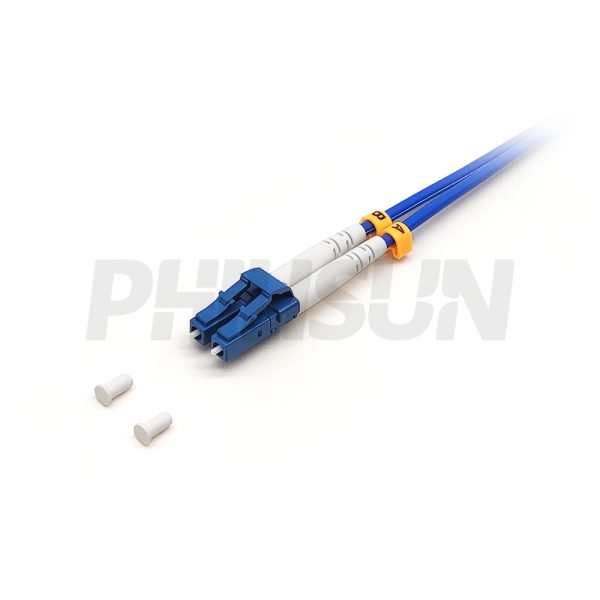

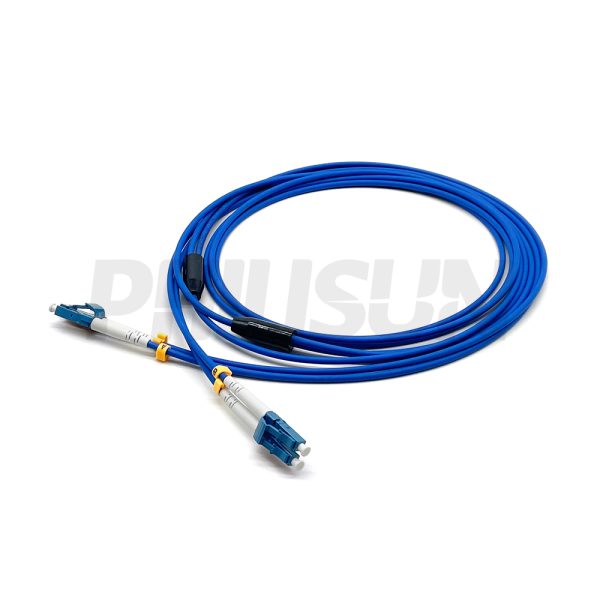

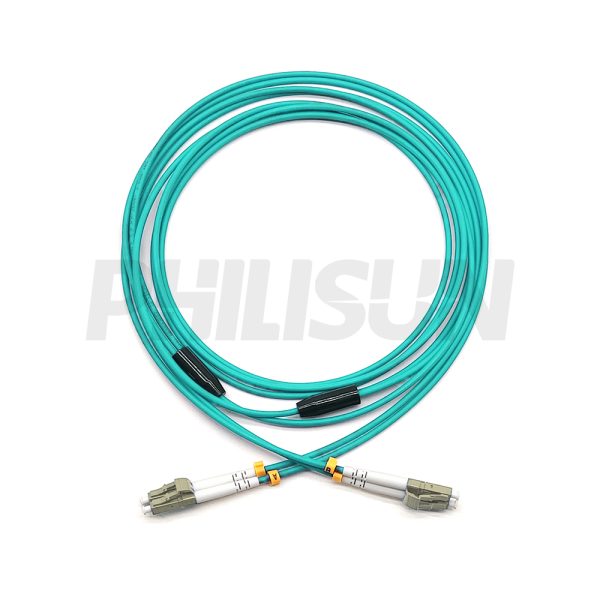

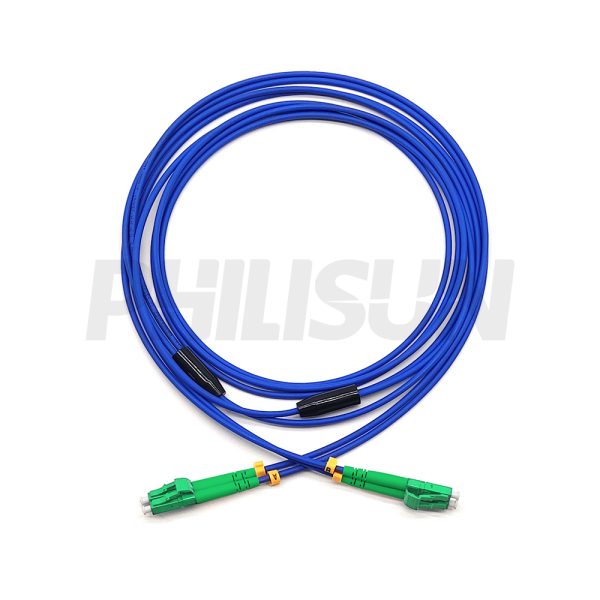

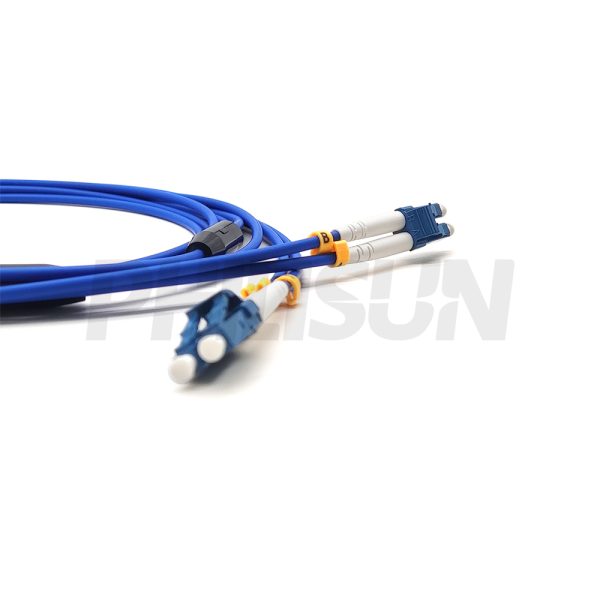

LC-LC UPC/APC Duplex Single Tube Armored Patch Cable, 2F

SPECIFICATIONS
Connector A	LC	Fiber Count	2
Fiber Type	SM OS2/OM3/OM4/OM5	Tube Structure	Duplex(single tube)
Ferrule Type	Grade A zirconia ceramic ferrule	Polish Type	UPC or APC
Connector Color	Blue/Green/Beige/Aque/Violet/Lime green	RL	≥50dB(SM UPC) ≥60dB(SM APC) ≥25dB(MM UPC）
IL	≤0.3dB	Interchangeability	≤0.2dB
Repeatability	≤0.2dB	Working Wavelength	1310/1550(SM) 850/1300(MM)
Matching Cable Outer Diameter	3.0mm/3.5mm	Jacket Color	Blue/Yellow/Aque/Violet/Black
Armored Material	Spiral stainless steel	Flame Retardant Grade	OFN/OFNR/OFNP
Jacket Material	PVC/LSZH/TPU	Fiber Loss	SM:0.35db@1310nm/0.2dB@1550nm MM:2.4dB@850nm/0.6dB@1300nm
Fiber Brand	Corning/YOFC	Min.bending Radius(Long Term)	20D
Min.bending Radius(short term)	10D	Durability	≥500 times
Operating Temperature	-10 to 70℃ (14 to 158℉)	Storage Temperature	-40 to 85℃ (-40 to 185℉)

PRODUCT PRESENTATION

This LC Duplex Single Tube Armored Patch Cable provides dual-fiber connectivity using a Single Tube-Double core structure. It is protected by Spiral stainless steel armor for high Ratproof and Pressure-Resistant qualities. The cable guarantees high performance with an Insertion Loss of maximum 0.3dB.

ARMORED PATCH CORD SERIES PRODUCTS

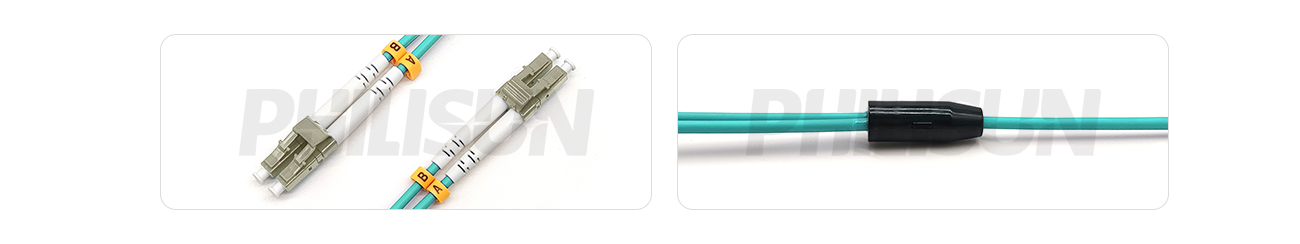

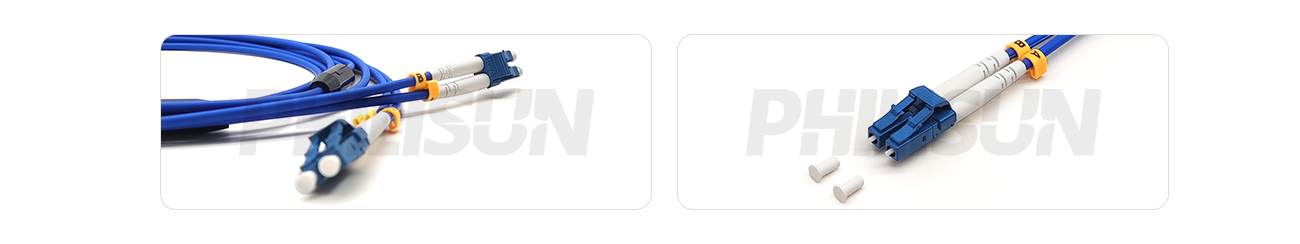

DETAIL DISPLAY

FIBER OPTIC CABLE TYPE

FIBER OPTIC CABLE STRUCTURE & PARAMETER

armored fiber patch cable duplex single tube LC cable structure diagram

Cable Parameter
Items		Specifications
Fiber Count		1	2
Metal Tube	Tight buffer diameter	0.85±0.05mm	0.6±0.05mm
	Metal tube material	stainless steel
	Metal tube diameter	1.45±0.05mm	1.85±0.05mm
	Metal tube thickness	0.2±0.05mm	0.25±0.05mm
Outer Jacket	Dimension	3.0±0.1mm
	Material	PVC/LSZH/TPU
	Color	Blue/Yellow/Aque/Violet/Black or Customization

Mechanical Performance
Items	Specifications
Fiber Count	1	2
Tension（Long Term）/ N	100
Tension（Short Term）/ N	200
Crush（Long Term）/ N/10cm	1000
Crush（Short Term）/ N/10cm	3000
Min. Bend Radius（Dynamic）/ mm	20D
Min. Bend Radius（Static）/ mm	10D
Operating Temperature/℃	-20～+70（PVC)/-40～+80(LSZH）
Storage Temperature/℃	-20～+70（PVC)/-40～+80(LSZH）

FIBER PARAMETER

SM Fiber Parameter
Items		Unit	G.652D	G.657A1	G.657A2
Mode Field Diameter	1310nm	μm	9.1±0.4	8.8±0.4	8.8±0.4
Mode Field Diameter	1550nm	μm	10.4±0.5	9.8±0.5	9.8±0.5
Cladding Diameter		μm	125±1	125±0.7	125±0.7
Cladding Non-Circularity		%	≤1	≤0.7	≤0.7
Core-Cladding Concentricity Error		μm	≤0.6	≤0.5	≤0.5
Coating Diameter		μm	245±7	245±5	245±5
Coating Non-Circularity		%	≤6.0	≤6.0	≤6.0
Cladding-Coating Concentricity Error		μm	≤12.0	≤12.0	≤12.0
Cable Cutoff Wavelength		nm	λcc≤1260	λcc≤1260	λcc≤1260
Cable Attenuation Coefficient	1310nm	dB/km	≤0.4	≤0.4	≤0.4
Cable Attenuation Coefficient	1550nm	dB/km	≤0.3	≤0.3	≤0.3

MM Fiber Parameter
Items		unit	62.5/125	50/125	OM3-150	OM3-300	OM4
Core Diameter		μm	62.5±2.5	50±2.5	50±2.5	50±2.5	50±2.5
Cladding Diameter		μm	125±1.0	125±1.0	125±1.0	125±1.0	125±1.0
Core Non-Circularity		%	≤5.0	≤5.0	≤5.0	≤5.0	≤5.0
Cladding Non-Circularity		%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Core-Cladding Concentricity Error		μm	≤1.5	≤1.5	≤1.0	≤1.0	≤1.0
Coating Diameter		μm	245±7	245±7	245±7	245±7	245±7
Coating Non-Circularity		%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Cladding-Coating Concentricity Error		μm	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
OFL Bandwidth	850nm	MHz·km	≥160	≥500	≥700	≥1500	≥3500
OFL Bandwidth	1300nm	MHz·km	≥500	≥500	≥500	≥500	≥500
Cable Attenuation Coefficient	850nm	dB/km	≤3.0	≤3.0	≤3.0	≤3.0	≤3.0
Cable Attenuation Coefficient	1300nm	dB/km	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
