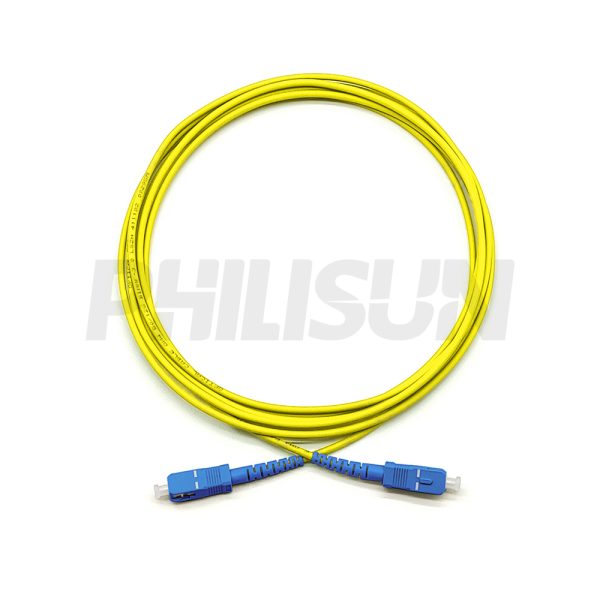

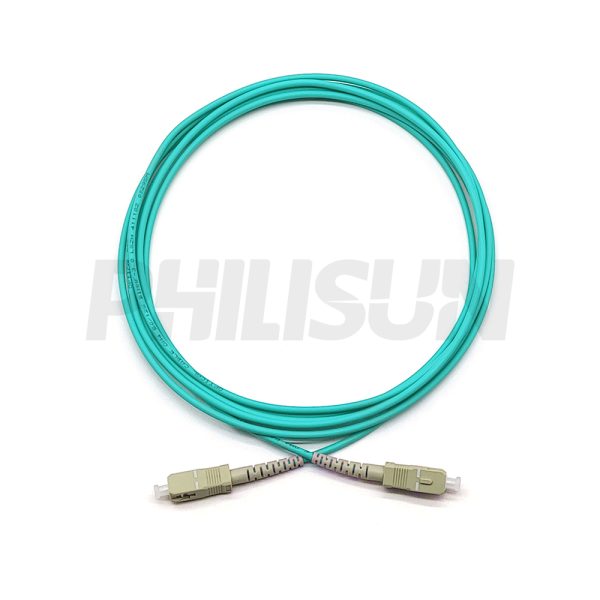

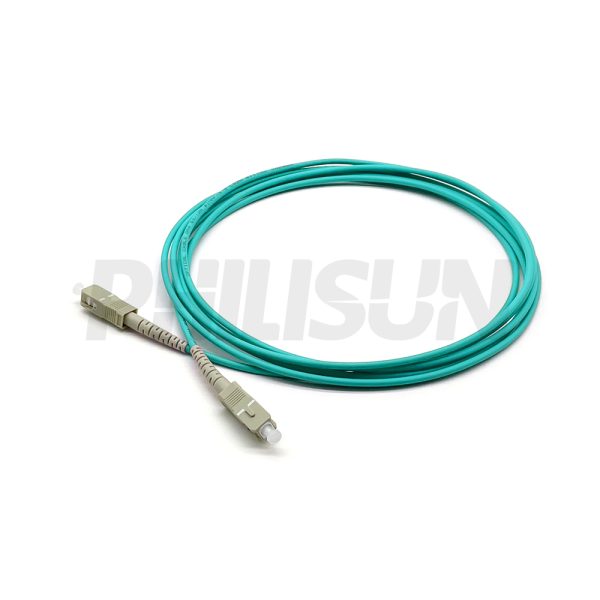

SC-SC UPC/APC Simplex Armored Patch Cable, 1F

SPECIFICATIONS
Connector A	SC	Fiber Count	Simplex
Fiber Type	SM OS2/OM3/OM4/OM5	Polish Type	UPC or APC
Ferrule Type	Grade A zirconia ceramic ferrule	RL	≥50dB(SM UPC) ≥60dB(SM APC) ≥25dB(MM UPC）
Connector Color	Blue/Green/Beige/Aque/Violet/Lime green	Interchangeability	≤0.2dB
IL	≤0.3dB	Working Wavelength	1310/1550(SM) 850/1300(MM)
Repeatability	≤0.2dB	Jacket Color	Blue/Yellow/Aque/Violet/Black
Matching Cable Outer Diameter	2.0/3.0/3.5mm	Flame Retardant Grade	OFN/OFNR/OFNP
Armored Material	Spiral stainless steel	Fiber Loss	SM:0.35db@1310nm/0.2dB@1550nm MM:2.4dB@850nm/0.6dB@1300nm
Jacket Material	PVC/LSZH/TPU	Min.bending Radius(Long Term)	20D
Fiber Brand	Corning/YOFC	Durability	≥500 times
Min.bending Radius(short term)	10D	Storage Temperature	-40 to 85℃ (-40 to 185℉)
Operating Temperature	-10 to 70℃ (14 to 158℉)

PRODUCT PRESENTATION

This SC Simplex Armored Patch Cable is engineered to deliver reliable single-channel performance under high physical stress. The core is shielded by Spiral stainless steel armor, offering essential Ratproof and Pressure-Resistant protection. Suitable for both Singlemode and Multimode operation, it maintains an Insertion Loss of maximum 0.3dB.

ARMORED PATCH CORD SERIES PRODUCTS

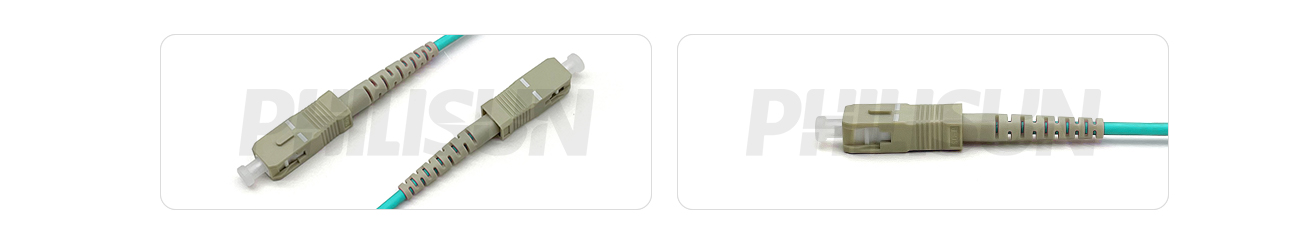

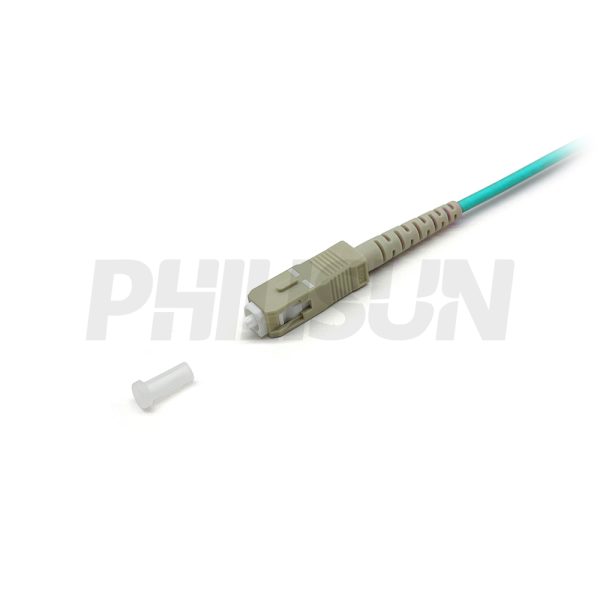

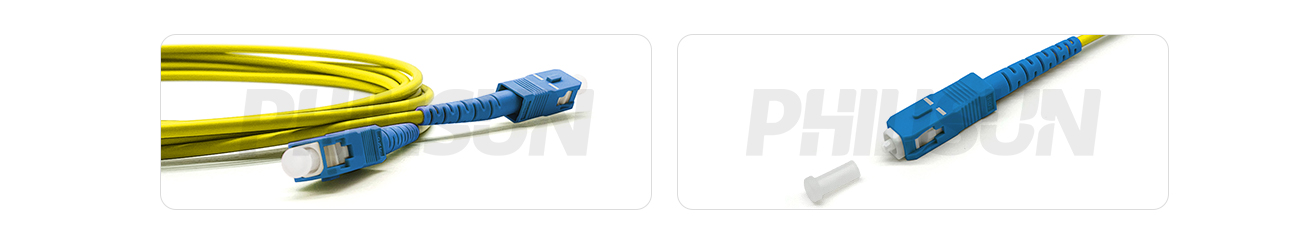

SC CONNECTOR

FIBER OPTIC CABLE TYPE

Fiber cable color and fiber type reference chart

FIBER OPTIC CABLE STRUCTURE & PARAMETER

armored fiber patch cable simplex SC cable structure diagram

Cable Parameter
Items		Specifications
Fiber Count		1	2
Metal Tube	Tight buffer diameter	0.85±0.05mm	0.6±0.05mm
	Metal tube material	stainless steel
	Metal tube diameter	1.45±0.05mm	1.85±0.05mm
	Metal tube thickness	0.2±0.05mm	0.25±0.05mm
Outer Jacket	Dimension	3.0±0.1mm
	Material	PVC/LSZH/TPU
	Color	Blue/Yellow/Aque/Violet/Black or Customization

Mechanical Performance
Items	Specifications
Fiber Count	1	2
Tension（Long Term）/ N	100
Tension（Short Term）/ N	200
Crush（Long Term）/ N/10cm	1000
Crush（Short Term）/ N/10cm	3000
Min. Bend Radius（Dynamic）/ mm	20D
Min. Bend Radius（Static）/ mm	10D
Operating Temperature/℃	-20～+70（PVC)/-40～+80(LSZH）
Storage Temperature/℃	-20～+70（PVC)/-40～+80(LSZH）

FIBER PARAMETER

SM Fiber Parameter
Items		Unit	G.652D	G.657A1	G.657A2
Mode Field Diameter	1310nm	μm	9.1±0.4	8.8±0.4	8.8±0.4
Mode Field Diameter	1550nm	μm	10.4±0.5	9.8±0.5	9.8±0.5
Cladding Diameter		μm	125±1	125±0.7	125±0.7
Cladding Non-Circularity		%	≤1	≤0.7	≤0.7
Core-Cladding Concentricity Error		μm	≤0.6	≤0.5	≤0.5
Coating Diameter		μm	245±7	245±5	245±5
Coating Non-Circularity		%	≤6.0	≤6.0	≤6.0
Cladding-Coating Concentricity Error		μm	≤12.0	≤12.0	≤12.0
Cable Cutoff Wavelength		nm	λcc≤1260	λcc≤1260	λcc≤1260
Cable Attenuation Coefficient	1310nm	dB/km	≤0.4	≤0.4	≤0.4
Cable Attenuation Coefficient	1550nm	dB/km	≤0.3	≤0.3	≤0.3

MM Fiber Parameter
Items		unit	62.5/125	50/125	OM3-150	OM3-300	OM4
Core Diameter		μm	62.5±2.5	50±2.5	50±2.5	50±2.5	50±2.5
Cladding Diameter		μm	125±1.0	125±1.0	125±1.0	125±1.0	125±1.0
Core Non-Circularity		%	≤5.0	≤5.0	≤5.0	≤5.0	≤5.0
Cladding Non-Circularity		%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Core-Cladding Concentricity Error		μm	≤1.5	≤1.5	≤1.0	≤1.0	≤1.0
Coating Diameter		μm	245±7	245±7	245±7	245±7	245±7
Coating Non-Circularity		%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Cladding-Coating Concentricity Error		μm	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
OFL Bandwidth	850nm	MHz·km	≥160	≥500	≥700	≥1500	≥3500
OFL Bandwidth	1300nm	MHz·km	≥500	≥500	≥500	≥500	≥500
Cable Attenuation Coefficient	850nm	dB/km	≤3.0	≤3.0	≤3.0	≤3.0	≤3.0
Cable Attenuation Coefficient	1300nm	dB/km	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
