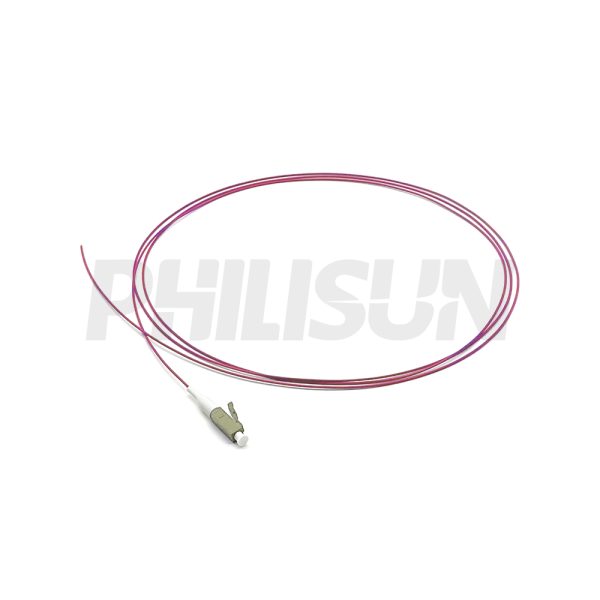

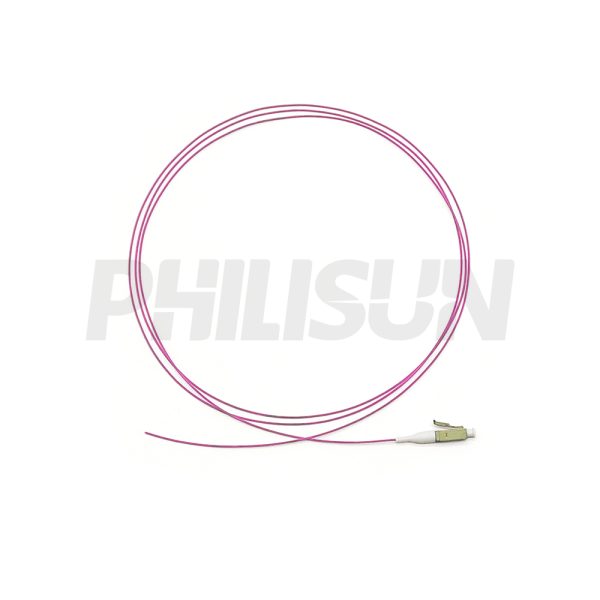

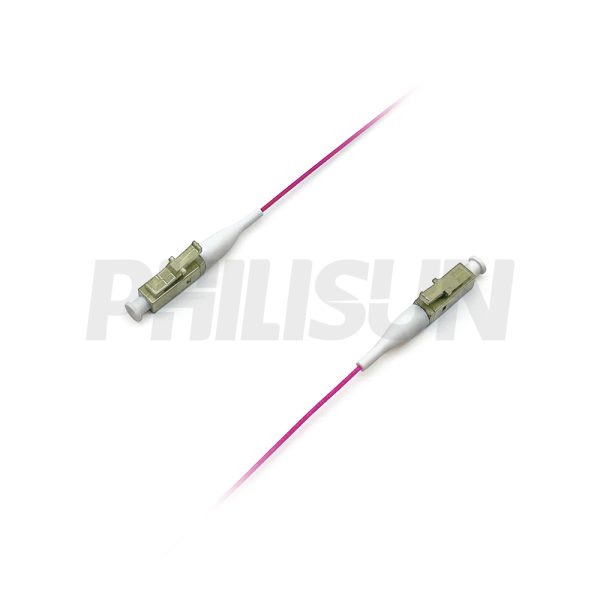

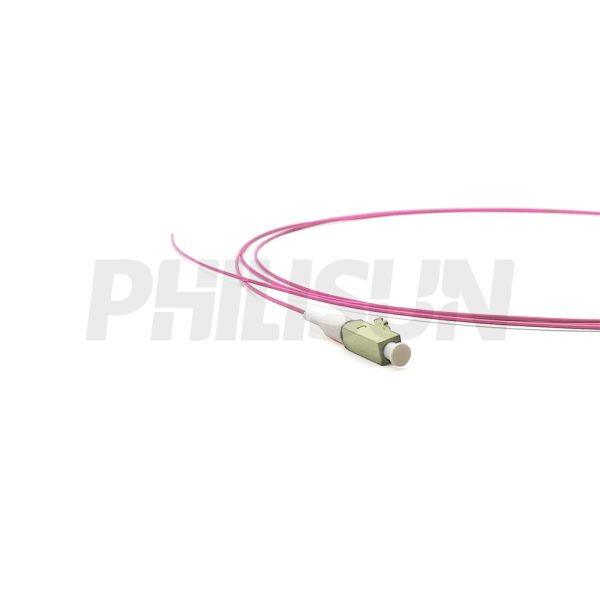

LC UPC Simplex OM4 Pigtail, 9mm

SPECIFICATIONS
Connector A	LC	Fiber Count	Simplex
Fiber Type	OM4	Polish Type	UPC
Ferrule Type	Grade A zirconia ceramic ferrule	Connector Color	Beige
IL	≤0.3dB	RL	≥25dB(UPC）
Repeatability	≤0.2dB	Interchangeability	≤0.2dB
Matching Cable Outer Diameter	0.9mm	Working Wavelength	850/1300(MM)
Cable Material	PVC/LSZH/HYTREL or customized	Flame Retardant Grade	OFN/OFNR/OFNP
Cable Buffer	Tight buffer/Semi-tight buffer/Loose buffer	Fiber Loss	2.4dB@850nm/0.6dB@1300nm
Fiber Brand	Corning/YOFC	Min.bending Radius(Long Term)	20D
Min.bending Radius(short term)	10D	Durability	≥500 times
Operating Temperature	-10 to 70℃ (14 to 158℉)	Storage Temperature	-40 to 85℃ (-40 to 185℉)

PRODUCT PRESENTATION

This OM4 Multimode LC Fiber Pigtail is designed for reliable field termination in dense ODN and large-scale Integrated Cabling environments. This pre-terminated cord is constructed for secure fusion splicing to multi-fiber distribution cables. The bend-insensitive fiber core ensures minimal attenuation (Insertion Loss (IL) maximum 0.3dB) when routed in confined spaces, capable of a minimum 10D bending radius. Optimized for 850nm/1300nm transmission, the LC UPC termination provides superior Return Loss stability.

PATCH CORD & PIGTAIL SERIES PRODUCTS

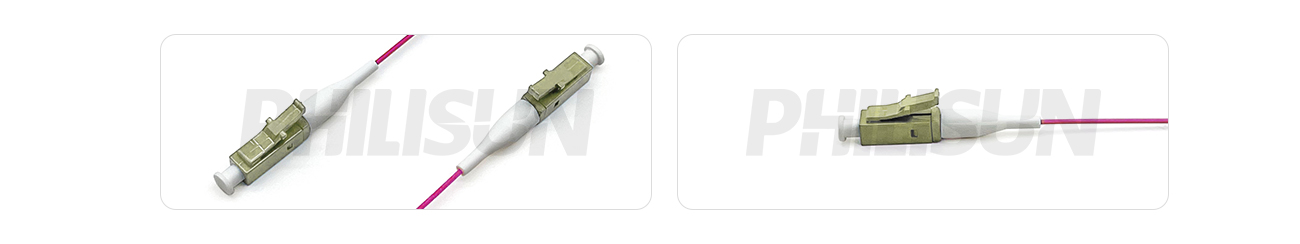

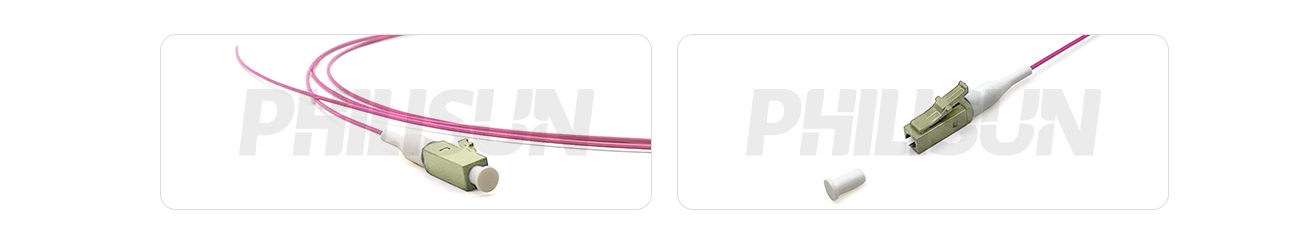

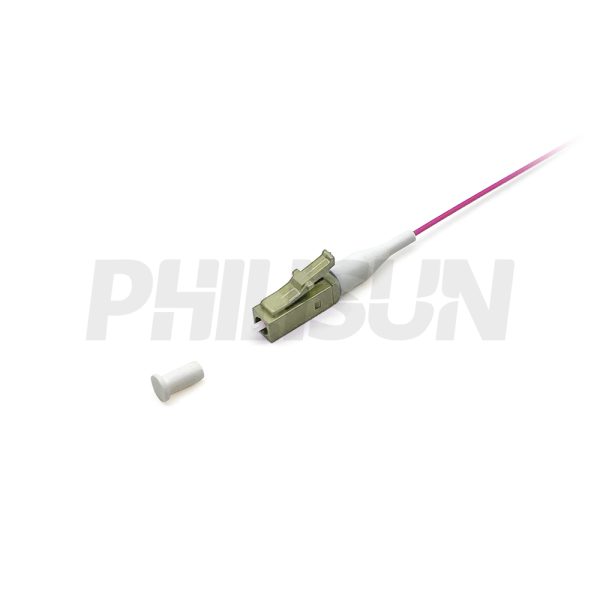

LC CONNECTOR

FIBER OPTIC CABLE TYPE

0.9 mm single-core cable color and fiber type chart

FIBER OPTIC CABLE STRUCTURE & PARAMETER

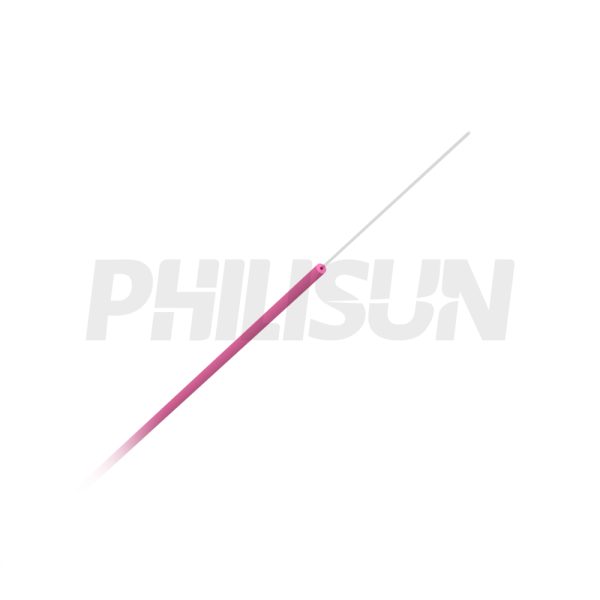

OM4 LC fiber pigtail cable structure diagram-0.9

Cable Parameter
Items		Specifications
Fiber Count		1
Tight/Loose-buffered Fiber	Diameter	0.85mm±0.05mm
	Material	PVC/LSZH/HYTREL
	Color	Blue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aque

Mechanical Performance
Items		Specifications
Min. Bend Radius（Dynamic）/mm		20D
Min. Bend Radius（Static）/mm		10D
Operating Temperature/℃		-20～+60
Storage Temperature/℃		-20～+60

FIBER PARAMETER

SM Fiber Parameter
Items		Unit	G.652D	G.657A1	G.657A2
Mode Field Diameter	1310nm	μm	9.1±0.4	8.8±0.4	8.8±0.4
Mode Field Diameter	1550nm	μm	10.4±0.5	9.8±0.5	9.8±0.5
Cladding Diameter		μm	125±1	125±0.7	125±0.7
Cladding Non-Circularity		%	≤1	≤0.7	≤0.7
Core-Cladding Concentricity Error		μm	≤0.6	≤0.5	≤0.5
Coating Diameter		μm	245±7	245±5	245±5
Coating Non-Circularity		%	≤6.0	≤6.0	≤6.0
Cladding-Coating Concentricity Error		μm	≤12.0	≤12.0	≤12.0
Cable Cutoff Wavelength		nm	λcc≤1260	λcc≤1260	λcc≤1260
Cable Attenuation Coefficient	1310nm	dB/km	≤0.4	≤0.4	≤0.4
Cable Attenuation Coefficient	1550nm	dB/km	≤0.3	≤0.3	≤0.3

MM Fiber Parameter
Items		unit	62.5/125	50/125	OM3-150	OM3-300	OM4
Core Diameter		μm	62.5±2.5	50±2.5	50±2.5	50±2.5	50±2.5
Cladding Diameter		μm	125±1.0	125±1.0	125±1.0	125±1.0	125±1.0
Core Non-Circularity		%	≤5.0	≤5.0	≤5.0	≤5.0	≤5.0
Cladding Non-Circularity		%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Core-Cladding Concentricity Error		μm	≤1.5	≤1.5	≤1.0	≤1.0	≤1.0
Coating Diameter		μm	245±7	245±7	245±7	245±7	245±7
Coating Non-Circularity		%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Cladding-Coating Concentricity Error		μm	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
OFL Bandwidth	850nm	MHz·km	≥160	≥500	≥700	≥1500	≥3500
OFL Bandwidth	1300nm	MHz·km	≥500	≥500	≥500	≥500	≥500
Cable Attenuation Coefficient	850nm	dB/km	≤3.0	≤3.0	≤3.0	≤3.0	≤3.0
Cable Attenuation Coefficient	1300nm	dB/km	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
