2.0x3.0mm/2.0x5.0mm, Indoor Butterfly Flat FTTH Drop Cable, 4 F

SPECIFICATIONS
Connector Type	LC/SC/FC/ST/E2000	Fiber Count	4
Connector Color	Blue/Green/Black/Beige	Fiber Count	Black/White
Strength Membe Material	FRP/Steel Wire	Fiber Type	SM OS2/OM3/OM4/OM5
Laying Method	Indoor or Oudoor self-supporting	Polish Type	UPC or APC
Cable Size	2.03.0mm/2.05.0mm(Self-Supporting)	Internal Structure	Bare fiber/Internal structure/Armored
Branch Length	0.3-1.5m	Branch Type	Round Tube/Butterfly Shaped Tube/Armored Tube
IL	≤0.3dB	RL	≥50dB(UPC)≥60dB(APC)
Repeatability	≤0.2dB	Interchangeability	≤0.2dB
Flame Retardant Grade	OFN/OFNR/OFNP	Working Wavelength	1310/1550
Fiber Loss	0.35db@1310nm/0.2dB@1550nm	Durability	≥500 times
Jacket Material	LSZH/PE	Min. Bend Radius(Static)	30mm
Fiber Brand	Corning/YOFC	Min. Bend Radius (Dynamic)	60mm
Operating Temperature	-20 to 60℃ (-4 to 140℉)	Storage Temperature	-20 to 60℃ (-4 to 140℉)

PRODUCT PRESENTATION

This 4-Fibers Butterfly Flat FTTH Drop Cable is a high-density solution for FTTH distribution points and networks requiring a Branch structure. The cable uses Bending-resistant optical fiber to guarantee signal integrity even with tight routing (Min. Static Bend Radius 30mm, Dynamic 60mm). This multi-fiber design ensures efficient, stable connectivity with an ultra-low Insertion Loss of maximum 0.3dB, making it ideal for multi-user drop installations.

FTTH DROP CABLE PATCH CORD SERIES PRODUCTS

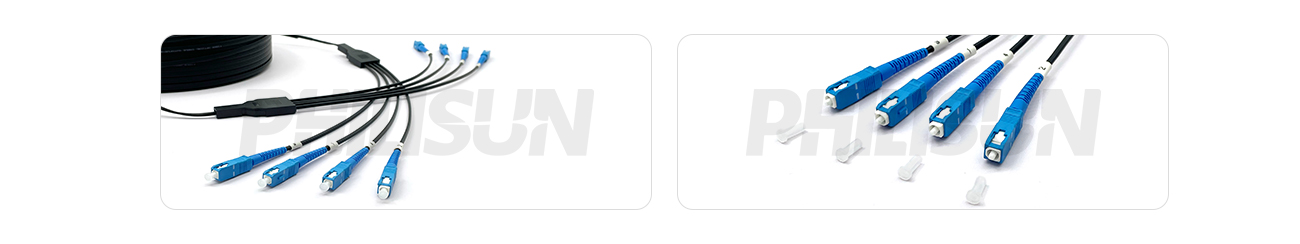

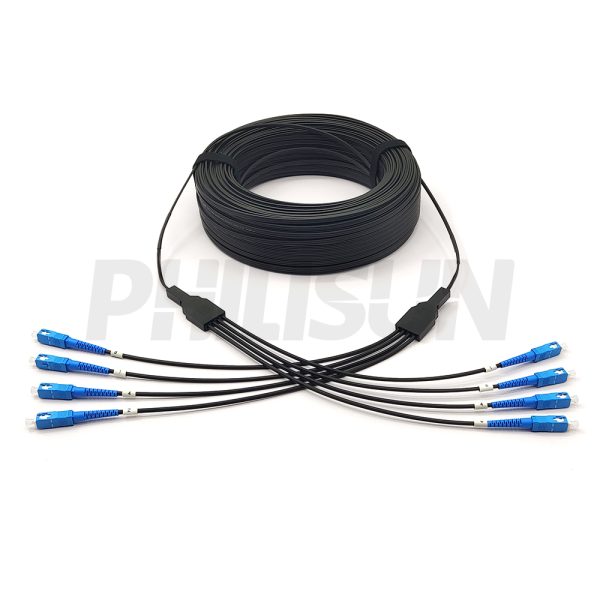

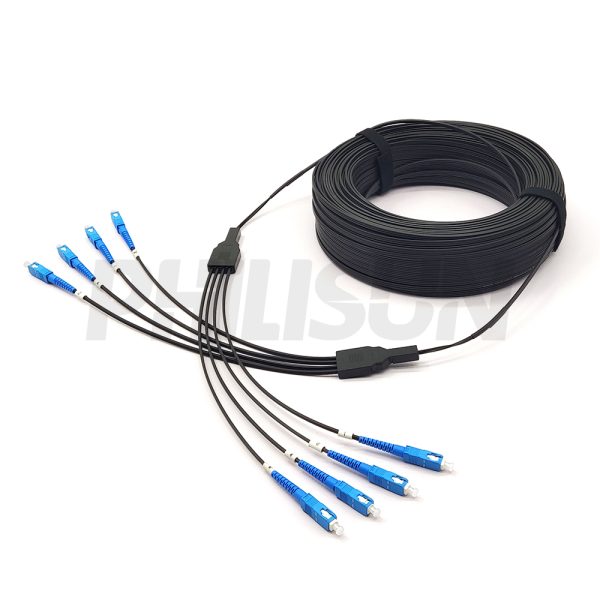

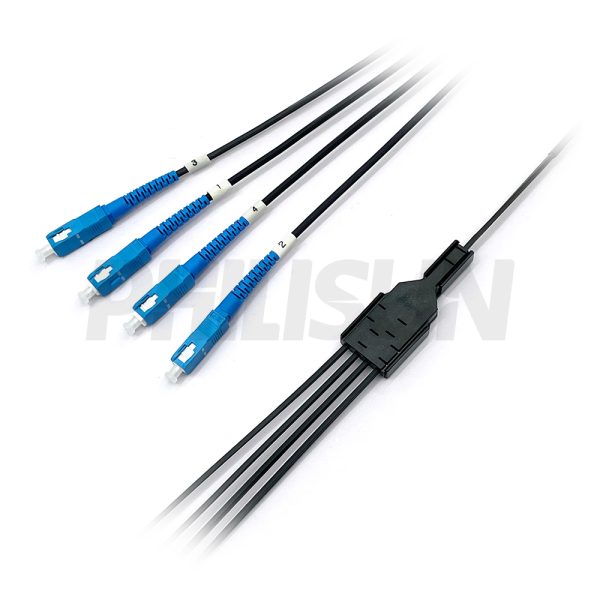

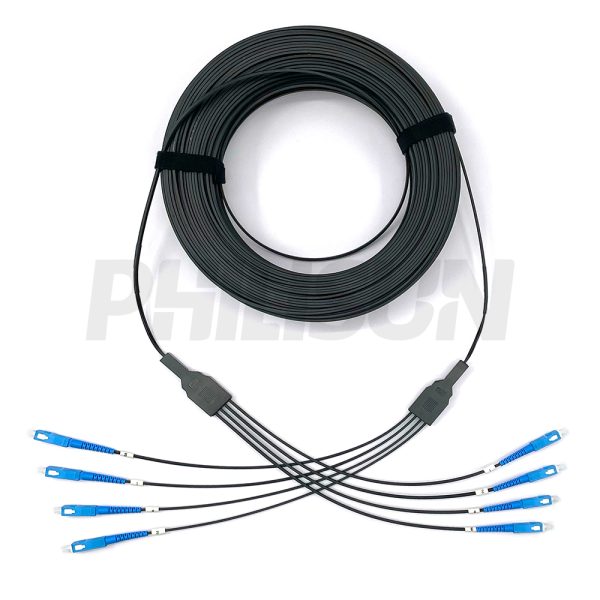

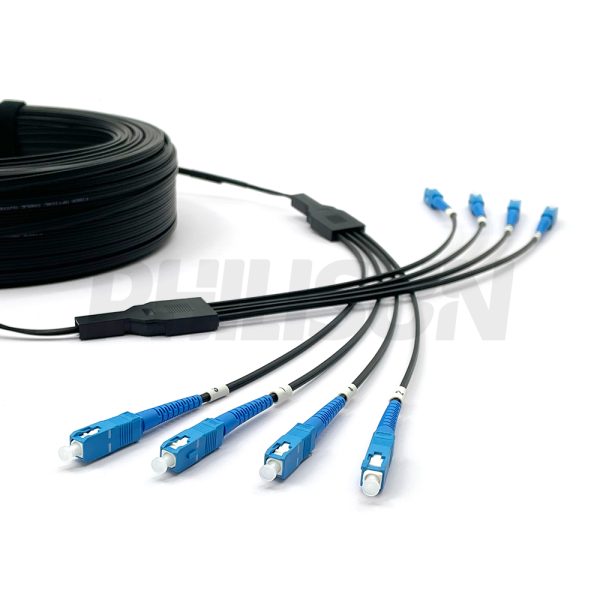

FTTH drop cable patch cord product photo

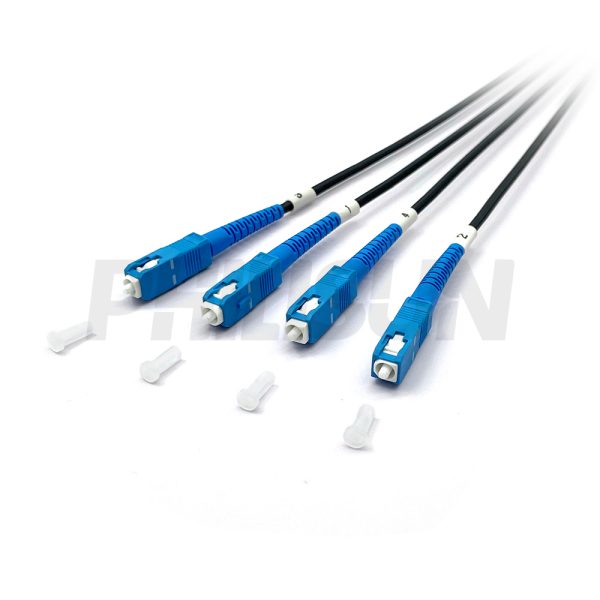

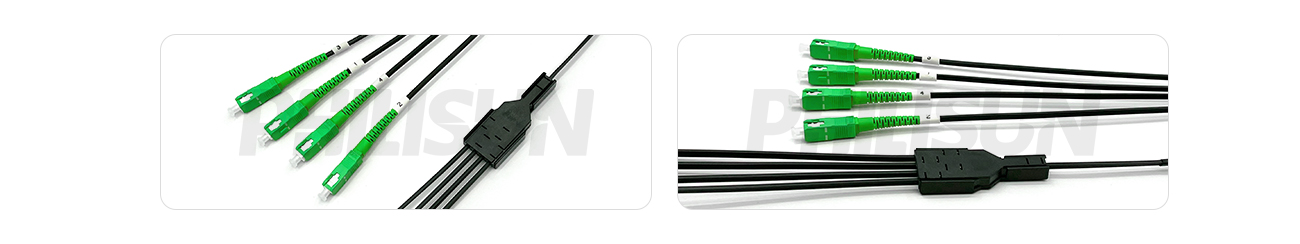

SC CONNECTOR

FIBER OPTIC CABLE TYPE

FIBER OPTIC CABLE STRUCTURE & PARAMETER

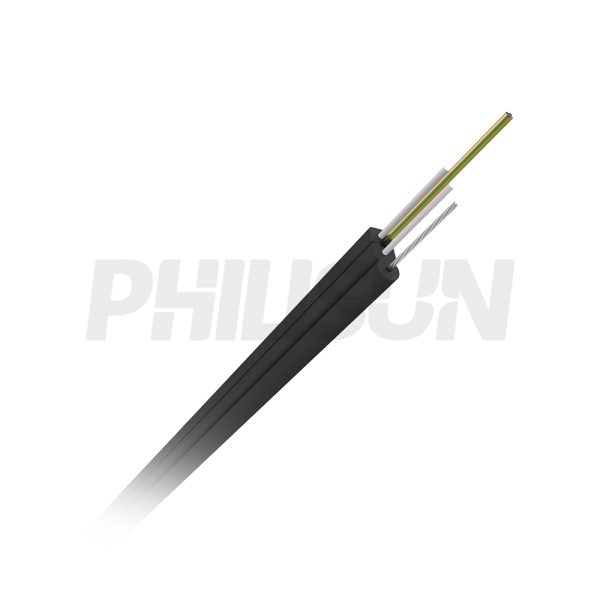

4 fibers butterfly ftth drop cable cable structure diagram

Cable Parameter
Items		Parameters
Fiber Count		1	2	4
Fiber	Diameter	0.25±0.015mm
Fiber	Color	Blue	Blue/Orange	Blue/Orange/Green/Brown
Strength member		FRP/steel wire + steel wire
Outer Sheath	Diameter	(2.0±0.1) × (5.1±0.2) mm
	Material	LSZH
	Color	Black

Mechanical Performance
Items	Unit	Parameters
Tensile Strength (Long Term)	N	300
Tensile Strength (Short Term)	N	600
Crush Resistance (Long Term)	N/10cm	1000
Crush Resistance (Short Term)	N/10cm	2200
Bending Radius (Dynamic)	mm	60
Bending Radius (Static)	mm	30
Operating Temperature	℃	-20 ~ +60
Storage Temperature	℃	-20 ~ +60

FIBER PARAMETER

SM Fiber Parameter
Items		Unit	G.652D	G.657A1	G.657A2
Mode Field Diameter	1310nm	μm	9.1±0.4	8.8±0.4	8.8±0.4
Mode Field Diameter	1550nm	μm	10.4±0.5	9.8±0.5	9.8±0.5
Cladding Diameter		μm	125±1	125±0.7	125±0.7
Cladding Non-Circularity		%	≤1	≤0.7	≤0.7
Core-Cladding Concentricity Error		μm	≤0.6	≤0.5	≤0.5
Coating Diameter		μm	245±7	245±5	245±5
Coating Non-Circularity		%	≤6.0	≤6.0	≤6.0
Cladding-Coating Concentricity Error		μm	≤12.0	≤12.0	≤12.0
Cable Cutoff Wavelength		nm	λcc≤1260	λcc≤1260	λcc≤1260
Cable Attenuation Coefficient	1310nm	dB/km	≤0.4	≤0.4	≤0.4
Cable Attenuation Coefficient	1550nm	dB/km	≤0.3	≤0.3	≤0.3

MM Fiber Parameter
Items		unit	62.5/125	50/125	OM3-150	OM3-300	OM4
Core Diameter		μm	62.5±2.5	50±2.5	50±2.5	50±2.5	50±2.5
Cladding Diameter		μm	125±1.0	125±1.0	125±1.0	125±1.0	125±1.0
Core Non-Circularity		%	≤5.0	≤5.0	≤5.0	≤5.0	≤5.0
Cladding Non-Circularity		%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Core-Cladding Concentricity Error		μm	≤1.5	≤1.5	≤1.0	≤1.0	≤1.0
Coating Diameter		μm	245±7	245±7	245±7	245±7	245±7
Coating Non-Circularity		%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Cladding-Coating Concentricity Error		μm	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
OFL Bandwidth	850nm	MHz·km	≥160	≥500	≥700	≥1500	≥3500
OFL Bandwidth	1300nm	MHz·km	≥500	≥500	≥500	≥500	≥500
Cable Attenuation Coefficient	850nm	dB/km	≤3.0	≤3.0	≤3.0	≤3.0	≤3.0
Cable Attenuation Coefficient	1300nm	dB/km	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
