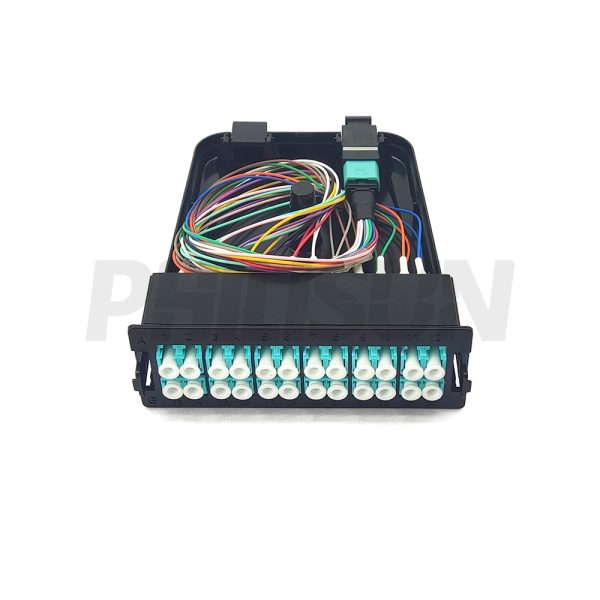

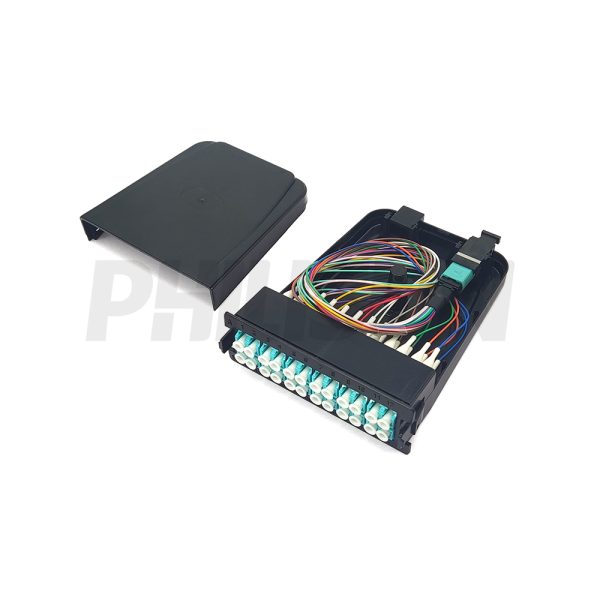

MPO-24 to LC 24F Fiber Cassette
MPO-24 to LC cassette for 24-fiber trunk conversion and high-density LC patching. Suitable for OS2, OM3, and OM4 fiber systems with UPC or APC connector choices and Type A, AF, U, or UF polarity options.
- High Quality
- Factory Outlet
- Satisfaction Guarantee
- Global Shipping
| SPECIFICATIONS | |||
|---|---|---|---|
| Connector A | MPO | Connector B | LC |
| Fiber Type | SM OS2/OM3/OM4/OM5 | Fiber Number | 24 Fibers |
| MPO IL | Standard loss/Low loss | Polishing | MPO:PC or APC LC:UPC or APC |
| MPO Housing Color | Green/Yellow/Aque/Violet/Lime green | LC Housing Color | Blue/Green/Aque/Violet/Lime green |
| Connector Type | Female/Male | RL | ≥60dB(SM) ≥20dB(MM) |
| IL(Typical) | 0.1/0.2dB | MPO IL(Max. Value) | 0.35/0.6dB |
| Breakout Outside Diameter (OD) | 0.9mm | LC IL(Max. Value) | 0.3dB |
| Breakout Length | 0.3m | Cassettes Material | Plastic/SPCC/Aluminium |
| Number of Internal Jumpers | 1*MPO-24LC | Flame Retardant Grade | OFN/OFNR/OFNP |
| LC Adapter Type | Duplex LC /Quadruplex LC | MPO Adapter Type | Key UP-Key UP/Key UP-Key Down |
| Cable Material | LSZH | Fiber Loss | SM:0.35db@1310nm/0.2dB@1550nm MM:2.4dB@850nm/0.6dB@1300nm |
| Fiber Brand | Corning/YOFC | Min.bending Radius(Long Term) | 20D |
| Working Wavelength | 1310/1550(SM) 850/1300(MM) | Durability | ≥500 times |
| Min.bending Radius(Short Term) | 10D | Polarity | TYPE A/AF/U/UF |
| Operating Temperature | -10 to 70℃ (14 to 158℉) | Storage Temperature | -40 to 85℃ (-40 to 185℉) |
PRODUCT PRESENTATION
This 24-Fiber MPO-LC Cassette offers unparalleled density for data center applications, consolidating a 24-fiber trunk into individual LC ports within a compact module. This cassette supports high-bandwidth fan-out for 100G and 40G systems. It delivers a modular solution that reduces installation time and minimizes the risk of human error during high-density port deployment, making it ideal for central aggregation.
MPO CASSETTE SERIES PRODUCTS
PRODUCTION & TESTING EQUIPMENT
FEATURES
| MPO Cassette | ||
|---|---|---|
 |  |  |
| Strong durability | High-density design | Easy installation |
| Made from high-quality plastic,it offers excellent impact resistance and corrosion resistance, adapting to various environments. | Supports 12/24-core MPO fiber optic connections, with a compact structure that saves space, making it suitable for high-density cabling environments. | Modular design for simple installation and maintenance, supports quick plug-and-play, enhancing cabling efficiency. |
ADAPTER PANEL ORDER INFORMATION
| Adapter Panel Order Information | ||
|---|---|---|
| 4-port module box (8 blanks) |  | Each port can accommodate 1 LC duplex non-ear adapter |
| Each port can accommodate 1 SC simplex non-ear adapter | ||
| 6-port module box (6 blanks) |  | Each port can accommodate 1 LC duplex non-ear adapter |
| Each port can accommodate 1 SC simplex non-ear adapter | ||
| 8-port module box (4 blanks) |  | Each port can accommodate 1 LC duplex non-ear adapter |
| Each port can accommodate 1 SC simplex non-ear adapter | ||
| 12-port module box |  | Each port can accommodate 1 LC duplex non-ear adapter |
| Each port can accommodate 1 SC simplex non-ear adapter | ||
PACKAGING
PRODUCT CERTIFICATION
QUALITY ADVANTAGE
CONFIGURATION INFORMATION
