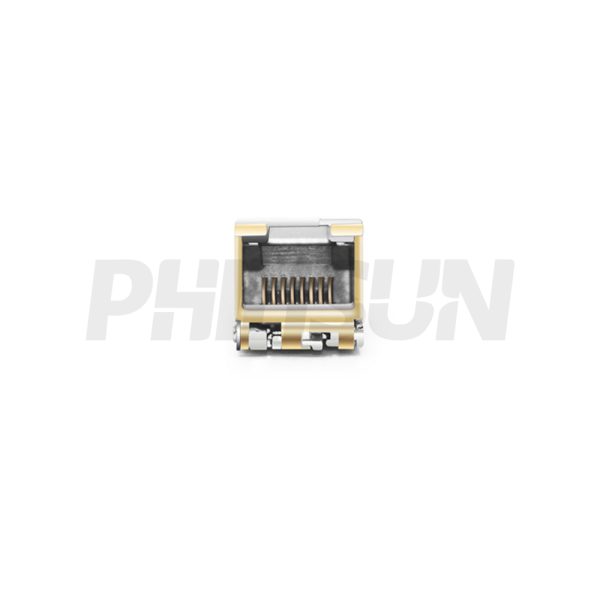

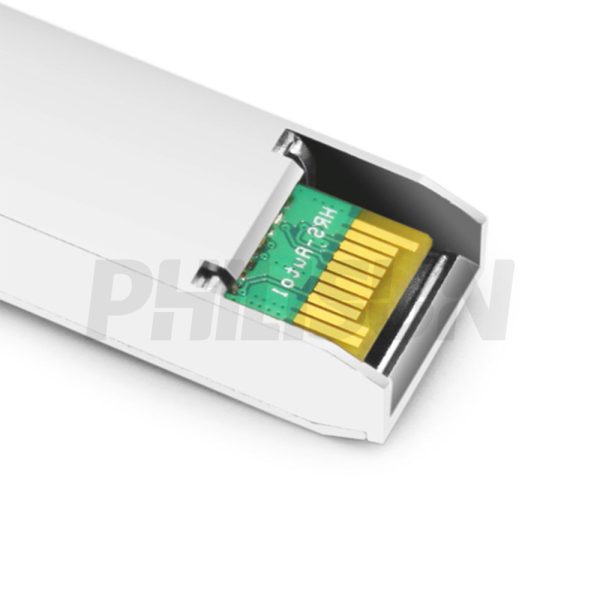

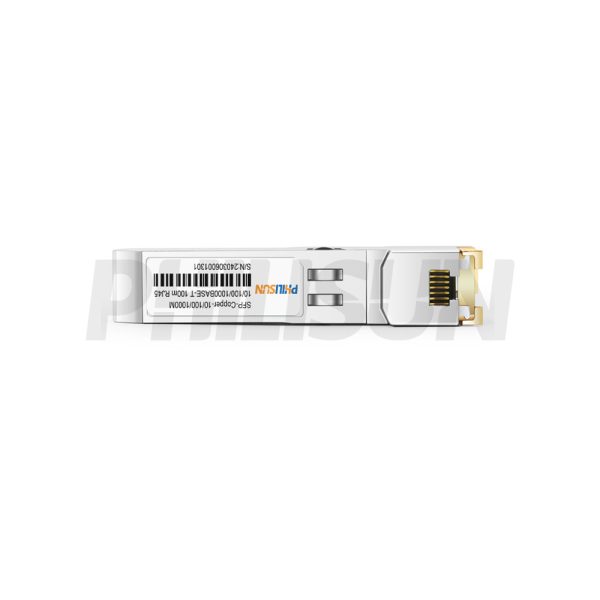

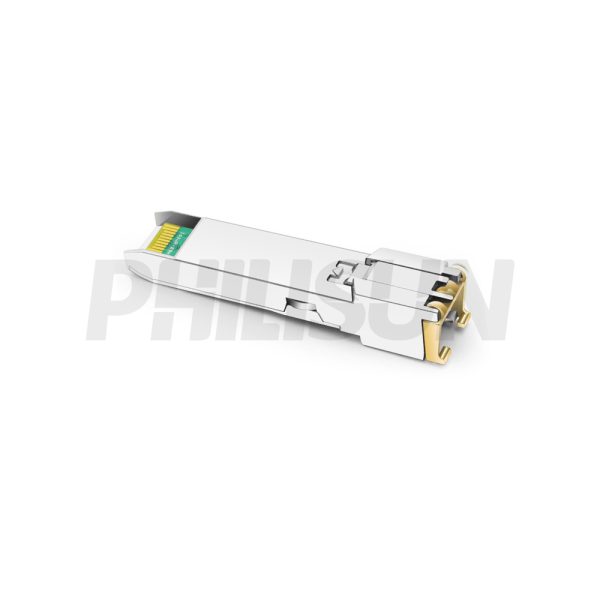

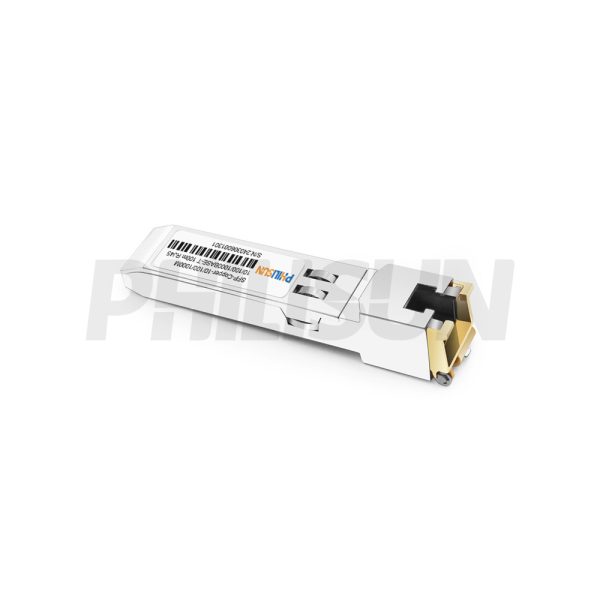

10/100/1000BASE-T SFP 100m Copper RJ45 Transceiver
SFPCO-1A-01-RJ45-SGMII
- High Quality
- Factory Outlet
- Satisfaction Guarantee
- Global Shipping
| SPECIFICATIONS | |||
|---|---|---|---|
| Product Model | SFPCO-1A-01-RJ45-SGMII | Manufacturer Brand | PHILISUN |
| Package Type | SFP | Optical Connector | RJ45 |
| Max Data Rate | 1000Mbps | 10G Effective Transmission Distance | 100m |
| Hot-Pluggable SFP | YES | Operating voltage | 3.3V |
| Power Consumption | 1.05 W | Protocols | SFP MSA IEEE Std 802.3 |
| Operating Temperature(Commercial) | 0℃~+70℃ | Storage Temperature(Commercial) | -40℃~+85℃ |
| Operating Temperature(Industrial) | -40℃~+85℃ | Storage Temperature(Industrial) | -40℃~+85℃ |
PRODUCT PRESENTATION
The PHILISUN SFP-Copper 10/100/1000BASE-T 100m RJ45 transceiver is a versatile Small Form Pluggable (SFP) module for 10/100/1000BASE-T applications, developed in line with the SFP Multi-Source Agreement (MSA). It adheres to the Gigabit Ethernet standard as outlined in IEEE STD 802.3, ensuring reliable performance across 10/100/1000BASE-T networks.
TRANSCEIVER SERIES PRODUCTS
PRODUCTION & TESTING EQUIPMENT
PERFORMANCE PARAMETER
| Absolute Maximum Ratings | |||||||||
| Parameter | Symbol | Min. | Typ | Max. | |||||
| Maximum supply voltage | Vcc | -0.5 | – | 4.0 | |||||
| Storage temperature | TS | -40 | – | +85 | |||||
| *Exceeding any one of these values may destroy the device immediately. | |||||||||
| Normal Operating Condition | |||||||||
| Parameter | Symbol | Min | Typ | Max | Units | ||||
| Operating case temperature | Tc | 0 | – | 70 | °C | ||||
| -40 | – | 85 | |||||||
| Supply voltage | Vcc | 3.15 | 3.3 | 3.45 | V | ||||
| Date rate | – | 10 | – | 1000 | Mbps | ||||
| Electrical Characteristics | |||||||||
| Parameter | Symbol | Min | Typ | Max | Units | Notes/Conditions | |||
| +3.3 Volt Electrical Power Interface | |||||||||
| Supply current | Icc | – | 300 | 350 | mA | – | |||
| Input voltage | Vcc | 3.13 | 3.3 | 3.45 | V | – | |||
| Surge vurrent | Isurge | – | – | 30 | mA | – | |||
| Low-Speed Signals, Electronic Characteristics | |||||||||
| SFP output low | VOL | 0 | – | 0.5 | V | 4.7k to 10k pull-up to host_Vcc,measured at host side of connector | |||
| SFP output high | VOH | host_Vcc-0.5 | – | host_Vcc+0.3 | V | 4.7k to 10k pull-up to host_Vcc, measured at host side of connector | |||
| SFP input low | VIL | 0 | – | 0.8 | V | 4.7k to 10k pull-up to Vcc, measured at SFP side of connector | |||
| SFP input high | VIH | 2 | – | Vcc + 0.3 | V | 4.7k to 10k pull-up to Vcc, measured at SFP side of connector | |||
| High-Speed Electrical Interface, Transmission Line-SFP | |||||||||
| Line baud rates | fL | – | 125 | – | MHz | MLT-3 encoding per IEEE802.3u | |||
| TX output impedance | Zout, TX |
–
|
100 | – | Ohm | Differential, AC coupled Internally | |||
| RX input impedance | Zin, RX | – | 100 | – | Ohm | Differential, AC coupled Internally | |||
| High-Speed Electrical Interface, Host-SFP | |||||||||
| Single ended data input swing | Vin | 250 |
–
|
1200 | mV | Single ended | |||
| Single ended data output swing | Vout | 350 | – | 800 | mV | Single ended | |||
| Rise/Fall time | Tr, Tf |
–
|
175 |
–
|
nsec | 20%-80% | |||
| TX Iinput impedance | Zin |
–
|
50 |
–
|
Ohm | Single ended | |||
| RX output impedance | Zout | – | 50 | – | Ohm | Single ended | |||
| General Specifications | |||||||||
| Parameter | Symbol | Min | Typ | Max | Units | Notes/Conditions | |||
| Data rate | – | 10 | – | 1000 | Mbps | – | |||
| Distance | – | – | – | 100 | m | Category 5 UTP. BER <10-12 | |||
PIN DESCRIPTIONS
| Pin No. | Name | Function | Plug Seq. | Notes | |||||
| 1 | VeeT | Transmitter ground | 1 | – | |||||
| 2 | TX fault | Transmitter fault indication | 3 | Not used | |||||
| 3 | TX disable | Transmitter disable | 3 | 1 | |||||
| 4 | MOD-DEF2 | Module definition 2 | 3 | 2 | |||||
| 5 | MOD-DEF1 | Module definition 1 | 3 | 2 | |||||
| 6 | MOD-DEF0 | Module definition 0 | 3 | 2 | |||||
| 7 | Rate select | Not connected | 3 | – | |||||
| 8 | LOS | Los of signal | 3 | Not Used | |||||
| 9 | VeeR | Receiver ground | 1 | – | |||||
| 10 | VeeR | Receiver ground | 1 | – | |||||
| 11 | VeeR | Receiver ground | 1 | – | |||||
| 12 | RD- | Inv. received data out | 3 | – | |||||
| 13 | RD+ | Received data out | 3 | – | |||||
| 14 | VeeR | Receiver ground | 1 | – | |||||
| 15 | VccR | Receiver power | 2 | – | |||||
| 16 | VccT | Transmitter power | 2 | – | |||||
| 17 | VeeT | Transmitter ground | 1 | – | |||||
| 18 | TD+ | Transmit data in | 3 | – | |||||
| 19 | TD- | Inv. transmit data in | 3 | – | |||||
| 20 | VeeT | Transmitter ground | 1 | – | |||||
| 1. PHY disabled on TDIS > 2.0V or open, enabled on TDIS < 0.8V, used to reset the module. 2. Should be pulled up with 4.7k – 10k ohm on host board to a voltage between 2.0 V and 3.6 V. MOD_DEF (0) pulls line low to indicate module is plugged in. |
|||||||||
The following is the Diagram of host board connector block pin numbers and names
SERIAL COMMUNICATION PROTOCOL
PHILISUN Copper SFP support the 2-wire serial communication protocol defined in the SFP MSA.
These SFP use a 128 byte EEPROM with an address of A0H. The 10/100/1000BASE-T physical
layer IC can also be accessed via the 2-wire serial bus at address ACH.
These SFP use a 128 byte EEPROM with an address of A0H. The 10/100/1000BASE-T physical
layer IC can also be accessed via the 2-wire serial bus at address ACH.
SGMII TO COPPER MODES
EEPROM SERIAL ID MEMORY CONTENTS
Accessing Serial ID Memory uses the 2 wire address 1010000X (A0H). Memory Contents of Serial ID are shown in Table 1.
| Table 1 Serial ID Memory Contents | |||||||||
| Addr. | Size(Bytes) | Name of Field | Hex | Description | |||||
| BASE ID FIELDS | |||||||||
| 0 | 1 | Identifier | 03 | SFP | |||||
| 1 | 1 | Ext. Identifier | 04 | SFP function is defined by serial ID only | |||||
| 2 | 1 | Connector | 22 | RJ-45 | |||||
| 3- 10 | 8 | Transceiver | 00 00 00 08 00 00 00 00 | Transceiver Code | |||||
| 11 | 1 | Encoding | 01 | 8B10B | |||||
| 12 | 1 | BR, Nominal | 0D | 1.25G | |||||
| 13 | 1 | Reserved | 00 | – | |||||
| 14 | 1 | Length (9µm)km | 00 | Transceiver transmit distance | |||||
| 15 | 1 | Length(9µm)100m | 00 | ||||||
| 16 | 1 | Length (50µm) 10m | 00 | ||||||
| 17 | 1 | Length(62.5µm)10m | 00 | ||||||
| 18 | 1 | Length (Copper) | 64 | 100m | |||||
| 19 | 1 | Reserved | 00 | – | |||||
| 20-35 | 16 | Vendor name | XX XX XX XX XX XX XX XX 20 20 20 20 20 20 20 20 | Vendor name (ASCII) | |||||
| 36 | 1 | Reserved | 00 | – | |||||
| 37-39 | 3 | Vendor OUI | XX XX XX | – | |||||
| 40-55 | 16 | Vendor PN | XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX | Transceiver part number | |||||
| 56-59 | 4 | Vendor rev | XX XX XX XX | – | |||||
| 60-61 | 2 | Wavelength | 00 | – | |||||
| 62 | 1 | Reserved | 00 | – | |||||
| 63 | 1 | CC_BASE | Check Sum (Variable) | Check code for Base ID Fields | |||||
| EXTENDED ID FIELDS | |||||||||
| 64-65 | 2 | Options | 00 00 | TX_DISABLE, TX_FAULT and Loss of Signal implemented. | |||||
| 66 | 1 | BR,max | 00 | – | |||||
| 67 | 1 | BR,min | 00 | – | |||||
| 68-83 | 16 | Vendor SN | XX XX XX XX XX XX XX XX 20 20 20 20 20 20 20 20 | Serial Number of transceiver(ASCII). For example “B000822” . | |||||
| 84-91 | 8 | Date code | XX XX XX XX XX XX XX XX | Manufacture date code. For example “080405” . | |||||
| 92 | 1 | Diagnostic Monitoring Type | XX | Digital diagnostic monitoring implemented | |||||
| 93 | 1 | Enhanced Options | XX | Optional flags | |||||
| 94 | 1 | SFF_8472 Compliance | XX | 01 for diagnostics (Rev9.3 SFF-8472). | |||||
| 95 | 1 | CC_EXT | Check Sum (Variable) | Check sum for Extended ID Field. | |||||
| VENDOR SPECIFIC ID FIELDS | |||||||||
| 96-127 | 32 | Vendor Specific | Read only | Depends on customer information | |||||
| 128-255 | 128 | Reserved | Read only | – | |||||
