Generic Compatible 100GBASE-SR4 QSFP28 850nm 100m DOM MPO8/12 MMF Optical Transceiver Module

SPECIFICATIONS
Product Model	QSFP28-103-85-01(SR4)-MPO8/12	Manufacturer Brand	PHILISUN
Package Type	QSFP28	Optical Connector	MPO 8C/12C
Max Data Rate	100Gbps	Channel Data Rate	25.78125Gbps
Effective transmission distance(OM3)	70m	Effective transmission distance(OM4)	100m
Wavelength	850nm	Operating Voltage	3.3V
Fiber Type	MMF	Core Size	50/125µm
Transmitter Type	VCSEL	Receiver Type	PIN
TX Power	-6~2.4dBm	Receiver Sensitivity	-5.2dBm
Digital Diagnostic Monitoring(DDM)	YES	Receiver Overload	2.4dBm
Power Consumption	<2.5W	Protocols	IEEE 802.3bm 100GBASE SR4
Operating temperature(Commercial)	0℃~+70℃	Storage Temperature(Commercial)	-40℃~+85℃
Operating temperature(Extended)	-20℃~+85℃	Storage Temperature(Industrial)	-40℃~+85℃
Operating temperature(Industrial)	-40℃~+85℃	Storage Temperature(Industrial)	-40℃~+85℃

PRODUCT PRESENTATION

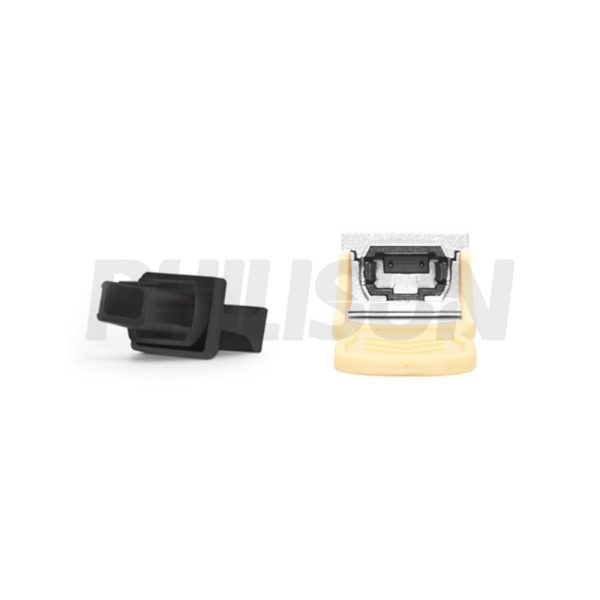

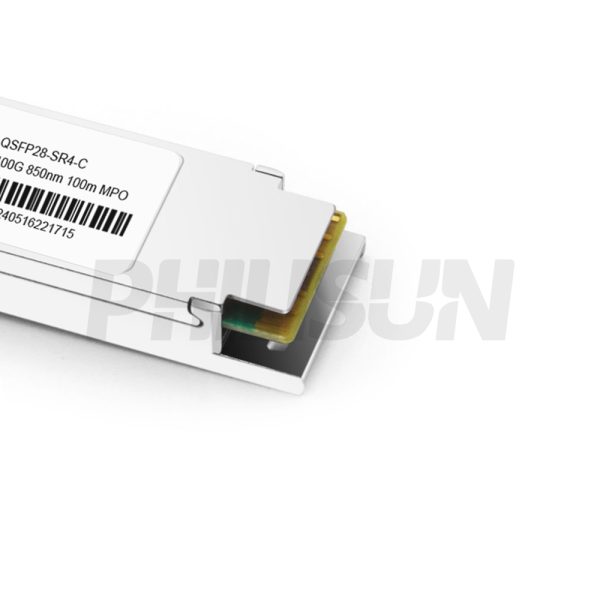

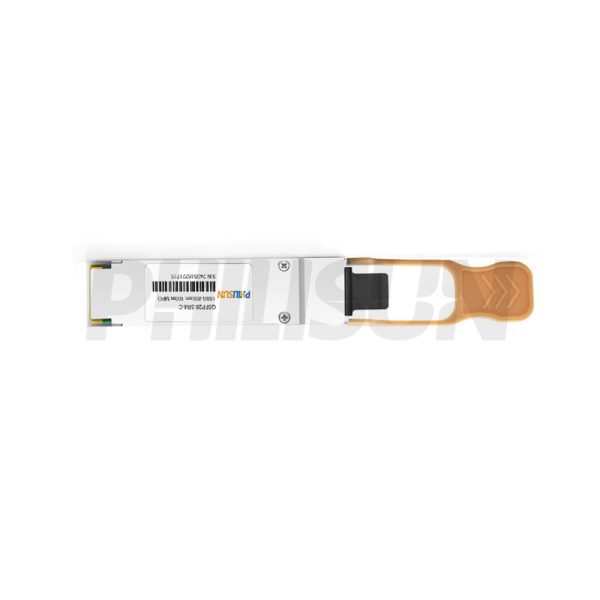

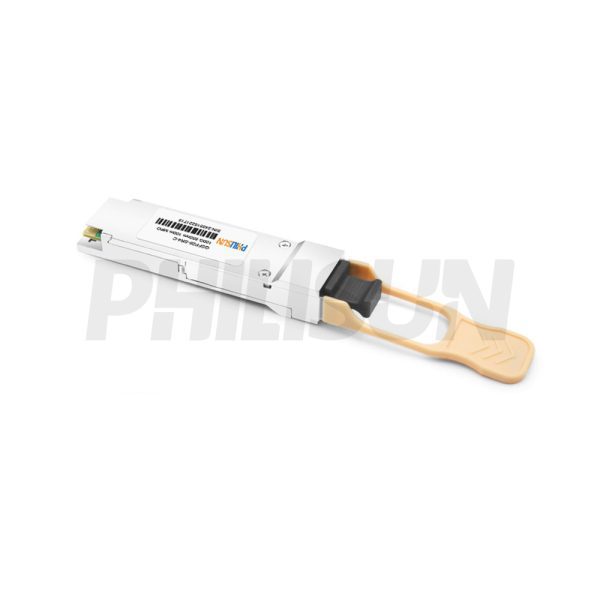

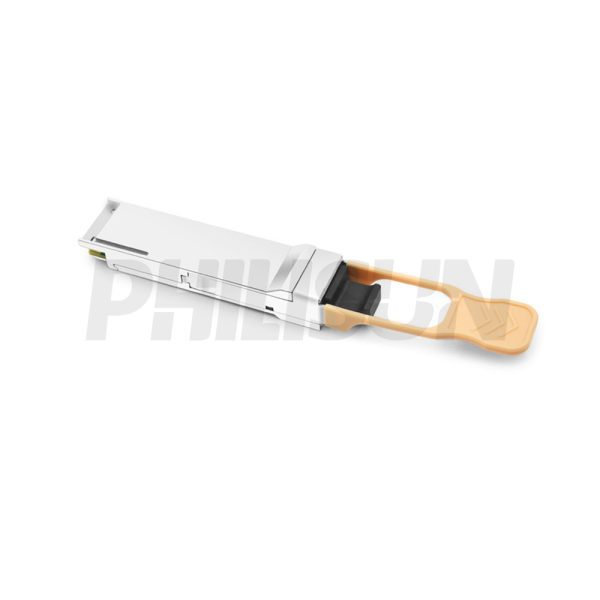

The PHILISUN QSFP28 100G 850nm 100m SR4 MPO 8/12 Transceiver is a high-performance, highly integrated 4x25G module designed to optimize reach, bandwidth, density, and cost for high port-count 100G systems and client-side 100G interfaces. Each lane supports data rates of 25Gbps, enabling transmission distances of up to 70m over OM3 fiber or 100m over OM4 fiber.Engineered for multimode fiber systems, this transceiver operates at a nominal wavelength of 850nm. It features a 38-contact edge-type electrical connector and a 8/12-fiber MPO optical interface for seamless integration into high-speed network environments.

TRANSCEIVER SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

PERFORMANCE PARAMETER

Absolute Maximum Ratings
Parameter	Symbol	Min.	Max.	Unit
Power supply voltage	VCC	-0.5	+3.6	V
Storage temperature	TC	-40	+85	℃
Relative humidity	RH	5	85	%
These values represent the damage threshold of the module.Stress in excess of any of the individual absolute maximum ratingscan cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.

Electrical Characteristics
Parameter	Symbol	Min	Typical	Max	Unit	Ref
Transmitter
Input differential impedance	Rin	–	100	–	Ω	–
Differential input voltage swing,per lane	Vin	300	–	1100	mV	–
Input logic level high	VIH	2.0	–	VCC+0.3	V	–
Input logic level low	VIL	Vee	–	Vee+0.8	V	–
Receiver
Output differential impedance	Rout	–	100	–	Ω	–
Differential output swing,per lane	Vout	500	–	800	mV	–
Output logic level high	VOH	2.0	–	VCC+0.3	V	–
Output logic level low	VOL	0	–	0.4	V	–

Transmitter Specifications-Optical
Parameter	Symbol	Min	Typical	Max	Unit	–
Signaling speed per lane	–	25.78125±100ppm			Gb/s	–
Center wavelength	λ	840	850	860	nm	–
RMS spectral width	△λ	–	–	0.6	nm	–
Average launch power per Lane	Po	-6	–	2.4	dBm	–
Transmit OMA per Lane	OMA	-6.4	–	3	dBm	–
Launch power [OMA]minus TDEC per Lane	P-TDEC	-7.3	–	–	dBm	–
Extinction ratio	ER	3	–	–	dB	–
Optical return loss tolerance	ORL	–		12	dB	–
Average launch power of OFF transmitter,each lane	–	–	–	-30	dBm	–

Receiver Specifications-Optical
Parameter	Symbol	Min.	Typical	Max.	Unit	–
Bit rate per channel	DR	25.78125±100ppm			Gb/s	–
Center wavelength	λ	840	850	860	nm	–
Damage threshold	DT	3.4	–	–	dBm	–
Average receive power,each lane	RXPOW	-10.3	–	2.4	dbm	–

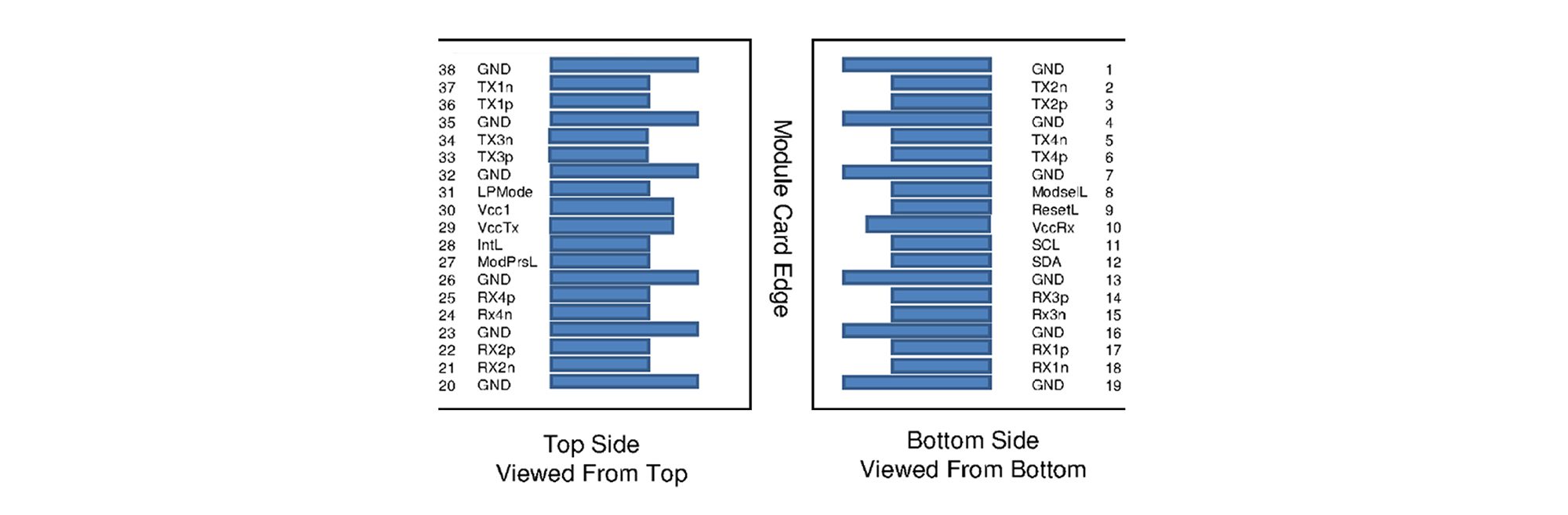

Pin	Symbol	Name/Description
1	GND	Ground
2	Tx2n	Transmitter inverted data input
3	Tx2p	Transmitter non-inverted data input
4	GND	Ground
5	Tx4n	Transmitter inverted data input
6	Tx4p	Transmitter non-inverted data input
7	GND	Ground
8	ModSelL	Module select
9	ResetL	Module reset
10	VCCRx	+3.3V power supply receiver
11	SCL	2-wire serial interface clock
12	SDA	2-wire serial interface data
13	GND	Ground
14	Rx3p	Receiver non-inverted data output
15	Rx3n	Receiver inverted data output
16	GND	Ground
17	Rxlp	Receiver non-inverted data output
18	Rx1n	Receiver inverted data output
19	GND	Ground
20	GND	Ground
21	Rx2n	Receiver inverted data output
22	Rx2p	Receiver non-inverted data output
23	GND	Ground
24	Rx4n	Receiver inverted data output
25	Rx4p	Receiver non-inverted data output
26	GND	Ground
27	ModPrsL	Module present
28	IntL	Interrupt
29	VCCTx	+3.3V power supply transmitter
30	VCC1	+3.3V power Supply
31	LPMode	Low power mode
32	GND	Ground
33	Tx3p	Transmitter non-inverted data input
34	Tx3n	Transmitter inverted data input
35	GND	Ground
36	Txlp	Transmitter non-inverted dataInput
37	Tx1n	Transmitter inverted data input
38	GND	Ground

Recommended Operating Environment
Parameter	Symbol	Min	Typical	Max	Unit
Power supply voltage	VCC	3.15	3.30	3.45	V
Operating case temperature	Tca	0	–	70	℃
	Tca	-20	–	85
	Tca	-40	–	85
Recommended operating environment specifies parameters for which the electrical and optical characteristics hold unless otherwise noted.
