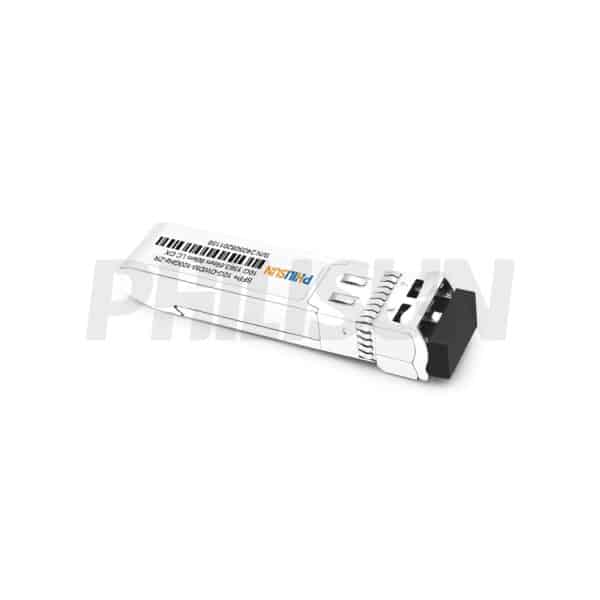

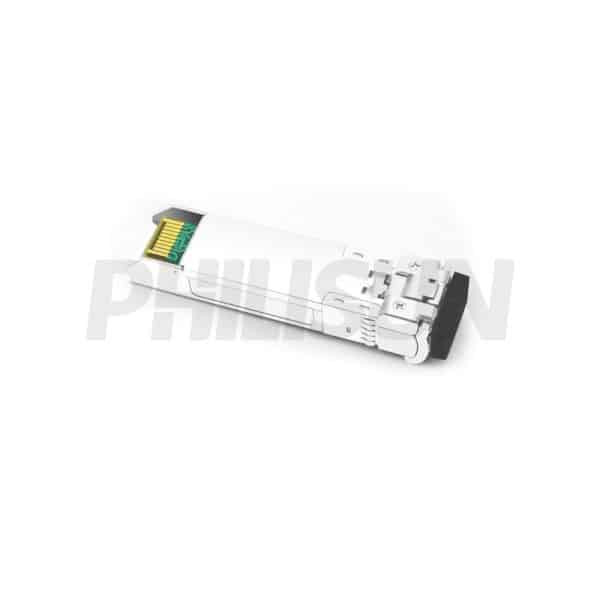

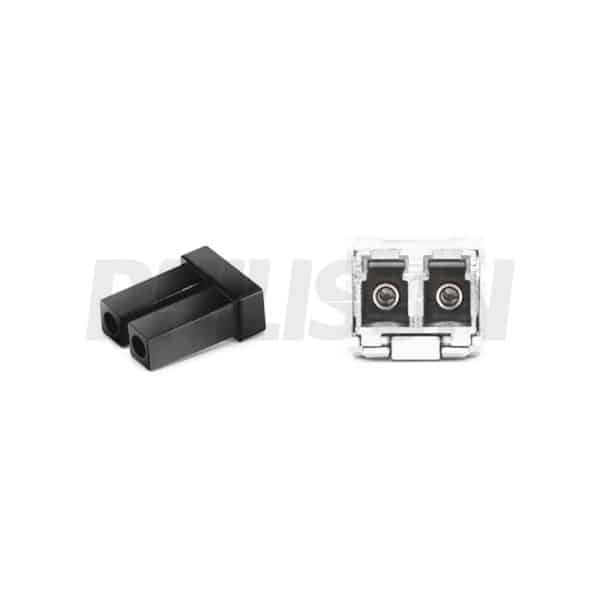

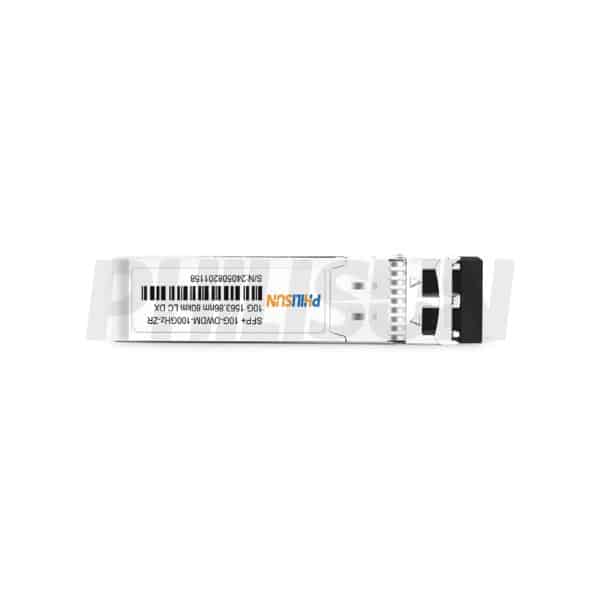

Generic Compatible 10G DWDM 100GHz ZR SFP+ 80km DOM Duplex LC SMF Optical Transceiver Module

SFP+10-100DW-80(ZR)-LCD

Category: Brand:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Product ModelSFP+10-100DW-80(ZR)-LCDManufacturer BrandPHILISUN
Package TypeSFP+Optical ConnectorDuplex LC
Max Data Rate11.3GbpsChannel Data Rate10.5Gbps
Effective Transmission Distance80km
Wavelength1528.77nm to 1563.86nmOperating Voltage3.3V
Fiber TypeSMFCore Size9/125µm
Transmitter TypeDWDM EMLReceiver TypeIDP
TX Power0~4dBmReceiver Sensitivity-23dBm
Digital Diagnostic Monitoring(DDM)YESReceiver Overload-7dBm
Power ConsumptionC<1.5W,I<1.8WProtocolsSFF-8431 MSA
SFF-8432 MSA
Operating Temperature(Commercial)0℃~+70℃Storage Temperature(Commercial)-40℃~+85℃
Operating Temperature(Industrial)-40℃~+85℃Storage Temperature(Industrial)-40℃~+85℃



PRODUCT PRESENTATION
The PHILISUN SFP+ 10G 100GHz DWDM 80km ZR LC DX series single-mode transceiver is a compact, pluggable module designed for duplex optical data communications. Tailored for DWDM networking equipment in metropolitan access and core networks, this module operates across nominal DWDM wavelengths from 1528nm to 1566nm, as specified by ITU-T standards. It is fully compliant with the SFF-8431 and SFF-8432 MSA specifications.



TRANSCEIVER SERIES PRODUCTS



PRODUCTION & TESTING EQUIPMENT



PERFORMANCE PARAMETER
General Specifications
Parameter Symbol Min Typ. Max Unit Ref.
Module form factor BR 9.95 – 10.5 Gb/s 1
Number of lanes BER – – 10-12 – 2
Maximum aggregate data rate Lmax – 80 – km –
*Notes:
1. 10GBASE-ZR, 10GBASE-ZW, 1200-SM-LL-L 10GFC.
2. Tested with a PRBS 231-1 test pattern



Absolute Maximum Ratings
Parameter Symbol Min. Typ. Max. Unit
Storage temperature Ts -40 – 85 °C
Supply voltage Vcc -0.5 – 4 V
Operating relative humidity – – – 85 %



Electrical Characteristics
Parameter Symbol Min. Typ. Max Unit Notes
Power supply voltage Vcc 3.15 3.3 3.45 V –
Power supply current Icc (0℃ to 70℃) – 350 455 mA –
Icc (-40℃ to 85℃) – 350 545 mA –
Date rate DR 0.6 – 11.3 Gbps Date rate
Transmitter
TX_dis Disable – 2
–
Vcc+0.3
 V –
Enable – 0 – 0.8 –
TX_FAULT Fault – 2 – Vcc+0.3 V –
Normal – 0 – 0.5 –
CML inputs (Differential) Vin 250 1000 mVpp AC coupled input
Input impedance (Differential) Zin 85
100
115
 ohm Rin > 100  kohm @ DC
Receiver
CML Outputs (Differential) Vout 350 – 700 mVpp AC coupled outputs
RX_LOS Loss – 2 – Vcc+0.3 V –
Normal – 0
–
0.8
 –
Output impedance (Differential) Zout 85 100 115 ohm –
MOD_DEF ( 0:2 ) VoH 2.5 – – V With serial ID
VoL 0 – 0.5 V



Optical Characteristics
Parameter Symbol Min. Typ. Max. Unit
Data rate – 0.6 – 11.3 Gbps
Transmitter
Side mode suppression ratio SMSR 30 – – dB
Center wavelength spacing – – 100 – GHz
– 0.8 – nm
Average output power Pout 0 – 4 dBm
Average launch power (Tx: OFF) POFF – – -30 dBm
Extinction ratio ER 6 – – dB
Transmitter dispersion penalty @1600ps/nm TDP – – 3 dB
Pout@TX disable asserted Pout – – -45 dBm
Relative intensity noise RIN – – -128 dB/Hz
TX jitter TXj Per 802.3ae requirements
Receiver
Receiver sensitivity Pmin – – -23 dBm
Receiver overload Pmax -7 – – dBm
LOS de-assert LOSD – – -24 dBm
LOS assert LOSA -40 – – dBm
LOS hysteresis – 0.5 – – dB
Notes:
1. Output is coupled into a 9/125μm single-mode fiber.
2. Minimum average optical power measured at the BER less than 1E-12. The measurepattern is PRBS 231-1.
3. CML logic, internally AC coupled.



Wavelength Table
Channel Frequency (THz) Center wavelength(nm) Channel Frequency (THz) Center wavelength(nm)
17 191.7 1563.86 40 194 1545.32
18 191.8 1563.05 41 194.1 1544.53
19 191.9 1562.23 42 194.2 1543.73
20 192 1561.41 43 194.3 1542.94
21 192.1 1560.61 44 194.4 1542.14
22 192.2 1559.79 45 194.5 1541.35
23 192.3 1558.98 46 194.6 1540.56
24 192.4 1558.17 47 194.7 1539.77
25 192.5 1557.36 48 194.8 1538.98
26 192.6 1556.55 49 194.9 1538.19
27 192.7 1555.75 50 195 1537.4
28 192.8 1554.94 51 195.1 1536.61
29 192.9 1554.13 52 195.2 1535.82
30 193 1553.33 53 195.3 1535.04
31 193.1 1552.52 54 195.4 1534.25
32 193.2 1551.72 55 195.5 1533.47
33 193.3 1550.92 56 195.6 1532.68
34 193.4 1550.12 57 195.7 1531.9
35 193.5 1549.32 58 195.8 1531.12
36 193.6 1548.51 59 195.9 1530.33
37 193.7 1547.72 60 196 1529.55
38 193.8 1546.92 61 196.1 1528.77
39 193.9 1546.12 – – –

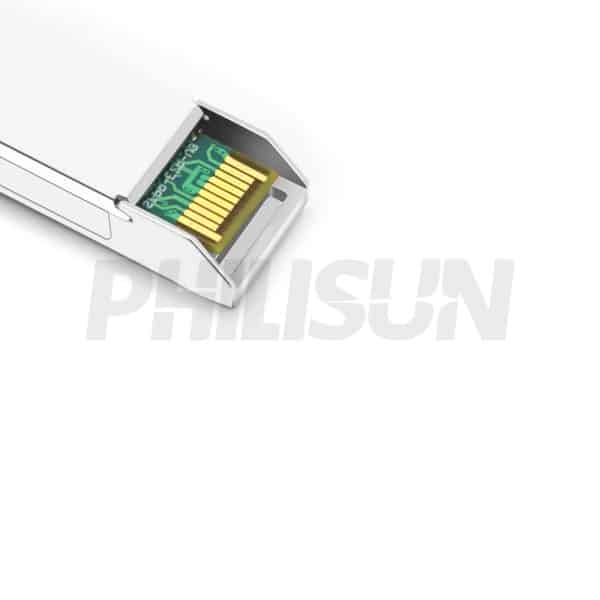

PIN DESCRIPTION



Pin Name Function Plug Seq. Notes
1 VeeT Transmitter ground 1 Note 5
2 TX Fault Transmitter fault indication 3 Note 1
3 TX Disable Transmitter disable 3 Note 2, module disables on high or open
4 SDA Module definition 2 3 Note 3, data line for serial ID.
5 SCL Module definition 1 3 Note 3, clock line for serial ID.
6 MOD-ABS Module definition 0 3 Note 3
7 RS0 RX rate select(LVTTL). 3 Rate select 0, optionally controls SFP+ module receiver. This pin is pulled low to VeeT with a>30K resistor.
8 LOS Loss of signal 3 Note 4
9 RS1 TX rate select(LVTTL). 1 Rate select 1, optionally controls SFP+ module transmitter. This pin is pulled low to VeeT with a >30K resistor.
10 VeeR Receiver ground 1 Note 5
11 VeeR Receiver ground 1 Note 5
12 RD- Inv. received data out 3 Note 6
13 RD+ Received data out 3 Note 7
14 VeeR Receiver ground 1 Note 5
15 VccR Receiver power 2 3.3V ± 5%, Note 7
16 VccT Transmitter power 2 3.3V ± 5%, Note 7
17 VeeT Transmitter ground 1 Note 5
18 TD+ Transmit data in 3 Note 8
19 TD- Inv. transmit data in 3 Note 8
20 VeeT Transmitter ground 1 Note 5
Notes:
1) . TX Fault is an open collector/drain output, which should be pulled up with a 4.7K – 10K resistor on the host board. Pull up voltage between 2.0V and VccT, R+0.3V. When high,output indicates a laser fault of some kind. Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.2) . TX disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7-10 K resistor. Its states are:
Low (0 – 0.8V): Transmitter on
(>0.8, < 2.0V): Undefined
High (2.0 – 3.465V):Transmitter Disabled
Open: Transmitter Disabled3)Module absent, connected to VEET or VEER in the module.4) LOS (Loss of Signal) is an open collector/drain output, which should be pulled up with a 4.7K–10K resistor. Pull up voltage between 2.0V and VccT, R+0.3V. When high, this output indicates the received optical power is below the worst-case receiver sensitivity (as defined by the standard in use). Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.

5) VeeR and VeeT may be internally connected within the SFP+ module.

6) RD-/+: These are the differential receiver outputs. They are AC coupled 100 differential lines which should be terminated with100(differential) at the user SERDES. The AC coupling is done inside the module and is thus not required on the host board.

7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP+ connector pin. Maximum supply current is 300mA. Inductors with DC resistance of less than 1 ohm should be used in order to maintain the required voltage at the SFP+ input pin with 3.3V supply voltage. When the recommended supply-filtering network is used, hot plugging of the SFP+ transceiver module will result in an inrush current of no more than 30mA greater than the steady state value. VccR and VccT may be internall connected within the SFP+ transceiver module.

8) . TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100 differential termination inside the module. The AC coupling is done inside the module and is thus not required on the host board.
