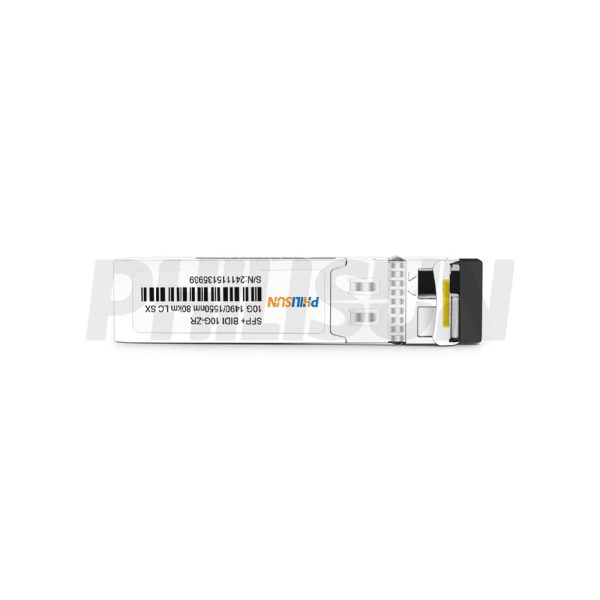

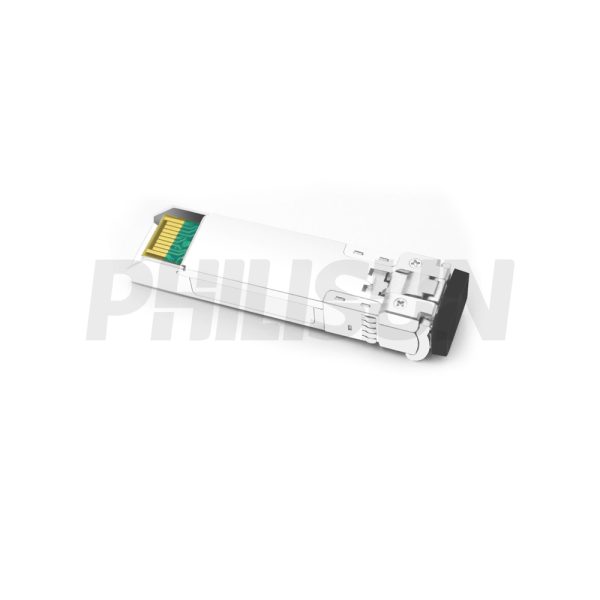

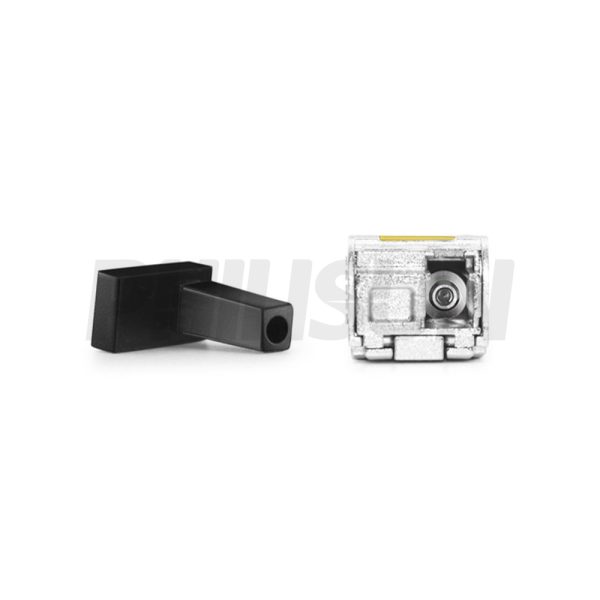

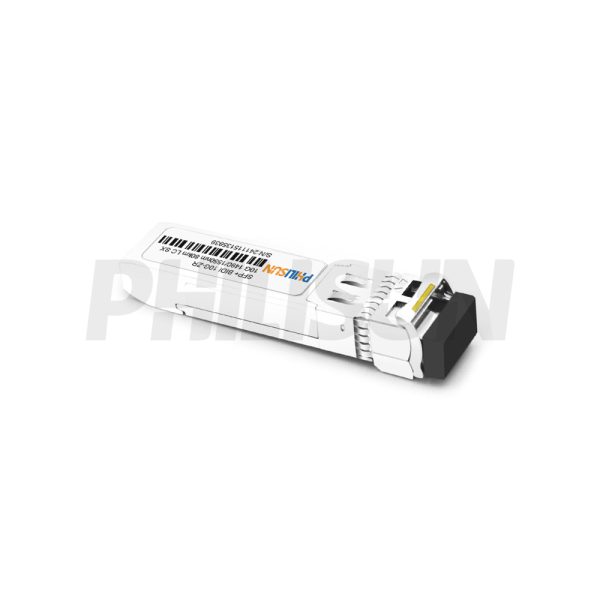

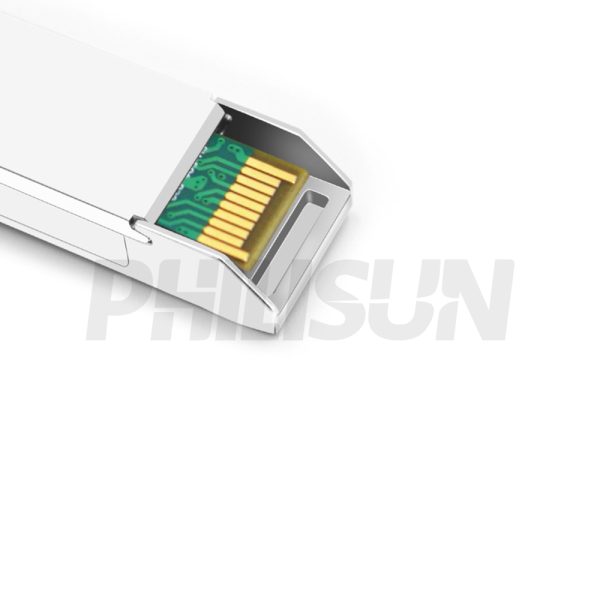

Generic Compatible 10G ZR SFP+ BIDI 1490/1550nm 80km DOM Simplex LC SMF Optical Transceiver Module

SFP+BD-10-1415-80(ZR)-LC

Category: Brand:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Product ModelSFP+BD-10-1415-80(ZR)-LCManufacturer BrandPHILISUN
Package TypeSFP+ BIDIOptical ConnectorDuplex LC
Max Data Rate11.3GbpsChannel Data Rate10.3125Gbps
Effective Transmission Distance80km
WavelengthTx:1490nm/Rx:1550nm
Tx:1550nm/Rx:1490nm		Operating Voltage3.3V
Fiber TypeSMFCore Size9/125µm
Transmitter TypeEMLReceiver TypeIDP
TX Power-1~4dBmReceiver Sensitivity-20dBm,-23dBm
Digital Diagnostic Monitoring(DDM)YESReceiver Overload-6dBm
Power Consumption<2.0WProtocolsSFP+ MSA
SFF-8431
SFF-8472
Operating Temperature(Commercial)0℃~+70℃Storage Temperature(Commercial)-40℃~+85℃



PRODUCT PRESENTATION
The PHILISUN SFP+ BIDI 10G 1490/1550nm 80km ZR LC SX single-mode transceiver is a compact, pluggable module designed for duplex optical data communication, including IEEE 802.3ae 10GBASE-LR/LW applications. It features an SFP+ 20-pin connector for hot-plug capability and is optimized for single-mode fiber, operating at a nominal wavelength of either 1490nm or 1550nm. The transmitter section employs a multiple quantum well DFB laser, compliant with Class 1 laser safety standards per IEC-60825. The receiver integrates an InGaAs detector preamplifier (IDP) within an optical header, along with a limiting post-amplifier IC for efficient signal processing.



TRANSCEIVER SERIES PRODUCTS



PRODUCTION & TESTING EQUIPMENT



PERFORMANCE PARAMETER
Absolute Maximum Ratings
Parameter Symbol Min. Max. Unit
Storage temperature TS -40 +85 °C
Supply voltage VCC -0.5 3.6 V
Operating relative humidity RH 5.0 95.0 %
*Note: Exceeding any one of these values may destroy the device permanently.



Recommended Operating Conditions
Parameter Symbol Min. Typical Max. Unit
Power supply voltage Vcc 3.15 3.3 3.45 V
Power supply current Icc – – 606 mA
Operating case temperature Tc 0 70 °C



Performance Specifications–Electrical
Parameter Symbol Min. Typ. Max Unit Notes
Transmitter
CML inputs(Differential) Vin 150 – 1200 mVpp AC coupled inputs
Input impedance (Differential) Zin 85 100 115 ohm Rin > 100 kohms @ DC
Tx_DISABLE input voltage – high – 2 – Vcc+0.3 V –
Tx_DISABLE input voltage – low – 0 – 0.8 V –
Tx_FAULT output voltage – high – 2
–
Vcc+0.3
 V Io = 400µA; Host Vcc
Tx_FAULT output voltage – low – 0 – 0.5 V Io = -4.0mA
Receiver
CML outputs (Differential) Vout 120 – 800 mVpp AC coupled outputs
Output impedance (Differential) Zout 85 100 115 ohms –
Rx_LOS output voltage – high – 2
–
0.5
 V lo = 400µA; Host Vcc
Rx_LOS output voltage – low – 0
–
700
 mVpp lo = -4.0mA
MOD_DEF ( 2:0 ) VoH 2.5 – – V With Serial ID
VoL 0 – 0.5 V



Optical Characteristics-1490nm EML & APD/TIA
Parameter Symbol Min. Typical Max. Unit
Data rate – – 10.3125 11.3 Gbps
Transmitter
Centre wavelength λC 1480 1490 1500 nm
Spectral width (-20dB) Δλ – – 1 nm
Side mode suppression ratio SMSR 30 – – dB
Average output power Pout, AVG -1 – 4 dBm
Extinction ratio ER 7.5 – – ms
Average power of OFF transmitter – – – -30 dBm
Relative intensity noise RIN – – -128 dB/Hz
Eye mask Compliant with IEEE 802.3ae
Receiver
Centre wavelength λc 1540 – 1565 nm
Sensitivity@10.3125Gbps Pmin – – -23 dBm
Sensitivity(SM 80km) Pmin – – -20 dbm
Receiver overload Pmax -6 – – dBm
LOS De-assert LOSD – – -24 dBm
LOS assert LOSA -38 – – dBm
LOS -hysteresis PHys 0.5 – 8 dB



Optical Characteristics-1550nm EML & APD/TIA
Parameter Symbol Min. Typical Max. Unit
Data rate – – 10.3125 11.3 Gbps
Transmitter
Centre wavelength λC 1540 1550 1560 nm
Spectral width (-20dB) Δλ – – 1 nm
Side mode suppression ratio SMSR 30 – – dB
Average output power Pout, AVG -1 – 4 dBm
Extinction ratio ER ER 7.5 – ms
Average power of OFF transmitter – – – -30 dBm
Relative intensity noise RIN RIN – -128 dB/Hz
Eye mask Compliant with IEEE 802.3ae
Receiver
Centre wavelength λc 1480 – 1500 nm
Sensitivity Pmin – – -23 dBm
Sensitivity(SM 80km) Pmin – – -20 dbm
Receiver overload Pmax -6 – – dBm
LOS De-assert LOSD – – -24 dBm
LOS assert LOSA -38 – – dBm
LOS -hysteresis PHys -0.5 – 8 dB





SFP+ TRANSCEIVER ELECTRICAL PAD LAYOUT



PIN FUNCTION DEFINITIONS

Pin Name Function Plug Seq. Notes
1 VeeT Transmitter ground 1 Note 5
2 TX Fault Transmitter fault indication 3 Note 1
3 TX Disable Transmitter disable 3 Note 2, module disables on high or open
4 SDA Module definition 2 3 2-Wire serial interface data line.
5 SCL Module definition 1 3 2-Wire serial interface clock.
6 MOD-ABS Module definition 0 3 Note 3
7 RS0 RX Rate select(LVTTL). 3 No function implement
8 LOS Loss of signal 3 Note 4
9 RS1 TX Rate select(LVTTL). 1 No function implement
10 VeeR Receiver ground 1 Note 5
11 VeeR Receiver ground 1 Note 5
12 RD- Inv. received data out 3 Note 6
13 RD+ Received data out 3 Note 6
14 VeeR Receiver ground 1 Note 5
15 VccR Receiver power 2 3.3V ± 5%, Note 7
16 VccT Transmitter power 2 3.3V ± 5%, Note 7
17 VeeT Transmitter ground 1 Note 5
18 TD+ Transmit data in 3 Note 8
19 TD- Inv. transmit data in 3 Note 8
20 VeeT Transmitter ground 1 Note 5
Notes:
1) TX Fault is an open collector/drain output, which should be pulled up with a 4.7K – 10KΩ resistoron the host board. Pull up voltage between 2.0V and VccT/R+0.3V. When high, output indicates a laser fault of some kind. Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.2) TX disable is an input that is used to shutdown the transmitter optical output. It is pulled up within the module with a 4.7K – 10 KΩ resistor. Its states are:
Low (0 – 0.8V): Transmitter on
(>0.8, < 2.0V): Undefined
High (2.0 – 3.465V): Transmitter Disabled
Open: Transmitter Disabled3) Module Absent, connected to VeeT or VeeR in the module.4) RX LOS (Loss of Signal) is an open collector/drain output, which should be pulled up with a 4.7K
– 10KΩ resistor. Pull up voltage between 2.0V and VccT/R+0.3V. When high, this output indicates the received optical power is below the worst-case receiver sensitivity (as defined by the standard in use). Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.5) The module signal ground contacts, VeeR and VeeT, should be isolated from the module case.6) RD-/+: These are the differential receiver outputs. They are AC coupled 100Ω differential lines which should be terminated with 100Ω (differential) at the user SERDES. The AC coupling is done inside the module and is thus not required on the host board. The voltage swing on these lines will be between 120 and 800 mV differential (60 –400 mV single ended) when properly terminated.

7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP+ connector pin. Maximum supply current is 606mA. Recommended host board power supply filtering is shown below. Inductors with DC resistance of less than 1 ohm should be used in order to maintain the required voltage at the SFP+ input pin with 3.3V supply voltage. When the recommended supply-filtering network is used, hot plugging of the SFP+ transceiver module will result in an inrush current of no more than 30mA greater than the steady state value. VccR and VccT may be internally connected within the SFP+ transceiver module.

8) TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100Ω differential termination inside the module. The AC coupling is done inside the module and is thus not required on the host board. The inputs will accept differential swings of 150 – 1200 mV (75 – 600mV single-ended).



PRODUCT CERTIFICATION



QUALITY ADVANTAGE



COMPATIBLE BRANDS
CONFIGURATION INFORMATION
