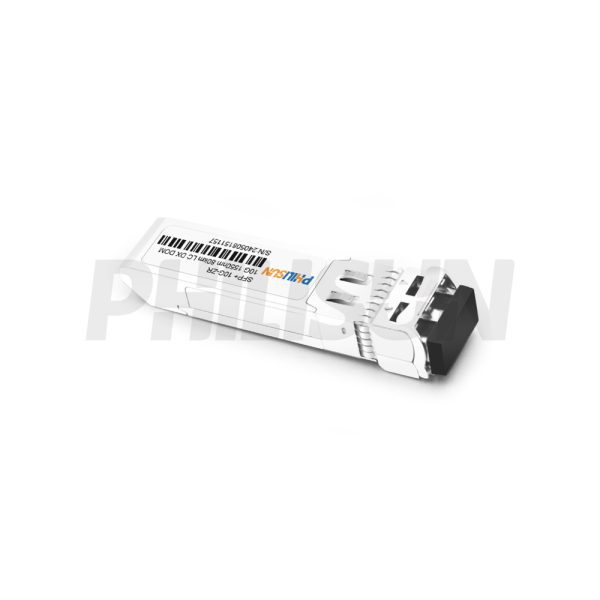

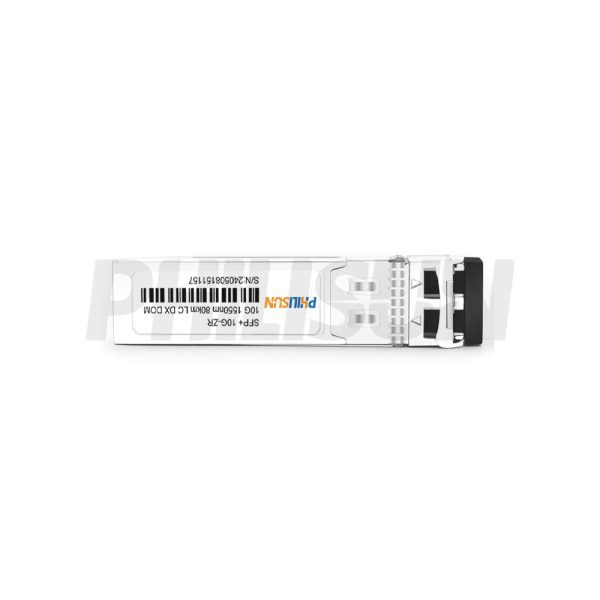

Generic Compatible 10G SFP+ 1550nm 40/80/100km DOM Duplex LC SMF Optical Transceiver Module

SFP+10-15-40(ER)/80(ZR)/100(EZR)-LCD

Category: Brand:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Product ModelSFP+10-15-40(ER)/80(ZR)/100(EZR)-LCDManufacturer BrandPHILISUN

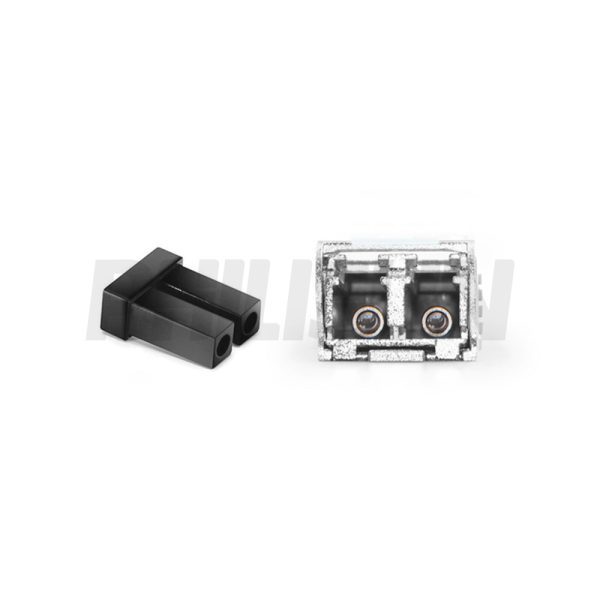

Package TypeSFP+Optical ConnectorDuplex LC
Max Data Rate11.3Gbps/10.3125Gbps Channel Data Rate10.138Gb/s
Effective Transmission Distance(OM3)40km,80km,100km
Wavelength1550nmOperating Voltage3.3V
Fiber TypeSMFCore Size9/125µm
Transmitter TypeEMLReceiver TypeIDP
TX Power-1dBm,0~5dBm,1.5~5dBmReceiver Sensitivity-15.8dBm,-23dBm,-24.5dBm
Digital Diagnostic Monitoring(DDM)YESReceiver Overload-1dBm,-8dBm
Power ConsumptionSFP+10-15-40(ER)-LCD＜1.5W (Typical<1W)SFP+10-15-80(ZR)-LCD＜1.5WSFP+10-15-100(EZR)-LCD＜2W
ProtocolsSFF-8431
SFF-8432
SFF-8472
Operating Temperature(Commercial)0℃~+70℃Storage Temperature(Commercial)-40℃~+85℃
Operating Temperature(Industrial)-40℃~+85℃Storage Temperature(Industrial)-40℃~+85℃
Operating temperature(Extended)-20℃~+75℃Storage Temperature(Industrial)-40℃~+85℃



PRODUCT PRESENTATION

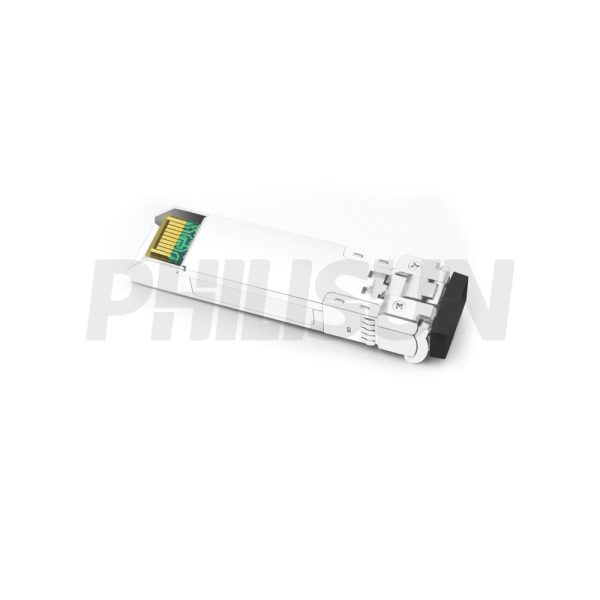

The PHILISUN SFP+ 10G 1550nm 40/80/100km LC DX series single-mode transceiver is a compact, pluggable module designed for duplex optical data communication at speeds up to 10G. It features a 20-pin SFP+ connector, supporting hot-plug capability, and is optimized for single-mode fiber, operating at a nominal wavelength of 1550nm. The transmitter uses a 1550nm EML laser, compliant with Class 1 laser safety standards under IEC-60825. The receiver includes an integrated InGaAs detector preamplifier (IDP) within an optical header and a limiting post-amplifier IC for reliable signal processing across extended distances.



TRANSCEIVER SERIES PRODUCTS



PRODUCTION & TESTING EQUIPMENT



PERFORMANCE PARAMETER
Absolute Maximum Ratings
Parameter Symbol Min. Max. Unit
Storage temperature TS -40 +85 °C
Supply voltage VCC -0.5 3.6 V
 Note: Exceeding any one of these values may destroy the device permanently.



Recommended Operating Conditions
Parameter Symbol Unit SFP+10-15-40(ER)-LCD SFP+10-15-80(ZR)-LCD SFP+10-15-100(EZR)-LCD
Min. Typical Max. Min. Typical Max. Min. Typical Max.
Operating case temperature Tc Standard °C 0 – +70 0 – +70 0 – 70
Industrial °C -40 – +85 -20 – +75 – – –
Power supply voltage Vcc V 3.15 3.3 3.45 3.15 3.3 3.45 3.135 3.3 3.465
Power supply current ICC mA – – 455 – – 455 – – 576
Surge current ISurge mA – – +30 – – +30 – – +30
Baud rate – Gbps 0.6 – 11.3 0.6 – 11.3 – – 10.3125



Performance Specifications–Electrical
Parameter Symbol Min. Typ. Max Unit Notes
Transmitter
CML inputs(Differential) Vin 150 – 1200 mVpp AC coupled inputs
Input impedance(Differential) Zin 85 100 115 ohms Rin > 100 kohms @ DC
Tx_DISABLE input voltage – high – 2 – Vcc+0.3 V –
Tx_DISABLE input voltage – low – 0 – 0.8 V –
Tx_FAULT output voltage – high – 2 –
Vcc+0.3
V
 Io = 400µA; Host Vcc
Tx_FAULT output voltage – low – 0 – 0.5 V Io = -4.0mA
Receiver
CML outputs (Differential) Vout 350 – 700 mVpp AC coupled outputs
Output impedance(Differential) Zout 85 100 115 ohms –
Rx_LOS output voltage – high – 2 –
Vcc+0.3
V
 lo = 400µA; Host Vcc
Rx_LOS output voltage – low – 0 – 0.8 V lo = -4.0 mA
MOD_DEF ( 2:0 ) VoH 2.5 – – V With Serial ID
VoL 0 – 0.5 V



Performance Specifications-Optical
Parameter Symbol Unit SFP+10-15-40(ER)-LCD SFP+10-15-80(ZR)-LCD SFP+10-15-100(EZR)-LCD
Min. Typical Max. Min. Typical Max. Min. Typical Max.
9µm core diameter SMF – km – 40 – – 80 – – 100 –
Transmitter
Center wavelength λC nm 1530 1550 1565 1528 1550 1565 1520 1550 1580
Spectral width (-20dB) Δλ nm – – 1 – – 1 – – 1
Side mode suppression ratio SMSR dB 30 – – 30 – – 30 – –
Average output power Pout, AVG dBm -4.7 -1 4 0 – – 1.5 – 5
Optical modulation amplitude Pout,OMA dBm 1.0 – – – – – – – –
Extinction ratio ER dB 3.5 – – 3.5 – – 8.2 – –
Transmitter and dispersion penalty TDP dB – – 2 – – 3 – – –
Average power of OFF transmitter – dBm – – -30 – – -30 – – -30
Relative intensity noise RIN dB/Hz – – -128 – – -128 – – -128
Input differential impedance ZIN Ω – – – 90 100 110 90 100 110
TX disable assert time t_off us – – 10 – – 10 – – –
Receiver
Center wavelength λC nm 1530 – 1565 1260 – 1600 1260 – 1600
Sensitivity Pmin dBm – – -15.8 – – -23 – – -24.5
Receiver overload PMAX dBm -1 – – -8 – – -8 – –
Output differential impedance PIN Ω – – – 90 100 110 90 100 110
LOS de-assert LOSD dBm – – -16.5 – – -24 – – -26
LOS assert LOSA dBm -30 – – -36 – – -38 – –

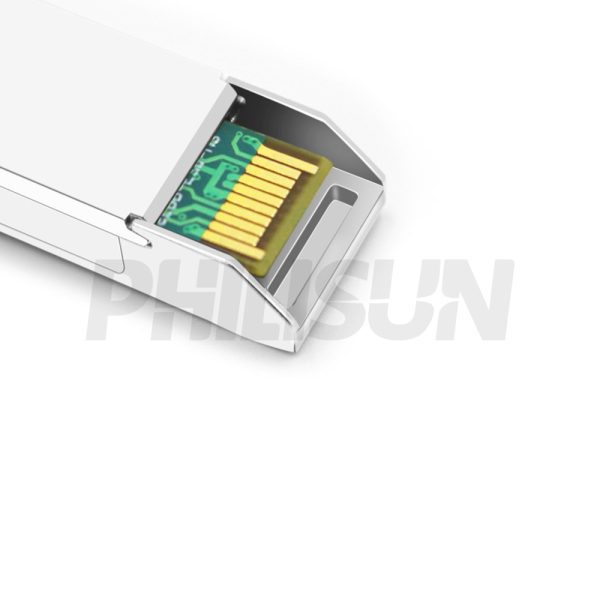

SFP+ TRANSCEIVER ELECTRICAL PAD LAYOUT



PIN FUNCTION DEFINITIONS
Pin Name Function Plug Seq. Notes
1 VeeT Transmitter Ground 1 Note 5
2 TX Fault Transmitter Fault Indication 3 Note 1
3 TX Disable Transmitter Disable 3 Note 2, Module Disables on High or Open
4 SDA Module Definition 2 3 2-wire Serial Interface Data Line.
5 SCL Module Definition 1 3 2-wire Serial Interface Clock.
6 MOD-ABS Module Definition 0 3 Note 3
7 RS0 RX Rate Select (LVTTL). 3 No Function Implement
8 LOS Loss of Signal 3 Note 4
9 RS1 TX Rate Select (LVTTL). 1 No Function Implement
10 VeeR Receiver Ground 1 Note 5
11 VeeR Receiver Ground 1 Note 5
12 RD- Inv. Received Data Out 3 Note 6
13 RD+ Received Data Out 3 Note 6
14 VeeR Receiver Ground 1 Note 5
15 VccR Receiver Power 2 3.3V ± 5%, Note 7
16 VccT Transmitter Power 2 3.3V ± 5%, Note 7
17 VeeT Transmitter Ground 1 Note 5
18 TD+ Transmit Data In 3 Note 8
19 TD- Inv. Transmit Data In 3 Note 8
20 VeeT Transmitter Ground 1 Note 5
Notes:
1) TX Fault is an open collector/drain output, which should be pulled up with a 4.7K – 10KΩ resistor on the host board. Pull up voltage between 2.0V and VccT/R+0.3V. When high, output indicates a laser fault of some kind. Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.2) TX disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7K – 10 KΩ resistor. Its states are: Low (0 – 0.8V): Transmitter on (>0.8, < 2.0V): Undefined
High (2.0 – 3.465V): Transmitter Disabled
Open: Transmitter Disabled3) Module Absent, connected to VeeT or VeeR in the module.4) LOS (Loss of Signal) is an open collector/drain output, which should be pulled up with a 4.7K – 10KΩ resistor. Pull up voltage between 2.0V and VccT/R+0.3V. When high, this output indicates the received optical power is below the worst-case receiver sensitivity (as defined by the standard in use). Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.

5) The module signal ground contacts, VeeR and VeeT, should be isolated from the module case.

6) RD-/+: These are the differential receiver outputs. They are AC coupled 100Ω differential lines which should be terminated with 100Ω (differential) at the user SERDES. The AC coupling is done inside the module and is thus not required on the host board.

7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP+ connector pin. Maximum supply current is 300mA. Recommended host board power supply filtering is shown below. Inductors with DC resistance of less than 1 ohm should be used in order to maintain the required voltage at the SFP+ input pin with 3.3V supply voltage. When the recommended supply-filtering network is used, hot plugging of the SFP+ transceiver module will result in an inrush current of no more than 30mA greater than the steady state value. VccR and VccT may be internally connected within the SFP+ transceiver module.

8) TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100Ω differential termination inside the module. The AC coupling is done inside the module and is thus not required on the host board.
