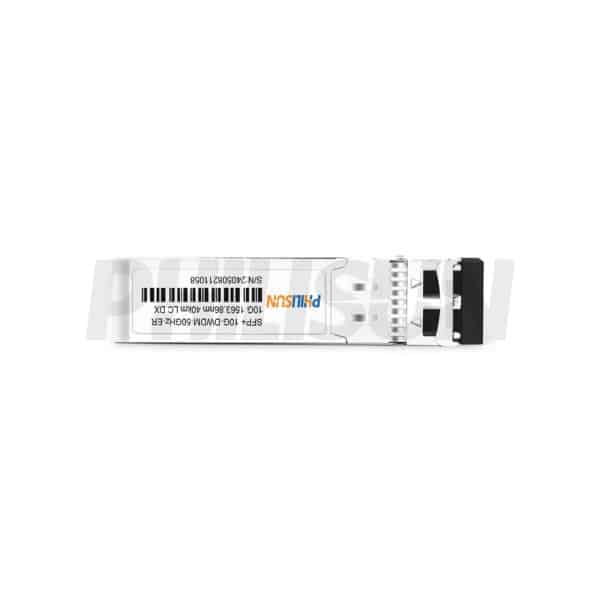

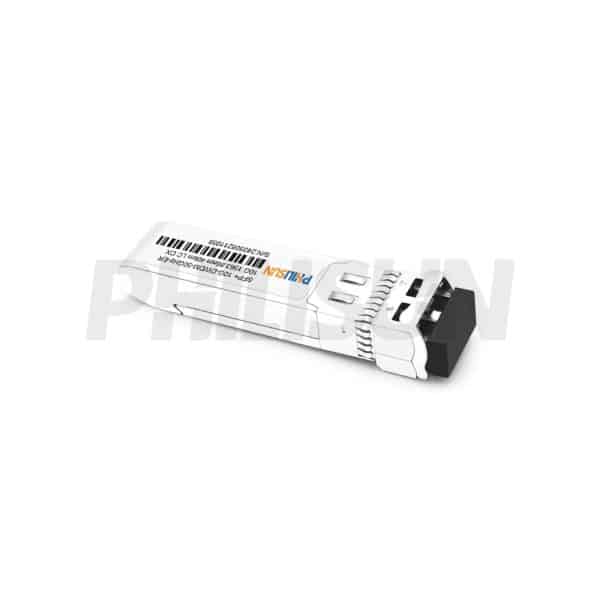

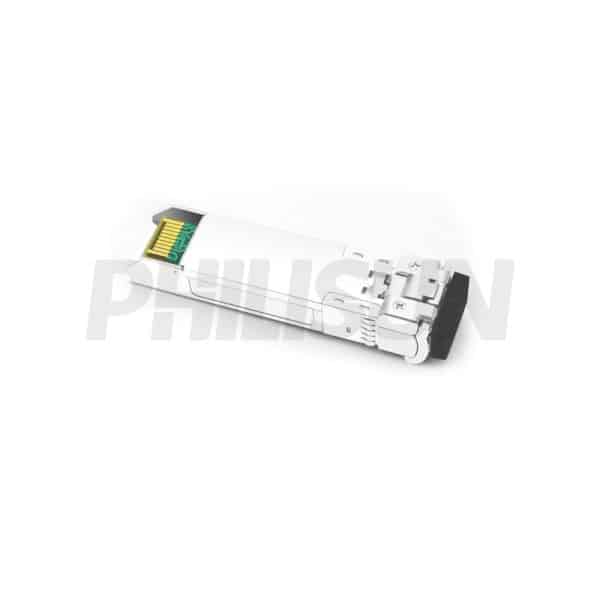

Generic Compatible 10G DWDM 50GHz ER SFP+ 40km DOM Duplex LC SMF Optical Transceiver Module

SFP+10-50DW-40(ER)-LCD

Category: Brand:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Product ModelSFP+10-50DW-40(ER)-LCDManufacturer BrandPHILISUN

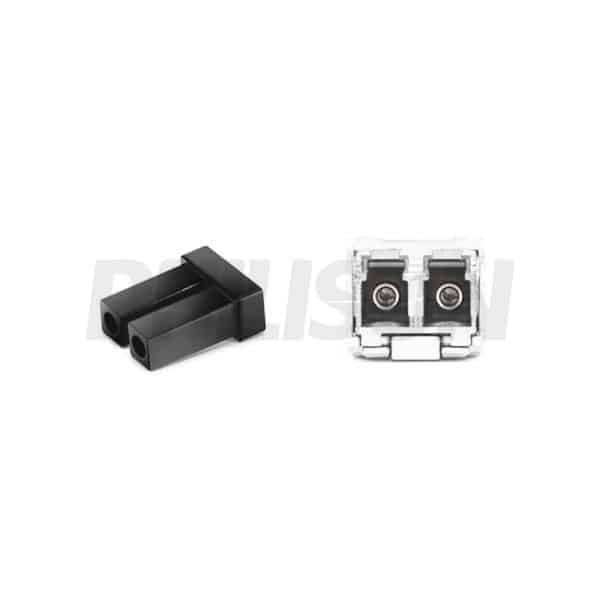

Package TypeSFP+Optical ConnectorDuplex LC
Max Data Rate11.3GbpsChannel Data Rate10.3125Gbps
Effective Transmission Distance40km
Wavelength1529.16~1567.13nm（Tunable）Operating Voltage3.3V
Fiber TypeSMFCore Size9/125µm
Transmitter TypeMonolithic MZM Tunable TOSAReceiver TypePIN
TX Power-1~3dBm,-1~4dBmReceiver Sensitivity-16dBm
Digital Diagnostic Monitoring(DDM)YESReceiver Overload-1dBm
Power ConsumptionC<2.1W,I<2.5WProtocolsSFF-8431
SFF-8472
SFF-8690
IEEE 802.3ae CL 52
Operating Temperature(Commercial)0℃~+70℃Storage Temperature(Commercial)-40℃~+85℃
Operating Temperature(Industrial)-40℃~+85℃Storage Temperature(Industrial)-40℃~+85℃



PRODUCT PRESENTATION

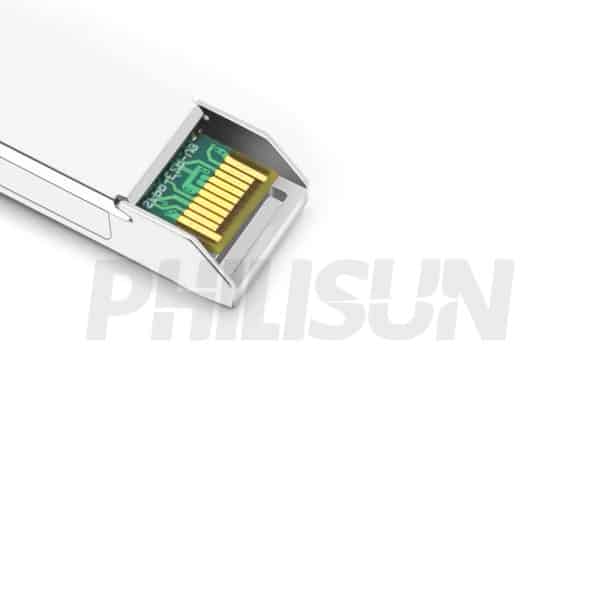

The PHILISUN SFP+ 10G 50GHz DWDM 40km ER LC DX is a high performance, cost effective module supporting multi rate 9.95Gbps to 11.3Gbps with CDR, 8.5Gbps bypass CDR, and transmission distance up to 40km on SM fiber; the transceiver consists of two sections: transmitter incorporating a laser driver and TTOSA, and receiver with PIN integrated transimpedance preamplifier (TIA); this hot-pluggable module connects via 20-pin connector, featuring high-speed electrical interface based on low voltage logic with nominal 100ohms differential impedance and AC coupling; optical output is disabled by LVTTL high-level TX_DIS input, while Tx_Fault indicates laser-related faults and RX_LOS signals receiver input loss; its serial EEPROM enables monitoring/configuration access via 2-wire SFP management interface using single address A0h, with memory map divided into lower area (storing basic DD data) and upper area housing specific data in high memory tables.



TRANSCEIVER SERIES PRODUCTS



PRODUCTION & TESTING EQUIPMENT



PERFORMANCE PARAMETER
Absolute Maximum Ratings
Parameter Symbol Min. Max. Unit Notes
Storage temperature Ts -40 85.0 ℃ –
Power supply voltage Vcc3 0 3.63 V –
Relative humidity(noncondensation) RH 5 +85 % Note1
Damage threshold Pmax – – dBm –



Recommended Operating Conditions
Parameter Symbol Min. Typ. Max. Unit Notes
Operating case temperature Tc 0 25 75 °C –
Supply voltage Vcc 3.13 3.3 3.47 V –
Power supply current Pd – – 670 mA –
Data rate – 8.5 10.3125 11.3 Gbps –
Transmission distance – – – 40 km –



Transmitter Operating Characteristic-Optical, Electrical
Parameter Symbol Min. Typical Max Unit Note
Data rate DR 8.5 10.3125 11.3 Gbps –
Center wavelength CW 191.3 – 196.05 THz –
Wavelength range λC 1529.16 – 1567.13 nm –
Center frequqncy variation CFV 0 – +/-2.5 GHz –
-20dB spectral width Δλ20 – – 0.3 nm –
Side mode suppression ratio SMSR
30
–
 – nm –
Laser off power Poff – – -30 dBm –
Transmitter reflectance TR – – -12 dB –
Average optical power PO -1 0.5 3 dBm –
Extinction ratio ER 8.2 – dB –
Cross point of eye CP
0.4
–
 0.52 –
Transmitter dispersion renalty TDP
–
3
 dB –
Transmitter dispersion tolerance(CD window with 2dB OSNR penalty) TDT -700 – 700 km ps/nm –
Relative intensity noise RIN12OMA – – -128 dB/Hz –
Optical eye mask EMM
5
–
 – – –
Tx Input diff voltage VI 200 – 850 mV –



Receiver Operating Characteristic-Optical, Electrical
Parameter Symbol Min. Typical Max. Unit Note
Data rate DR 8.5 10.3125 11.3 Gbps –
Center wavelength CW 1260 – 1600 nm –
Sensitivity @(BER=1E-12, PRBS 2^31-1, NRZ,
9.95Gbps~10.7Gbps data rate		 Psen 1529.16 – -16(EOL) dBm –
Sensitivity @(BER=2.0E-03, PRBS 2^31-1,NRZ,11.3Gbps data rate, dispersion 800ps/nm, at room temperature and OSNR >31dB) Psen – – -19 (EOL) dBm –
B2B OSNR Tolerance BOL @ 2E-3
Test condition：
A:optical filter type and bandwidth：flattop filter -3dB
bandwidth 84 GHz, OSA res 0.1nm for noise
bandwidth.
B: Input optical power range： 0~-14dBm
C:9.9Gbps~11.3Gbps data rate range
D:-5~70℃ E：Under the optimal
threshold or 50% threshold		 – – – 13.5 dB –
B2B OSNR Tolerance BOL @ 2E-3
Test condition：
A:optical filter type and bandwidth：flattop filter -3dB
bandwidth 84 GHz, OSA res 0.1nm for noise
bandwidth.
B: Input optical power range： 0~-14dBm
C:9.9Gbps~11.3Gbps data rate range
D:-5~70℃ E：Under the optimal
threshold or 50% threshold		 – – – 14.0 dB –
Saturation power（EOL） SP -1 – – dBm –
Input optical power(no IOP 4 – – dBm –



Receiver Operating Characteristic-Optical, Electrical
Parameter Symbol Min. Typical Max. Unit Note
Data rate DR 8.5 10.3125 11.3 Gbps –
Center wavelength CW 1260 – 1600 nm –
Sensitivity @(BER=1E-12, PRBS 2^31-1, NRZ,
9.95Gbps~10.7Gbps data rate		 Psen 1529.16 – -16(EOL) dBm –
Sensitivity @(BER=2.0E-03, PRBS 2^31-1,NRZ,11.3Gbps data rate, dispersion 800ps/nm, at room temperature and OSNR >31dB) Psen – – -19 (EOL) dBm –
B2B OSNR Tolerance BOL @ 2E-3
Test condition：
A:optical filter type and bandwidth：flattop filter -3dB
bandwidth 84 GHz, OSA res 0.1nm for noise
bandwidth.
B: Input optical power range： 0~-14dBm
C:9.9Gbps~11.3Gbps data rate range
D:-5~70℃ E：Under the optimal
threshold or 50% threshold		 – – – 13.5 dB –
B2B OSNR Tolerance BOL @ 2E-3
Test condition：
A:optical filter type and bandwidth：flattop filter -3dB
bandwidth 84 GHz, OSA res 0.1nm for noise
bandwidth.
B: Input optical power range： 0~-14dBm
C:9.9Gbps~11.3Gbps data rate range
D:-5~70℃ E：Under the optimal
threshold or 50% threshold		 – – – 14.0 dB –
Saturation power（EOL） SP -1 – – dBm –
Input optical power(no IOP 4 – – dBm –



Digital Diagnostic Functions
Parameter Symbol Min. Typical Max Units Notes
Temperature monitor absolute error DMI_Temp -3 – 3 ℃ Over operating temperature
Supplyvoltage monito rabsolute error DMI_Vcc -3% – 3% V Over operating voltage
Bias current monitor absolute error DMI_Ibias -10% – 10% mA –
Lase rpower monitor absolute error DMI_Tx -3 – 3 dB –



Control and StatusI/OTiming Characteristics
Parameter Symbol Min. Typical Max Units Notes
TX disable assert time t_off – – 100 µs Note1
TX disable negate time t_on – – 2 ms Note2
Time to initialize including reset of TX_fault t_init – – 300 ms Note3
TX fault assert time t_fault_on – – 1 ms Note4
TX fault reset time t_reset 10 – – µs Note5
LOS assert time t_loss_on – – 100 µs Note6
LOS deassert time t_loss_off – – 100 µs Note7
Notes:
[1]Time from rising edge of TX Disable to when the optical output falls below 10% of nominal.
[2]Time from falling edge of TX Disable to when the modulated optical output rises above 90% of nominal.
[3]From power on or negation of TX Fault using TX Disable.
[4]Time from fault to TX fault on.
[5]Time from TX fault to TX nominal.
[6]Time from LOS state to RX LOS assert. [7]Time from non-LOS state to RX LOS deassert.



PIN-OUT DEFINITIONS



PIN-OUT DEFINITIONS
Logic Symbol Name/Description Note
1 – VeeT Module transmitter ground Note1
2 LVTTL-O TX_fault Module transmitter fault Note2
3 LVTTL-I TX_disable Transmitter disable;Turnsofftrans mitterlaseroutput Note3
4 LVTTL-I/O SDA 2-Wire serial interface data line(Same as MOD-DEF2 asdefinedin the INF-8074i) Note4
5 LVTTL-I/O SCL 2-Wire serial interface clock(Same as MOD-DEF1 as defined intheINF-8074i) Note4
6 – MOD-ABS Module absent, connected to VeeT or VeeR in the module Note5
7 LVTTL-I RS0 Rate select 0 –
8 LVTTL-O RX_LOS Receiver Loss of Signal indication (In FC designated as RX_LOS, in SONET designated as LOS, and in ethernet designated at signal detect) Note2
9 LVTTL-I RS1 Rate select 1 –
10 – VeeR Module receiver ground Note1
11 – VeeR Module receiver ground Note1
12 CML-O RD- Receiver inverted data output –
13 CML-O RD+ Receiver non inverted data output –
14 – VccR
Module receiver ground
 Note1
15 – VeeR Module receiver 3.3 V supply –
16 – VccT Module transmitter 3.3 V supply Note1
17 – VeeT Module transmitter ground –
18 CML- I TD+ Transmitter non-inverted data input –
19 CML- I TD- Transmitter inverted data input –
20 – VeeT Module yransmitter ground Note1
Notes:
[1]The module signal ground pins, VeeR and VeeT, shall be isolated from the module case.[2]This pin is an open collector/drain output pin and shall be pulled up with 4.7k-10kohms to Host_Vcc on the host board. Pull ups can be connected to multiple power supplies, however the host board design shall ensure that no module pin has voltage exceeding module VccT/R + 0.5 V.[3]This pin is an open collector/drain input pin and shall be pulled up with 4.7k-10kohms to VccT in the module.

[4]See SFF-8431 4.2 2-wire Electrical Specifications.

[5]This pin shall be pulled up with 4.7k-10kohms to Host_Vcc on the host board
