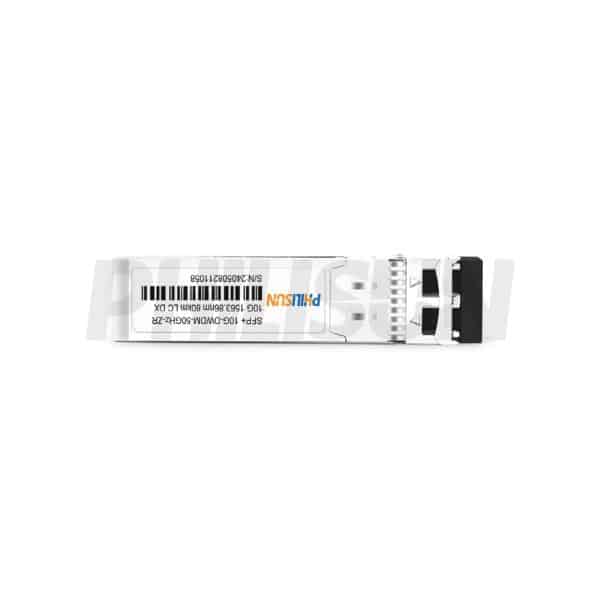

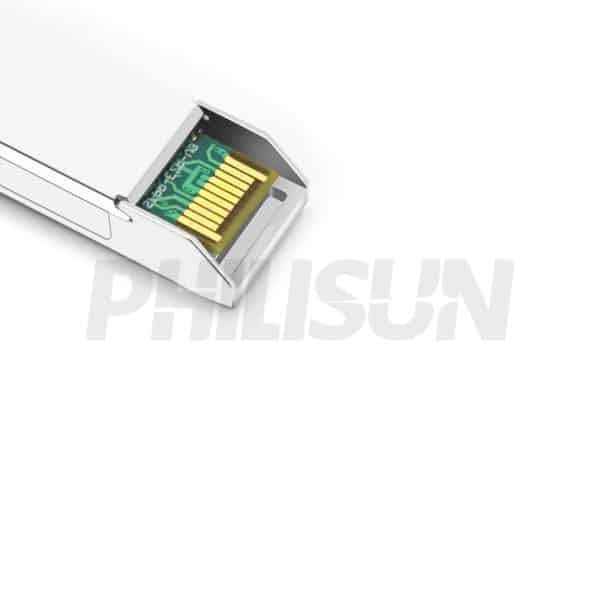

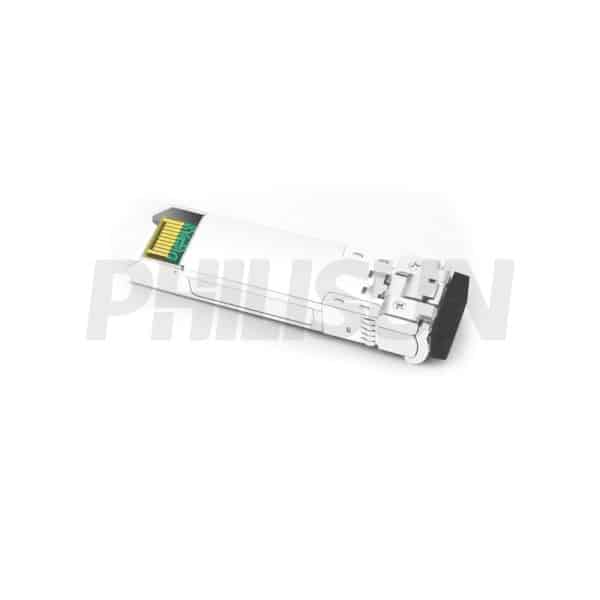

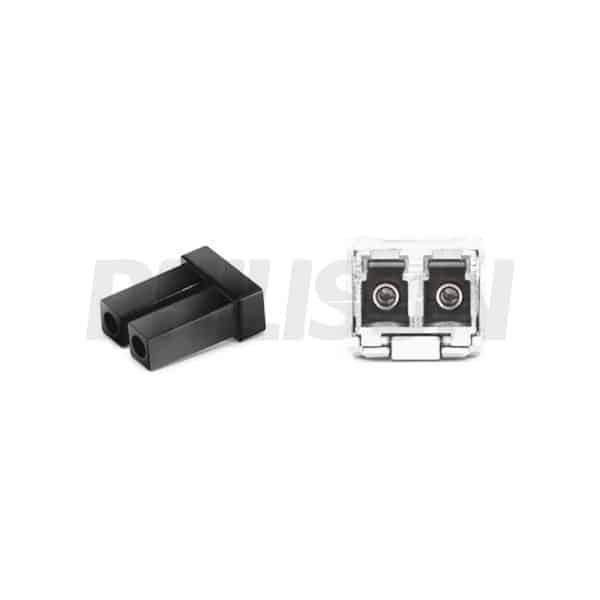

Generic Compatible 10G DWDM 50GHz ZR SFP+ 80km DOM Duplex LC SMF Optical Transceiver Module

SFP+10-50DW-80(ZR)-LCD

Category: Brand:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Product ModelSFP+10-50DW-80(ZR)-LCDManufacturer BrandPHILISUN
Package TypeSFP+Optical ConnectorDuplex LC
Max Data Rate11.3GbpsChannel Data Rate10.3125Gbps
Effective Transmission Distance80km
Wavelength1529.16~1567.13nm（（Tunable）;1563.86nm-1528.77nmOperating Voltage3.3V
Fiber TypeSMFCore Size9/125µm
Transmitter TypeMonolithic MZM Tunable TOSAReceiver TypeAPD
TX Power-1~3dBm,-1~4dBm;0~5dBmReceiver Sensitivity-23dBm
Digital Diagnostic Monitoring(DDM)YESReceiver Overload-7dBm
Power ConsumptionC<2.0W,I<2.5W;C<1.65WProtocolsSFF-8431
SFF-8472
SFF-8690
ITU-T G.698.1
Operating Temperature(Commercial)0℃~+70℃Storage Temperature(Commercial)-40℃~+85℃
Operating Temperature(Industrial)-40℃~+85℃Storage Temperature(Industrial)-40℃~+85℃



PRODUCT PRESENTATION
The PHILISUN SFP+ 10G 50GHz DWDM 80km ZR LC DX transceiver is a high-performance cost-effective solution supporting multi-rate data transmission from 9.95Gbps to 11.3Gbps with CDR and 8.5Gbps bypassing CDR, delivering 80km transmission over single-mode fiber (SMF); featuring dual-section design with transmitter integrating laser driver/TTOSA and receiver combining APD photodiode with transimpedance amplifier (TIA); hot-pluggable into 20-pin connector with high-speed electrical interface based on low-voltage logic, 100-ohm differential impedance and AC coupling; TX_DIS disables optical output via LVTTL high-level input, Tx_Fault signals laser/safety issues, and RX_LOS indicates incoming optical signal loss; equipped with serial EEPROM supporting monitoring/configuration via 2-wire SFP management interface, with memory organized into lower area storing basic digital diagnostic (DD) data and upper area housing specific data in high-memory tables.



TRANSCEIVER SERIES PRODUCTS



PRODUCTION & TESTING EQUIPMENT



PERFORMANCE PARAMETER
Absolute Maximum Ratings
Parameter Symbol Min. Max. Unit Notes
Storage temperature Ts -40 85 ℃ –
Supply voltage Vcc3 0 3.63 V –
Relative humidity RH 5 +85 % Note1
Notes:
[1] Non-condensing state.



Recommended Operating Conditions
Parameter Symbol Min. Typ. Max. Unit Notes
Operating case temperature Tc -5 25 85 °C –
Supply voltage Vcc 3.13 3.3 3.47 V –
Power consumption P – – 2.5 W –
Data rate – 8.5 10.3125 11.3 Gbps –
Transmission distance – – – 80 km –



Transmitter Operating Characteristic-Optical, Electrical
Parameter Symbol Min. Typical Max Unit Note
Data rate DR 8.5 10.3125 11.3 Gbps –
Center wavelength CW 191.30 – 196.05 THz –
Wavelength range λC 1529.16 – 1567.13 nm –
Center frequqncy variation CFV – – +/-2.5 GHz –
-20dB spectral width Δλ20 – – 0.3 nm –
Side mode suppression ratio SMSR
30
–
 – nm –
Laser off power Poff – – -30 dBm –
Optical eye mask EMM 5 – – % –
Average optical power PO -1 – 3 dBm –
Extinction ratio ER 8.2 – dB –
Cross point of eye CP
40
–
 52 % –
Transmitter dispersion renalty TDP –
–
2
 dB –
Relative intensity noise RIN 12OMA – – -128 dB/Hz –
Optical eye mask ORLT – – -27 dB –
Tx Input diff voltage VI
200
–
 700 mV –



Receiver Operating Characteristic-Optical, Electrical
Parameter Symbol Min. Typical Max. Unit Note
Data rate DR 8.5 10.3125 11.3 Gbps –
Center wavelength CW 1260 – 1600 nm –
Sensitivity @(BER=1E-12, PRBS 2^31-1, NRZ, 9.95Gbps~10.7Gbps data rate Psen – – -23 dBm –
Sensitivity @(BER=1.0E-04, PRBS 2^31- 1, NRZ,11.3Gbps data rate) Psen – – -26 dBm –
B2B OSNR Tolerance @ 1E-4 – – – 16 dB –
Input optical power(no damaged) IOP 4 – – dBm –
Saturation power（EOL） SP -7 – – dBm –
Loss of signal – asserted LosA -35 – – dBm –
Loss of signal- deasserted LosD – – -28 dBm –
Hysteresis LosH 0.5 – – dB –
Rx output diff voltage Vo 250 – 850 mV –
Loss of signal voltage VOH Vcc-0.5 – Vcc+0.3 V –
VOL 0 – 0.4 V –



Digital Diagnostic Functions
Parameter Symbol Min. Typical Max Units Notes
Temperature monitor absolute error DMI_Temp -3 – 3 ℃ Over operating temperature
Supplyvoltage monito rabsolute error DMI_Vcc -3% – 3% V –
Bias current monitor absolute error DMI_Ibias -10% – 10% mA –
Lase rpower monitor absolute error DMI_Tx -3 – 3 dB –
RX power monitor absolute error DMI_Rx -3 – 3 dB –



Control and StatusI/OTiming Characteristics
Parameter Symbol Min. Typical Max Units Notes
TX disable assert time t_off – – 100 µs Note1
TX disable negate time t_on – – 2 ms Note2
Time to initialize including reset of
TX_fault		 t_init – – 300 ms Note3
Time to initialize cooled module and time to power up a cooled module to power level II t_start_up_co
oled		 – – 90 s Note4
TX fault assert time t_fault_on – – 1 ms Note5
TX fault reset time t_reset 10 – – µs Note6
LOS assert time t_loss_on – – 100 µs Note7
LOS deassert time t_loss_off – – 100 µs Note8
Notes:
[1] Time from rising edge of TX Disable to when the optical output falls below 10% of nominal.
[2] Time from falling edge of TX Disable to when the modulated optical output rises above 90% of nominal.
[3] From power on or negation of TX Fault using TX Disable.
[4] From power supply or hot plug or TX Disable negated during power up, or TX Fault recovery, until cooled power level I part (or cooled power level II part during Fault recovery) the SFP+ is fully operational
[5] Time from fault to TX fault on.
[6] Time from TX fault to TX nominal.
[7] Time from LOS state to RX LOS assert.
[8] Time from non-LOS state to RX LOS deassert.



PIN-OUT DEFINITIONS



PIN-OUT DEFINITIONS
Logic Symbol Name/Description Note
1 – VeeT Module transmitter ground Note1
2 LVTTL-O TX_fault Module transmitter fault Note2
3 LVTTL-I TX_disable Transmitter disable;Turnsofftrans mitterlaseroutput Note3
4 LVTTL-I/O SDA 2-Wire serial interface data line(Same as MOD-DEF2 asdefinedin the INF-8074i) Note4
5 LVTTL-I/O SCL 2-Wire serial interface clock(Same as MOD-DEF1 as defined intheINF-8074i) Note4
6 – MOD-ABS Module absent, connected to VeeT or VeeR in the module Note5
7 LVTTL-I RS0 Rate select 0 –
8 LVTTL-O RX_LOS Receiver Loss of Signal indication (In FC designated as RX_LOS, in SONET designated as LOS, and in ethernet designated at signal detect) Note2
9 LVTTL-I RS1 Rate select 1 –
10 – VeeR Module receiver ground Note1
11 – VeeR Module receiver ground Note1
12 CML-O RD- Receiver inverted data output –
13 CML-O RD+ Receiver non inverted data output –
14 – VccR
Module receiver ground
 Note1
15 – VeeR Module receiver 3.3 V supply –
16 – VccT Module transmitter 3.3 V supply Note1
17 – VeeT Module transmitter ground –
18 CML- I TD+ Transmitter non-inverted data input –
19 CML- I TD- Transmitter inverted data input –
20 – VeeT Module yransmitter ground Note1
Notes:
[1]The module signal ground pins, VeeR and VeeT, shall be isolated from the module case.[2]This pin is an open collector/drain output pin and shall be pulled up with 4.7k-10kohms to Host_Vcc on the host board. Pull ups can be connected to multiple power supplies, however the host board design shall ensure that no module pin has voltage exceeding module VccT/R + 0.5 V.

[3]This pin is an open collector/drain input pin and shall be pulled up with 4.7k-10kohms to VccT in the module.

[4]See SFF-8431 4.2 2-wire Electrical Specifications.

[5]This pin shall be pulled up with 4.7k-10kohms to Host_Vcc on the host board
