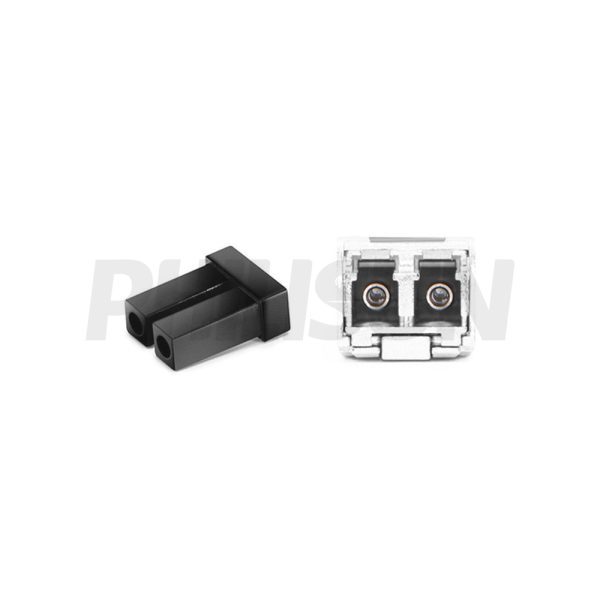

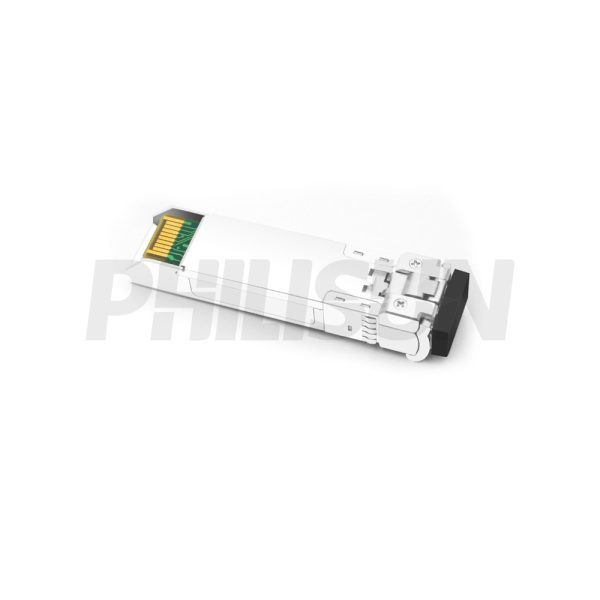

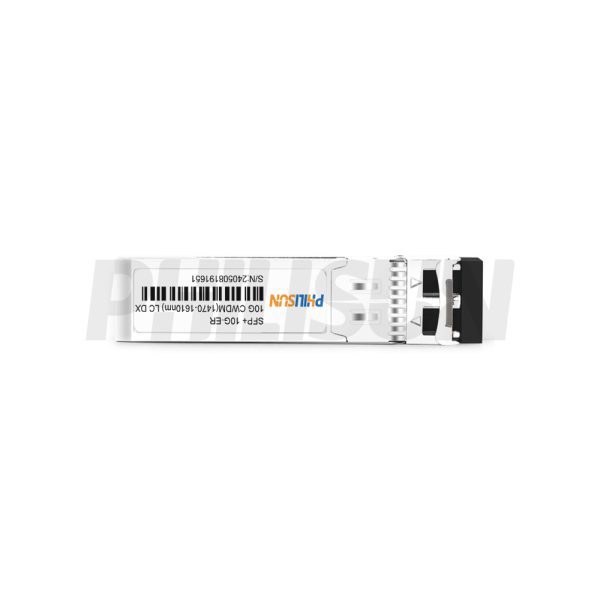

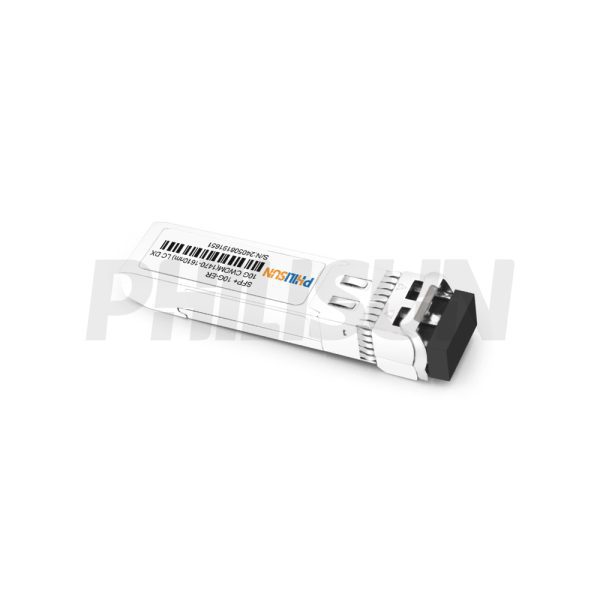

Generic Compatible 10G CWDM(1470-1610nm) ER SFP+ DOM Duplex LC SMF Optical Transceiver Module

SFP+10-CW1416-ER-LCD

Category: Brand:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Product ModelSFP+10-CW1416-ER-LCDManufacturer BrandPHILISUN
Package TypeSFP+Optical ConnectorDuplex LC
Max Data Rate11.3GbpsChannel Data Rate10.138Gb/s
Power Budget23dB
Wavelength1470nm to 1610nmOperating Voltage3.3V
Fiber TypeSMFCore Size9/125µm
Transmitter TypeCWDM EMLReceiver TypeIDP
TX Power0~4dBmReceiver Sensitivity-23dBm
Digital Diagnostic Monitoring(DDM)YESReceiver Overload-8dBm
Power Consumption<1.5WProtocolsSFF-8431
SFF-8432
SFF-8472
Operating Temperature(Commercial)0 to 70℃ (32 to 158℉)Storage Temperature(Commercial)-40℃~+85℃
Operating Temperature(Extended)-20 to 75℃ (-4 to167℉)Storage Temperature(Industrial)-40 to 85℃ (-40 to 185℉)



PRODUCT PRESENTATION
The PHILISUN SFP+ 10G CWDM(1470-1610nm) ER LC DX series optical transceiver is designed for high-performance fiber communication applications up to 10G, fully compliant with the SFP+ MSA SFF-8431 specification. Optimized for single-mode fiber, this module operates across CWDM wavelengths, offering eight center wavelengths from 1470nm to 1610nm, with 20nm spacing between each wavelength. It provides a guaranteed optical link budget of 14dB. Featuring an SFP+ connector, the module supports hot-plug capability and requires only a single 3.3V power supply. The optical output can be disabled via an LVTTL logic high-level input (TX_DIS), and a Loss of Signal (RX_LOS) output is provided to indicate the loss of the input optical signal at the receiver. Additionally, this module offers digital diagnostic functions via a 2-wire serial interface, as defined by the SFF-8472 specification.



TRANSCEIVER SERIES PRODUCTS



PRODUCTION & TESTING EQUIPMENT



PERFORMANCE PARAMETER
CWDM* Wavelength
Band Nomenclature Wavelength(nm)
Min. Typ. Max.
S-band short wavelength K 1464 1470 1477.5
L 1484 1490 1497.5
M 1504 1510 1517.5
N 1524 1530 1537.5
C-band conventional O 1544 1550 1557.5
L-band
long wavelength		 P 1564 1570 1577.5
Q 1584 1590 1597.5
R 1604 1610 1617.5
CWDM*: 8 Wavelengths from 1470nm to 1610nm, each step 20nm.



Absolute Maximum Ratings
Parameter Symbol Min. Typical Max. Unit
Maximum supply voltage 1 Vcc -0.5 – 4.0 V
Storage temperature Ts -40 – 85 °C



Recommended Operating Conditions
Parameter Symbol Min. Typical Max. Units
Case operating temperature TC Standard 0 – +70 °C
Extended -20 – 75 °C
Supply voltage Vcc 3.13 3.3 3.45 V
Supply current Icc (0°C to 70°C) – 350 455 mA
Icc (-20°C to 75°C) – 350 600.0 mA
Data rate SFP+10-CW1416-ER-LCD 0.6 – 11.3 Gbps



Electrical Characteristics
Parameter Symbol Min. Typ. Max Unit Notes
Transmitter
CML inputs(Differential) Vin 180 – 1000 mVpp 1
Input impedance (Differential) Zin 85 100 115 ohms –
Tx_DISABLE input voltage – high – 2 – Vcc+0.3 V –
Tx_DISABLE input voltage – low – 0 – 0.8 V –
Tx_FAULT output voltage – high –
2
–
 Vcc+0.3 V –
Tx_FAULT output voltage – low – 0 – 0.8 V –
Receiver
CML Outputs (Differential) Vout 350 – 700 mVpp 1
Output impedance (Differential) Zout 85 100 115 ohms –
Rx_LOS output voltage – high –
2
–
 Vcc+0.3 V –
Rx_LOS output voltage – low – 0
–
0.8
 V –
MOD_DEF ( 0:2 ) VoH 2.5 – – V 2
VoL 0 – 0.5 V
Notes:
1. After internal AC coupling.
2. Reference the SFF-8472 MSA.



Optical Characteristics
Parameter Symbol Min. Typical Max. Unit Notes
Transmitter
Optical wavelength λ λc–6 – λc+7.5 nm 2
-20dB spectrum width Δλ – – 1 nm –
Side mode suppression ratio SMSR 30 λc – dB –
Output opt. pwr(SFP+10-CW1416-ER-LCD) Pout -2 – +4 dBm 1
Extinction ratio ER 3.5 – – dB –
Average launch power of OFF transmitter POFF – – -30 dBm –
Transmitter dispersion penalty TDP – – 3 dB –
TX jitter TXj Per 802.3ae requirements – –
Relative intensity noise RIN – – -128 dB/Hz –
Receiver
Receiver sensitivity Pmin – – -16 dBm 3
Maximum input power Pmax -1 – – dBm –
Optical center wavelength λ 1260 – 1620 nm –
Receiver reflectance Rrf – – -12 dB –
LOS de-assert LOSD – – -20 dBm –
LOS assert LOSA -28 – – dBm –
LOS hysteresis – 1 – – dB –
*Notes:
1. Output power is coupled into a 9/125μm SMF.
2. ITU-T G.694.2 CWDM wavelength from 1470nm to 1610nm, each step 20nm.
3. Average received power; BER less than 1E-12 and PRBS 231-1 test pattern.

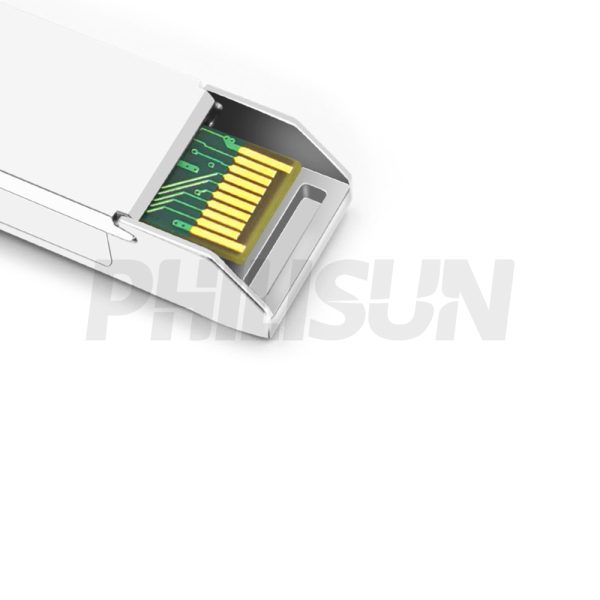

SFP+ TRANSCEIVER ELECTRICAL PAD LAYOUT



PIN FUNCTION DEFINITIONS
Pin Name Function Plug Seq. Notes
1 VeeT Transmitter ground 1 Note 5
2 TX Fault Transmitter fault indication 3 Note 1
3 TX Disable Transmitter disable 3 Note 2, module disables on high or open
4 SDA Module definition 2 3 2-Wire serial interface data line.
5 SCL Module definition 1 3 2-Wire serial Interface clock.
6 MOD-ABS Module definition 0 3 Note 3
7 RS0 RX rate select(LVTTL). 3 No function implement
8 LOS Loss of signal 3 Note 4
9 RS1 TX rate select(LVTTL). 1 No function implement
10 VeeR Receiver ground 1 Note 5
11 VeeR Receiver ground 1 Note 5
12 RD- Inv. received data out 3 Note 6
13 RD+ Received data out 3 Note 6
14 VeeR Receiver ground 1 Note 5
15 VccR Receiver power 2 3.3V ± 5%, Note 7
16 VccT Transmitter power 2 3.3V ± 5%, Note 7
17 VeeT Transmitter ground 1 Note 5
18 TD+ Transmit data in 3 Note 8
19 TD- Inv. transmit data in 3 Note 8
20 VeeT Transmitter ground 1 Note 5
Notes:
1) TX Fault is an open collector/drain output, which should be pulled up with a 4.7K – 10KΩ resistor on the host board. Pull up voltage between 2.0V and VccT/R+0.3V. When high, output  indicates a laser fault of some kind. Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.2) TX disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7K~10 K Ω resistor. Its states are:
Low (0 – 0.8V): Transmitter on
(>0.8, < 2.0V): Undefined
High (2.0 – 3.465V): Transmitter Disabled
Open: Transmitter Disabled3) Module Absent, connected to VeeT or VeeR in the module.4) LOS (Loss of Signal) is an open collector/drain output, which should be pulled up with a 4.7K –10KΩ resistor on host board. Pull up voltage between 2.0V and VccT/R+0.3V. When high, this output indicates the received optical power is below the worst-case receiver sensitivity (as defined by the standard in use). Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.5) The module signal ground contacts, VeeR and VeeT, should be isolated from the module case.6) RD-/+: These are the differential receiver outputs. They are AC coupled 100Ω differential lines which should be terminated with 100Ω (differential) at the user SERDES. The AC coupling is done inside the module and is thus not required on the host board. The voltage swing on these lines will be between 370 and 700 Mv differential (185–350Mv single ended) when properly terminated.

7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP+ connector pin. Maximum supply current is 300mA. Recommended host board power supply filtering is shown below. Inductors with DC resistance of less than 1 ohm should be used in order to maintain the required voltage at the SFP+ input pin with 3.3V supply voltage. When the recommended supply-filtering network is used, hot plugging of the SFP+ transceiver module will result in an inrush current of no more than 30Ma greater than the steady state value. VccR and VccT may be internally connected within the SFP+ transceiver module.

8) TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100Ω differential termination inside the module. The AC coupling is done inside the module and is thus not required on the host board.
