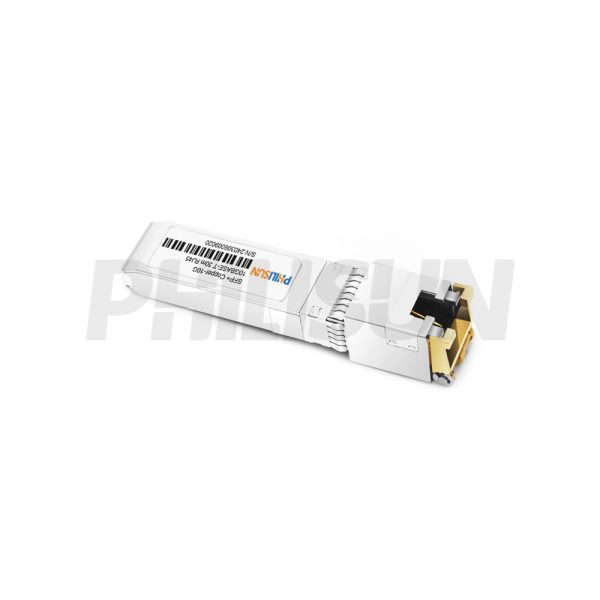

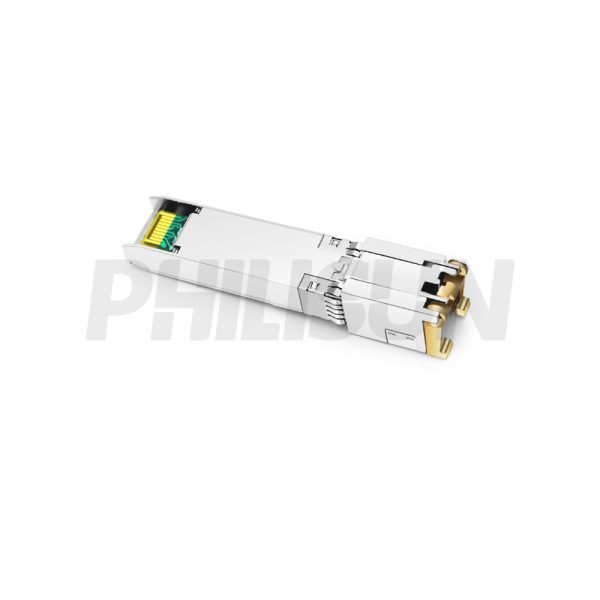

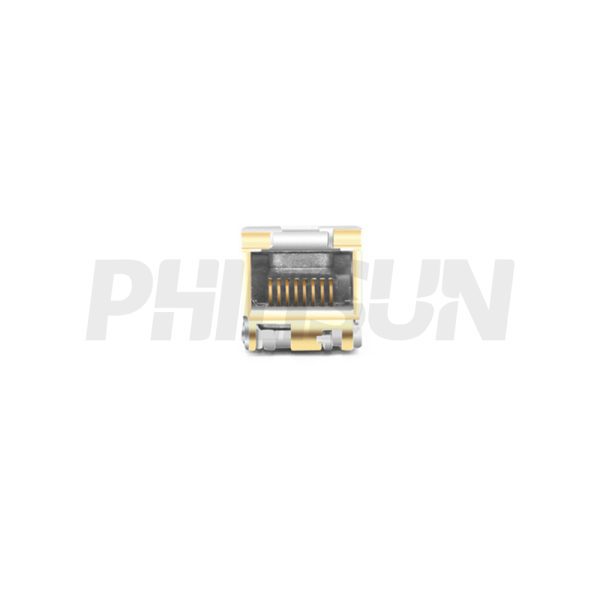

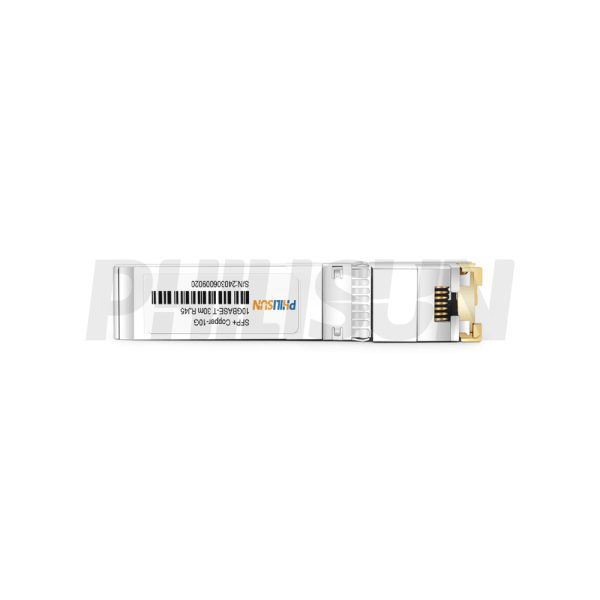

Generic Compatible 10GBASE-T SFP+ 30m Copper RJ45 Transceiver Module
SFP+CO-10A-003-RJ45
- High Quality
- Factory Outlet
- Satisfaction Guarantee
- Global Shipping
| SPECIFICATIONS | |||
|---|---|---|---|
| Product Model | SFP+CO-10A-003-RJ45 | Manufacturer Brand | PHILISUN |
| Package Type | SFP+ | Optical Connector | RJ45 |
| Max Data Rate | 10.3Gbps | 10G Effective Transmission Distance | 30m |
| Hot-Pluggable SFP | YES | Operating voltage | 3.3V |
| Power Consumption | 1.5W | Protocols | SFP MSA SFF-8472 |
| Operating temperature(Extended) | -10℃~+70℃ | Storage Temperature(Commercial) | -40℃~+85℃ |
| Operating Temperature(Industrial) | -40℃~+85℃ | Storage Temperature(Industrial) | -40℃~+85℃ |
PRODUCT PRESENTATION
The PHILISUN SFP+ Copper 10GBASE-T RJ45 transceiver Small Form Pluggable (SFP ) modules, with a reach of 30 meters, adhere to the SFP Multi Source Agreement (MSA). They are fully compliant with the 10GBASE-T, 1000BASE-T, and 100BASE-TX standards outlined in IEEE 802.3an, 802.3ab, and 802.3au.
TRANSCEIVER SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

PERFORMANCE PARAMETER
| Absolute Maximum Ratings | |||||||||
| Parameter | Symbol | Min. | Typ. | Max. | Units | ||||
| Maximum supply voltage | Vcc | -0.5 | – | 4.0 | V | ||||
| Storage temperature | TS | -40 | – | 85 | °C | ||||
| Normal Operating Condition | |||||||||
| Parameter | Symbol | Min | Typ. | Max | Units | ||||
| Operating case temperature | Tc | SFP+CO-10A-003-RJ45 | -10 | – | 70 | °C | |||
| Supply voltage | Vcc | 3.15 | 3.3 | 3.45 | V | ||||
| Electrical Characteristics | |||||||||
| Parameter | Symbol | Min | Typ. | Max | Units | Notes/Conditions | |||
| +3.3 Volt Electrical Power Interface | |||||||||
| Supply current | Icc | – | – | 710 | mA | SFP+CO-10A-003-RJ45 | |||
| Input voltage | Vcc | 3.15 | 3.3 | 3.45 | V | – | |||
| Low-Speed Signals, Electronic Characteristics | |||||||||
| SFP output low | VOL | 0 | – | 0.5 | V | 4.7k to 10k pull-up to host_Vcc, measured at host side of connector | |||
| SFP output high | VOH | Vcc–0.5 | – | Vcc+0.3 | – | 4.7k to 10k pull-up to host_Vcc, measured at host side of connector | |||
| SFP input low | VIL | 0 | – | 0.4 | – | 4.7k to 10k pull-up to Vcc, measured at SFP side of connector | |||
| SFP input high | VIH | 2.8 | – | Vcc+0.3 | – | 4.7k to 10k pull-up to Vcc, measured at SFP side of connector | |||
| High-Speed Electrical Interface, Transmission Line-SFP | |||||||||
| Tx output impedance | Zout,TX | – | 100 | – | Ohm | – | |||
| Rx input impedance | Zin,RX | – | 100 | – | Ohm | – | |||
| High-Speed Electrical Interface, Host-SFP | |||||||||
| CML Inputs(Differential) | Vin | 250 | – | 1200 | mV | AC coupled inputs | |||
| CML outputs(Differential) | Vout | 350 | – | 800 | mV | CML outputs(Differential) | |||
| Rise/Fall time | Tr,Tf | – | 20 | – | psec | 20%-80% | |||
| Tx input impedance | Zin | – | 100 | – | Ohm | Differential ended | |||
| Rx output impedance | Zout | – | 100 | – | Ohm | Differential ended | |||

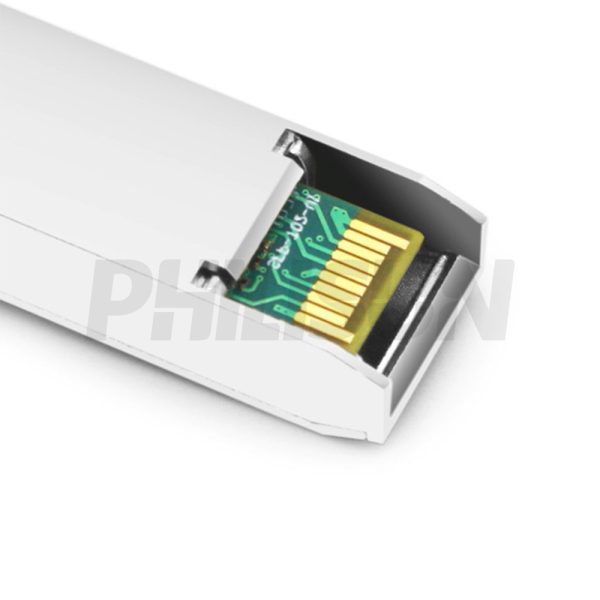

PIN DESCRIPTIONS
| Pin No. | Name | Function | Plug Seq. | Notes | |||||
| 1 | VeeT | Transmitter ground | 1 | – | |||||
| 2 | TX Fault | Transmitter fault indication | 3 | Not used | |||||
| 3 | TX Disable | Transmitter disable | 3 | Note1 | |||||
| 4 | MOD-DEF2 | Module definition 2 | 3 | Note2 | |||||
| 5 | MOD-DEF1 | Module definition 1 | 3 | Note2 | |||||
| 6 | MOD-DEF0 | Module definition 0 | 3 | Note2 | |||||
| 7 | RS0 | No connection required | 3 | – | |||||
| 8 | LOS | Loss of signal | 3 | RX_LOSS | |||||
| 9 | RS1 | No connection required | 1 | – | |||||
| 10 | VeeR | Receiver ground | 1 | – | |||||
| 11 | VeeR | Receiver ground | 1 | – | |||||
| 12 | RD- | Inv. Received data out | 3 | – | |||||
| 13 | RD+ | Received data out | 3 | – | |||||
| 14 | VeeR | Receiver ground | 1 | – | |||||
| 15 | VccR | Receiver power | 2 | – | |||||
| 16 | VccT | Transmitter power | 2 | – | |||||
| 17 | VeeT | Transmitter ground | 1 | – | |||||
| 18 | TD+ | Transmit data in | 3 | – | |||||
| 19 | TD- | Inv. Transmit data in | 3 | – | |||||
| 20 | VeeT | Transmitter ground | 1 | – | |||||
| Notes: Note1: TX disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7–10KΩ resistor. Its states are: Low (0–0.8V): Transmitter on (>0.8, < 2.0V): Undefined High (2.0 – 3.465V): Transmitter DisabledNote2: Mod-Def 0,1,2. These are the module definition pins. They should be pulled up with a 4.7K–10KΩ resistor on the host board. The pull-up voltage shall be VccT or VccR. Mod-Def 0 is grounded by the module to indicate that the module is present. Mod-Def 1 is the clock line of two wire serial interface for serial ID. Mod-Def 2 is the data line of two wire serial interface for serial ID. |
|||||||||

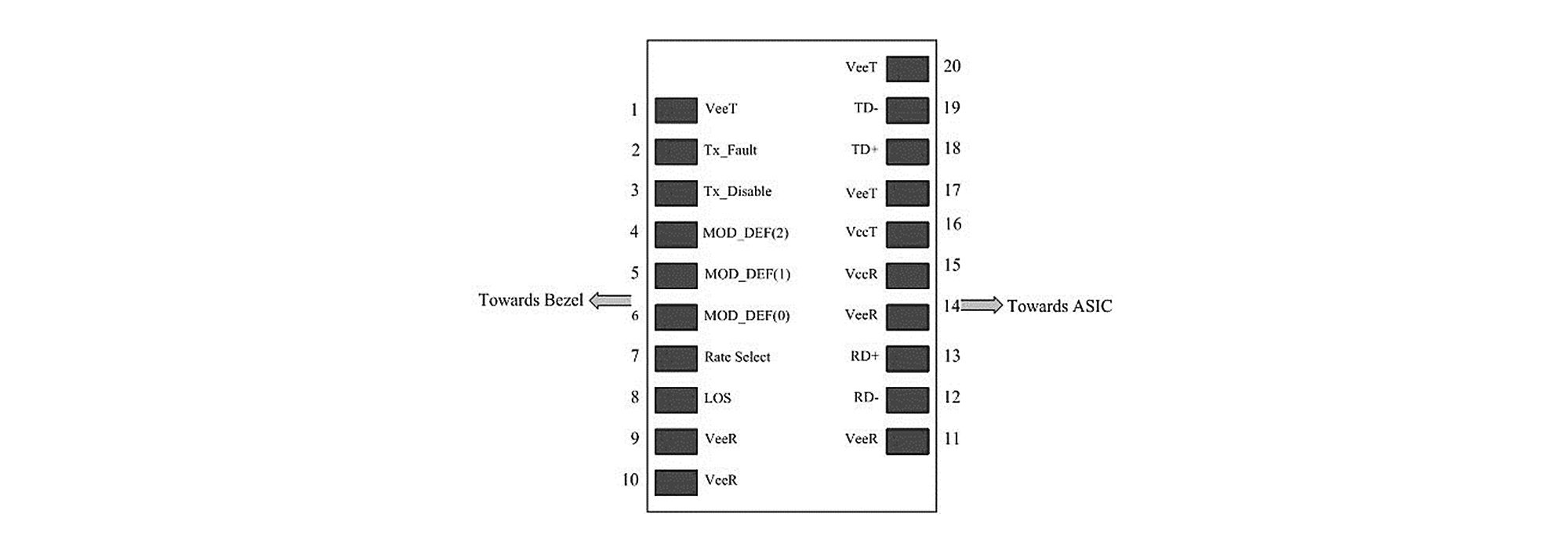

The following is the Diagram of host board connector block pin numbers and names

SERIAL COMMUNICATION PROTOCOL
PHILISUN Copper SFPs support the 2-wire serial communication protocol outlined in the SFP MSA, These SFP use a 128 byte EEPROM with an address of A0H.
EEPROM SERIAL ID MEMORY CONTENTS
Accessing Serial ID Memory uses the 2 wire address 1010000X (A0H). Memory Contents of Serial ID are shown in Table 1.
| Table 1 Serial ID Memory Contents | |||||||||
| Data Addr | Field Size(Byte) | Name of Filed | Description of Field | Coded Value | Hex | ||||
| BASE ID FIELDS | |||||||||
| 0 | 1 | Identifier | Typeof serial transceiver | SFP+ | 03 | ||||
| 1 | 1 | Ext.Identifier | Extended identifier of type of serial transceiver | MOD_DEF 4 | 04 | ||||
| 2 | 1 | Connector | Code for connector type | RJ45 | 22 | ||||
| 3 | 8 | Transceiver | 10G Ethernet compliance codes & infiniband compliance codes | – | 00 | ||||
| 4 | Part of SONET compliance codes | – | 00 | ||||||
| 5 | SONET compliance codes | – | 00 | ||||||
| 6 | Ethernet compliance codes | – | 00 | ||||||
| 7 | Fiber channel link length & part of Fibre channel technology | – | 00 | ||||||
| 8 | Part of fiber channel transmitter technology | – | 00 | ||||||
| 9 | Fiber channel transmission media | – | 00 | ||||||
| 10 | Fiber channel speed | – | 00 | ||||||
| 11 | 1 | Encoding | Code for high speed serial encoding algorithm | 64B/66B | 06 | ||||
| 12 | 1 | BR, Nominal | Nominal signalling rate, units of 100MBd. | 10.3Gbps | 67 | ||||
| 13 | 1 | Rate Identifier | Typeof rate select functionality | – | 00 | ||||
| 14 | 1 | Length(SMF,km) | Link length supported for single mode fiber, units of km | – | 00 | ||||
| 15 | 1 | Length (SMF) | Link length supported for single mode fiber, units of 100 m | – | 00 | ||||
| 16 | 1 | Length (50um) | Link length supported for 50um OM2 fiber, units of 10 m | – | 00 | ||||
| 17 | 1 | Length (62.5um) | Link length supported for 62.5um OM1 fiber, units of 10 m | – | 00 | ||||
| 18 | 1 | Length (Copper) | Link length supported for copper, units of meters | 30m | 1E | ||||
| 19 | 1 | Length (OM3) | Link length supported for 50um OM3 fiber, units of 10 m | – | 00 | ||||
| 20 | 16 | Vendor name | Vendor name (ASCII) | E | 45 | ||||
| 21 | o | 6F | |||||||
| 22 | p | 70 | |||||||
| 23 | t | 74 | |||||||
| 24 | o | 6F | |||||||
| 25 | l | 6C | |||||||
| 26 | i | 69 | |||||||
| 27 | n | 6E | |||||||
| 28 | k | 6B | |||||||
| 29 | <space> | 20 | |||||||
| 30 | <space> | 20 | |||||||
| 31 | <space> | 20 | |||||||
| 32 | <space> | 20 | |||||||
| 33 | <space> | 20 | |||||||
| 34 | <space> | 20 | |||||||
| 35 | <space> | 20 | |||||||
| 36 | 1 | Transceiver | Extended compliance codes | 10GBASE-T Short Reach (30 meters) | 1C | ||||
| 37 | 3 | Vendor OUI | SF P vendor IEEE company ID | – | 00 | ||||
| 38 | – | 00 | |||||||
| 39 | – | 00 | |||||||
| 40 | 16 | Vendor PN | Part number provided by vendor (ASCII) | E | 45 | ||||
| 41 | O | 4F | |||||||
| 42 | L | 4C | |||||||
| 43 | T | 54 | |||||||
| 44 | – | 2D | |||||||
| 45 | C | 43 | |||||||
| 46 | 9 | 39 | |||||||
| 47 | 6 | 36 | |||||||
| 48 | – | 2D | |||||||
| 49 | 0 | 30 | |||||||
| 50 | 2 | 32 | |||||||
| 51 | <space>/- | 20/2D | |||||||
| 52 | <space>/I | 20/49 | |||||||
| 53 | <space> | 20 | |||||||
| 54 | <space> | 20 | |||||||
| 55 | <space> | 20 | |||||||
| 56 | 4 | Vendor rev | Revision level for part number provided by vendor (ASCII) | 1 | 31 | ||||
| 57 | – | 2E | |||||||
| 58 | 0 | 30 | |||||||
| 59 | <space> | 20 | |||||||
| 60 | 2 | Wavelength | Laser wavelength | – | 00 | ||||
| 61 | 00 | ||||||||
| 62 | 1 | Reserved | 00 | ||||||
| 63 | 1 | CC_BASE | Check code for base ID fields (addresses 0 to 62) | Note3 | xx | ||||
| 64 | 2 | Options | Indicates which optional transceiver signals are implemented | TX_DISABLEsignal,Rx_LOS | 00 | ||||
| 65 | 12 | ||||||||
| 66 | 1 | BR, max | Upper bitrate margin, units of % | – | 00 | ||||
| 67 | 1 | BR, min | Lower bitrate margin, units of % | – | 00 | ||||
| 68 | 16 | Vendor SN | Serial number provided by vendor(ASCII) | x | xx | ||||
| 69 | x | xx | |||||||
| 70 | x | xx | |||||||
| 71 | x | xx | |||||||
| 72 | x | xx | |||||||
| 73 | x | xx | |||||||
| 74 | x | xx | |||||||
| 75 | x | xx | |||||||
| 76 | x | xx | |||||||
| 77 | x | xx | |||||||
| 78 | <space> | 20 | |||||||
| 79 | <space> | 20 | |||||||
| 80 | <space> | 20 | |||||||
| 81 | <space> | 20 | |||||||
| 82 | <space> | 20 | |||||||
| 83 | <space> | 20 | |||||||
| 84 | 8 | Date code | Vendor’s manufacturing date code | Year | xx | ||||
| 85 | Year | xx | |||||||
| 86 | Month | xx | |||||||
| 87 | Month | xx | |||||||
| 88 | Day | xx | |||||||
| 89 | Day | xx | |||||||
| 90 | <Space> | 20 | |||||||
| 91 | <Space> | 20 | |||||||
| 92 | 1 | Diagnostic monitoring type | Typeof diagnostic monitoring is implemented | diagnostic monitoring is not implemented | 00 | ||||
| 93 | 1 | Enhanced options | Optional enhanced features are implemented | Optional enhanced features are not implemented |
00 | ||||
| 94 | 1 | SFF-8472 Compliance | Revision of SFF-8472 the transceiver complies with | Digital diagnostic functionality not included or undefined | 00 | ||||
| 95 | 1 | CC_EXT | Check code for the extended ID fields (addresses 64 to 94) | Note4 | xx | ||||
| Note3. The check code shall be the low order 8 bits of the sum of the contents of all the bytes from byte 0 to byte 62, inclusive. Note4. The check code shall be the low order 8 bits of the sum of the contents of all the bytes from byte 64 to byte 94, inclusive. |
|||||||||
