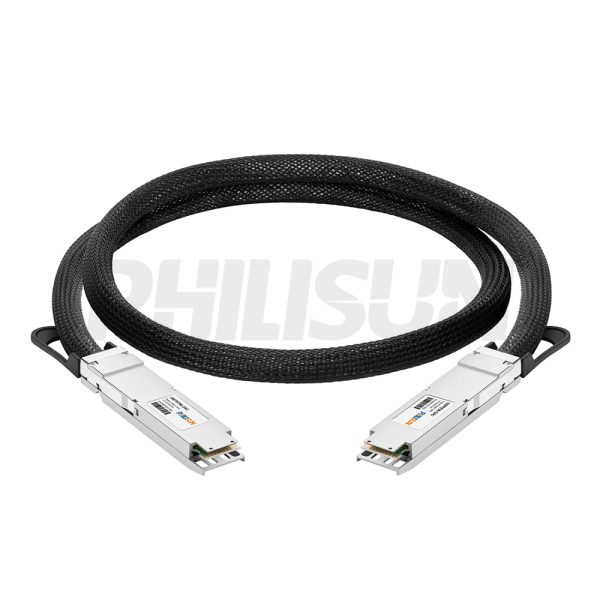

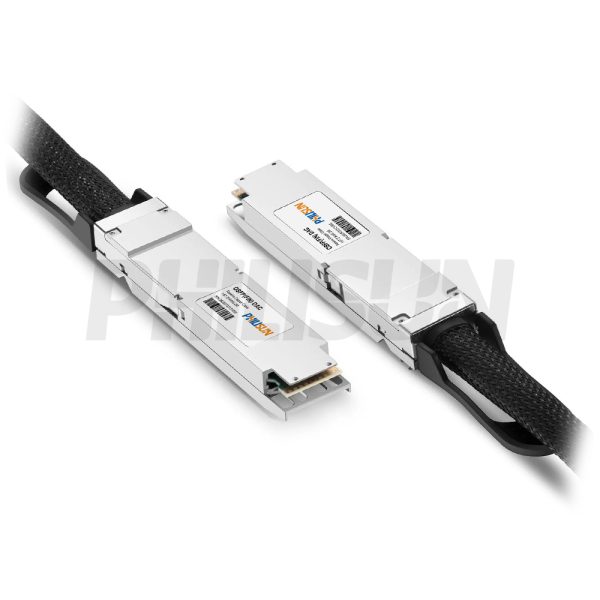

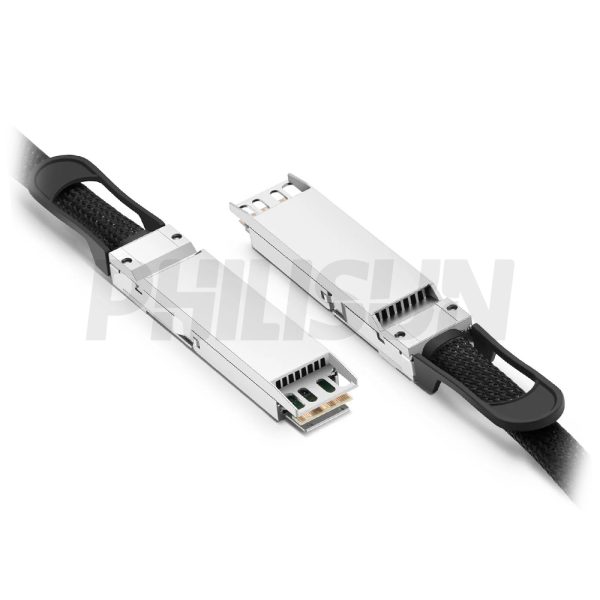

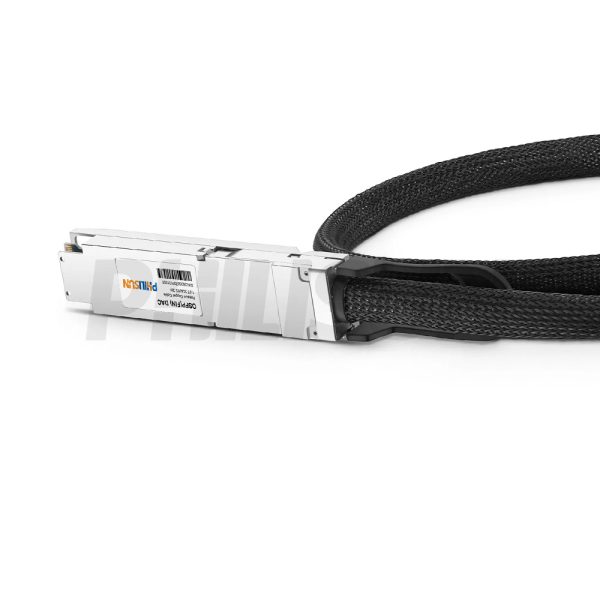

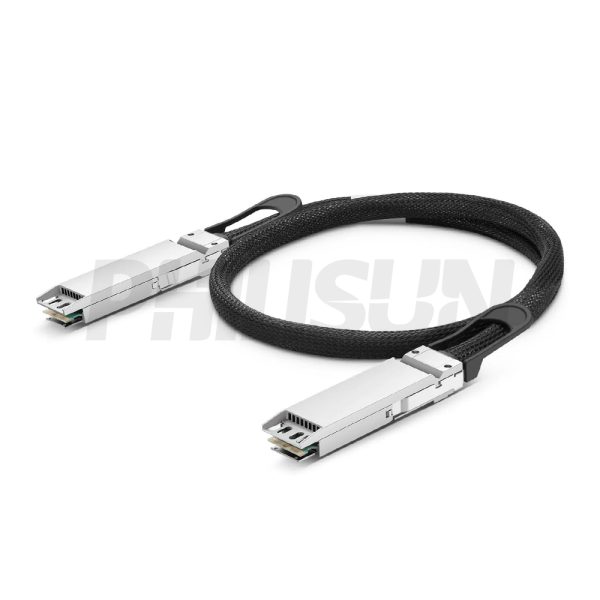

1.6T OSFP(FIN) to OSFP(FIN) Passive Direct Attach Copper Twinax Cable (DAC)
Compliant with
OSFP MSA，IEEE 802.3 standard
Switch to Switch
Switch to GPU
- High Quality
- Factory Outlet
- Satisfaction Guarantee
- Global Shipping
| SPECIFICATIONS | |||
|---|---|---|---|
| Cable End Connector A | OSFP(FIN) | Cable End Connector B | OSFP(FIN) |
| Jumper Type | Direct-Attach | Data Rate | 1.6T |
| Aggregate Bit Rate | 1600Gbps | Lane Bit Rate | 200Gbps |
| Number of Channels | 8 | Single Channel Rate | 200G |
| Minimum Bend Radius | 5X Cable OD -Single, 10X Cable OD - Repeated | Factory Brand | PHILISUN |
| Attenuation | 27AWG:10dB/7m maximum | Bit Error Rate | ≤10-12 |
| Shield | Braid/Foil | Wire AWG | 27AWG |
| Cable Type | Passive Twinax | Cable OD | 27AWG: 12mm |
| Cable Colour/Material | Black PET | Cable Length Selection | 0.5-1meter |
| Protocols | IEEE 802.3/OSFP MSA | Application Scenarios | 1600Gigabit Ethernet (1600GbE) |
| Supply Voltage | 3.3V | Power Dissipation | <0.1W |
| Operating Temperature | 0 to 70℃ (32 to 158℉) | Storage Temperature | -40 to 85℃ (-40 to 185℉) |
PRODUCT PRESENTATION
The PHILISUN 1.6T OSFP(FIN) to OSFP(FIN) is a new-generation 8‑channel high‑speed cable supporting 1600 Gbps, optimized for 224 Gbps PAM4 and compliant with IEEE 802.3 standards.It delivers excellent mechanical durability and superior shielding to minimize crosstalk, ensuring high signal integrity at elevated Nyquist frequencies.Designed for high‑density deployments, the OSFP form factor is ideal for high‑performance computing (HPC) and machine learning (ML) infrastructures.
DAC SERIES PRODUCTS
PRODUCTION & TESTING EQUIPMENT

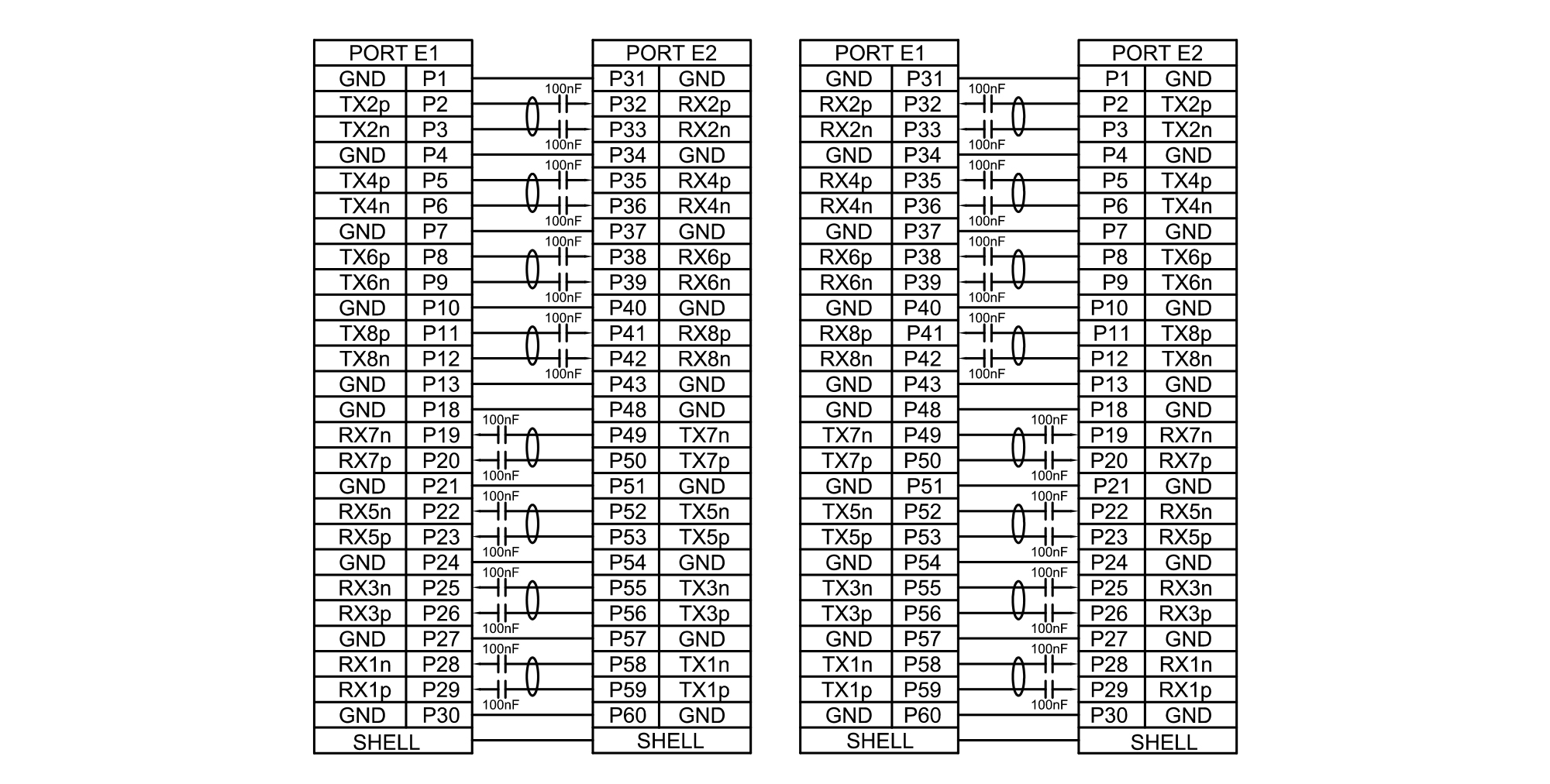

WIRING TABLE
PRODUCT CERTIFICATION
COMPATIBLE BRANDS
CONFIGURATION INFORMATION
