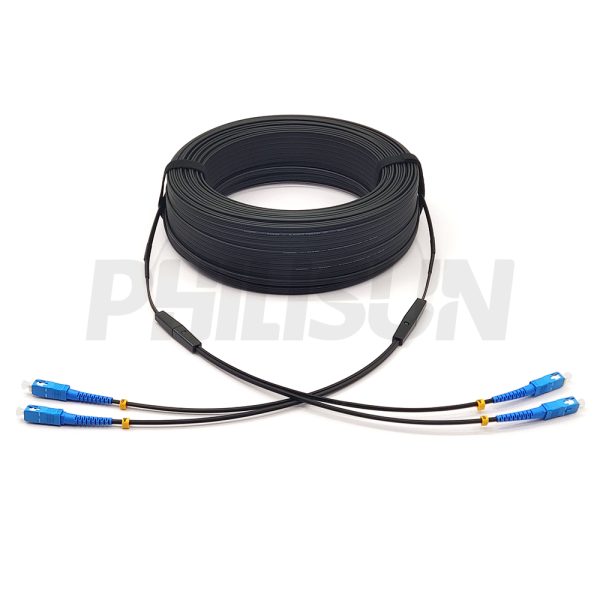

2.0×3.0mm/2.0×5.0mm, Indoor Butterfly Flat FTTH Drop Cable, 2 Fibers, Black/White

SPECIFICATIONS
Connector Type	LC/SC/FC/ST/E2000	Fiber Count	2
Connector Color	Blue/Green/Black/Beige	Fiber Count	Black/White
Strength Membe Material	FRP/Steel Wire	Fiber Type	SM OS2/OM3/OM4/OM5
Laying Method	Indoor or Oudoor self-supporting	Polish Type	UPC or APC
Cable Size	2.03.0mm/2.05.0mm(Self-Supporting)	Internal Structure	Bare fiber/Internal structure/Armored
Branch Length	0.3-1.5m	Branch Type	Round Tube/Butterfly Shaped Tube/Armored Tube
IL	≤0.3dB	RL	≥50dB(UPC)≥60dB(APC)
Repeatability	≤0.2dB	Interchangeability	≤0.2dB
Flame Retardant Grade	OFN/OFNR/OFNP	Working Wavelength	1310/1550
Fiber Loss	0.35db@1310nm/0.2dB@1550nm	Durability	≥500 times
Jacket Material	LSZH/PE	Min. Bend Radius(Static)	30mm
Fiber Brand	Corning/YOFC	Min. Bend Radius (Dynamic)	60mm
Operating Temperature	-20 to 60℃ (-4 to 140℉)	Storage Temperature	-20 to 60℃ (-4 to 140℉)

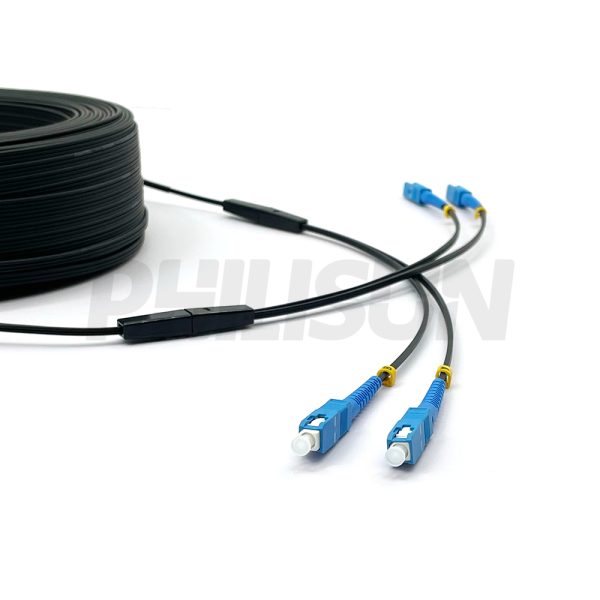

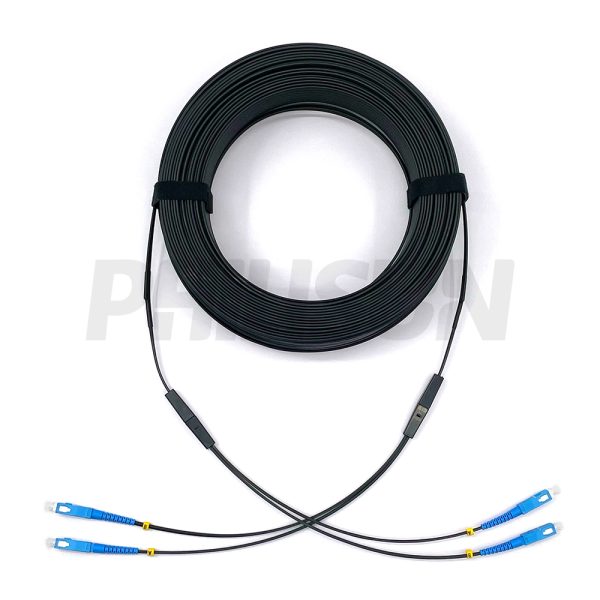

PRODUCT PRESENTATION

This 2-Fibers Butterfly Flat FTTH Drop Cable provides a robust, dual-fiber connection tailored for use in FTTH deployments. It incorporates Bending-resistant optical fiber, allowing for flexible and safe installation with minimized signal loss even when bent sharply (Min. Static Bend Radius 30mm, Dynamic 60mm). The flat cable profile ensures reliable performance and an ultra-low Insertion Loss of maximum 0.3dB for dual-channel service.

FTTH DROP CABLE PATCH CORD SERIES PRODUCTS

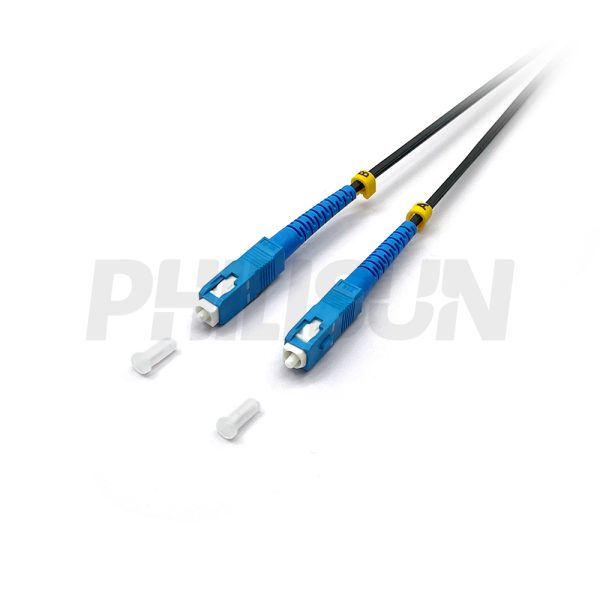

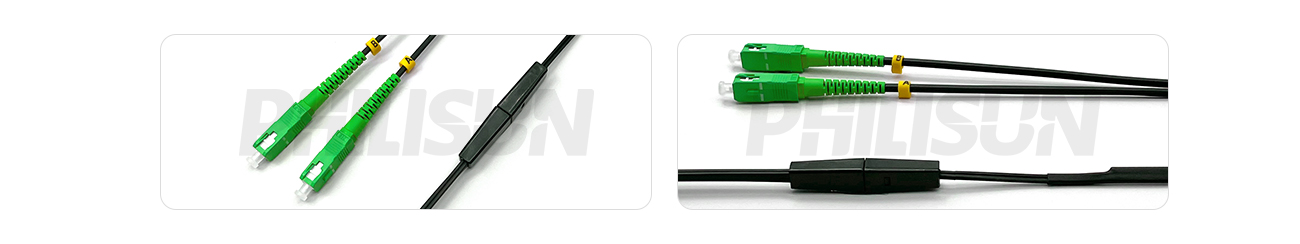

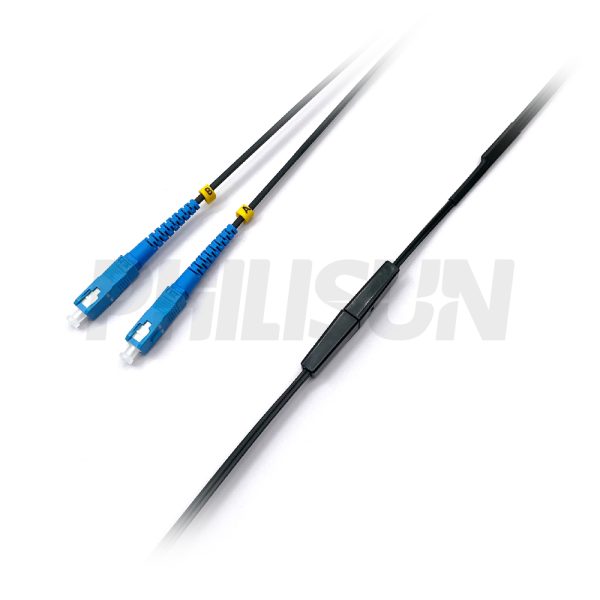

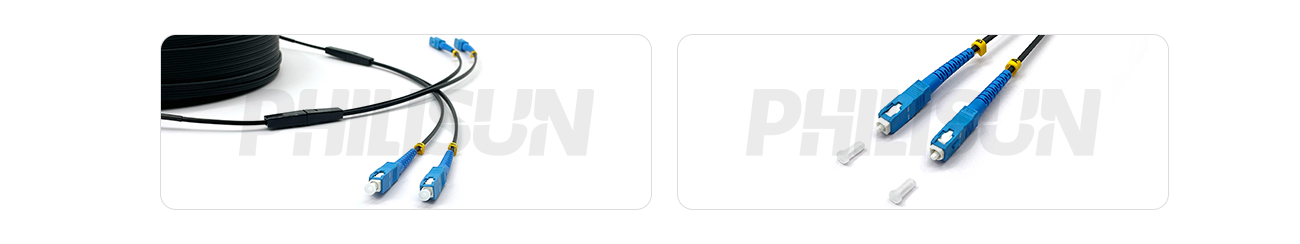

SC CONNECTOR

FIBER OPTIC CABLE TYPE

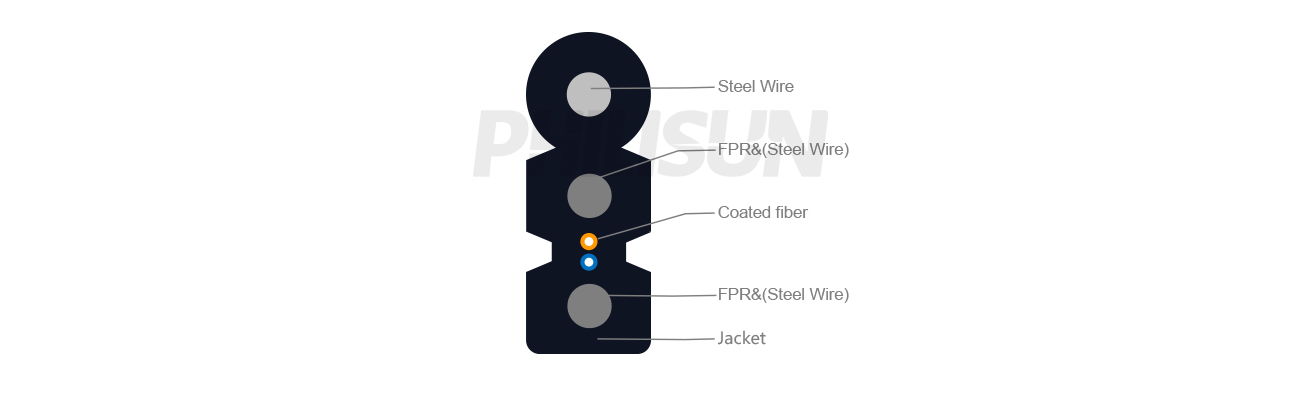

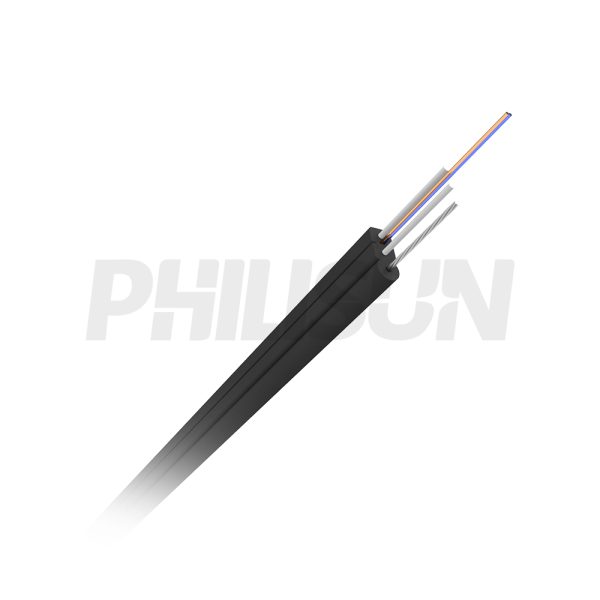

FIBER OPTIC CABLE STRUCTURE & PARAMETER

Cable Parameter
Items		Parameters
Fiber Count		1	2	4
Fiber	Diameter	0.25±0.015mm
Fiber	Color	Blue	Blue/Orange	Blue/Orange/Green/Brown
Strength member		FRP/steel wire + steel wire
Outer Sheath	Diameter	(2.0±0.1) × (5.1±0.2) mm
	Material	LSZH
	Color	Black

Mechanical Performance
Items	Unit	Parameters
Tensile Strength (Long Term)	N	300
Tensile Strength (Short Term)	N	600
Crush Resistance (Long Term)	N/10cm	1000
Crush Resistance (Short Term)	N/10cm	2200
Bending Radius (Dynamic)	mm	60
Bending Radius (Static)	mm	30
Operating Temperature	℃	-20 ~ +60
Storage Temperature	℃	-20 ~ +60

FIBER PARAMETER

SM Fiber Parameter
Items		Unit	G.652D	G.657A1	G.657A2
Mode Field Diameter	1310nm	μm	9.1±0.4	8.8±0.4	8.8±0.4
Mode Field Diameter	1550nm	μm	10.4±0.5	9.8±0.5	9.8±0.5
Cladding Diameter		μm	125±1	125±0.7	125±0.7
Cladding Non-Circularity		%	≤1	≤0.7	≤0.7
Core-Cladding Concentricity Error		μm	≤0.6	≤0.5	≤0.5
Coating Diameter		μm	245±7	245±5	245±5
Coating Non-Circularity		%	≤6.0	≤6.0	≤6.0
Cladding-Coating Concentricity Error		μm	≤12.0	≤12.0	≤12.0
Cable Cutoff Wavelength		nm	λcc≤1260	λcc≤1260	λcc≤1260
Cable Attenuation Coefficient	1310nm	dB/km	≤0.4	≤0.4	≤0.4
Cable Attenuation Coefficient	1550nm	dB/km	≤0.3	≤0.3	≤0.3

MM Fiber Parameter
Items		unit	62.5/125	50/125	OM3-150	OM3-300	OM4
Core Diameter		μm	62.5±2.5	50±2.5	50±2.5	50±2.5	50±2.5
Cladding Diameter		μm	125±1.0	125±1.0	125±1.0	125±1.0	125±1.0
Core Non-Circularity		%	≤5.0	≤5.0	≤5.0	≤5.0	≤5.0
Cladding Non-Circularity		%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Core-Cladding Concentricity Error		μm	≤1.5	≤1.5	≤1.0	≤1.0	≤1.0
Coating Diameter		μm	245±7	245±7	245±7	245±7	245±7
Coating Non-Circularity		%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Cladding-Coating Concentricity Error		μm	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
OFL Bandwidth	850nm	MHz·km	≥160	≥500	≥700	≥1500	≥3500
OFL Bandwidth	1300nm	MHz·km	≥500	≥500	≥500	≥500	≥500
Cable Attenuation Coefficient	850nm	dB/km	≤3.0	≤3.0	≤3.0	≤3.0	≤3.0
Cable Attenuation Coefficient	1300nm	dB/km	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
