200G QSFP56 to 2×100G QSFP56 Active Direct Attach Copper Twinax Cable (ACC)
Compliant with
IEEE 802.3cd, SFF-8665, QSFP MSA, SFF-8679, SFF-8636, InfiniBand HDR standard
Switch to Switch
Switch to GPU
- High Quality
- Factory Outlet
- Satisfaction Guarantee
- Global Shipping
| SPECIFICATIONS | |||
|---|---|---|---|
| Cable End Connector A | QSFP56 | Cable End Connector B | 2×QSFP56 |
| Jumper Type | Active Optical Breakout Cable | Data Rate | 200G |
| Aggregate Bit Rate | 200Gbps | Lane Bit Rate | 50Gbps |
| Number of Channels | 4 | Single Channel Rate | 50G |
| Minimum Bend Radius | 5X Cable OD -Single, 10X Cable OD - Repeated | Factory Brand | PHILISUN |
| Attenuation | 26AWG:10dB/8.5m maximum 28AWG:10dB/7m maximum 30AWG:8.4dB/5.5m maximum | Bit Error Rate | ≤10-12 |
| Shield | Braid/Foil | Wire AWG | 26AWG/28AWG/30AWG |
| Cable Type | Active Twinax | Cable OD | 30AWG: 5.5mm 28AWG: 6.3mm 26AWG: 7.3mm |
| Cable Colour/Material | Black PVC(OFNR) | Cable Length Selection | 1-7meter |
| Protocols | SFF8665/QSFP MSA/IEEE 802.3cd/SFF-8679/SFF-8636/ InfiniBand HDR | Application Scenarios | 200Gigabit Ethernet (200GbE) |
| Supply Voltage | 3.3V | Power Dissipation | <1.5W |
| Operating Temperature | 0 to 70℃ (32 to 158℉) | Storage Temperature | -40 to 85℃ (-40 to 185℉) |
PRODUCT PRESENTATION

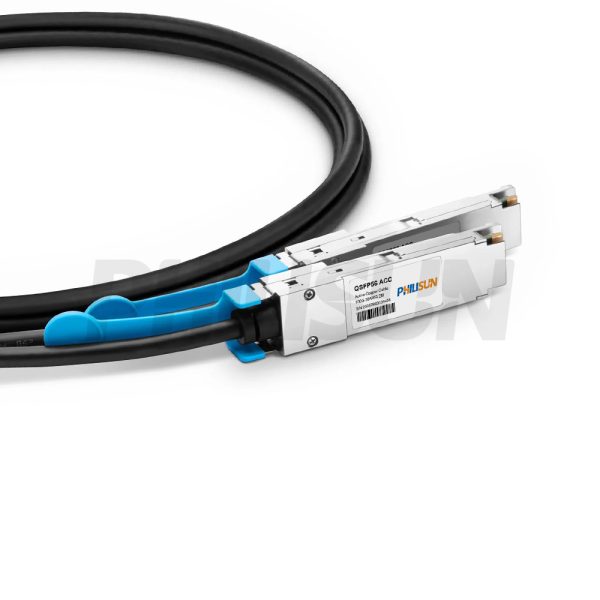

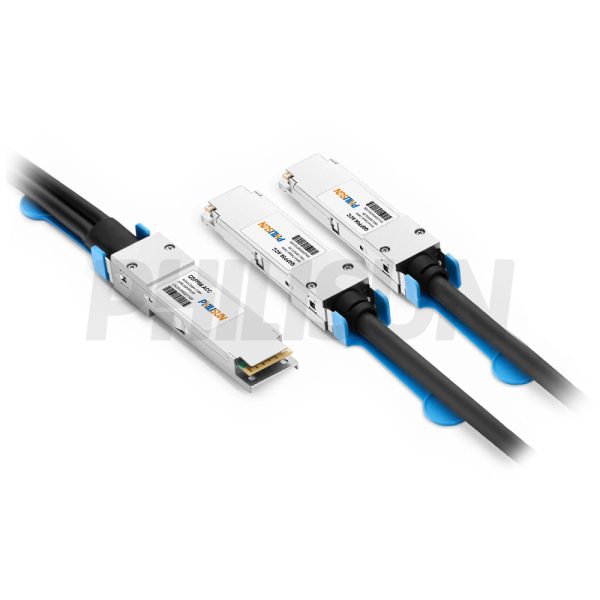

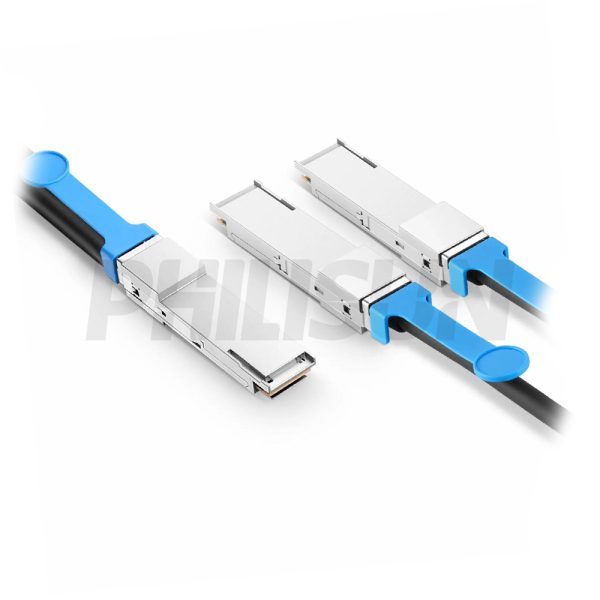

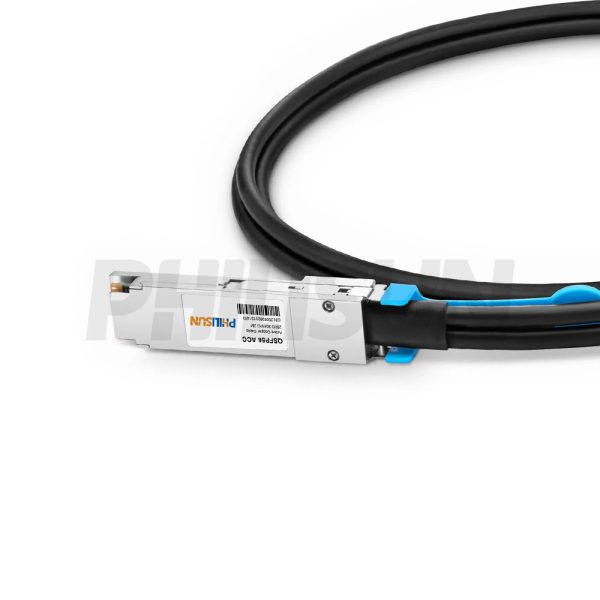

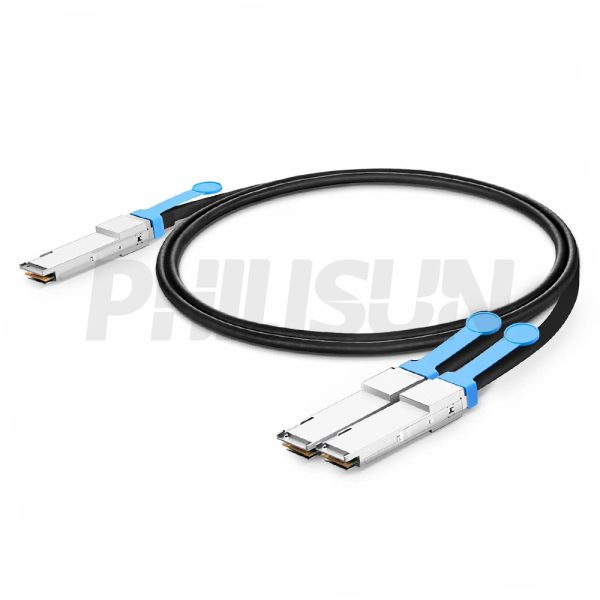

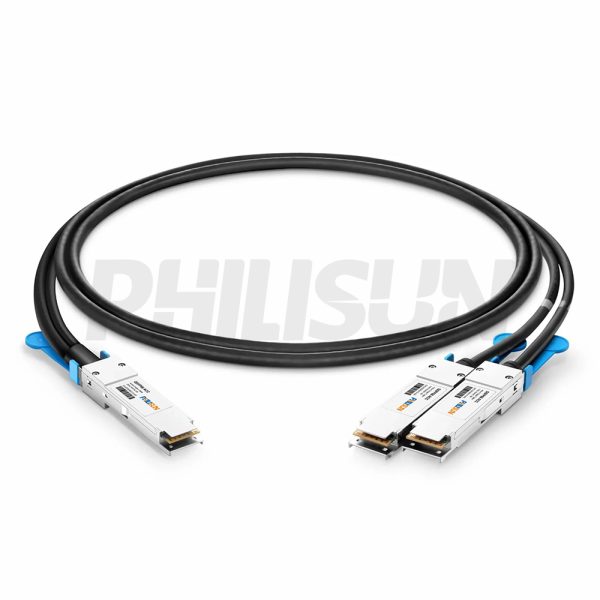

The PHILISUN 200G QSFP56 to 2x100G QSFP56 Active High-Speed Direct Attach Copper Cable is a high-speed, cost-effective alternative to optical transceivers for 200Gb/s Ethernet applications. Fully compliant with SFF-8665 QSFP56 MSA standards, this breakout cable connects one 200G QSFP56 port to two 100G QSFP56 ports. It delivers economical short-reach interconnections for telecom central offices and data centers.
DAC SERIES PRODUCTS
PRODUCTION & TESTING EQUIPMENT
PERFORMANCE PARAMETER
| Absolute Maximum Ratings | |||||||||
| Parameter | Symbol | Min. | Max. | Unit | Notes | ||||
| Storage Temperature Range | Ts | -40 | 80 | ºC | – | ||||
| Supply Voltage | Vcc | -0.5 | 3.6 | V | – | ||||
| Operating Relative Humidity | RH | 85 | % | – | |||||
| Recommended Operating Conditions | |||||||||
| Parameter | Symbol | Min. | Typica | Max. | Unit | Notes | |||
| Operating Case Temperature | TOPR | 0 | – | 70 | ºC | – | |||
| Power Supply Voltage | Vcc | 3.135 | 3.3 | 3.465 | V | – | |||
| Data Rate | DR | – | 200 | – | Gbps | – | |||
| General Product Characteristics | |||||||||
| All performance is defined over the recommended operating environment unless otherwise specified. | |||||||||
| Item | Parameter | Reference | |||||||
| SDD21 | 8dB <X < 17. 16dB @ 13.28 GHz | IEEE802.3cd, Clause 136.11.2 | |||||||
| SDD11/22 | – 16.5+2*sqrt(f)dB Max. @0.05GHz-4. 1GHz – 10.66+ 14*1og(f/5.5) dB Max.@4. 1GHz- 19GHz |
– | |||||||
| SDD11/22 | -22+(20/25.78) *f dB Max.@0.01GHz~ 12.89GHz – 15+(6/25.78) *f dB Max.@ 12.89GHz~ 19GHz |
IEEE802.3cd, Clause 136.11.4 | |||||||
| SCD21-SDD21 | – 10dB Max. @0.01GHz~ 12.89GHz -27+(29/22) *f dB Max. @ 12.89GHz~ 15.7GHz -6.3dB Max. @ 15.7GHz~ 19GHz |
IEEE802.3cd, Clause 136.11.5 | |||||||
| SCC11/22 | -2dB Max. @0.2GHz~ 19GHz | IEEE802.3cd, Clause 136.11.6 | |||||||
| ICN | 3 ≤ IL≤ 7.65: 5 mV Max. 7.65 ≤ IL ≤ 26: 12.75 – 0.49 *f mV Max. IL is the value @13.28GHz, f is in GHz |
– | |||||||
| COM | 3dB Min. | – | |||||||
| NEXT | -40dB Max. | – | |||||||
Pin Descriptions
| Pin | Logic | Symbol | Description | ||||||
| 1 | – | GND | Module Ground | ||||||
| 2 | CML-I | Tx2n | Transmitter Inverted Data Input | ||||||
| 3 | CML-I | Tx2p | Transmitter Non-inverted Data Input | ||||||
| 4 | – | GND | Module Ground | ||||||
| 5 | CML-I | Tx4n | Transmitter Inverted Data Input | ||||||
| 6 | CML-I | Tx4p | Transmitter Non-Inverted Data Input | ||||||
| 7 | – | GND | Module Ground | ||||||
| 8 | LVTTL-I | ModSelL | Module Select | ||||||
| 9 | LVTTL-I | ResetL | Module Reset | ||||||
| 10 | – | Vcc Rx | +3.3V Power Supply for Receiver | ||||||
| 11 | LVTTL-I | SCL | 2-wire Serial Interface Clock | ||||||
| 12 | LVTTL-I/O | SDA | 2-wire Serial Interface Data Line | ||||||
| 13 | – | GND | Module Ground | ||||||
| 14 | CML-O | Rx3p | Receiver Non-Inverted Data Output | ||||||
| 15 | CML-O | Rx3n | Receiver Inverted Data Output | ||||||
| 16 | – | GND | Module Ground | ||||||
| 17 | CML-O | Rx1p | Receiver Non-Inverted Data Output | ||||||
| 18 | CML-O | Rx1n | Receiver Inverted Data Output | ||||||
| 19 | – | GND | Module Ground | ||||||
| 20 | – | GND | Module Ground | ||||||
| 21 | CML-O | Rx2n | Receiver Inverted Data Output | ||||||
| 22 | CML-O | Rx2p | Receiver Non-Inverted Data Output | ||||||
| 23 | – | GND | Module Ground | ||||||
| 24 | CML-O | Rx4n | Receiver Inverted Data Output | ||||||
| 25 | CML-O | Rx4p | Receiver Non-Inverted Data Output | ||||||
| 26 | – | GND | Module Ground | ||||||
| 27 | LVTTL-O | ModPrsL | Module Ground | ||||||
| 28 | LVTTL-O | IntL/RxLOSL | Interrupt. Optionally Configurable As Rxlosl Via The Management Interface (sff-8636) |
||||||
| 29 | – | VccTx | +3.3v Power Supply For Transmitter | ||||||
| 30 | – | Vcc1 | +3.3v Power Supply | ||||||
| 31 | LVTTL-I | LPMode/Tx Dis | Low Power Mode. Optionally Configurable as TxDis via the Management Interface (SFF-8636). |
||||||
| 32 | – | GND | Module Ground | ||||||
| 33 | CML-I | Tx3p | Transmitter Non-Inverted Data Input | ||||||
| 34 | CML-I | Tx3n | Transmitter Inverted Data Input | ||||||
| 35 | – | GND | Module Ground | ||||||
| 36 | CML-I | Tx1p | Transmitter Non-Inverted Data Input | ||||||
| 37 | CML-I | Tx1n | Transmitter Inverted Data Input | ||||||
| 38 | – | GND | Module Ground | ||||||
