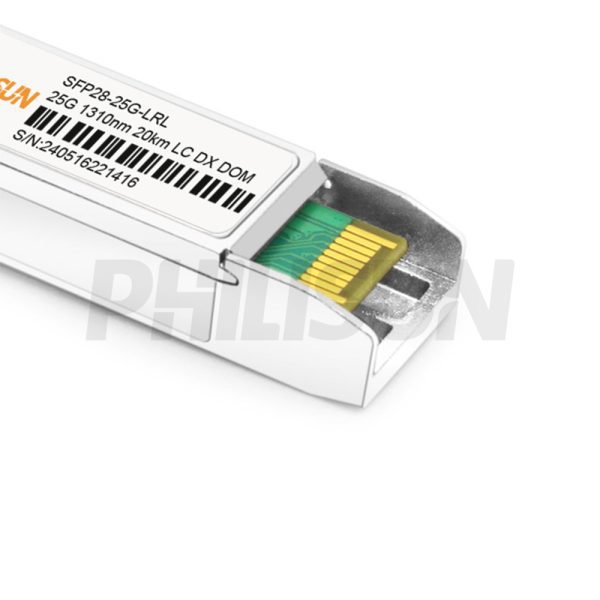

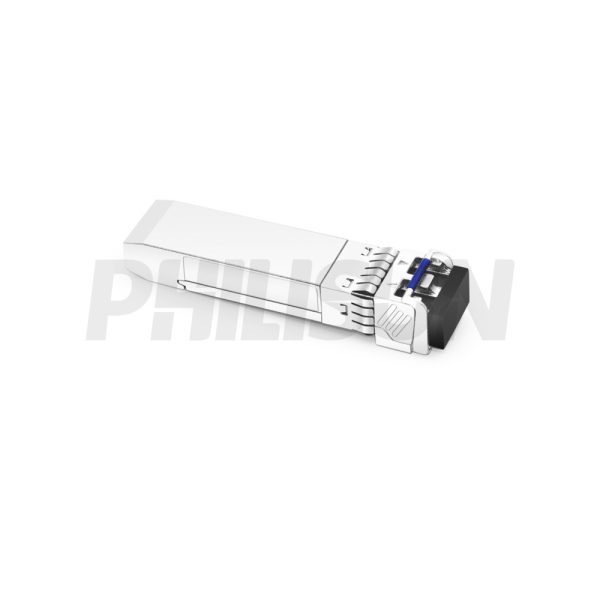

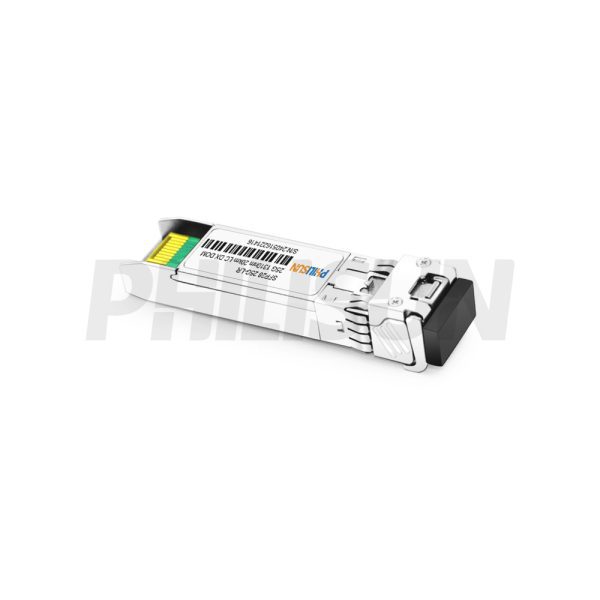

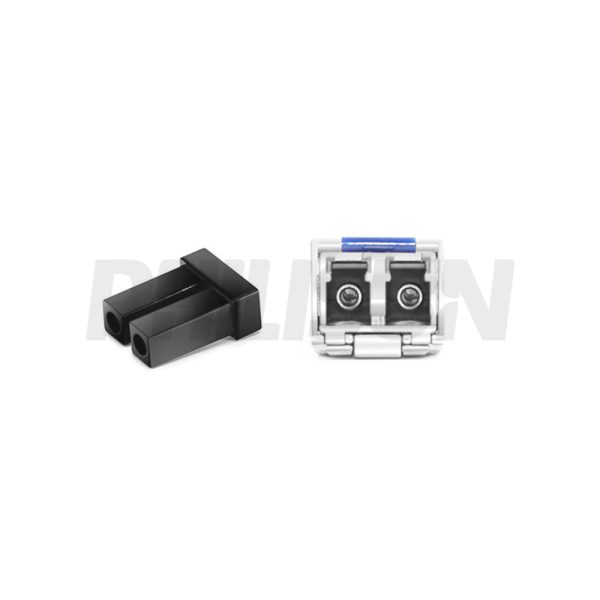

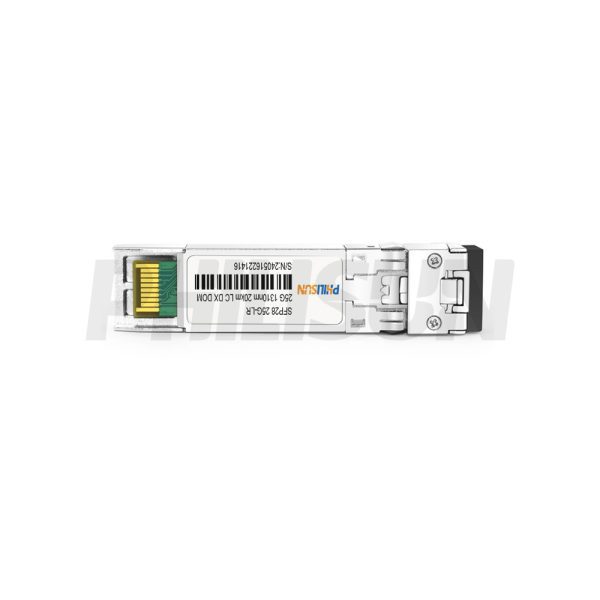

Generic Compatible 25G LR SFP28 1310nm 20km DOM Duplex LC SMF Optical Transceiver Module
SFP28-25-13-20(LR)-LCD
- High Quality
- Factory Outlet
- Satisfaction Guarantee
- Global Shipping
| SPECIFICATIONS | |||
|---|---|---|---|
| Product Model | SFP28-25-13-20(LR)-LCD | Manufacturer Brand | PHILISUN |
| Package Type | SFP28 | Optical Connector | Duplex LC |
| Max Data Rate | 25.78G | Channel Data Rate | 10.31Gbps |
| Effective Transmission Distance | 20km | ||
| Wavelength | 1310nm | Operating Voltage | 3.3V |
| Fiber Type | SMF | Core Size | 9/125µm |
| Transmitter Type | DFB-LD | Receiver Type | CDR |
| TX Power | -7~2dbm | Receiver Sensitivity | <9.5dBm |
| Digital Diagnostic Monitoring(DDM) | YES | Receiver Overload | 2dBm |
| Power Consumption | <1.2W(Standard) <1.5W(Industrial) | Protocols | SFF-8402 |
| Operating Temperature(Commercial) | 0℃~+70℃ | Storage Temperature(Commercial) | -40℃~+85℃ |
| Operating Temperature(Industrial) | -40℃~+85℃ | Storage Temperature(Industrial) | -40℃~+85℃ |
PRODUCT PRESENTATION
The PHILISUN SFP28 25G 1310nm 20km LR LC DX transceiver is a high-performance solution for duplex optical data communications, supporting data rates of 25.78Gbps. It features an SFP+ 20-pin connector for hot-pluggable capability and provides digital diagnostic monitoring through an I2C interface. The module includes built-in dual clock and data recovery (CDR) for enhanced signal integrity.Designed for single-mode fiber, this transceiver operates at a nominal wavelength of 1310nm. The transmitter section integrates a high-performance 1310nm DFB laser, compliant with Class 1 laser safety standards (IEC 60825). The receiver section is equipped with an InGaAs detector pre-amplifier (IDP) housed in an optical header, paired with a limiting post-amplifier IC for reliable and efficient performance.
TRANSCEIVER SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

PERFORMANCE PARAMETER
| Absolute Maximum Ratings | |||||||||
| Parameter | Symbol | Unit | Min. | Max. | |||||
| Storage temperature range | Ts | °C | -45 | 85 | |||||
| Relative humidity | RH | % | 0 | 95 | |||||
| Input voltage | Vcc | V | 0 | 4 | |||||
| Recommended Operating Conditions | |||||||||
| Parameter | Symbol | Unit | Min. | Typ. | Max. | ||||
| Operating case temperature range | Tc | ℃ | -45 | – | 85 | ||||
| Supply voltage | Vcc | V | 3.135 | 3.3 | 3.465 | ||||
| Bit rate | BR | Gb/s | – | 25.78125 | – | ||||
| Max supported link length | L | km | – | – | 20 | ||||
| Electrical Characteristics | |||||||||
| Parameter | Symbol | Unit | Min. | Typ. | Max. | Note | |||
| Power dissipation | – | W | – | – | 1.2 | – | |||
| Transmitter | |||||||||
| Input differential impedance | RIN | Ω | – | 100 | – | – | |||
| Single ended data input swing | VIN | mVp-p | 90 | – | 450 | – | |||
| Tx_disable input voltage – low | VIL | V | -0.3 | – | 0.8 | – | |||
| Tx_disable input voltage – high | VIH | V | 2.0 | – | Vcc+0.3 | – | |||
| Tx_fault output voltage – low | VOL | V | -0.3 | – | 0.8 | – | |||
| Tx_fault output voltage – high | VOH | V | 2.0 | – | Vcc+0.3 | – | |||
| Receiver | |||||||||
| Output impedance (Differential) | Zout | V | – | 100 | – | – | |||
| Rx_LOS output voltage- low | VOL | V | -0.3 | – | 0.8 | – | |||
| Rx_LOS output voltage- high | VOH | V | 0.2 | – | Vcc+0.3 | – | |||
| Optical Transmitter/Receiver Characteristics | |||||||||
| Parameter | Symbol | Unit | Min. | Typ. | Max. | Note | |||
| Transmitter | |||||||||
| Center wavelength | λ | nm | 1295 | 1310 | 1325 | – | |||
| Data rate | B | Gb/s | – | 25.78 | – | – | |||
| Output Spectral Width | λ(-20dB) | nm | – | – | 1 | – | |||
| Optical output power | Po | dBm | -7 | – | 2 | – | |||
| Extinction ratio | ER | dB | 3.5 | – | – | – | |||
| Transmitterand dispersion penalty | TDP | dB | – | – | 3.2 | – | |||
| Receiver | |||||||||
| Operating Wavelength | λ | nm | 1260 | – | 1355 | – | |||
| Overload | – | dBm | 2 | – | – | – | |||
| Receiver sensitivity (OMA) | POMA | dBm | – | – | -11.3 | – | |||
| Optical return loss | ORL | dB | – | – | -26 | – | |||
| Signal detect threshold-de-assert | SD | dBm | – | – | -14 | – | |||
| LOS hysteresis | – | dB | 0.5 | – | – | – | |||

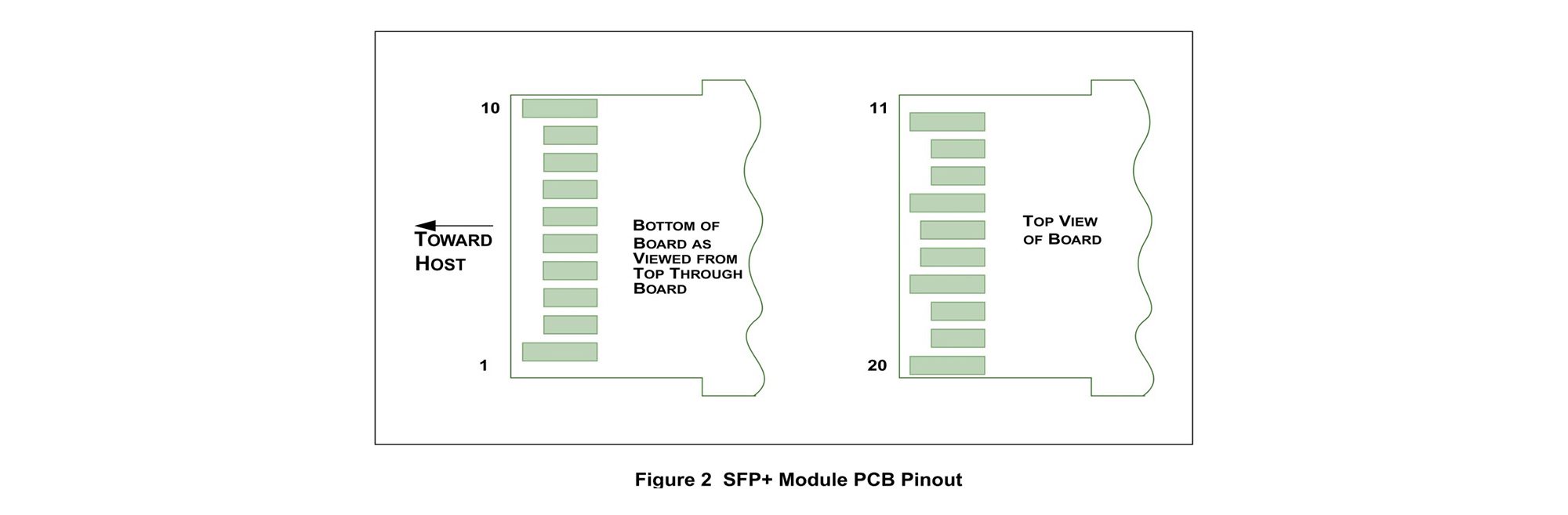

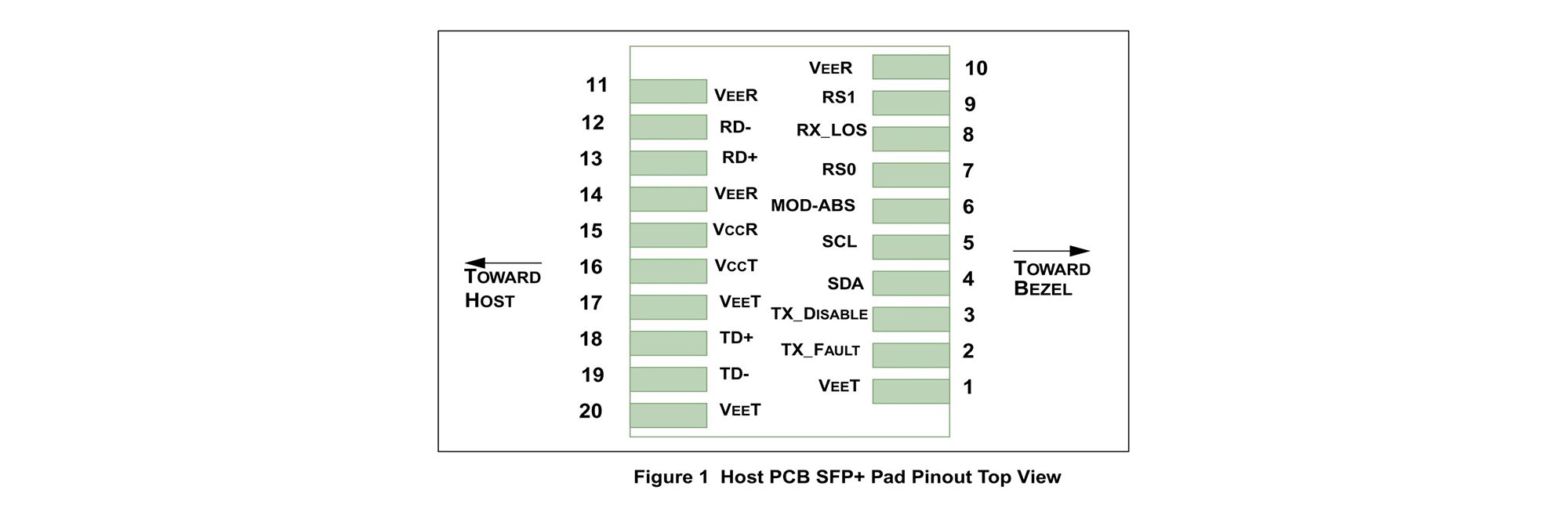

PIN CONFIGURATION


TRANSCEIVER PIN DESCRIPTIONS
| Pin No. | Symbol | Logic | Description | ||||||
| 1,20 | VEET | – | Transmitter ground(common with receiver ground) | ||||||
| 2 | TX fault | LVTTL output | Transmitter fault. low normal operation, high fault indication | ||||||
| 3 | TX disable | LVTTL input | Transmitter disable. laser output disabled on high or open | ||||||
| 4 | SDA | LVTTL input/output | Module definition 2.data line for serial ID | ||||||
| 5 | SCL | LVTTL input/output | Module definition 1.clock line for serial ID | ||||||
| 6 | MOD-ABS | – | Module definition 0.grounded within the module | ||||||
| 7 | RS0 | LVTTL input | Rate select 0, optionally controls SFP28 module receiver. LVTTL logic. | ||||||
| 8 | LOS | LVTTL output | Loss of signal indication. Logic 0 indicates normal operation. | ||||||
| 9 | RS1 | LVTTL input | Rate select 1, optionally controls SFP28 module transmitter. LVTTL logic. | ||||||
| 10,11,14 | VEER | – | Receiver ground(common with transmitter ground) | ||||||
| 12 | RD- | CML output | Receiver inverted DATA out.AC coupled | ||||||
| 13 | RD+ | CML output | Receiver non-inverted DATA out.AC coupled | ||||||
| 15 | VCCR | – | Receiver power supply | ||||||
| 16 | VCCT | – | Transmitter power supply | ||||||
| 18 | TD+ | CML input |
Transmitter non-inverted DATA in.AC coupled
|
||||||
| 19 | TD- | CML input | Transmitter inverted DATA in.AC coupled | ||||||
