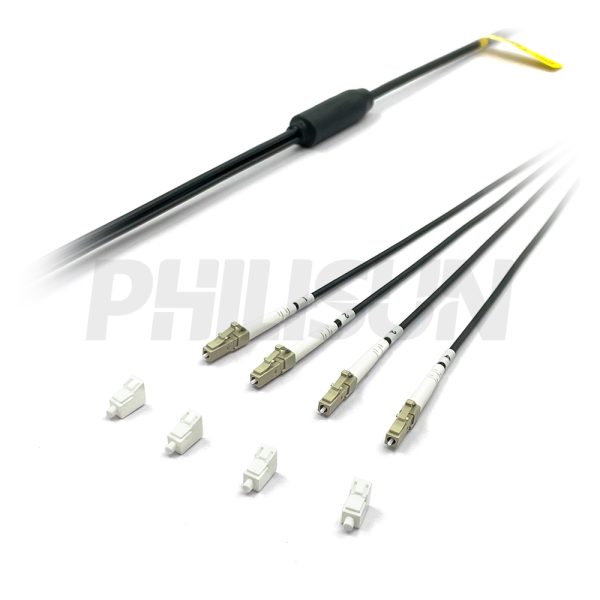

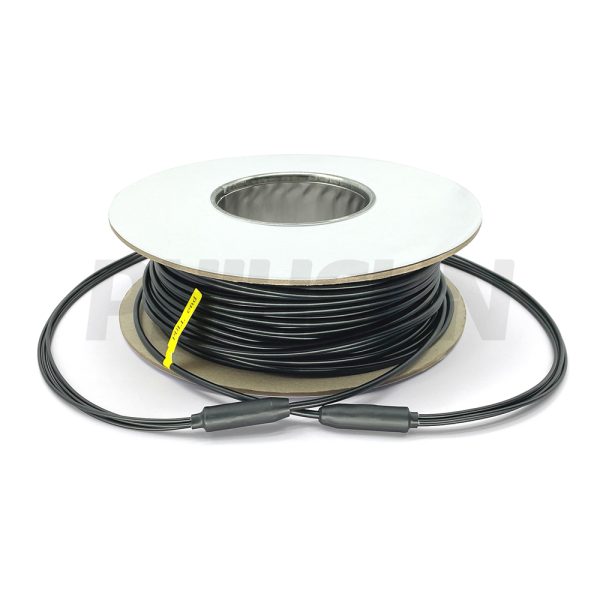

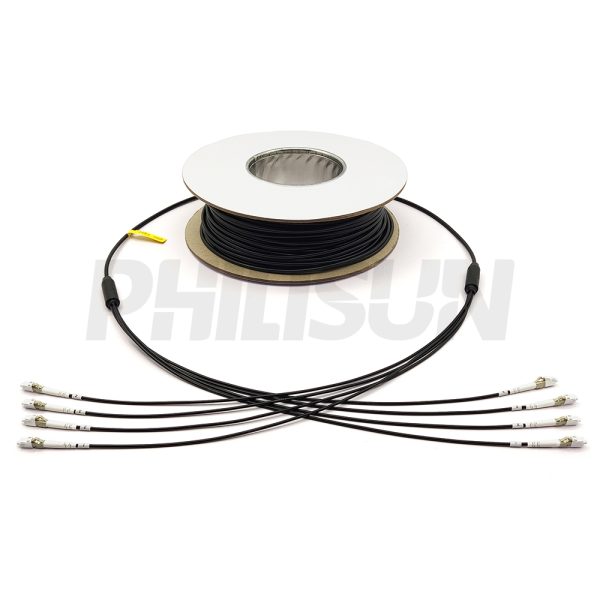

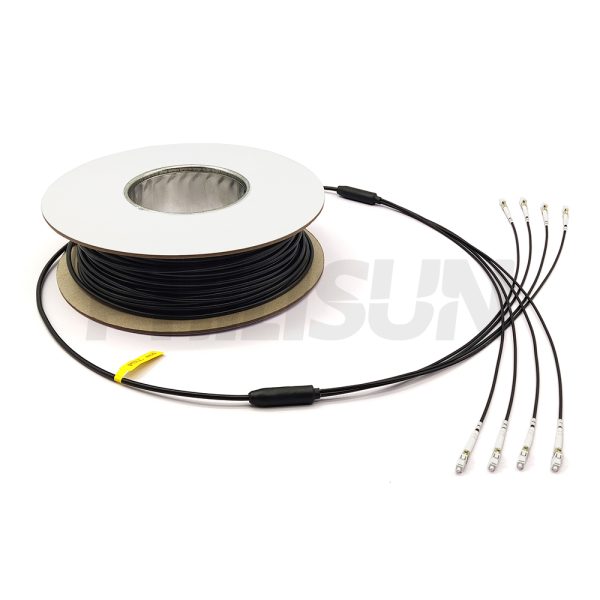

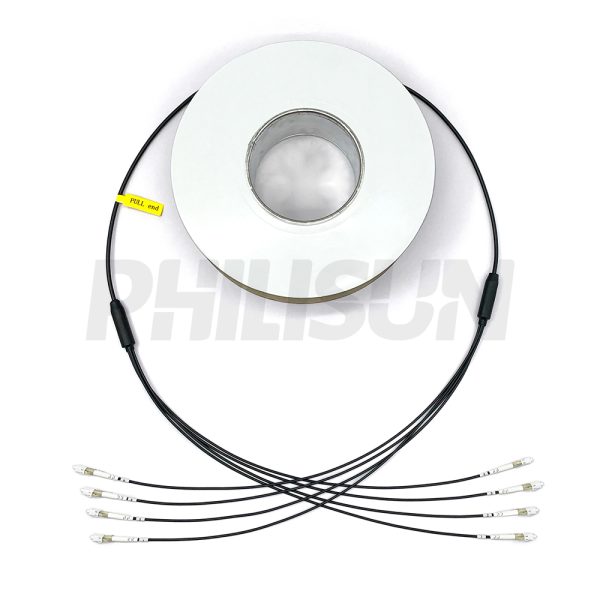

4F 5.0mm Single-Layer Armored Tactical Cable
Available in Connector Type
Available in LSZH/TPU Jacket
Available in Different Breakout Types
Available in Pulling Eye
High compressive force and resistance to compression
- High Quality
- Factory Outlet
- Satisfaction Guarantee
- Global Shipping
| SPECIFICATIONS | |||
|---|---|---|---|
| Connector Type | LC/SC/FC/ST/E2000 | Fiber Count | 4 |
| Fiber Type | SM OS2/OM3/OM4/OM5 | Polish Type | UPC or APC |
| Ferrule Type | Grade A zirconia ceramic ferrule | RL | ≥50dB(SM UPC) ≥60dB(SM APC) ≥25dB(MM UPC） |
| IL | ≤0.3dB | Interchangeability | ≤0.2dB |
| Repeatability | ≤0.2dB | Working Wavelength | 1310/1550(SM) 850/1300(MM) |
| Waterproof Function | YES | Jacket Color | Black |
| Matching Cable Outer Diameter | 5.0mm | Flame Retardant Grade | OFN/OFNR/OFNP |
| Armored Material | Spiral stainless steel | Sheath Type | Single-layer spiral armored |
| Inner Cable Diameter | 0.9mm | Branch Type | Round Tube/Armored Tube |
| Durability | ≥500 times | Fiber Loss | SM:0.35db@1310nm/0.2dB@1550nm MM:2.4dB@850nm/0.6dB@1300nm |
| Jacket Material | PVC/LSZH/PU | Fiber Brand | Corning/YOFC |
| Min.bending Radius(Short Term) | 10D | Min.bending Radius(Long Term) | 20D |
| Operating Temperature | -40 to 70℃ (-40 to 158℉) | Storage Temperature | -20 to 60℃ (-4 to 140℉) |
PRODUCT PRESENTATION
Armored Tactical Cable feature excellent bending resistance, oil resistance and wear resistance. For this reason, armored fiber patch cords are highly suitable for both indoor and outdoor applications, such as network interconnection between two buildings via underground pipelines or direct burial. The armor specifications, fiber types and core counts of this product can be customized to meet specific requirements.
PATCH CORD SERIES PRODUCTS

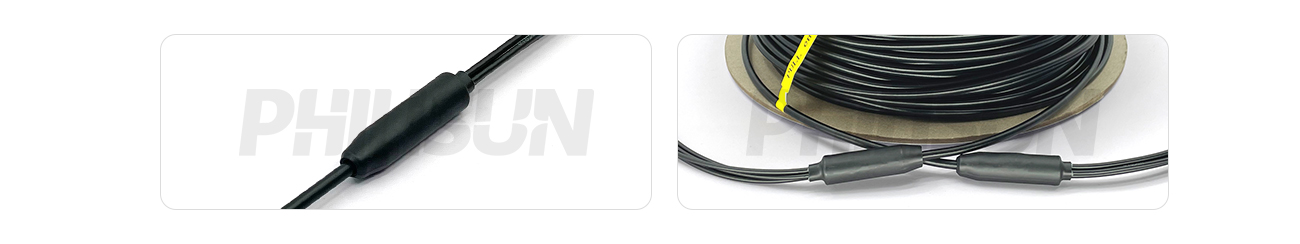

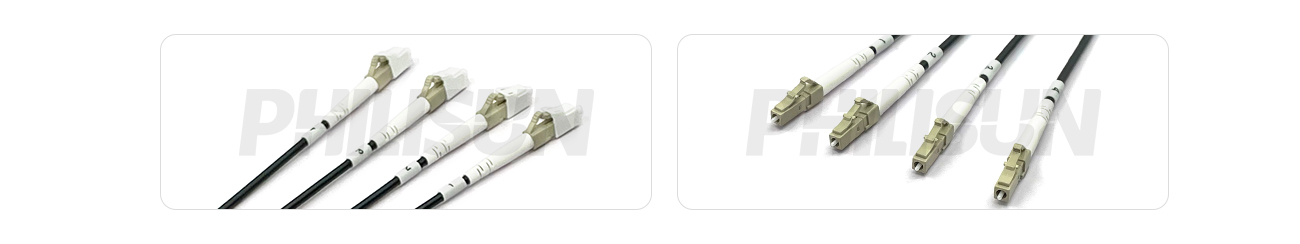

DETAIL DISPLAY
BRANCHING METHOD

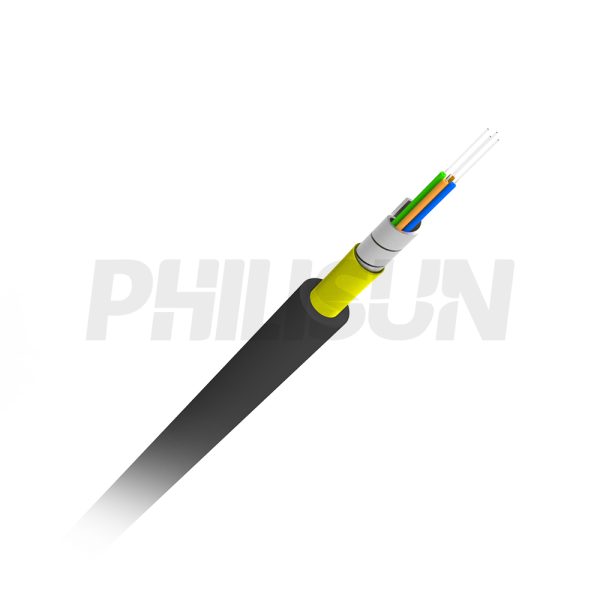

FIBER OPTIC CABLE STRUCTURE & PARAMETER
| Cable Parameter | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Items | Specifications | ||||||||
| Fiber Count | 2 | 4 | 6 | 8 | 12 | ||||
| Tight-buffer Fiber | Outer Diameter | 0.6±0.1mm | 0.9±0.1mm | 0.6±0.1mm | 0.6±0.1mm | 0.6±0.1mm | 0.6±0.1mm | ||
| Material | PVC | ||||||||
| Stainless Stelltube | Material | SUS204 | |||||||
| Internal Diameter | 1.25±0.1mm | 2.2±0.1mm | 2.1±0.1mm | - | - | - | |||
| Outer Diameter | 1.8±0.1mm | 2.8±0.1mm | 2.4±0.1mm | 2.6±0.1mm | 2.8±0.1mm | 3.5±0.1mm | |||
| Outer Jacket | Material | TPU | |||||||
| Color | Black/Customer-Specified | ||||||||
| Thickness | 0.6±0.1mm | 1.0±0.1mm/0.9±0.1mm | 0.9±0.1mm | 1.1±0.1mm | - | - | - | ||
| Outer Diameter | 3.3±0.2mm | 4.0±0.2mm | 5.0±0.2mm | 4.5±0.2mm | 5.0±0.2mm | 5.0±0.2mm | 5.0±0.2mm | 6.0±0.2mm | |
| Mechanical Performance | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Items | Specifications | ||||||||
| Fiber Count | 2 | 4 | 6 | 8 | 12 | ||||
| Outer Jacket Dimension/mm | 3.3±0.2mm | 4.0±0.2mm | 5.0±0.2mm | 4.5±0.2mm | 5.0±0.2mm | 5.0±0.2mm | 5.0±0.2mm | 6.0±0.2mm | |
| Tension（Long Term）/N | 300 | 600 | 400 | 600 | 400 | 500 | 500 | ||
| Tension（Short Term）/N | 600 | 1000 | 800 | 1000 | 800 | 1000 | 1000 | ||
| Crush/N/10cm | 3000 | ||||||||
| Min. Bend Radius/mm | 30D | ||||||||
| Operating Temperature/℃ | -40～+85 | ||||||||
| Storage Temperature/℃ | -40～+85 | ||||||||
FIBER PARAMETER
| SM Fiber Parameter | ||||||||
|---|---|---|---|---|---|---|---|---|
| Items | Unit | G.652D | G.657A1 | G.657A2 | ||||
| Mode Field Diameter | 1310nm | μm | 9.1±0.4 | 8.8±0.4 | 8.8±0.4 | |||
| 1550nm | μm | 10.4±0.5 | 9.8±0.5 | 9.8±0.5 | ||||
| Cladding Diameter | μm | 125±1 | 125±0.7 | 125±0.7 | ||||
| Cladding Non-Circularity | % | ≤1 | ≤0.7 | ≤0.7 | ||||
| Core-Cladding Concentricity Error | μm | ≤0.6 | ≤0.5 | ≤0.5 | ||||
| Coating Diameter | μm | 245±7 | 245±5 | 245±5 | ||||
| Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ||||
| Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 | ||||
| Cable Cutoff Wavelength | nm | λcc≤1260 | λcc≤1260 | λcc≤1260 | ||||
| Cable Attenuation Coefficient | 1310nm | dB/km | ≤0.4 | ≤0.4 | ≤0.4 | |||
| 1550nm | dB/km | ≤0.3 | ≤0.3 | ≤0.3 | ||||
| MM Fiber Parameter | ||||||||
|---|---|---|---|---|---|---|---|---|
| Items | unit | 62.5/125 | 50/125 | OM3-150 | OM3-300 | OM4 | ||
| Core Diameter | μm | 62.5±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | ||
| Cladding Diameter | μm | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | ||
| Core Non-Circularity | % | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ||
| Cladding Non-Circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ||
| Core-Cladding Concentricity Error | μm | ≤1.5 | ≤1.5 | ≤1.0 | ≤1.0 | ≤1.0 | ||
| Coating Diameter | μm | 245±7 | 245±7 | 245±7 | 245±7 | 245±7 | ||
| Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ||
| Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ||
| OFL Bandwidth | 850nm | MHz·km | ≥160 | ≥500 | ≥700 | ≥1500 | ≥3500 | |
| 1300nm | MHz·km | ≥500 | ≥500 | ≥500 | ≥500 | ≥500 | ||
| Cable Attenuation Coefficient | 850nm | dB/km | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | |
| 1300nm | dB/km | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ||
PRODUCT CERTIFICATION
QUALITY ADVANTAGE
CONFIGURATION INFORMATION
