Generic Compatible 400GBASE-SR8 QSFP-DD 850nm 100m DOM MPO16 MMF Optical Transceiver Module

SPECIFICATIONS
Product Model	QSFPDD-400-85-01(SR8)-MPO16	Manufacturer Brand	PHILISUN
Package Type	QSFPDD	Optical Connector	MPO 16C/24C
Max Data Rate	400Gbps	Channel Data Rate	53.125Gbps
Effective transmission distance(OM3)	70m	Effective transmission distance(OM4)	100m
Wavelength	850nm	Operating Voltage	3.3V
Fiber Type	MMF	Core Size	50/125µm
Transmitter Type	VCSEL	Receiver Type	PIN
TX Power	-6.5~4.0dBm	Receiver Sensitivity	-6.5dBm
Digital Diagnostic Monitoring(DDM)	YES	Receiver Overload	4dBm
Power Consumption	<12W	Protocols	400G BASE-SR8 Ethernet
Operating temperature(Commercial)	0℃~+70℃	Storage Temperature(Commercial)	-40℃~+85℃

PRODUCT PRESENTATION

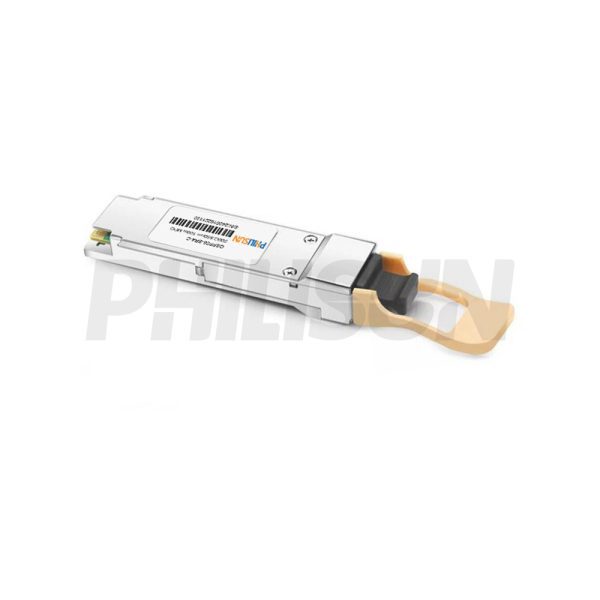

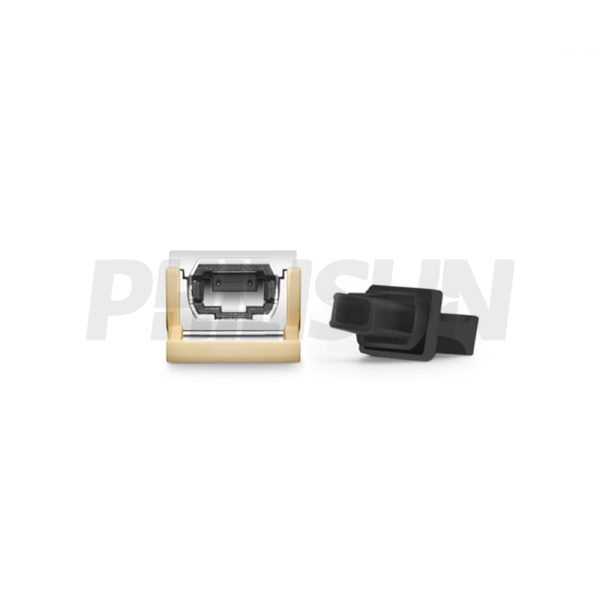

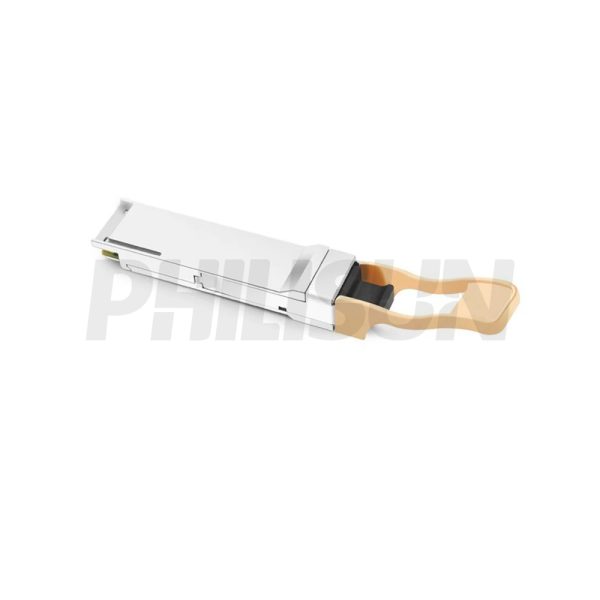

The PHILISUN QSFP-DD 400G 850nm SR8 MPO16 Transceiver is an 8-Channel,Pluggable,Fiber-Optic QSFP-DD for 400Gbps SR8 Applications.It is a high performance module for short-range data communication and interconnect applications which operate at 53.125Gbps per lane up to 70m using OM3 fiber and 100m using OM4 fiber.The optical interface uses MPO receptacles. This module is designed to operate over multimode fiber systems using a nominal wavelengthof 850nm.The electrical interface uses a76 contact edge type connector.

TRANSCEIVER SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

PERFORMANCE PARAMETER

Absolute Maximum Ratings
Parameter	Symbol	Min.	Max.	Unit
Power supply voltage	VCC	-0.5	+3.6	V
Storage temperature	TC	-40	+85	℃
Relative humidity	RH	0	85	%
These values represent the damage threshold of the module.Stress in excess of any of the individual absolute maximum ratingscan cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.

Recommended Operating Environment
Parameter	Symbol	Min	Typical	Max	Unit
Power supply voltage	VCC	3.15	3.30	3.45	V
Operating case temperature	Tca	0	–	70	℃
Recommended operating environment specifies parameters for which the electrical and optical characteristics hold unless otherwise noted.

Electrical Characteristics
Parameter	Symbol	Min	Typical	Max	Unit	Notes
Data rate per lane	DR	–	53.125	–	Gbps	–
Transmitter
Single ended output voltage tolerance	–	-0.3	–	4.0	V	–
Common mode voltage tolerance	–	15	–	–	mV	–
Input differential impedance	Rin	–	100	–	Ω	–
Differential input voltage swing	Vin	300	–	1100	mV	–
Tx fault	VoL	-0.3	–	0.4	V	At 0.7mA
Receiver
Single ended output voltage tolerance	–	-0.3	–	4	V	–
Differential output swing	Vout	300	–	900	mV	–
Output differential impedance	Rout	–	100	–	Ω	–
The following electrical characteristics are defined over the recommended operating environment unless otherwise specified.

Pin	Symbol	Name/Description
1	GND	Ground
2	Tx2n	Transmitter inverted data input
3	Tx2p	Transmitter non-inverted data input
4	GND	Ground
5	Tx4n	Transmitter inverted data input
6	Tx4p	Transmitter non-inverted data input
7	GND	Ground
8	ModSelL	Module select
9	ResetL	Module reset
10	Vcc Rx	+3.3V Power supply receiver
11	SCL	2-wire serial interface clock
12	SDA	2-wireserial interface data
13	GND	Ground
14	Rx3p	Receiver non-inverted data output
15	Rx3n	Receiver inverted data output
16	GND	Ground
17	Rx1p	Receiver non-inverted data output
18	Rx1n	Receiver inverted data output
19	GND	Ground
20	GND	Ground
21	Rx2n	Receiver onverted data output
22	Rx2p	Receiver non-inverted data output
23	GND	Ground
24	Rx4n	Receiver inverted data output
25	Rx4p	Receiver non-onverted data output
26	GND	Ground
27	ModPrsL	Module present
28	IntL	Interrupt
29	VCC Tx	+3.3V power supply transmitter
30	VCC1	+3.3V power supply
31	InitMode	Initialization mode;In legacy QSFP applications,the InitModepad is called LPMODE
32	GND	Ground
33	Tx3p	Transmitter non-inverted data input
34	Tx3n	Transmitter inverted data input
35	GND	Ground
36	Tx1p	Transmitter non-Inverted data input
37	Tx1n	Transmitter inverted data input
38	GND	Ground
39	GND	Ground
40	Tx6n	Transmitter inverted data input
41	Tx6p	Transmitter non-inverted data input
42	GND	Ground
43	Tx8n	Transmitter inverted data input
44	Tx8p	Transmitter non-inverted data input
45	GND	Ground
46	Reserved	For future use
47	VS1	Module vender specific1
48	Vcc Rx1	+3.3V power supply receiver
49	VS2	Module vender specific2
50	VS3	Module vender specific3
51	GND	Ground
52	Rx7p	Receiver non-inverted data output
53	Rx7n	Receiver inverted data output
54	GND	Ground
55	Rx5p	Receiver non-inverted data output
56	Rx5n	Receiver inverted data output
57	GND	Ground
58	GND	Ground
59	Rx6n	Receiver inverted data output
60	Rx6p	ReceiverNon-inverted data output
61	GND	Ground
62	Rx8n	Receiver inverted data output
63	Rx8p	Receiver non-inverted data output
64	GND	Ground
65	NC	No connect
66	Reserved	For futureuse
67	VCC Tx1	+3.3V power supply transmitter
68	VCC2	+3.3V power supply
69	Reserved	For future use
70	GND	Ground
71	Tx7p	Transmitter non-inverted data input
72	Tx7n	Transmitter inverted data input
73	GND	Ground
74	Tx5p	Transmitter non-inverted data input
75	Tx5n	Transmitter inverted data input
76	GND	Ground

Optical Characteristics
Parameter	Symbol	Min	Typical	Max	Unit	Notes
Transmitter
Center wavelength	λ	820	850	880	nm	–
RMS spectral width	Pm	–	–	0.6	nm	1
Average optical power	Po	-6.5	–	4	dBm	2
Extinction ratio	ER	3	–	–	dBm	–
Optical modulation amplitude	OMA	-4.5	–	3	dB	–
Transmitter and dispersion eye closure	TDECQ	–	–	4.5	dB	–
Optical return loss tolerance	ORL	–	–	12	dB	–
Receiver
Center wavelength	λ	820	–	880	nm	–
Average receive power,each lane	–	-8.4	–	4	dBm	–
Receive power(OMAouter),each lane	–	–	–	3	dBm	–
Receiver sensitivity(OMAAut)	Psens	–	–	-6.5	dBm	3
LOS asserted	Lsa	-30	–	–	dBm	–
LOS De-asserted	Lda	–	–	-10	dBm	–
LOS hysteresis	Lh	0.5	–	–	dB	–
Note: [1]Trade-offs are available between spectral width,center wavelength and minimum OMA. [2]The optical power is launched into MMF [3]BER=2.4E-4;PRBS310@26.5625GBd.
