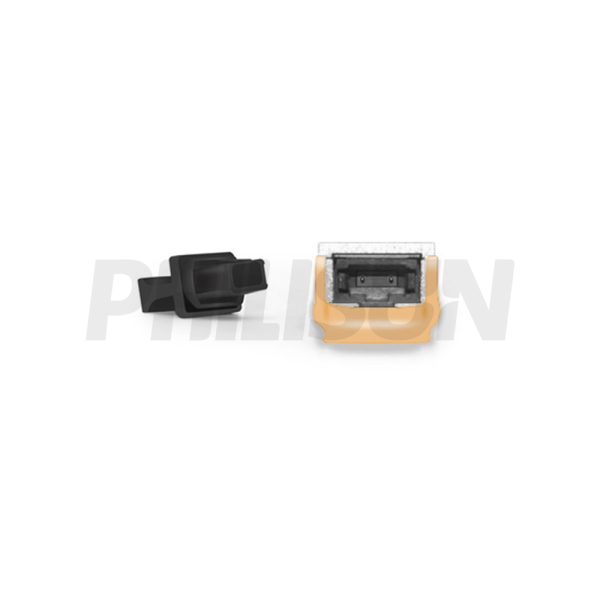

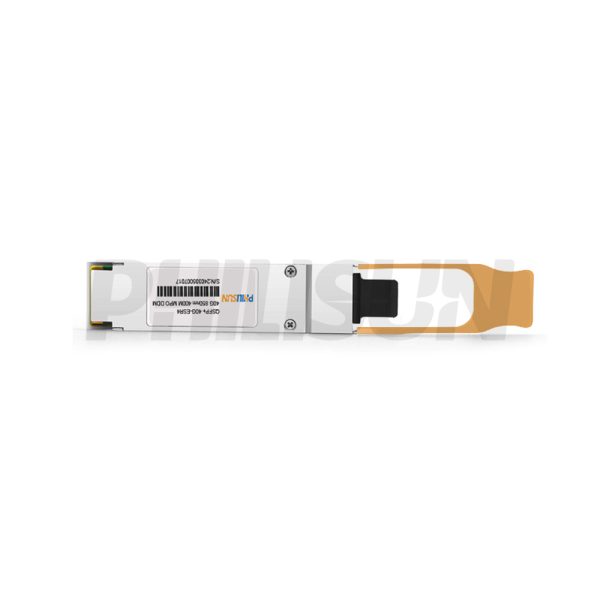

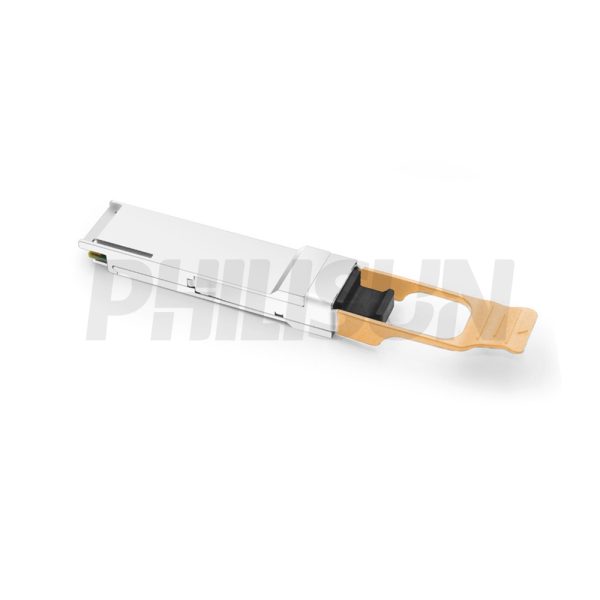

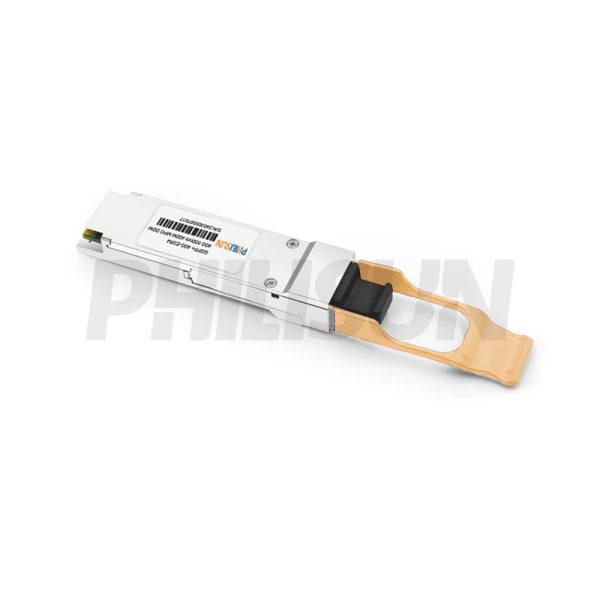

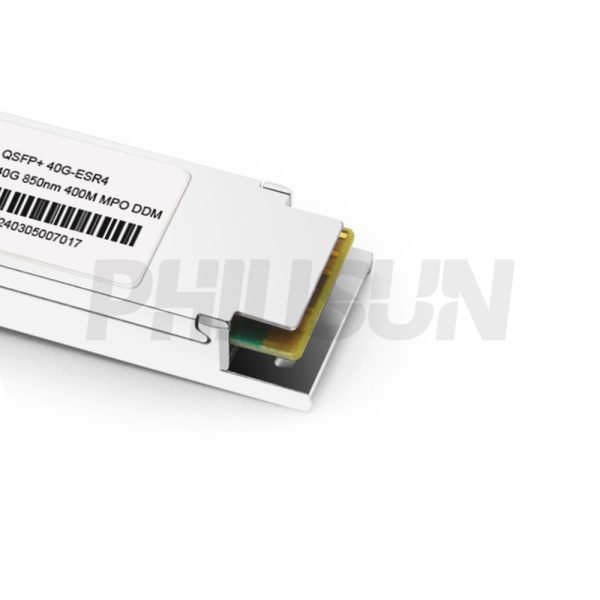

Generic Compatible 40G ESR4 QSFP+ 850nm 400m DOM MPO8/12 MMF Optical Transceiver Module

QSFP+40-85-04(ESR4)-MPO8/12

Category: Brand:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Product ModelQSFP+40-85-04(ESR4)-MPO8/12Manufacturer BrandPHILISUN
Package TypeQSFP+Optical ConnectorMPO 8C/12C
Max Data Rate40GChannel Data Rate10.3125Gbps
Effective Transmission Distance(OM3)300mEffective Transmission Distance(OM4)400m
Wavelength850nmOperating Voltage3.3V
Fiber TypeMMFCore Size50/125µm
Transmitter TypeVCSELReceiver TypePIN
TX Power-7.6~2.4dbmReceiver Sensitivity-9.5dbm
Digital Diagnostic Monitoring(DDM)YESReceiver Overload2.4dBm
Power Consumption< 1.5WProtocolsIEEE 802.3ba
IEEE 802.3ae
QSFP+ MSA SFF-8436
Operating temperature(Commercial)0℃~+70℃Storage Temperature(Commercial)-40℃~+85℃



PRODUCT PRESENTATION
The PHILISUN QSFP+ 40G 850nm 400m ESR4 MPO 8/12 transceiver is designed for 40GBASE Ethernet applications, supporting transmission up to 400m over multimode fiber (MMF) at an 850nm wavelength through an MTP/MPO-12 connector. It complies with QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4, and IEEE 802.3ae 10GBASE-SR standards. Equipped with digital diagnostics accessible via the I2C interface, it provides real-time monitoring of operating parameters. With its hot-swappable and easy-to-install design, this transceiver is ideal for data centers, high-performance computing networks, and enterprise core and distribution layers.



TRANSCEIVER SERIES PRODUCTS



PRODUCTION & TESTING EQUIPMENT



PERFORMANCE PARAMETER
Absolute Maximum Ratings
Parameter Symbol Min. Max. Unit
Storage Temperature TS -40 +85 °C
Supply Voltage VCC -0.5 3.6 V
Operating Relative Humidity RH 0 85 %
 *Exceeding any one of these values may destroy the device immediately.



Recommended Operating Conditions
Parameter Symbol Min. Typical Max. Unit
Operating Case Temperature Tc QSFP+40-85-04(ESR4)-MPO8/12 0 – +70 °C
Power Supply Voltage Vcc 3.135 3.3 3.465 V
Power Supply Current Icc – – 450 mA
Lane Bit Rate BRLANE – 10.3125 – Gbps



Optical and Electrical Characteristics
Parameter
Symbol
 Min. Typical Max. Unit
OM3 MMF L 0.5 – 300 m
Per Lane Bit Rate BRLANE – 10.3125 – Gbps
Transmitter
Center Wavelength λC 840 850 860 nm
RMS Spectral Width RMS – – 0.65 nm
Average Launch Power, Each Lane Pout/lane -7.6 – 2.4 dBm
Extinction Ratio ER 3 – – dB
Average Launch Power of OFF, Each Lane – – – -30 dBm
Output Optical Eye IEEE 802.3ba-2010 Compliant
Receiver
Center Wavelength λC 840 850 860 nm
Damage Threshold – 3.4 – – dB
Receiver Sensitivity In Each
Lane		 Pmin
–
–
 -9.5 dBm
LOS De-Assert, OMA LOSD – – -12 dBm
LOS Assert LOSA -30 – – dBm
LOS Hysteresis – 0.5 – – dB



QSFP+ TRANSCEIVER ELECTRICAL PAD LAYOUT



PIN ARRANGEMENT AND DEFINITION
PIN ARRANGEMENT AND DEFINITION
Pin Logic Symbol Description Plug Sequence Notes
1 – GND Ground 1 1
2 CML-I Tx2n Transmitter Inverted Data Input 3 –
3 CML-I Tx2p Transmitter Non-Inverted Data Input 3 –
4 – GND Ground 1 1
5 CML-I Tx4n Transmitter Inverted Data Input 3 –
6 CML-I Tx4p Transmitter Non-Inverted Data Input 3 –
7 – GND Ground 1 1
8 LVTTL-I ModSelL Module Select 3 –
9 LVTTL-I ResetL Module Reset 3 –
10 – VccRx +3.3V Power Supply Receiver 2 2
11 LVCMOS- I/O SCL 2-wire Serial Interface Clock 3 –
12 LVCMOS- I/O SDA 2-wire Serial Interface Data 3 –
13 – GND Ground 1  1
14 CML-O Rx3p Receiver Non-Inverted Data Output 3 –
15 CML-O Rx3n
Receiver Inverted Data Output
 3 –
16 – GND Ground 1  1
17 CML-O Rx1p Receiver Non-Inverted Data Output 3 –
18 CML-O Rx1n Receiver Inverted Data Output 3 –
19 – GND Ground 1  1
20 – GND Ground 1  1
21 CML-O Rx2n Receiver Inverted Data Output 3 –
22 CML-O Rx2p Receiver Non-Inverted Data Output 3 –
23 – GND Ground 1  1
24 CML-O Rx4n Receiver Inverted Data Output 3 –
25 CML-O Rx4p Receiver Non-Inverted Data Output 3 –
26 – GND Ground 1  1
27 LVTTL-O ModPrsL Module Present 3 –
28   LVTTL-O   IntL   Interrupt 3 –
29 – VccTx +3.3V Power supply transmitter 2 2
30 – Vcc1 +3.3V Power supply 2 2
31   LVTTL-I   LPMode   Low Power Mode 3 –
32 – GND Ground 1  1
33 CML-I Tx3p Transmitter Non-Inverted Data Input 3 –
34 CML-I Tx3n Transmitter Inverted Data Input 3 –
 35 – GND Ground 1  1
 36 CML-I Tx1p Transmitter Non-Inverted Data Input 3 –
 37 CML-I Tx1n Transmitter Inverted Data Input 3 –
 38 – GND Ground 1  1
1: GND is the symbol for signal and supply (power) common for the QSFP+ module. All are common within the QSFP+ module and all module voltages are referenced to this potential unless otherwise noted. Connect these directly to the host board signal-common ground plane.
2: Vcc Rx, Vcc1 and Vcc Tx are the receiver and transmitter power supplies and shall be applied concurrently. Vcc Rx Vcc1 and Vcc Tx may be internally connected within the QSFP+ Module in any combination. The connector pins are each rated for a maximum current of 500mA.
