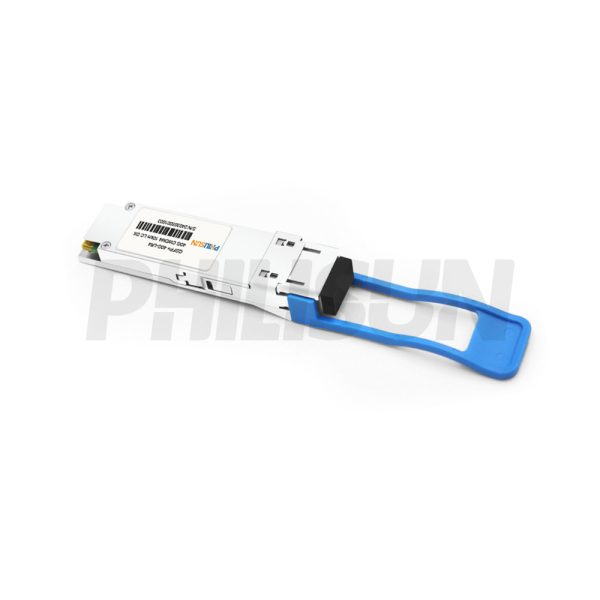

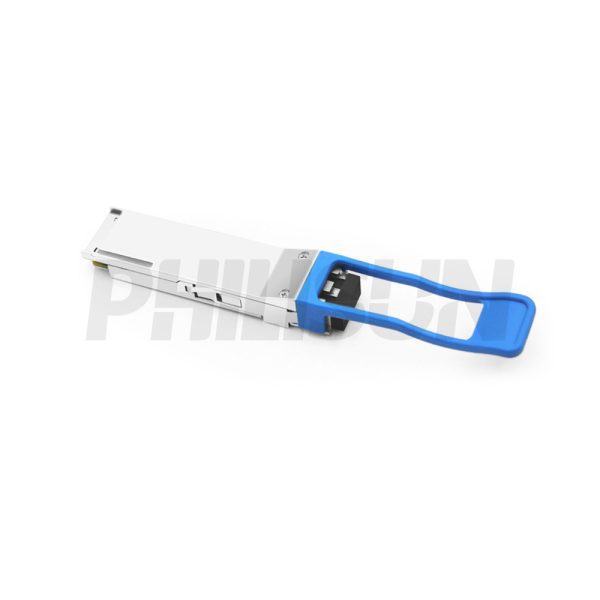

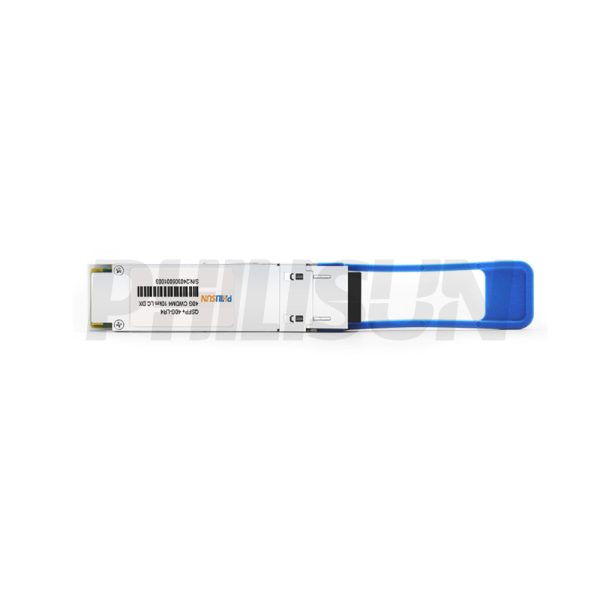

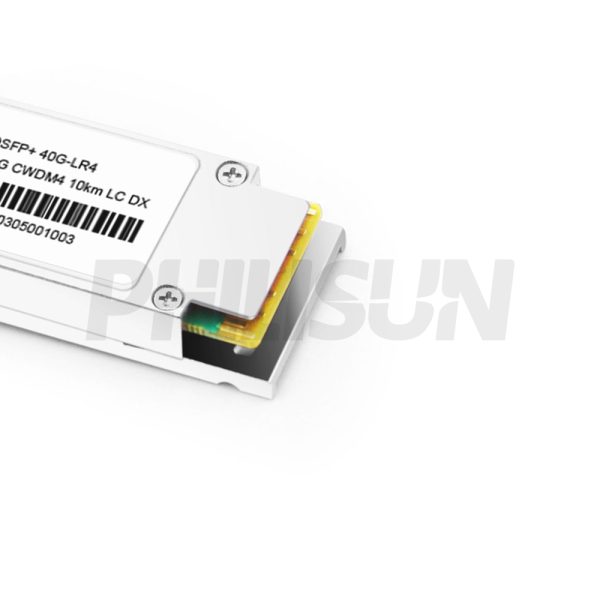

Generic Compatible 40GBASE-LR4 QSFP+ 10km DOM Duplex LC SMF Optical Transceiver Module

QSFP+40-CW4-10(LR4)-LCD

Category: Brand:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Product ModelQSFP+40-CW4-10(LR4)-LCDManufacturer BrandPHILISUN

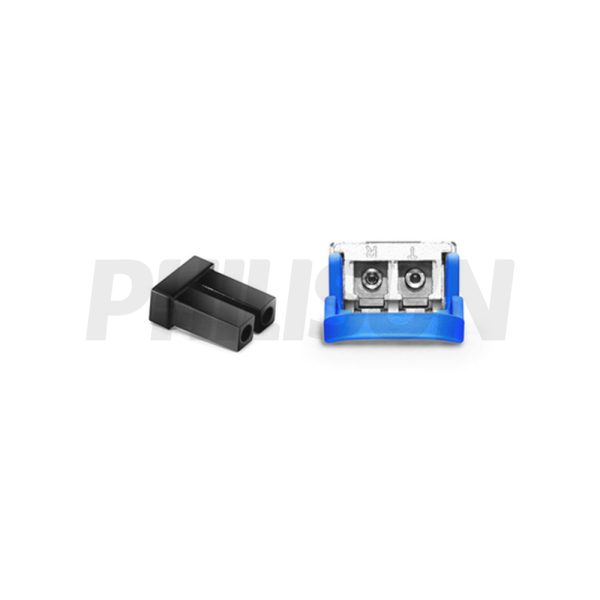

Package TypeQSFP+Optical ConnectorLC Duplex
Max Data Rate40GbpsChannel Data Rate10Gbps
Effective Transmission Distance10km
Wavelength1271nm
1291nm
1311nm
1331nm		Operating Voltage3.3V
Fiber TypeSMFCore Size9/125µm
Transmitter TypeDFBsReceiver TypePIN
TX Power-7~+2.3dBmReceiver Sensitivity< -11.5dBm
Digital Diagnostic Monitoring(DDM)YESReceiver Overload2.3dBm
Power Consumption≤3.5WProtocolsIEEE 802.3ba(40GBASE-LR4)
Operating Temperature(Commercial)0℃~+70℃Storage Temperature(Commercial)-40℃~+85℃
Operating Temperature(Industrial)-40℃~+85℃Storage Temperature(Industrial)-40℃~+85℃



PRODUCT PRESENTATION
The PHILISUN QSFP+ 40G CWDM4 10km LR4 LC DX transceiver is engineered for 40GBASE Ethernet connections, supporting up to 10 kilometers over single-mode fiber (SMF) at a 1310nm wavelength, using duplex LC connectors. It complies with QSFP+ MSA, IEEE 802.3ba 40GBASE-LR4, and OTU3 C4S1-2D1 standards. Additionally, it offers digital diagnostics through the I2C interface as outlined by the QSFP+ MSA, enabling real-time monitoring of operating parameters. This hot-swappable, easy-to-install transceiver is ideal for use in data centers, high-performance computing, and enterprise core and distribution networks.



TRANSCEIVER SERIES PRODUCTS



PRODUCTION & TESTING EQUIPMENT



PERFORMANCE PARAMETER
Absolute Maximum Ratings
Parameter Symbol Min. Max. Unit
Storage temperature TS -40 +85 °C
Supply voltage VCC -0.5 3.6 V
Operating relative humidity RH 0 85 %
 *Exceeding any one of these values may destroy the device immediately.



Recommended Operating Conditions
Parameter Symbol Min. Typical Max. Unit
Operating case temperature Tc 0 – +70 °C
Power supply voltage Vcc 3.15 3.3 3.45 V
Power supply current Icc – – 1100 mA
Power dissipation PD – – 3.5 W
Aggregate bit rate BRAVE – 41.25(40GE)
43.018(OTU3)		 – Gbps
Lane bit rate BRLANE – 10.3125(40GE)
10.7546(OTU3)		 – Gbps



Performance Specifications-Electrical
Parameter    Symbol Min. Typ. Max Unit Notes
Transmitter
Single ended input voltage tolerance – -0.3 –    4 V   Referred to TP1 signal common
Differential input amplitude – 150 – 1000 mvp-p
AC common mode input voltage tolerance – 15 – – mV RMS
Input impedance(differential) Zin 85   100 115 ohms Rin > 100 kohms @ DC
TX Disable Disable VIH 2 – Vcc+0.3 V –
Enable
VIL
 0 – 0.8 –
TX FAULT Fault VOH 2.4 – Vcc+0.3 V –
Normal VOL 0 – 0.8 –
Receiver
Single ended output voltage – -0.3 – 4
s
   Referred to ignal common
Differential output amplitude – 290 – 1000 mvp-p –
AC common mode voltage – – – 7.5 mV RMS
Termination mismatch at 1MHz – – – 5 % –
Output impedance(differential) Zout 85   100 115 ohms –
Output rise/fall time tr/tf 30 – – ps 10%~90%
  RX_LOS LOS VOH 2.4 – Vcc+0.3 V –
Normal VOL 0 – 0.8 V –



Optical and Electrical Characteristics
Parameter
Symbol
 Min. Typical Max. Unit
SMF L – 10 – km
Aggregate bit rate BRAVE – 41.25 – Gbps
Per lane bit rate BRLANE – 10.3125 – Gbps
Transmitter
Channels wavelength λC 1264.5 1271 1277.5 nm
1284.5
 1291 1297.5
1304.5 1311 1317.5
1324.5 1331 1337.5
-20dB spectral width ∆λ – – 1 nm
Average launch power, each lane Pout/lane -7 – 2.3 dBm
Transmit OMA, per lane TX_OMA/lane -4 – 3.5 dBm
Extinction ratio Er 3.5 – – dB
Output optical eye     IEEE 802.3ba-2010 Compliant
   Receiver
Channels wavelength λC 1264.5 1271 1277.5 nm
1284.5 1291 1297.5
1304.5 1311 1317.5
1324.5 1331 1337.5
Damage threshold – 5.5 – – dBm
Receiver sensitivity in OMA, each lane Pmins – – – 11.5 dBm
Maximum receive power, each lane Pmax 2.3 – – dBm
Receiver reflectance Rr – – -26 dB
Los de-assert LOSD – – – 11.5 dBm
Los assert LOSA -24 – – dBm
Los hysteresis – 0.5 – – dB



FUNCTIONAL DESCRIPTION OF TRANSCEIVER



QSFP+ TRANSCEIVER ELECTRICAL PAD LAYOUT



PIN ARRANGEMENT AND DEFINITION
Pin Logic Symbol Description Plug Sequence Notes
1 – GND Ground 1 1
2 CML-I Tx2n Transmitter Inverted Data Input 3 –
3 CML-I Tx2p Transmitter Non-Inverted Data Input 3 –
4 – GND Ground 1 1
5 CML-I Tx4n Transmitter Inverted Data Input 3 –
6 CML-I Tx4p Transmitter Non-Inverted Data Input 3 –
7 – GND Ground 1 1
8 LVTTL-I ModSelL Module Select 3 –
9 LVTTL-I ResetL
Module Reset
 3 –
10 – VccRx +3.3V Power Supply Receiver 2 2
11 LVCMOS- I/O SCL 2-wire Serial Interface Clock 3 –
12 LVCMOS- I/O SDA 2-wire Serial Interface Data 3 –
13 – GND Ground 1 1
14 CML-O Rx3p Receiver Non-Inverted Data Output 3 –
15 CML-O Rx3n Receiver Inverted Data Output 3 –
16 – GND
Ground
 1 1
17 CML-O Rx1p Receiver Non-Inverted Data Output 3 –
18 CML-O Rx1n Receiver Inverted Data Output 3 –
19 – GND Ground 1 1
20 – GND Ground 1 1
21 CML-O Rx2n Receiver Inverted Data Output 3 –
22 CML-O Rx2p Receiver Non-Inverted Data Output 3 –
23 – GND Ground 1 1
24 CML-O Rx4n Receiver Inverted Data Output 3 –
25 CML-O Rx4p Receiver Non-Inverted Data Output 3 –
26 – GND Ground 1 1
27   LVTTL-O ModPrsL Module Present  3 –
28   LVTTL-O   IntL Interrupt  3 –
29 – VccTx +3.3V Power supply transmitter  2 2
30 – Vcc1 +3.3V Power supply  2 2
31   LVTTL-I   LPMode Low Power Mode  3 –
32 – GND Ground  1 1
33 CML-I Tx3p Transmitter Non-Inverted Data Input  3 –
34 CML-I Tx3n Transmitter Inverted Data Input  3 –
35 – GND Ground  1 1
36 CML-I Tx1p Transmitter Non-Inverted Data Input  3 –
37 CML-I Tx1n Transmitter Inverted Data Input  3 –
38 – GND Ground  1 1
1: GND is the symbol for signal and supply (power) common for the QSFP+ module. All are common within the QSFP+ module and all module voltages are referenced to this potential unless otherwise noted. Connect these directly to the host board signal-common ground plane.
2: Vcc Rx, Vcc1 and Vcc Tx are the receiver and transmitter power supplies and shall be applied concurrently. Requirements defined for the host side of the Host Edge Card Connector are listed in Table 6. Recommended host board power supply filtering is shown in Figures 3 and 4. Vcc Rx Vcc1 and Vcc Tx may be internally connected within the QSFP+ Module in any combination. The connector pins are each rated for a maximum current of 500mA.
