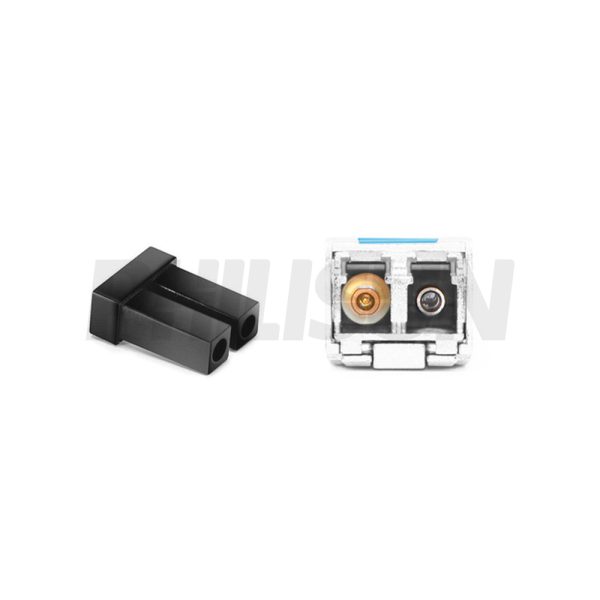

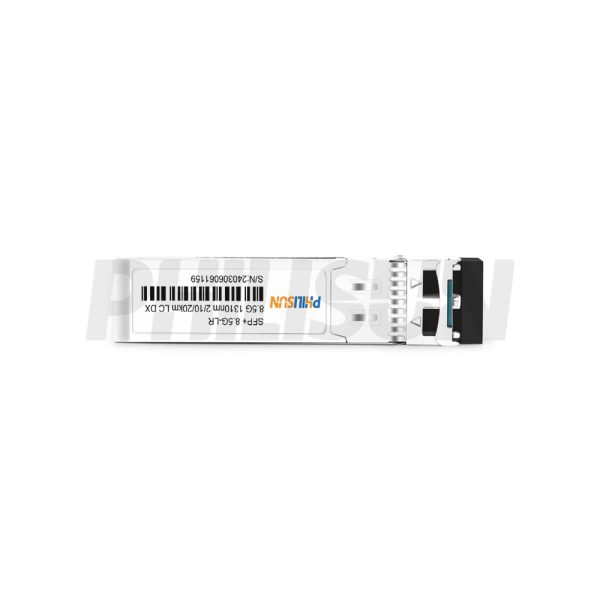

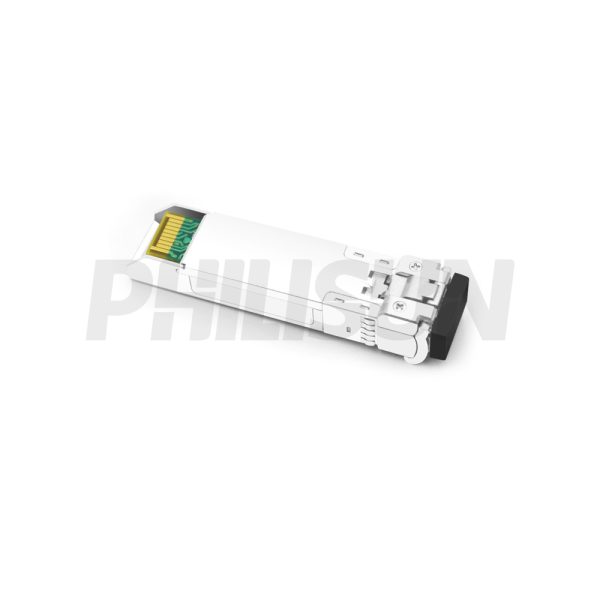

Generic Compatible 8.5G SFP+ 1310nm 2/10/20km DOM Duplex LC SMF Optical Transceiver Module

SFP+8.5-13-2(LRL)/10(LR)/20(ELR)-LCD

Category: Brand:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Product ModelSFP+8.5-13-1.4(LRL)/10(LR)/20(ELR)-LCDManufacturer BrandPHILISUN
Package TypeSFP+Optical ConnectorDuplex LC
Max Data Rate8.5GbpsChannel Data Rate8.5Gbps
Effective transmission distance1.4km,10km,20km
Wavelength1310nmOperating Voltage3.3V
Fiber TypeSMFCore Size9/125µm
Transmitter TypeFP-LD,DFBReceiver TypeIDP
TX Power-8.2~0.5dBm,-4~0dBmReceiver Sensitivity-14dBm,-15dBm
Digital Diagnostic Monitoring(DDM)YESReceiver Overload0.5dBm
Power Consumption<1.0WProtocolsMSA SFP+
SFF-8431
Operating temperature(Commercial)0℃~+70℃Storage Temperature(Commercial)-40℃~+85℃
Operating temperature(Industrial)-40℃~+85℃Storage Temperature(Industrial)-40℃~+85℃



PRODUCT PRESENTATION
The PHILISUN SFP+ 8.5G 1310nm 1.4/10/20km LC DX single mode transceiver is a compact, pluggable module designed for high-speed optical data communication. Featuring an SFP+ 20-pin connector, it supports hot plug capability. This module is optimized for single-mode fiber and operates at a nominal wavelength of 1310nm. The transmitter incorporates a 1310nm multiple quantum well FP laser, complying with Class 1 laser safety standards as per IEC-60825. The receiver utilizes an integrated InGaAs detector preamplifier (IDP) within the optical header, paired with a limiting post-amplifier IC for enhanced signal processing.



TRANSCEIVER SERIES PRODUCTS



PRODUCTION & TESTING EQUIPMENT



PERFORMANCE PARAMETER
Absolute Maximum Ratings
Parameter Symbol Min. Max. Unit
Storage temperature TS -40 +85 °C
Supply voltage VCC -0.5 3.6 V
Input voltage Vin -0.5 Vcc V
Output current Io – 50 mA



Recommended Operating Environment
Parameter Symbol Min. Typical Max. Unit
Operating case
temperature		 Tc SFP+8.5-13-2(LRL)/10(LR)/20(ELR)-LCD 0 – 70 °C
-40 – 85
Power supply voltage VCC 3.15 3.3 3.45 V
Power supply current ICC – – 300 mA
Surge current ISurge – – 30 mA



Performance Specifications – Electrical
Parameter Symbol Min. Typ. Max Unit Notes
Transmitter
CML Inputs(Differential) Vin 150 – 1200 mVpp AC coupled inputs
    Input AC common mode voltage 0 – 25      mV RMS
Input impedance(Differential) Zin 85 100 115 ohm Rin > 100 kohms @ DC
Differential Input S-parameter SDD 11 – – -10 dB –
Differential to common mode conversion SCD 11 – –
-10
dB
 –
    Tx_DISABLE input voltage–high – 2.0 – Vcc+0.3 V –
    Tx_DISABLE input voltage–low – 0 – 0.8 V –
    Tx_FAULT output voltage–high – 2.0 – Vcc V Io = 400µA; Host Vcc
    Tx_FAULT output voltage–low – – – 0.5 V Io = -4.0mA
Receiver
CML outputs (Differential) Vout 350 – 700 mVpp AC coupled outputs
Mode voltage – 0 – 15 mV RMS
    Output impedance (Differential) Zout 90 100 110 ohm –
    Differential output S-parameter SD22 – – – 10 dB –
Rx_LOS output voltage–high – 2.0 – Vcc+0.3 V lo = 400µA; Host Vcc
Rx_LOS output voltage–low – 0 – 0.8 V lo = -4.0mA
MOD_DEF ( 2:0 ) VoH 2.5 – – V With serial ID
VoL 0 – 0.5 V



Performance Specifications–Optical
Parameter Symbol Unit (SFP+ 8.5G 1310nm 1.4km LC DX) (SFP+ 8.5G 1310nm 10km LC DX) (SFP+ 8.5G 1310nm 20km LC DX）
Min. Typical Max. Min. Typical Max. Min. Typical Max.
9µm core diameter SMF supported distance – km – 1.4 – – – 10 – – 20
Data Rate – Gbps 0.614 – 8.5 0.614 – 8.5 0.614 – 8.5
  Transmitter
Centre wavelength λC nm 1260 1310 1355 1270 1310 1355 1270 1310 1355
Spectral width Δλ nm – – – – – 1 – – 1
Side mode suppression ratio SMSR dB – – 3 30 – – 30 – –
Average output power Pout dBm -8.2 – 0.5 -8.2 – +0.5 -4 – 0
Extinction ratio ER dB 3.5 – – 3.5 – – 3.5 – –
Transmitter dispersion penalty TDP dB – 5.2 – – – – – –
Input differential impedance ZIN Ω 90 100 110 – – – – – –
Average power of OFF transmitter Poff dBm – – 10 – – -30 – – -30
TX disable assert time t_off us – – 1 – – 10 – – 10
TX_DISABLE negate time t_on ms 10 – – – – 1 – – 1
TX_BISABLE time to start reset t_reset us – – 300 10 – – 10 – –
Time to initialize, include reset of TX_FAULT t_init ms – – 100 – – 300 – – 300
TX_FAULT from fault to assertion t_fault us – – – – – 100 – – 100
Total Jitter TJ UI(p-p) – – – – – 0.28 – – 0.28
Data dependant jitter DDJ UI(p-p) – – – – – 0.1 – – 0.1
Uncorrelated jitter UJ RMS – – – – – 0.023 – – 0.023
    Receiver
Centre wavelength λ nm 1260 – 1565 1260 – 1565 1260 – 1565
Sensitivity Pmin dBm – – -14 – -15 – – -15
Receiver overload Pmax dBm 0.5 – – 0.5 – – 0.5 – –
Optical return loss ORL dB – – -12 – – -12 – – -12
LOS De-Assert LOSD dBm – – -16 – – -17 – – -17
LOS Assert LOSA dBm -28 – – -29 – – -29 – –



Optical Characteristics
Parameter Symbol Min. Typ. Max. Unit Note
Transmitter
Nominal wavelength λ 840 – 860 nm –
Spectral width ∆λ – – 0.6 nm –
Optical modulation amplitude POMA -6.4 – 3 dBm –
Optical output power POFF -8.4 – 2.4 dBm –
Extinction ratio ER 2 – – dB –
Transmitter dispersion penalty TDP – – 5 dB –
Average launch power of OFF
Transmitter		 POFF – – -30 dBm –
Receiver
Center wavelength λ 840 – 860 nm –
Average receiver power PAVG -10.3 – 2.4 dBm 1
Stressed receiver sensitivity(OMA) RSENSE – – -5.2 dBm 2
Receiver reflectance RREFL – – -12 dB –
Assert LOS LOSA -30 – – dBm –
De-assert LOS LOSD – – -13 dBm –
LOS hysteresis 0.5 dB –
Notes:
1. Sensitivity for 25.78G PRBS 231-1 and BER better than or equal to 5*10E-5.
2. The stressed sensitivity values in the table are for system level BER measurements which include the effects of CDR circuit.

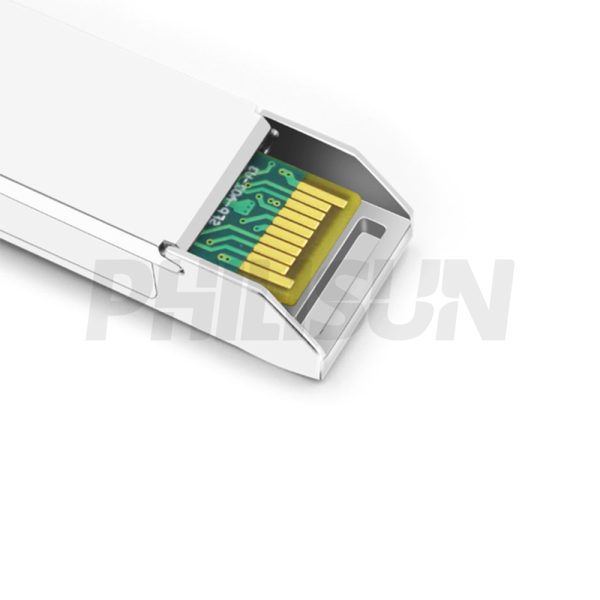

SFP+ TRANSCEIVER ELECTRICAL PAD LAYOUT



PIN FUNCTION DEFINITIONS
Pin Name Function Plug Seq. Notes
1 VeeT Transmitter ground 1 Note 5
2 TX Fault Transmitter fault indication 3 Note 1
3 TX Disable Transmitter disable 3 Note 2, Module disables on high or open
4 SDA Module definition 2 3 Data line for serial ID.
5 SCL Module definition 1 3 Clock line for serial ID.
6 MOD-ABS Module definition 0 3 Note 3
7 RS0 RX rate select (LVTTL). 3 No function implement..
8 LOS Loss of signal 3 Note 4
9 RS1 TX rate select (LVTTL). 1 No function implement..
10 VeeR Receiver ground 1 Note 5
11 VeeR Receiver ground 1 Note 5
12 RD-   Inv. Received data out 3 Note 6
13 RD+ Received data out 3 Note 6
14 VeeR Receiver ground 1 Note 5
15 VccR Receiver power 2 3.3V ± 5%, Note 7
16 VccT Transmitter power 2 3.3V ± 5%, Note 7
17 VeeT Transmitter ground 1 Note 5
18 TD+ Transmit data in 3 Note 8
19 TD- Inv. Transmit data in 3 Note 8
20 VeeT Transmitter ground 1 Note 5
Notes:
1) TX Fault is an open collector/drain output, which should be pulled up with a 4.7K–10KΩ resistor on the host board. Pull up voltage between 2.0V and VccT/R+0.3V. When high, output indicates alaser fault of some kind. Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.2) TX disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7K – 10 KΩ resistor. Its states are:
Low (0 – 0.8V): Transmitter on
(>0.8, < 2.0V): Undefined
High (2.0 – 3.465V): Transmitter Disabled
Open: Transmitter Disabled

3) Module Absent, connected to VeeT or VeeR in the module.

4) LOS (Loss of Signal) is an open collector/drain output, which should be pulled up with a 4.7K–10KΩ resistor. Pull up voltage between 2.0V and VccT/R+0.3V. When high, this output indicates the received optical power is below the worst-case receiver sensitivity (as defined by the standard in use). Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.

5) VeeR and VeeT may be internally connected within the SFP+ module.

6) RD-/+: These are the differential receiver outputs. They are AC coupled 100Ω differential lines which should be terminated with 100Ω (differential) at the user SERDES. The AC coupling is done inside the module and is thus not required on the host board.

7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP+ connector pin. Maximum supply current is 300mA. Inductors with DC resistance of less than 1 ohm should be used in order to maintain the required voltage at the SFP+ input pin with 3.3V supply voltage. When the recommended supply-filtering network is used, hot plugging of the SFP+ transceiver module will result in an inrush current of no more than 30mA greater than the steady state value. VccR and VccT may be internally connected within the SFP+ transceiver module.

8) TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100Ω differential termination inside the module. The AC coupling is done inside the module and is thus not required on the host board.

9) Rate select can also be set through the 2-wire bus in accordance with SFF-8472 v. 10.13. Rx Rate Select is set at Bit 3, Byte 110, Address A2h. Tx Rate Select is set at Bit 3, Byte 118, Address A2h. Writing a “1” selects maximum bandwidth operation. Rate select is the logic OR of the input state of Rate Select Pin and 2-wire bus.
