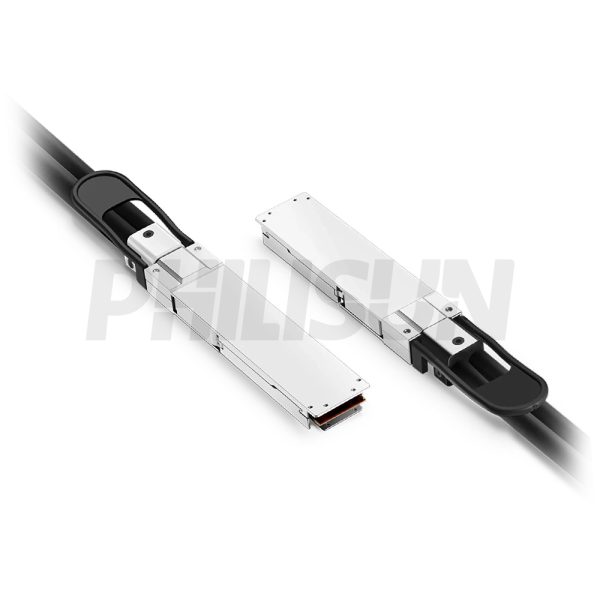

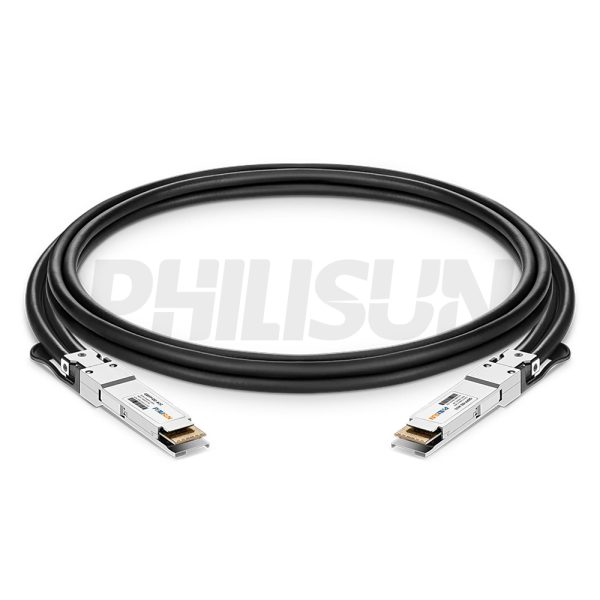

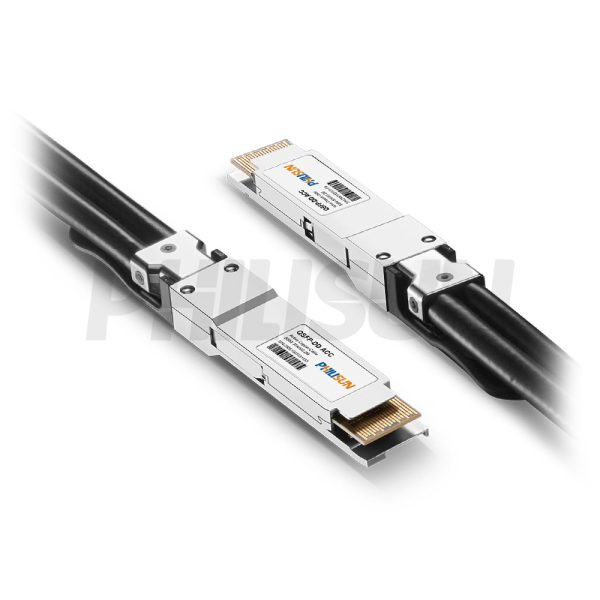

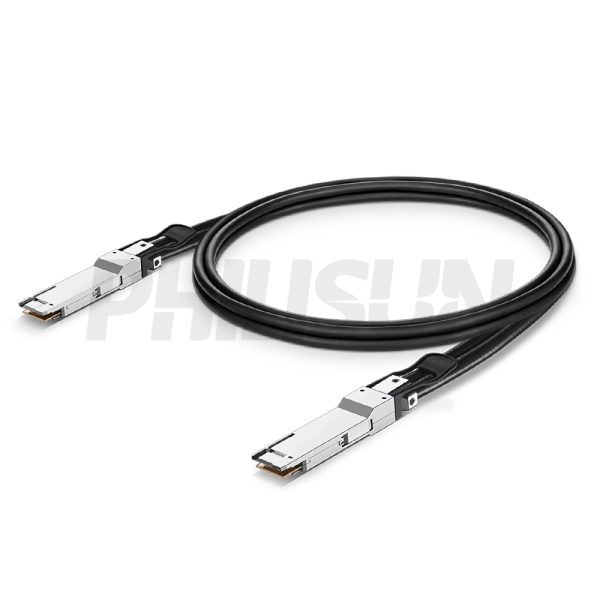

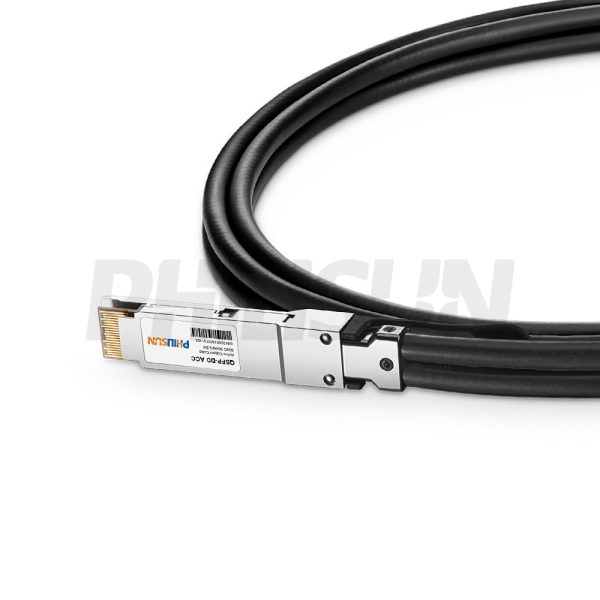

800G QSFP-DD to QSFP-DD Active Direct Attach Copper Twinax Cable (ACC)
Compliant with
QSFP-DD MSA Rev. 5.0, CMIS Rev 4.0, SFF 8417, IEEE 802.3ck standard
Switch to Switch
Switch to GPU
- High Quality
- Factory Outlet
- Satisfaction Guarantee
- Global Shipping
| SPECIFICATIONS | |||
|---|---|---|---|
| Cable End Connector A | QSFP-DD | Cable End Connector B | QSFP-DD |
| Jumper Type | Direct-Attach | Data Rate | 800G |
| Aggregate Bit Rate | 800Gbps | Lane Bit Rate | 100Gbps |
| Number of Channels | 8 | Single Channel Rate | 100G |
| Minimum Bend Radius | 5X Cable OD -Single, 10X Cable OD - Repeated | Factory Brand | PHILISUN |
| Attenuation | 28AWG:10dB/7m maximum 30AWG:8.4dB/5.5m maximum | Bit Error Rate | ≤10-12 |
| Shield | Braid/Foil | Wire AWG | 28AWG/30AWG |
| Cable Type | Active Twinax | Cable OD | 30AWG: 6.9mm 28AWG: 8.1mm |
| Cable Colour/Material | Black PVC(OFNR) | Cable Length Selection | 2.5meter |
| Protocols | IEEE 802.3ck/QSFP-DD MSA/ SFF 8417/CMIS Rev 4.0 | Application Scenarios | 800Gigabit Ethernet (800GbE) |
| Supply Voltage | 3.3V | Power Dissipation | <1.2W |
| Operating Temperature | 0 to 70℃ (32 to 158℉) | Storage Temperature | -40 to 85℃ (-40 to 185℉) |
PRODUCT PRESENTATION
The PHILISUN 800G QSFP‑DD ACC is a high‑speed, cost‑effective alternative to optical cables for 800G Ethernet applications.
It features 16 high‑speed differential pairs, each supporting data rates up to 100 Gb/s.Compliant with IEEE 802.3ck and QSFP‑DD MSA standards,this cable delivers energy‑efficient short‑reach connectivity, enabling higher port bandwidth, density, and configurability in data centers.
It features 16 high‑speed differential pairs, each supporting data rates up to 100 Gb/s.Compliant with IEEE 802.3ck and QSFP‑DD MSA standards,this cable delivers energy‑efficient short‑reach connectivity, enabling higher port bandwidth, density, and configurability in data centers.
ACC SERIES PRODUCTS
PRODUCTION & TESTING EQUIPMENT
PERFORMANCE PARAMETER
| General Requirements | |||||||||
| Item | Description | Parameter | Requirement | ||||||
| G1 | Connection Testing (Capacitance Measurement) | CTXy-RXy (300µs@3V) | 100n F ± 10% | ||||||
| G2 | S hort C ircuit Testing | RXXy-XXy (500µs@3V DC) | ≥ 1MΩ | ||||||
| Signal Integrity Requirements | |||||||||
| Item | Description | Parameter | Requirement | ||||||
| S1 | Max. I nsertion Loss@26.56GHz | SDD12 SDD21 | ≤ 19.75d B | ||||||
| S2 | Min. Cable Assembly ERL | ERL | ≥8.25d B | ||||||
| S3 | Differential to Common Mode Conversion (Up to 40GHz) |
SCD12-SDD12 SCD21-SDD21 |
≥10 0.05GHz≤f<12.89GHz ≥14-0.3108f 12.89GHz≤f≤40GHz |
||||||
