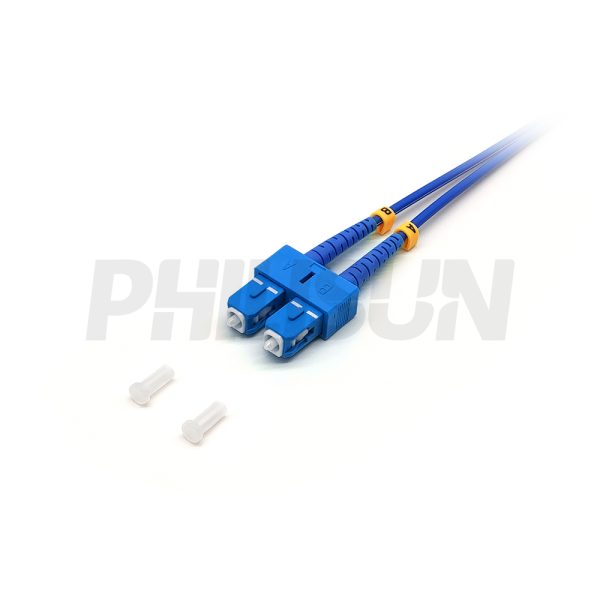

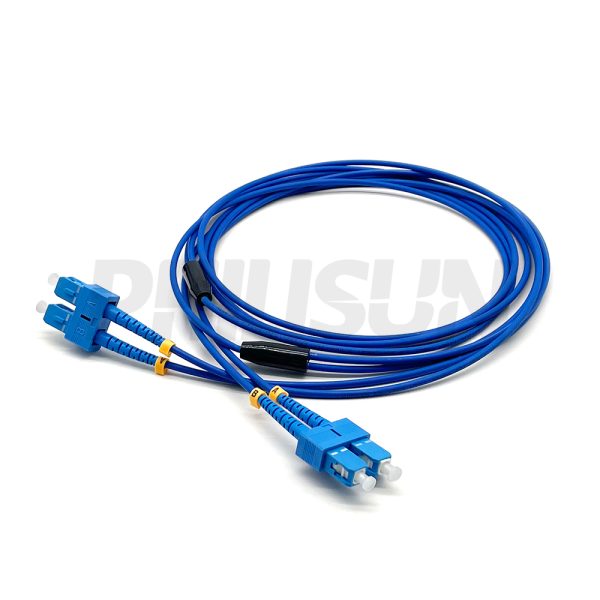

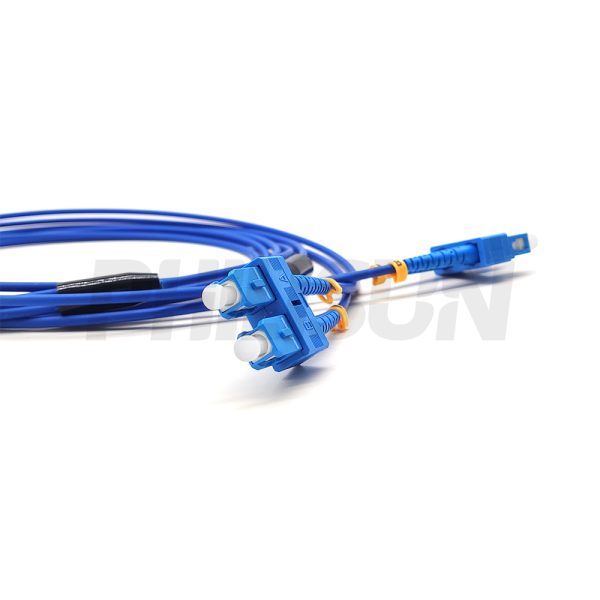

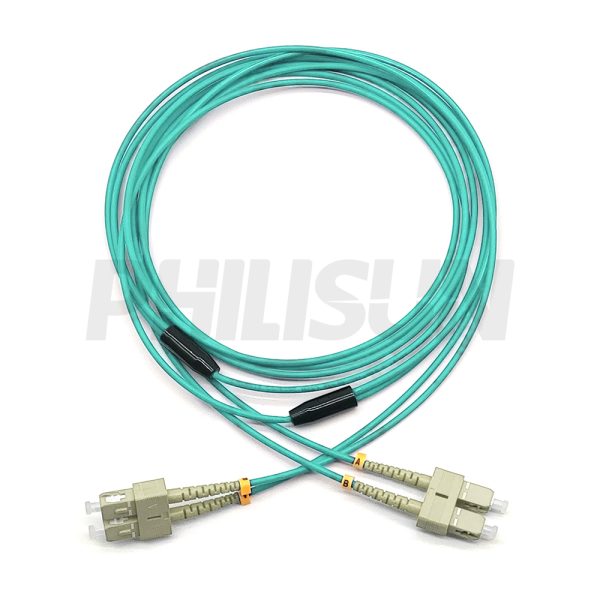

Duplex Single Tube Armored Fiber Patch Cable, 2 Fibers, SC UPC/APC Duplex to SC UPC/APC Duplex, Singlemode/Multimode

Ratproof
Pressure-Resistant
Double tube-Double core

Category: Brand:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Connector ASCFiber Count2
Fiber TypeSM OS2/OM3/OM4/OM5Tube StructureDuplex(single tube)
Ferrule TypeGrade A zirconia ceramic ferrulePolish TypeUPC or APC
Connector ColorBlue/Green/Beige/Aque/Violet/Lime greenRL≥50dB(SM UPC) ≥60dB(SM APC) ≥25dB(MM UPC）
IL≤0.3dBInterchangeability≤0.2dB
Repeatability≤0.2dBWorking Wavelength1310/1550(SM) 850/1300(MM)
Matching Cable Outer Diameter3.0mm/3.5mmJacket ColorBlue/Yellow/Aque/Violet/Black
Armored MaterialSpiral stainless steelFlame Retardant GradeOFN/OFNR/OFNP
Jacket MaterialPVC/LSZH/TPUFiber LossSM:0.35db@1310nm/0.2dB@1550nm MM:2.4dB@850nm/0.6dB@1300nm
Fiber BrandCorning/YOFCMin.bending Radius(Long Term)20D
Min.bending Radius(short term)10DDurability≥500 times
Operating Temperature-10 to 70℃ (14 to 158℉)Storage Temperature-40 to 85℃ (-40 to 185℉)



PRODUCT PRESENTATION

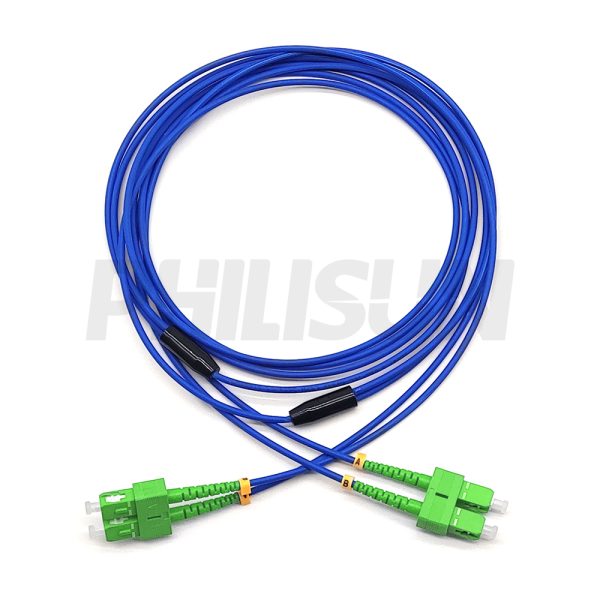

This SC Duplex Single Tube Armored Patch Cable offers secure, dual-fiber connectivity using a Single Tube-Double core design. It is fully protected by Spiral stainless steel armor, making it highly Ratproof and Pressure-Resistant. The cable ensures an IL maximum 0.3dB.



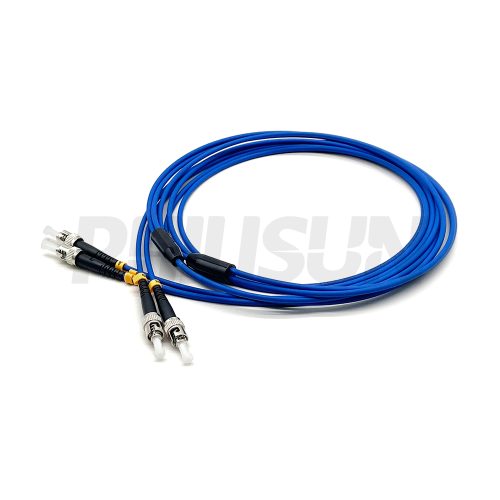

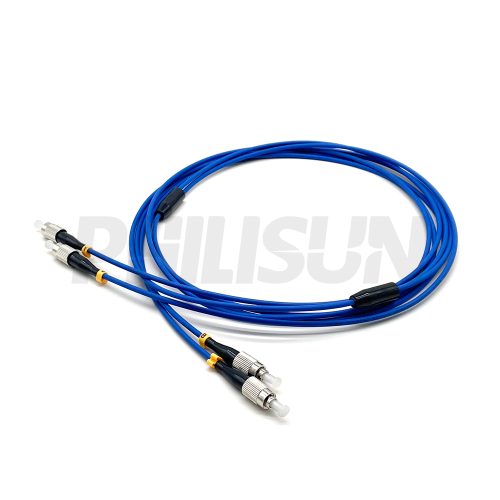

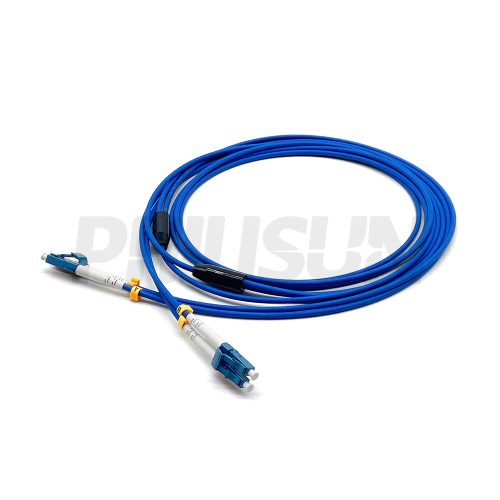

ARMORED PATCH CORD SERIES PRODUCTS

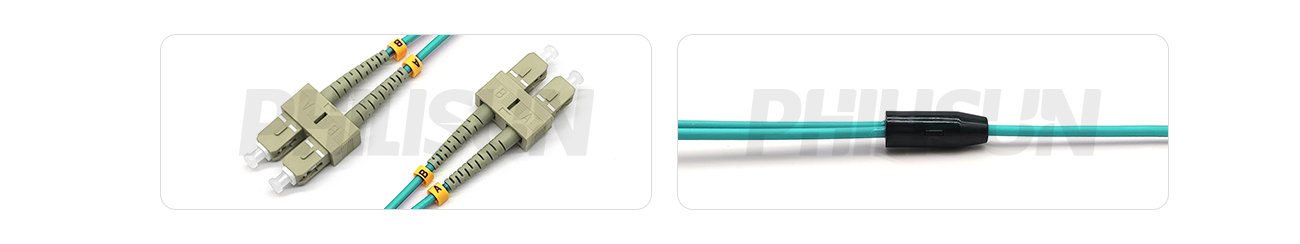

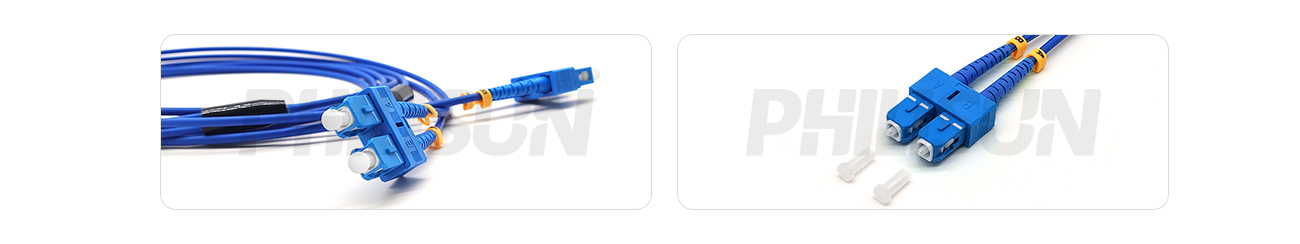

DETAIL DISPLAY

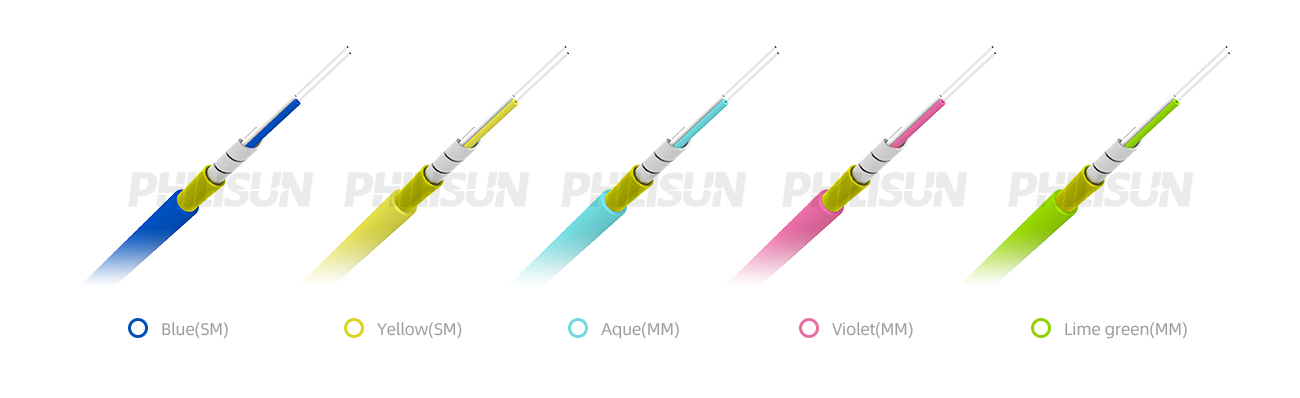

FIBER OPTIC CABLE TYPE

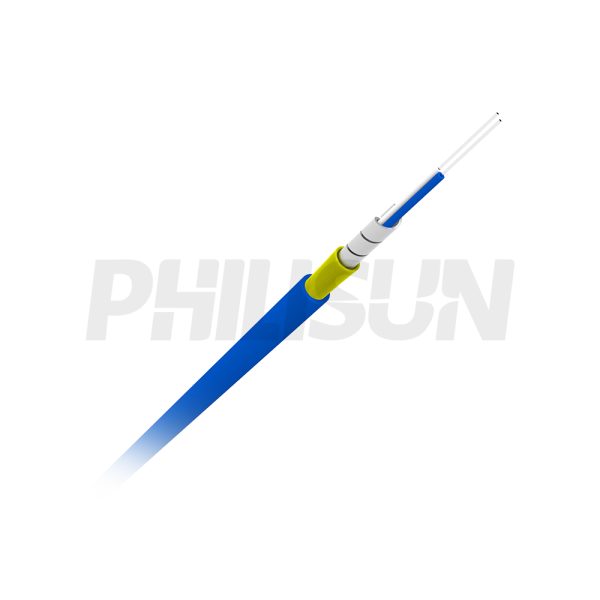

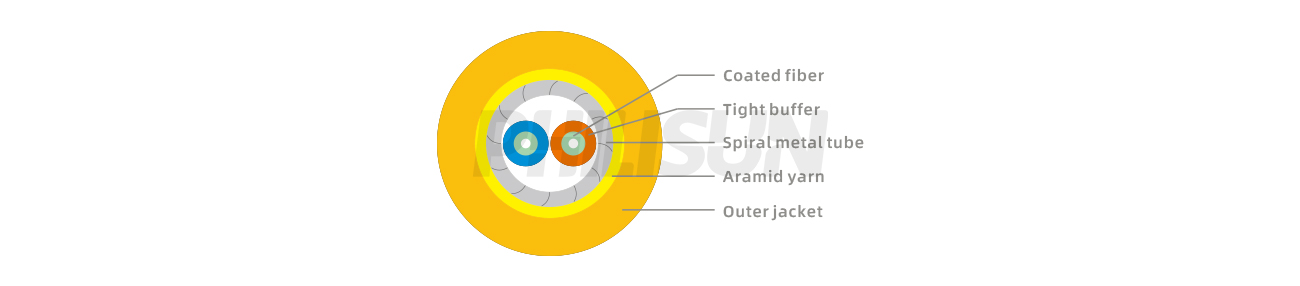

FIBER OPTIC CABLE STRUCTURE & PARAMETER
Cable Parameter
ItemsSpecifications
Fiber Count12
Metal TubeTight buffer diameter0.85±0.05mm0.6±0.05mm
Metal tube materialstainless steel
Metal tube diameter1.45±0.05mm1.85±0.05mm
Metal tube thickness0.2±0.05mm0.25±0.05mm
Outer JacketDimension3.0±0.1mm
MaterialPVC/LSZH/TPU
ColorBlue/Yellow/Aque/Violet/Black or Customization
Mechanical Performance
ItemsSpecifications
Fiber Count12
Tension（Long Term）/ N100
Tension（Short Term）/ N200
Crush（Long Term）/ N/10cm1000
Crush（Short Term）/ N/10cm3000
Min. Bend Radius（Dynamic）/ mm20D
Min. Bend Radius（Static）/ mm10D
Operating Temperature/℃-20～+70（PVC)/-40～+80(LSZH）
Storage Temperature/℃-20～+70（PVC)/-40～+80(LSZH）



FIBER PARAMETER
SM Fiber Parameter
ItemsUnitG.652DG.657A1G.657A2
Mode Field Diameter1310nmμm9.1±0.48.8±0.48.8±0.4
1550nmμm10.4±0.59.8±0.59.8±0.5
Cladding Diameterμm125±1125±0.7125±0.7
Cladding Non-Circularity%≤1≤0.7≤0.7
Core-Cladding Concentricity Errorμm≤0.6≤0.5≤0.5
Coating Diameterμm245±7245±5245±5
Coating Non-Circularity%≤6.0≤6.0≤6.0
Cladding-Coating Concentricity Errorμm≤12.0≤12.0≤12.0
Cable Cutoff Wavelengthnmλcc≤1260λcc≤1260λcc≤1260
Cable Attenuation Coefficient1310nmdB/km≤0.4≤0.4≤0.4
1550nmdB/km≤0.3≤0.3≤0.3
MM Fiber Parameter
Itemsunit62.5/12550/125OM3-150OM3-300OM4
Core Diameterμm62.5±2.550±2.550±2.550±2.550±2.5
Cladding Diameterμm125±1.0125±1.0125±1.0125±1.0125±1.0
Core Non-Circularity%≤5.0≤5.0≤5.0≤5.0≤5.0
Cladding Non-Circularity%≤1.0≤1.0≤1.0≤1.0≤1.0
Core-Cladding Concentricity Errorμm≤1.5≤1.5≤1.0≤1.0≤1.0
Coating Diameterμm245±7245±7245±7245±7245±7
Coating Non-Circularity%≤6.0≤6.0≤6.0≤6.0≤6.0
Cladding-Coating Concentricity Errorμm≤12.0≤12.0≤12.0≤12.0≤12.0
OFL Bandwidth850nmMHz·km≥160≥500≥700≥1500≥3500
1300nmMHz·km≥500≥500≥500≥500≥500
Cable Attenuation Coefficient850nmdB/km≤3.0≤3.0≤3.0≤3.0≤3.0
1300nmdB/km≤1.0≤1.0≤1.0≤1.0≤1.0



PRODUCT CERTIFICATION



QUALITY ADVANTAGE



CONFIGURATION INFORMATION
铠装跳线产品详情订购信息
