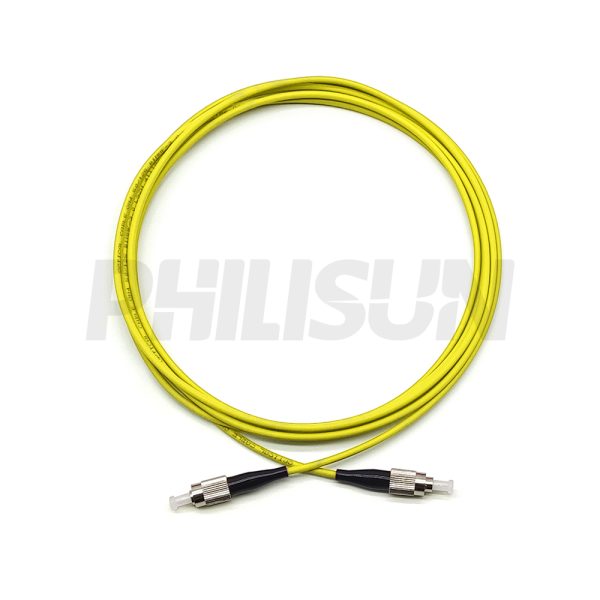

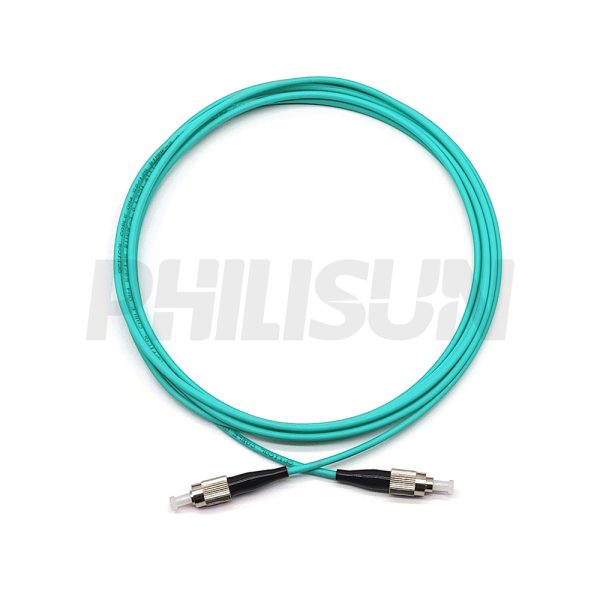

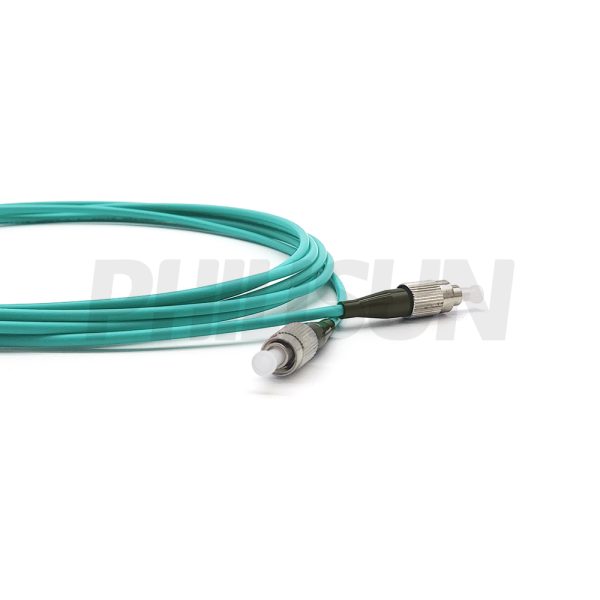

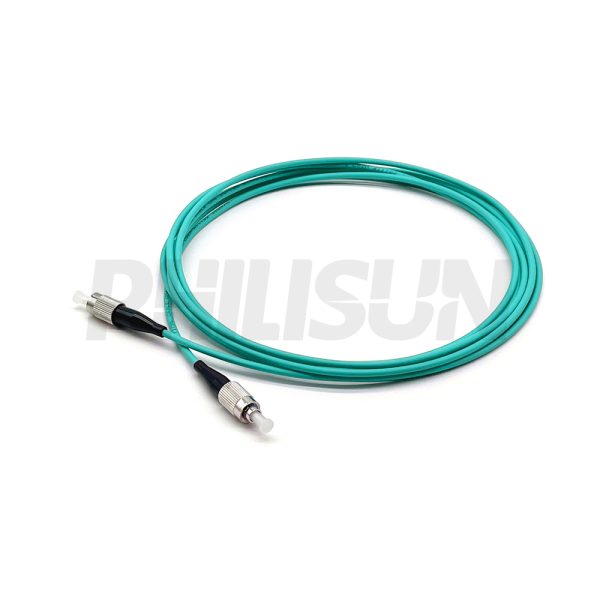

Armored Fiber Patch Cable, 1 Fiber, FC UPC/APC Simplex to FC UPC/APC Simplex, Singlemode/Multimode

Ratproof
Pressure-Resistant

Category: Brand:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Connector AFCFiber CountSimplex
Fiber TypeSM OS2/OM3/OM4/OM5Polish TypeUPC or APC
Ferrule TypeGrade A zirconia ceramic ferruleRL≥50dB(SM UPC) ≥60dB(SM APC) ≥25dB(MM UPC）
Connector ColorBlue/Green/Beige/Aque/Violet/Lime greenInterchangeability≤0.2dB
IL≤0.3dBWorking Wavelength1310/1550(SM) 850/1300(MM)
Repeatability≤0.2dBJacket ColorBlue/Yellow/Aque/Violet/Black
Matching Cable Outer Diameter2.0/3.0/3.5mmFlame Retardant GradeOFN/OFNR/OFNP
Armored MaterialSpiral stainless steelFiber LossSM:0.35db@1310nm/0.2dB@1550nm MM:2.4dB@850nm/0.6dB@1300nm
Jacket MaterialPVC/LSZH/TPUMin.bending Radius(Long Term)20D
Fiber BrandCorning/YOFCDurability≥500 times
Min.bending Radius(short term)10DStorage Temperature-40 to 85℃ (-40 to 185℉)
Operating Temperature-10 to 70℃ (14 to 158℉)



PRODUCT PRESENTATION
This professional FC Simplex Armored Patch Cable is designed for extreme durability in single-channel links. Its protection relies on Spiral stainless steel armor, which provides comprehensive Ratproof and Pressure-Resistant qualities. It is optimized for both Singlemode and Multimode fiber types, ensuring stable transmission with an Insertion Loss of maximum 0.3dB.



ARMORED PATCH CORD SERIES PRODUCTS

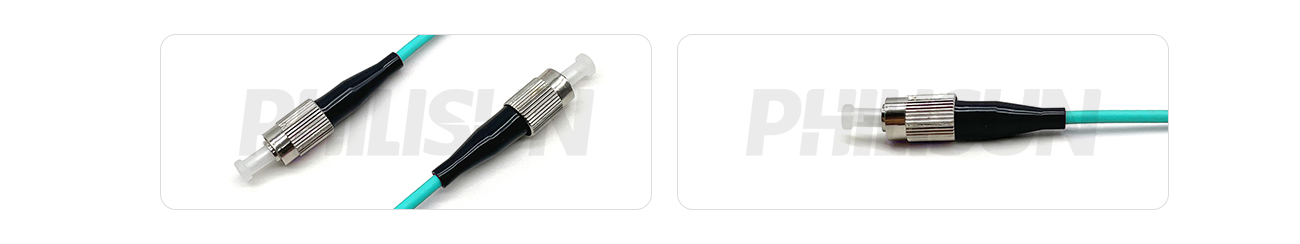

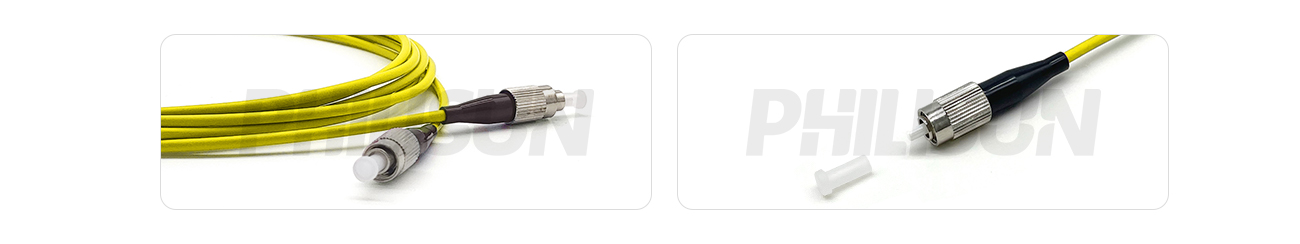

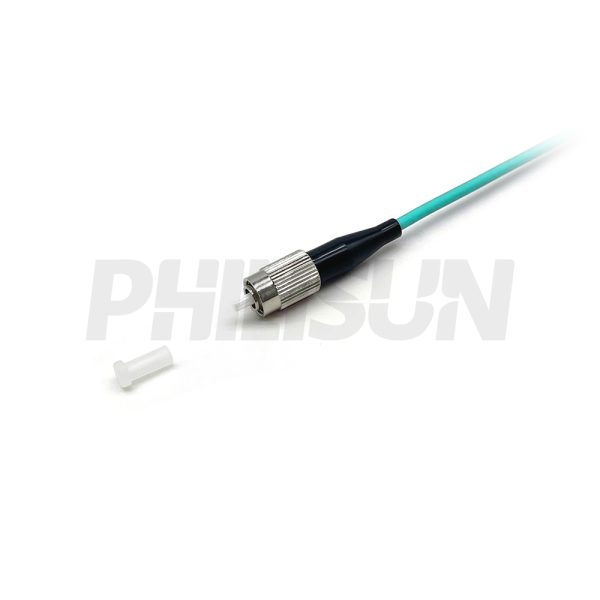

FC CONNECTOR



FIBER OPTIC CABLE TYPE



FIBER OPTIC CABLE STRUCTURE & PARAMETER
Cable Parameter
ItemsSpecifications
Fiber Count12
Metal TubeTight buffer diameter0.85±0.05mm0.6±0.05mm
Metal tube materialstainless steel
Metal tube diameter1.45±0.05mm1.85±0.05mm
Metal tube thickness0.2±0.05mm0.25±0.05mm
Outer JacketDimension3.0±0.1mm
MaterialPVC/LSZH/TPU
ColorBlue/Yellow/Aque/Violet/Black or Customization
Mechanical Performance
ItemsSpecifications
Fiber Count12
Tension（Long Term）/ N100
Tension（Short Term）/ N200
Crush（Long Term）/ N/10cm1000
Crush（Short Term）/ N/10cm3000
Min. Bend Radius（Dynamic）/ mm20D
Min. Bend Radius（Static）/ mm10D
Operating Temperature/℃-20～+70（PVC)/-40～+80(LSZH）
Storage Temperature/℃-20～+70（PVC)/-40～+80(LSZH）



FIBER PARAMETER
SM Fiber Parameter
ItemsUnitG.652DG.657A1G.657A2
Mode Field Diameter1310nmμm9.1±0.48.8±0.48.8±0.4
1550nmμm10.4±0.59.8±0.59.8±0.5
Cladding Diameterμm125±1125±0.7125±0.7
Cladding Non-Circularity%≤1≤0.7≤0.7
Core-Cladding Concentricity Errorμm≤0.6≤0.5≤0.5
Coating Diameterμm245±7245±5245±5
Coating Non-Circularity%≤6.0≤6.0≤6.0
Cladding-Coating Concentricity Errorμm≤12.0≤12.0≤12.0
Cable Cutoff Wavelengthnmλcc≤1260λcc≤1260λcc≤1260
Cable Attenuation Coefficient1310nmdB/km≤0.4≤0.4≤0.4
1550nmdB/km≤0.3≤0.3≤0.3
MM Fiber Parameter
Itemsunit62.5/12550/125OM3-150OM3-300OM4
Core Diameterμm62.5±2.550±2.550±2.550±2.550±2.5
Cladding Diameterμm125±1.0125±1.0125±1.0125±1.0125±1.0
Core Non-Circularity%≤5.0≤5.0≤5.0≤5.0≤5.0
Cladding Non-Circularity%≤1.0≤1.0≤1.0≤1.0≤1.0
Core-Cladding Concentricity Errorμm≤1.5≤1.5≤1.0≤1.0≤1.0
Coating Diameterμm245±7245±7245±7245±7245±7
Coating Non-Circularity%≤6.0≤6.0≤6.0≤6.0≤6.0
Cladding-Coating Concentricity Errorμm≤12.0≤12.0≤12.0≤12.0≤12.0
OFL Bandwidth850nmMHz·km≥160≥500≥700≥1500≥3500
1300nmMHz·km≥500≥500≥500≥500≥500
Cable Attenuation Coefficient850nmdB/km≤3.0≤3.0≤3.0≤3.0≤3.0
1300nmdB/km≤1.0≤1.0≤1.0≤1.0≤1.0



PRODUCT CERTIFICATION



QUALITY ADVANTAGE



CONFIGURATION INFORMATION
