Arnored Fiber Patch Cable, 1 Fiber, LC UPC/APC Simplex to LC UPC/APC Simplex, Singlemode/Multimode
1G/10G/25G/40G/100G/400G Ethernet
100G/200G/400G/800G/1.6T InfiniBand
- High Quality
- Factory Outlet
- Satisfaction Guarantee
- Global Shipping
| SPECIFICATIONS | |||
|---|---|---|---|
| Connector A | LC | Fiber Count | Simplex |
| Fiber Type | SM OS2/OM3/OM4/OM5 | Polish Type | UPC or APC |
| Ferrule Type | Grade A zirconia ceramic ferrule | RL | ≥50dB(SM UPC) ≥60dB(SM APC) ≥25dB(MM UPC） |
| Connector Color | Blue/Green/Beige/Aque/Violet/Lime green | Interchangeability | ≤0.2dB |
| IL | ≤0.3dB | RL | ≥50dB(UPC)≥60dB(APC) |
| Repeatability | ≤0.2dB | Working Wavelength | 1310/1550(SM) 850/1300(MM) |
| Matching Cable Outer Diameter | 2.0/3.0/3.5mm | Jacket Color | Blue/Yellow/Aque/Violet/Black |
| Armored Material | Spiral stainless steel | Flame Retardant Grade | OFN/OFNR/OFNP |
| Jacket Material | PVC/LSZH/TPU | Fiber Loss | SM:0.35db@1310nm/0.2dB@1550nm MM:2.4dB@850nm/0.6dB@1300nm |
| Fiber Brand | Corning/YOFC | Min.bending Radius(Long Term) | 20D |
| Min.bending Radius(short term) | 10D | Durability | ≥500 times |
| Operating Temperature | -10 to 70℃ (14 to 158℉) | Storage Temperature | -40 to 85℃ (-40 to 185℉) |
PRODUCT PRESENTATION

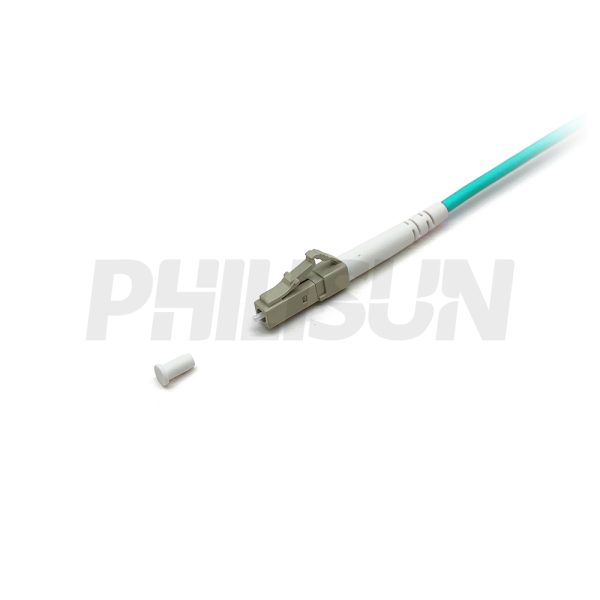

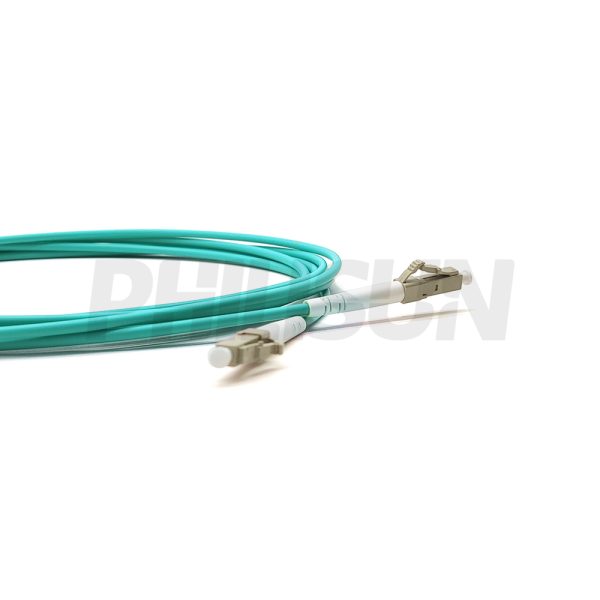

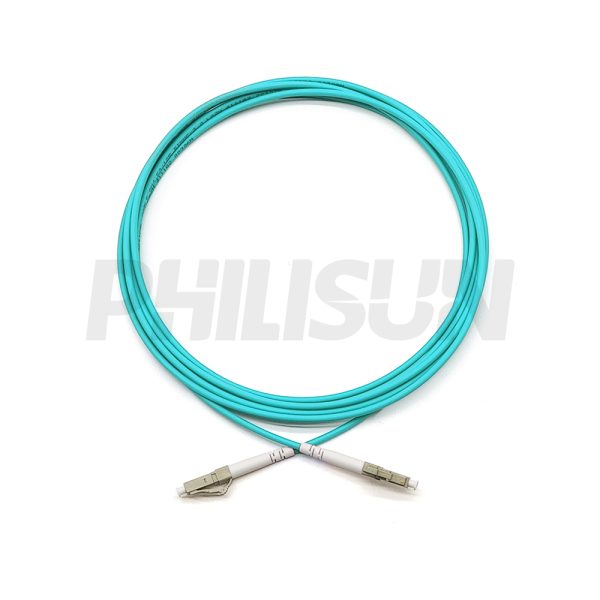

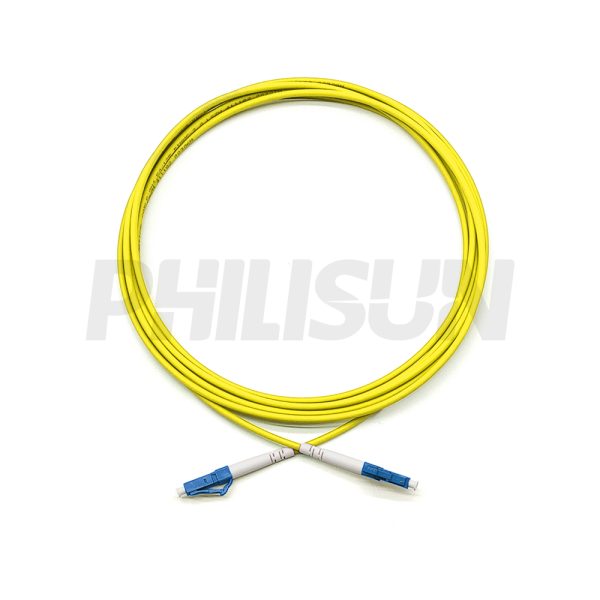

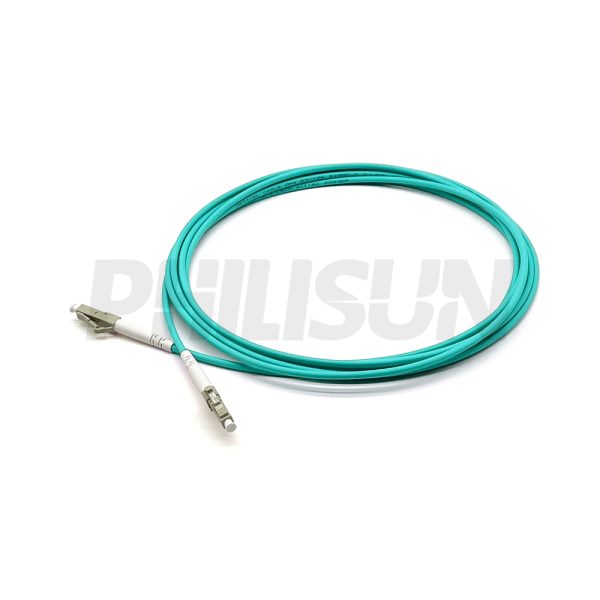

This LC Simplex Armored Patch Cable is built for challenging environments where single-channel protection is critical. The cable features Spiral stainless steel armor, providing superior Ratproof and Pressure-Resistant durability. It supports both Singlemode and Multimode applications, guaranteeing ultra-low Insertion Loss (IL maximum 0.3dB).

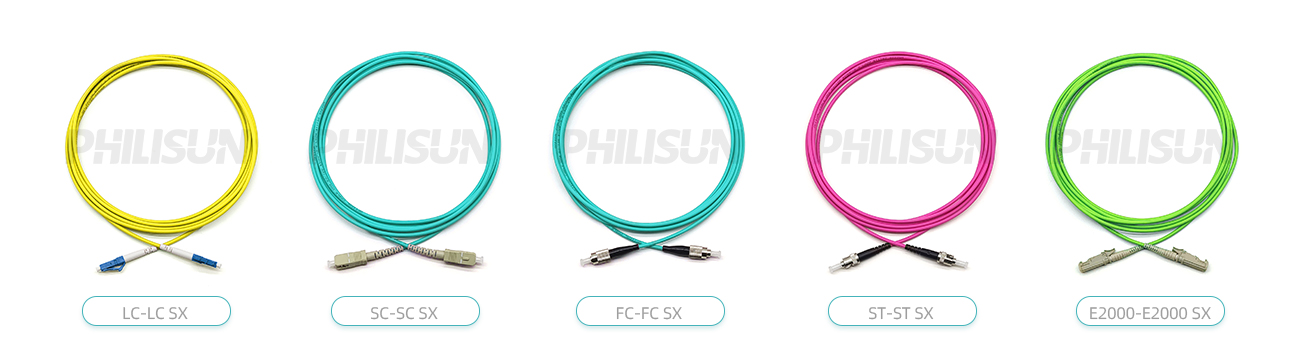

PATCH CORD & PIGTAIL SERIES PRODUCTS

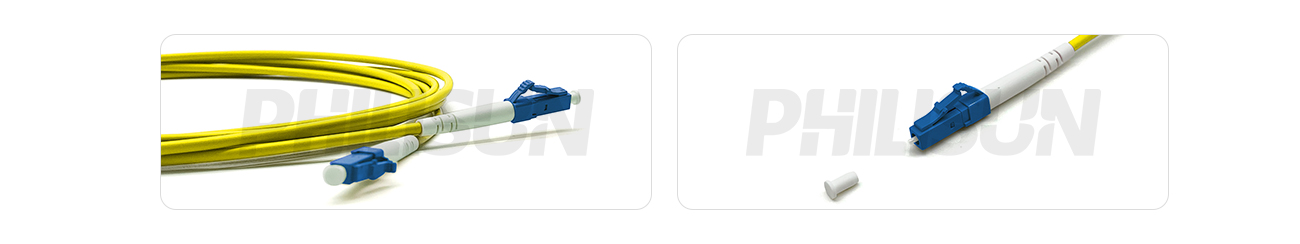

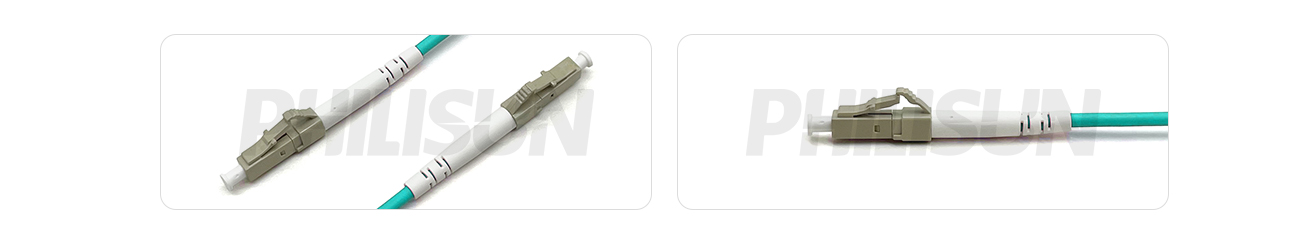

LC CONNECTOR

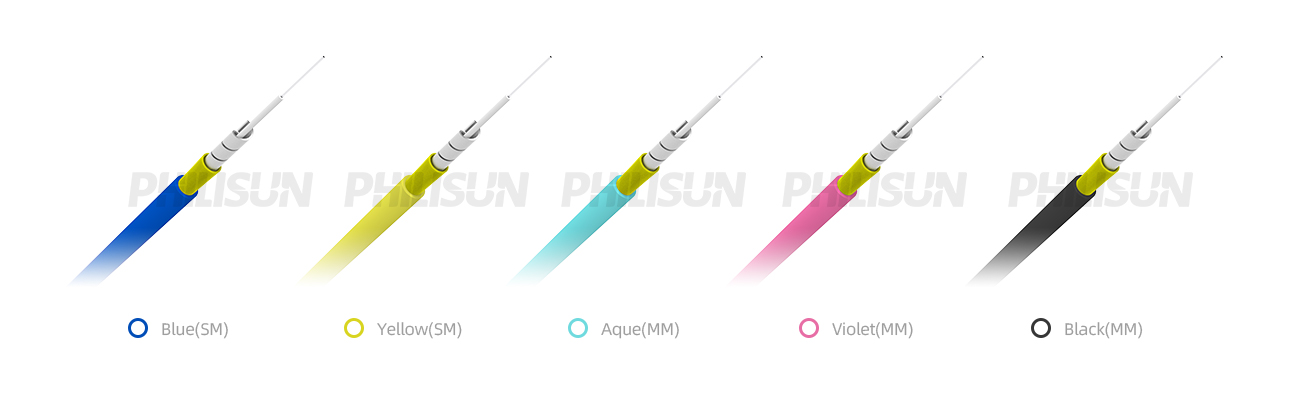

FIBER OPTIC CABLE TYPE

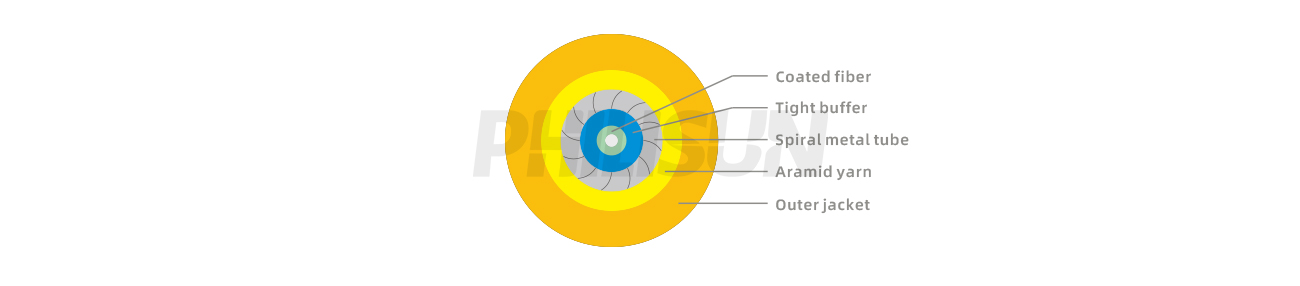

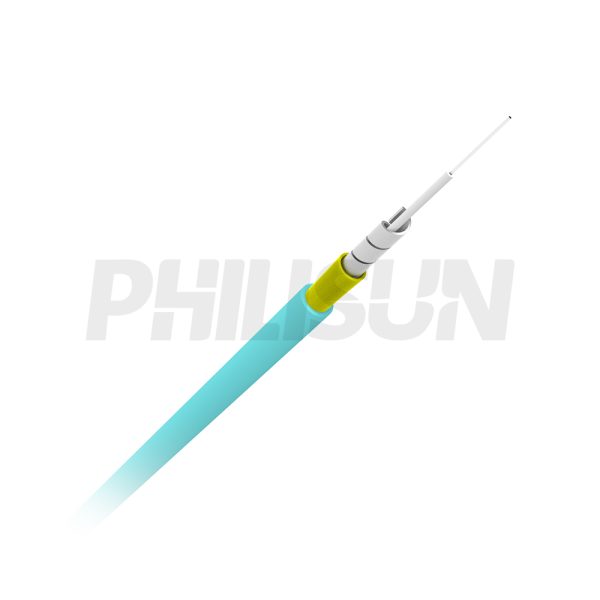

FIBER OPTIC CABLE STRUCTURE & PARAMETER
| Cable Parameter | |||
|---|---|---|---|
| Items | Specifications | ||
| Fiber Count | 1 | 2 | |
| Metal Tube | Tight buffer diameter | 0.85±0.05mm | 0.6±0.05mm |
| Metal tube material | stainless steel | ||
| Metal tube diameter | 1.45±0.05mm | 1.85±0.05mm | |
| Metal tube thickness | 0.2±0.05mm | 0.25±0.05mm | |
| Outer Jacket | Dimension | 3.0±0.1mm | |
| Material | PVC/LSZH/TPU | ||
| Color | Blue/Yellow/Aque/Violet/Black or Customization | ||
| Mechanical Performance | ||
|---|---|---|
| Items | Specifications | |
| Fiber Count | 1 | 2 |
| Tension（Long Term）/ N | 100 | |
| Tension（Short Term）/ N | 200 | |
| Crush（Long Term）/ N/10cm | 1000 | |
| Crush（Short Term）/ N/10cm | 3000 | |
| Min. Bend Radius（Dynamic）/ mm | 20D | |
| Min. Bend Radius（Static）/ mm | 10D | |
| Operating Temperature/℃ | -20～+70（PVC)/-40～+80(LSZH） | |
| Storage Temperature/℃ | -20～+70（PVC)/-40～+80(LSZH） | |
FIBER PARAMETER
| SM Fiber Parameter | ||||||||
|---|---|---|---|---|---|---|---|---|
| Items | Unit | G.652D | G.657A1 | G.657A2 | ||||
| Mode Field Diameter | 1310nm | μm | 9.1±0.4 | 8.8±0.4 | 8.8±0.4 | |||
| 1550nm | μm | 10.4±0.5 | 9.8±0.5 | 9.8±0.5 | ||||
| Cladding Diameter | μm | 125±1 | 125±0.7 | 125±0.7 | ||||
| Cladding Non-Circularity | % | ≤1 | ≤0.7 | ≤0.7 | ||||
| Core-Cladding Concentricity Error | μm | ≤0.6 | ≤0.5 | ≤0.5 | ||||
| Coating Diameter | μm | 245±7 | 245±5 | 245±5 | ||||
| Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ||||
| Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 | ||||
| Cable Cutoff Wavelength | nm | λcc≤1260 | λcc≤1260 | λcc≤1260 | ||||
| Cable Attenuation Coefficient | 1310nm | dB/km | ≤0.4 | ≤0.4 | ≤0.4 | |||
| 1550nm | dB/km | ≤0.3 | ≤0.3 | ≤0.3 | ||||
| MM Fiber Parameter | ||||||||
|---|---|---|---|---|---|---|---|---|
| Items | unit | 62.5/125 | 50/125 | OM3-150 | OM3-300 | OM4 | ||
| Core Diameter | μm | 62.5±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | ||
| Cladding Diameter | μm | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | ||
| Core Non-Circularity | % | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ||
| Cladding Non-Circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ||
| Core-Cladding Concentricity Error | μm | ≤1.5 | ≤1.5 | ≤1.0 | ≤1.0 | ≤1.0 | ||
| Coating Diameter | μm | 245±7 | 245±7 | 245±7 | 245±7 | 245±7 | ||
| Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ||
| Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ||
| OFL Bandwidth | 850nm | MHz·km | ≥160 | ≥500 | ≥700 | ≥1500 | ≥3500 | |
| 1300nm | MHz·km | ≥500 | ≥500 | ≥500 | ≥500 | ≥500 | ||
| Cable Attenuation Coefficient | 850nm | dB/km | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | |
| 1300nm | dB/km | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ||
