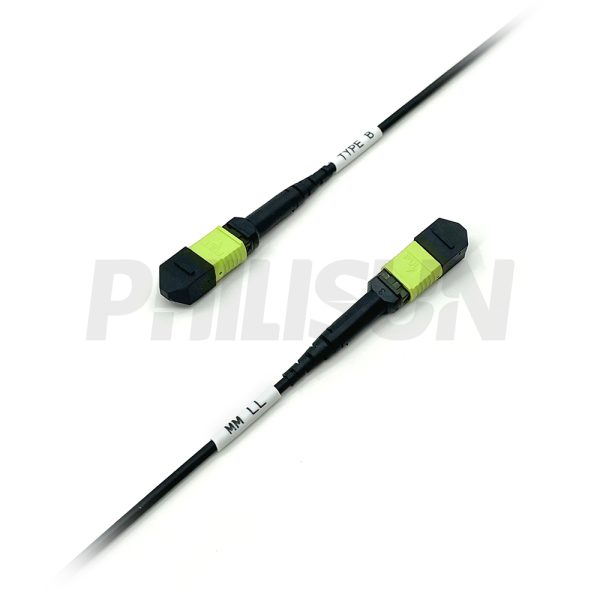

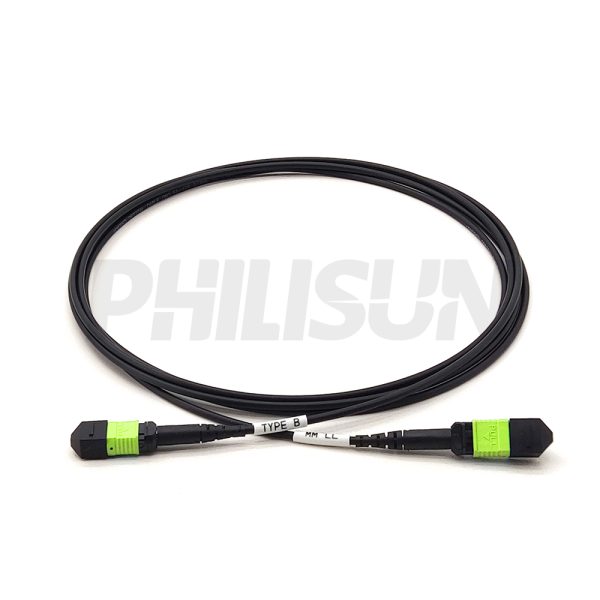

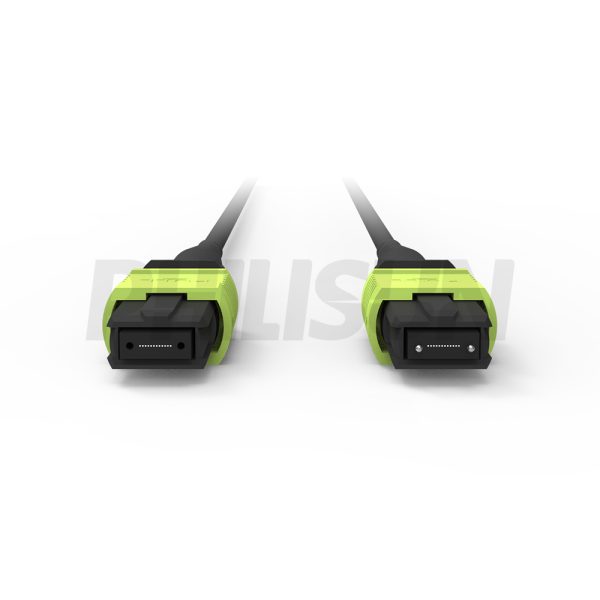

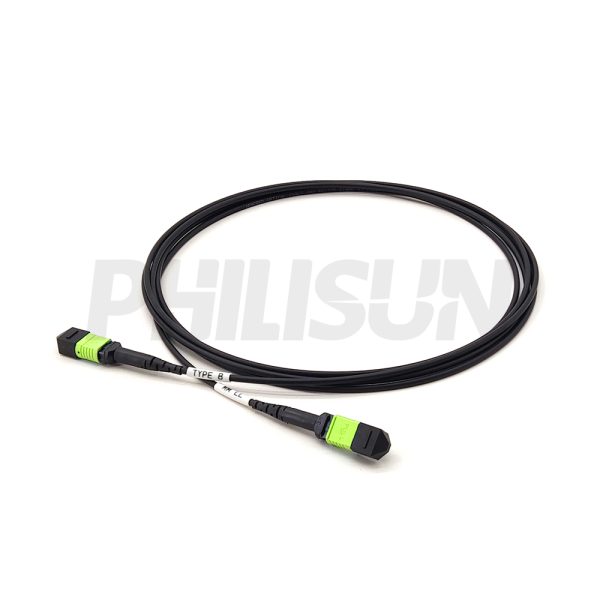

Armored MPO-12 Fiber Optic Cable – MPO to MPO OM5 Multimode, 12-Fiber Armored Jumper Cord, for 400G SR4.2 Extended Reach, PC/APC Polish (Female/Male), Type A/B/C, Lime Green
400G QSFPDD SR4.2（UP to 150M）
400G OSFP SR4.2（UP to 150M）
- High Quality
- Factory Outlet
- Satisfaction Guarantee
- Global Shipping
| SPECIFICATIONS | |||
|---|---|---|---|
| Connector A | MPO | Connector B | MPO |
| Fiber type | OM5 | Fiber number | 12 Fibers |
| MPO IL | Standard loss/low loss | Polishing | PC or APC |
| Connector housing color | Lime green | Connector boot type | Round fiber |
| Connctor type | Female/Male | RL | ≥20dB(MM) |
| IL(Typical) | 0.1/0.2dB | IL(Max. value) | 0.35/0.6dB |
| Type of armored | Single/Double layer armored | Cable color | Lime green |
| Cable outer diameter | 3.0/3.5/5.0mm | Flame retardant grade | OFN/OFNR/OFNP |
| Cable material | LSZH/PVC/TPU | Fiber loss | 2.4dB@850nm/0.6dB@1300nm |
| Fiber brand | Corning/YOFC | Min.bending radius(long term) | 20D |
| Working wavelength | 850/1300(MM) | Durability | ≥500 times |
| Min.bending radius(short term) | 10D | Polarity | TYPE A/B/C |
| Operating temperature | -10 to 70℃ (14 to 158℉) | Storage temperature | -40 to 85℃ (-40 to 185℉) |
PRODUCT PRESENTATION
This armored 12-fiber MPO to MPO OM5 Multimode fiber optic cable is designed for protected, high-speed SWDM solutions, supporting 400G SR4.2 applications. MPO is an optical fiber connector adopted by IEEE standard for 40G / 100G. Committed to the production of fiber optical patch cord for 19 years, PHILISUN has built an experienced R & D team. This OM5 MPO cable features MPO (Female/Male) connectors with PC/APC polish (RL ≥20dB), available in low loss (≤0.35dB) options, supporting Type A/B/C polarity. The PHILISUN MPO patch cord is 100% tested and passes 3D IEC standard, guaranteeing density and quality in rugged installations.
MPO ARMORED SERIES PRODUCTS
Production & Testing Equipment
FIBER OPTIC CABLE STRUCTURE
PERFORMANCE PARAMETER
| Technical Performance | |||
|---|---|---|---|
| Ferrule type | Insertion loss | Return loss | |
| Typical | Maximum | ||
| SM standard loss | 0.20dB | ≤0.75dB | ≥ 60dB （APC 8°） |
| SM low loss | 0.10dB | ≤0.35dB | |
| MM standard loss | 0.20dB | ≤0.6dB | ≥ 20dB |
| MM low loss | 0.10dB | ≤0.35dB | |
| MT Ferrule Options | ||||||
|---|---|---|---|---|---|---|
| Fiber mode | Performance | Fiber count | ||||
| Single mode | Standard loss | 12 (1x12) | ||||
| 24 (2x12) | ||||||
| Low loss | 12 (1x12) | |||||
| Multimode | Standard loss | 12 (1x12) | ||||
| 16 (1x16) | ||||||
| 24 (2x12) | ||||||
| 32 (2x16) | ||||||
| Low loss | 12 (1x12) | |||||
| 24 (2x12) | ||||||
| Cable Parameter | |||
|---|---|---|---|
| Items | Specifications | ||
| Fiber Count | 1~12 | 24 | |
| Metal tube | Metal tube material | stainless steel | stainless steel |
| Metal tube diameter | 2.1~2.2mm | 2.8±0.1mm | |
| Metal tube thickness | 0.25~0.28mm | 0.25~0.28mm | |
| Outer jacket | Dimension | 3.0±0.1mm | 3.5/5.0±0.2mm |
| Material | PVC/LSZH/PU | ||
| Color | Yellow(SM) / Orange(MM) /Aqua(OM3)/Violet(OM4) or Customization | ||
| Mechanical Performance | ||
|---|---|---|
| Items | Specifications | |
| Fiber Count | 1~12 | 24 |
| Tension（Long term）/ N | 500 | 300 |
| Tension（Short term）/ N | 800 | 600 |
| Crush（Long term）/ N/10cm | 800 | 200 |
| Crush（Short term）/ N/10cm | 1200 | 600 |
| Min. bend radius（Dynamic）/ mm | 20D | |
| Min. bend radius（Static）/ mm | 10D | |
| Operating temperature/℃ | -20～+60 | |
| Storage temperature/℃ | -20～+60 | |
| SM Fiber Parameter | ||||||||
|---|---|---|---|---|---|---|---|---|
| Items | Unit | G.652D | G.657A1 | G.657A2 | ||||
| Mode Field Diameter | 1310nm | μm | 9.1±0.4 | 8.8±0.4 | 8.8±0.4 | |||
| 1550nm | μm | 10.4±0.5 | 9.8±0.5 | 9.8±0.5 | ||||
| Cladding Diameter | μm | 125±1 | 125±0.7 | 125±0.7 | ||||
| Cladding Non-Circularity | % | ≤1 | ≤0.7 | ≤0.7 | ||||
| Core-Cladding Concentricity Error | μm | ≤0.6 | ≤0.5 | ≤0.5 | ||||
| Coating Diameter | μm | 245±7 | 245±5 | 245±5 | ||||
| Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ||||
| Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 | ||||
| Cable Cutoff Wavelength | nm | λcc≤1260 | λcc≤1260 | λcc≤1260 | ||||
| Cable Attenuation Coefficient | 1310nm | dB/km | ≤0.4 | ≤0.4 | ≤0.4 | |||
| 1550nm | dB/km | ≤0.3 | ≤0.3 | ≤0.3 | ||||
| MM Fiber Parameter | ||||||||
|---|---|---|---|---|---|---|---|---|
| Items | unit | 62.5/125 | 50/125 | OM3-150 | OM3-300 | OM4 | ||
| Core Diameter | μm | 62.5±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | ||
| Cladding Diameter | μm | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | ||
| Core Non-Circularity | % | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ||
| Cladding Non-Circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ||
| Core-Cladding Concentricity Error | μm | ≤1.5 | ≤1.5 | ≤1.0 | ≤1.0 | ≤1.0 | ||
| Coating Diameter | μm | 245±7 | 245±7 | 245±7 | 245±7 | 245±7 | ||
| Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ||
| Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ||
| OFL Bandwidth | 850nm | MHz·km | ≥160 | ≥500 | ≥700 | ≥1500 | ≥3500 | |
| 1300nm | MHz·km | ≥500 | ≥500 | ≥500 | ≥500 | ≥500 | ||
| Cable Attenuation Coefficient | 850nm | dB/km | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | |
| 1300nm | dB/km | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ||
