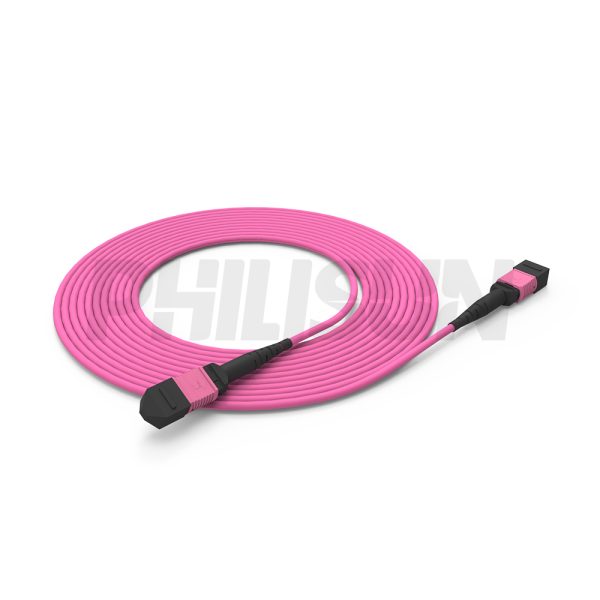

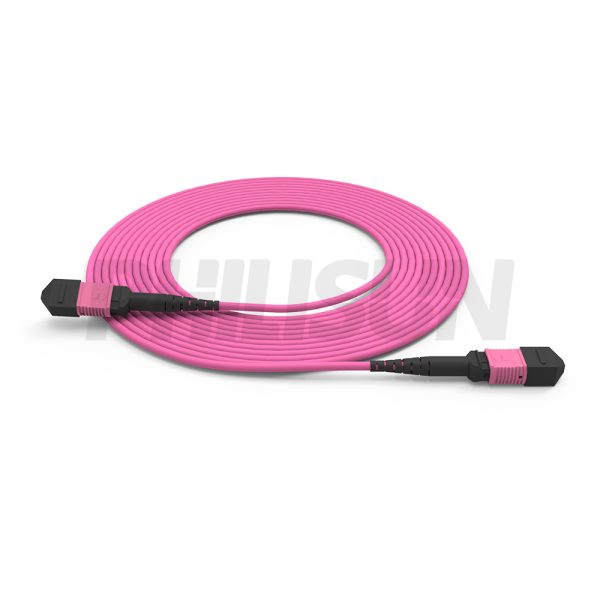

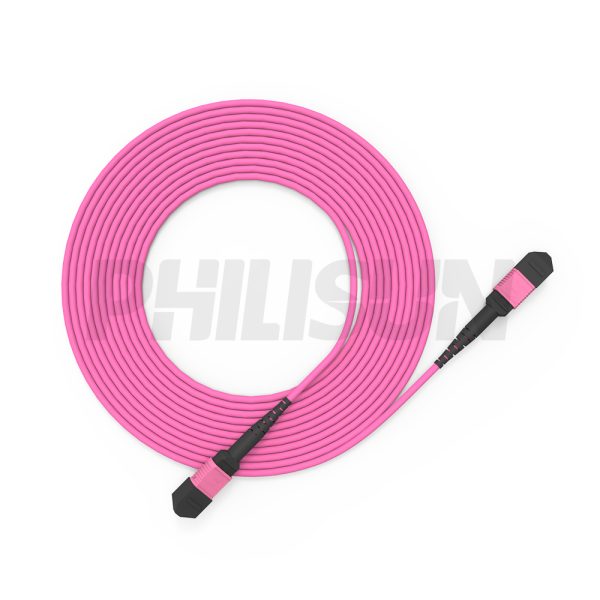

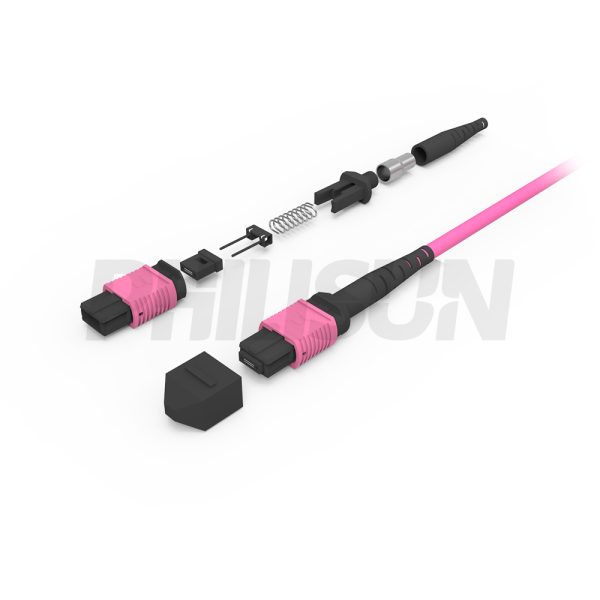

MPO-24 Fiber Optic Cable – MPO to MPO OM4 Multimode, 24-Fiber Main Trunk Cord, for 10G/25G Backbone, PC Polish (Female/Male), Type A/B/C/D/E, Aqua/Violet

10G-25G LC Duplex transceiver Main trunk cable

Category: Brand:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Connector AMPOConnector BMPO
Fiber typeOM4Fiber number24 Fibers
MPO ILStandard loss/low lossPolishingPC
Connector housing colorAqua/Violet/GreenConnector boot typeRound/ribbon/bare fiber

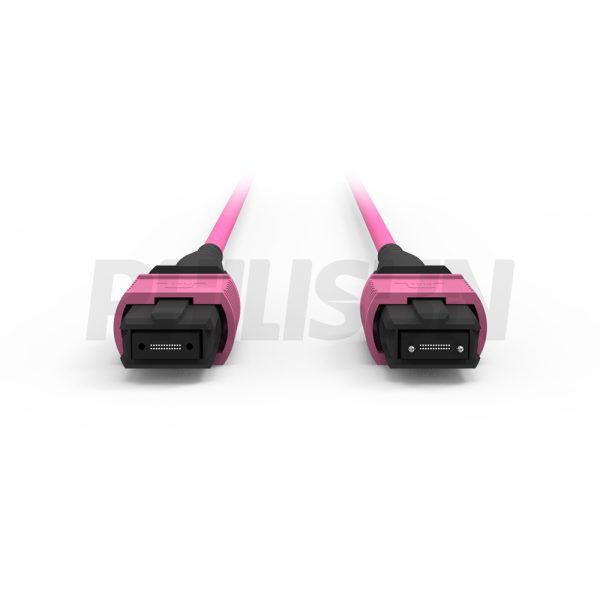

Connctor typeFemale/MaleRL≥20dB(MM)
IL(Typical)0.1/0.2dBIL(Max. value)0.35/0.6dB
Tolerance﹢6cmCable colorAqua/Violet
Cable outer diameter3.0/3.5/4.5/5.0mmFlame retardant gradeOFN/OFNR/OFNP
Cable materialLSZH/PVC/TPUFiber loss2.4dB@850nm/0.6dB@1300nm
Fiber brandCorning/YOFCMin.bending radius(long term)20D
Working wavelength850/1300(MM)Durability≥500 times
Min.bending radius(short term)10DPolarityTYPE A/B/C/D/E
Operating temperature-10 to 70℃ (14 to 158℉)Storage temperature-40 to 85℃ (-40 to 185℉)



PRODUCT PRESENTATION
This 24-fiber MPO to MPO OM4 Multimode trunk cable serves as a high-density main trunk backbone solution for 10G-25G LC Duplex transceivers, offering superior bandwidth over OM3. MPO is an optical fiber connector adopted by IEEE standard for 40G / 100G. Committed to the production of fiber optical patch cord for 19 years, PHILISUN has built an experienced R & D team. This OM4 MPO cable features MPO (Female/Male) connectors with a PC polish, available in low loss (≤0.35dB) options, supporting multiple polarities. The PHILISUN MPO patch cord is 100% tested and passes 3D IEC standard, guaranteeing performance for high-density cabling.



MPO SERIES PRODUCTS



Production & Testing Equipment



PERFORMANCE PARAMETER
Technical Performance
Ferrule typeInsertion lossReturn loss
TypicalMaximum
SM standard loss0.20dB≤0.75dB≥ 60dB （APC 8°）
SM low loss0.10dB≤0.35dB
MM standard loss0.20dB≤0.6dB≥ 20dB
MM low loss0.10dB≤0.35dB
MT Ferrule Options
Fiber modePerformanceFiber count
Single modeStandard loss12 (1x12)
24 (2x12)
Low loss12 (1x12)
MultimodeStandard loss12 (1x12)
16 (1x16)
24 (2x12)
32 (2x16)
Low loss12 (1x12)
24 (2x12)

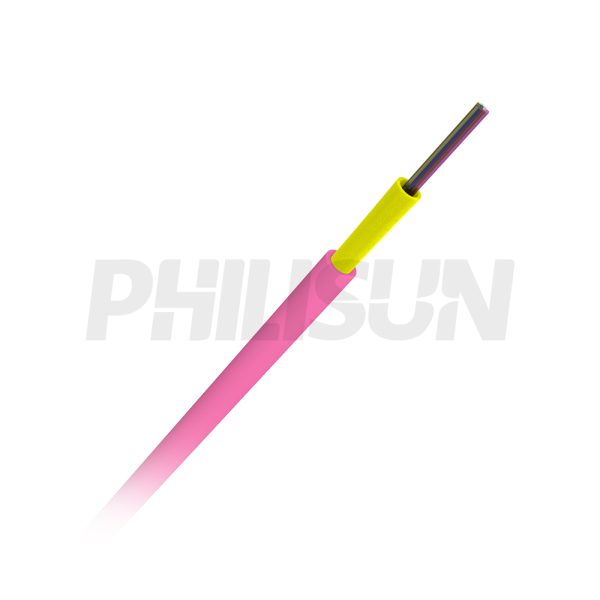

Cable Parameter
ItemsSpecifications
Fiber Count24681224
FiberDiameter250±15μm
ColorBlue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua
Strength MemberAramid Yarn
Outer JacketDiameter3.0±0.2mm
MaterialPVC /LSZH
ColorBlue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua
Mechanical Performance
ItemsSpecifications
Fiber Count24681224
Tensile Strength (Long Term) / N80
Tensile Strength (Short Term)/ N150
Crush Resistance (Long Term) / N/10cm150100
Crush Resistance (Long Term) / N/10cm500
Min. Bend Radius (Dynamic) / mm20D
Min. Bend Radius (Static)/ mm10D
Operating Temperature/℃-20～+60
Storage Temperature/℃-20～+60
SM Fiber Parameter
ItemsUnitG.652DG.657A1G.657A2
Mode Field Diameter1310nmμm9.1±0.48.8±0.48.8±0.4
1550nmμm10.4±0.59.8±0.59.8±0.5
Cladding Diameterμm125±1125±0.7125±0.7
Cladding Non-Circularity%≤1≤0.7≤0.7
Core-Cladding Concentricity Errorμm≤0.6≤0.5≤0.5
Coating Diameterμm245±7245±5245±5
Coating Non-Circularity%≤6.0≤6.0≤6.0
Cladding-Coating Concentricity Errorμm≤12.0≤12.0≤12.0
Cable Cutoff Wavelengthnmλcc≤1260λcc≤1260λcc≤1260
Cable Attenuation Coefficient1310nmdB/km≤0.4≤0.4≤0.4
1550nmdB/km≤0.3≤0.3≤0.3
MM Fiber Parameter
Itemsunit62.5/12550/125OM3-150OM3-300OM4
Core Diameterμm62.5±2.550±2.550±2.550±2.550±2.5
Cladding Diameterμm125±1.0125±1.0125±1.0125±1.0125±1.0
Core Non-Circularity%≤5.0≤5.0≤5.0≤5.0≤5.0
Cladding Non-Circularity%≤1.0≤1.0≤1.0≤1.0≤1.0
Core-Cladding Concentricity Errorμm≤1.5≤1.5≤1.0≤1.0≤1.0
Coating Diameterμm245±7245±7245±7245±7245±7
Coating Non-Circularity%≤6.0≤6.0≤6.0≤6.0≤6.0
Cladding-Coating Concentricity Errorμm≤12.0≤12.0≤12.0≤12.0≤12.0
OFL Bandwidth850nmMHz·km≥160≥500≥700≥1500≥3500
1300nmMHz·km≥500≥500≥500≥500≥500
Cable Attenuation Coefficient850nmdB/km≤3.0≤3.0≤3.0≤3.0≤3.0
1300nmdB/km≤1.0≤1.0≤1.0≤1.0≤1.0
