56G QSFP+ to QSFP+ Active Optical Cable (AOC)
Compliant with theSFF-8436 QSFP+ MSA standard
Switch to Switch
Switch to GPU
- High Quality
- Factory Outlet
- Satisfaction Guarantee
- Global Shipping
| SPECIFICATIONS | |||
|---|---|---|---|
| Cable End Connector A | SFP+ | Cable End Connector B | SFP+ |
| Jumper Type | Direct-Attach | Data Rate | 10G |
| Aggregate Bit Rate | 10.3125Gbps | Lane Bit Rate | 10Gbps |
| Number of Channels | 1 | Single Channel Rate | 10G |
| Array Transmitter | VSCEL | Array Receiver | PIN |
| Minimum Bend Radius | 30mm | Factory Brand | PHILISUN |
| Center(Operating) Wavelength | 850nm | Bit Error Rate | ≤10-12 |
| Fiber Type | OM3 MMF MAX 300m | Cable Colour | Aqua |
| Cable Material | LSZH/OFNP | Cable Length Selection | 1-300 meter |
| Safety Certification | TUV/UL/FDA | Application Scenarios | 10 Gigabit Ethernet (10GbE) |
| Protocols | SFF-8636/SFF-8431/SFP MSA 10 Gigabit Ethernet 1x InfiniBand QDR, DDR, SDR | DDMI(Commercial) | YES |
| Supply Voltage | 3.3V | Power Dissipation | <0.8W |
| Operating Temperature | 0 to 70℃ (32 to 158℉) | Storage Temperature | -40 to 85℃ (-40to185℉) |
PRODUCT PRESENTATION
The PHILISUN QSFP+(56G) Active Optical Cable is a direct-attach fiber assembly utilizing QSFP+ connectors and the Multi-Mode Fiber (MMF) scheme. The product complies with the SFF-8436 MSA standard and is suitable for high-speed connections within racks and across adjacent racks. It uses OM3/OM4 Multimode Fiber. Its compact structure and fully sealed integrated optics reduce costs compared to conventional optical modules and jumpers, while significantly improving reliability and reducing maintenance. This AOC guarantees broad compatibility with major vendor platforms including Cisco, H3C, Huawei, Juniper, and Arista, and more.

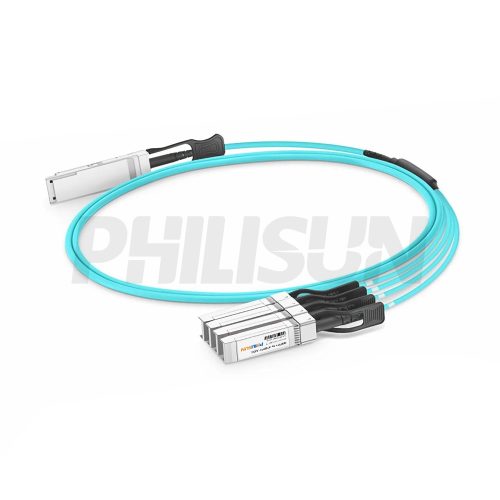

AOC SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

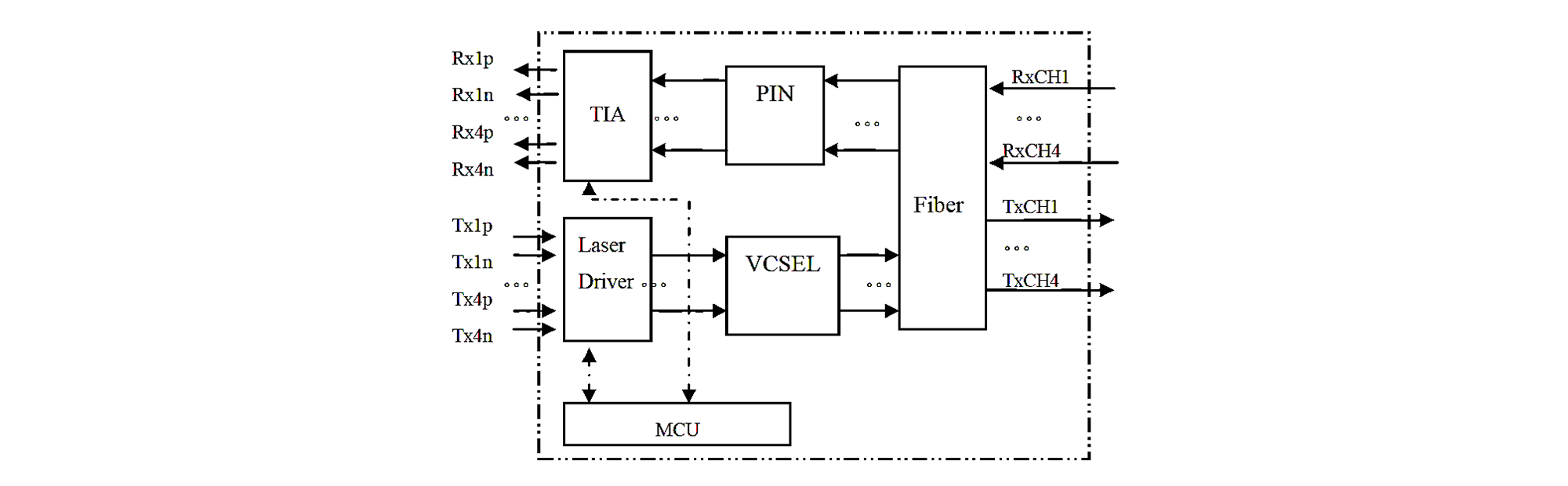

MODULE BLOCK DIAGRAM

PERFORMANCE PARAMETER
| Absolute Maximum Rating | |||||||||
| Parameter | Symbol | Min | Max | Unit | |||||
| Storage temperature | TS | -20 | 85 | ℃ | |||||
| Relative humidity | RH | 0 | 85 | % | |||||
| Case operating temperature | TCase | 0 | 70 | ℃ | |||||
| Supply voltage | VCC | -0.5 | 3.6 | V | |||||
| Recommended Operating Conditions | |||||||||
| Parameter | Symbol | Min | Typical | Max | Unit | ||||
| Case operating temperature | TCase | 0 | – | 70 | ℃ | ||||
| Supply voltage | VCC | 3.15 | 3.3 | 3.45 | V | ||||
| Differential data input voltage per lane | Vdin | 200 | – | 1200 | mVp-p | ||||
| Data rate per lane | DR | 2.5 | 14.025 | – | Gbit/s | ||||
| Electrical Characteristics | |||||||||
| Parameter | Symbol | Min | Typical | Max | Unit | ||||
| Bit error ratio | BER | – | – | 10-12 | – | ||||
| Differential data output voltage per lane | Vdout | 320 | 450 | – | mVp-p | ||||
| Differential Termination Resistance | Zout | 80 | 100 | 120 | Ohm | ||||
| Module total power | P | – | – | 1.5 | W | ||||
| Transmit turn-on time | – | 2000 | – | – | ms | ||||
| Note: Test with PRBS31 pattern | |||||||||

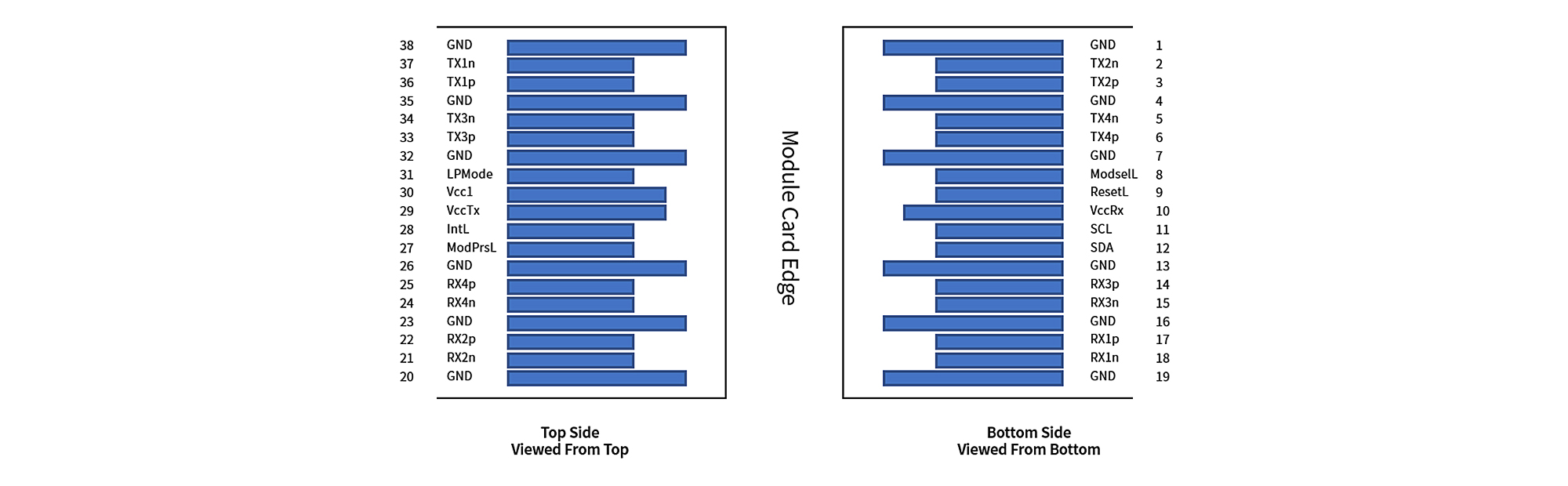

PIN DESCRIPTIONS

PIN DEFINITIONS
| Pin | Symbol | Name/Description | |||||||
| 1 | GND | Ground | |||||||
| 2 | Tx2n | Transmitter inverted data input | |||||||
| 3 | Tx2p | Transmitter non-inverted data input | |||||||
| 4 | GND | Ground | |||||||
| 5 | Tx4n | Transmitter inverted data input | |||||||
| 6 | Tx4p | Transmitter non-inverted data input | |||||||
| 7 | GND | Ground | |||||||
| 8 | ModSelL | Module select | |||||||
| 9 | ResetL | Module reset | |||||||
| 10 | Vcc Rx | +3.3V Power supply receiver | |||||||
| 11 | SCL | 2-Wireserial interface clock | |||||||
| 12 | SDA | 2-Wireserial interface data | |||||||
| 13 | GND | Ground | |||||||
| 14 | Rx3p | Receiver non-inverted data output | |||||||
| 15 | Rx3n | Receiver inverted data output | |||||||
| 16 | GND | Ground | |||||||
| 17 | Rx1p | Receiver non-inverted data output | |||||||
| 18 | Rx1n | Receiver inverted data output | |||||||
| 19 | GND | Ground | |||||||
| 20 | GND | Ground | |||||||
| 21 | Rx2n | Receiver inverted data output | |||||||
| 22 | Rx2p | Receiver non-inverted data output | |||||||
| 23 | GND | Ground | |||||||
| 24 | Rx4n | Receiver inverted data output | |||||||
| 25 | Rx4p | Receiver non-inverted data output | |||||||
| 26 | GND | Ground | |||||||
| 27 | ModPrsL | Module present | |||||||
| 28 | IntL | Interrupt | |||||||
| 29 | Vcc Tx | +3.3V Power supply transmitter | |||||||
| 30 | Vcc1 | +3.3V Power supply | |||||||
| 31 | LPMode | Low power mode | |||||||
| 32 | GND | Ground | |||||||
| 33 | Tx3p | Transmitter non-inverted data input | |||||||
| 34 | Tx3n | Transmitter inverted data input | |||||||
| 35 | GND | Ground | |||||||
| 36 | Txlp | Transmitter non-inverted data input | |||||||
| 37 | Txln | Transmitter inverted data input | |||||||
| 38 | GND | Ground | |||||||
