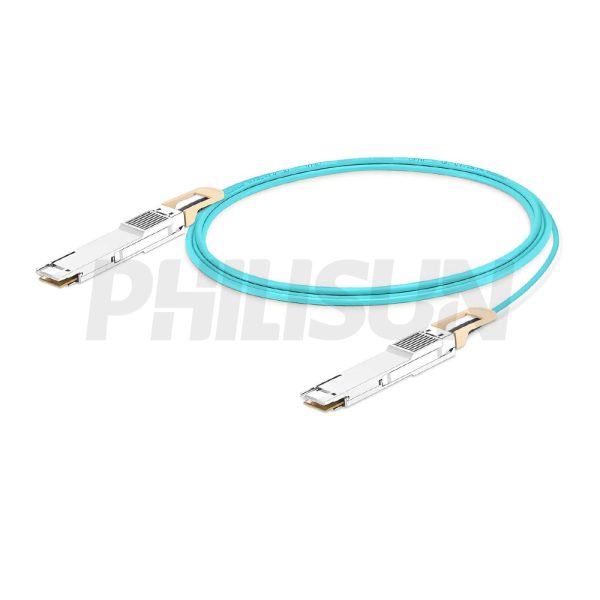

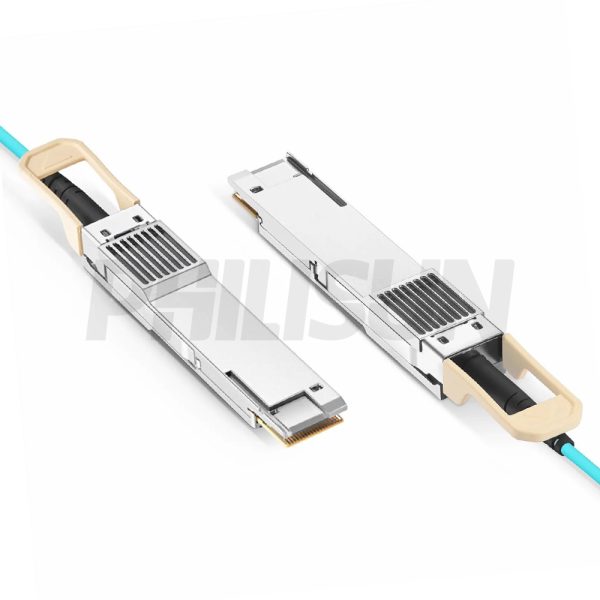

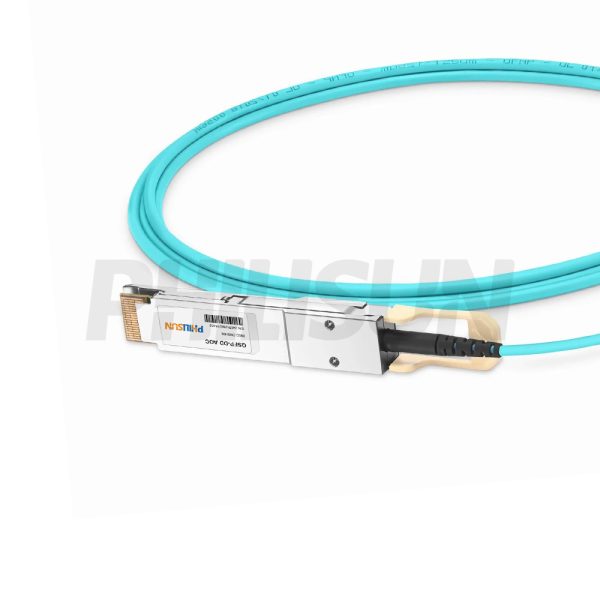

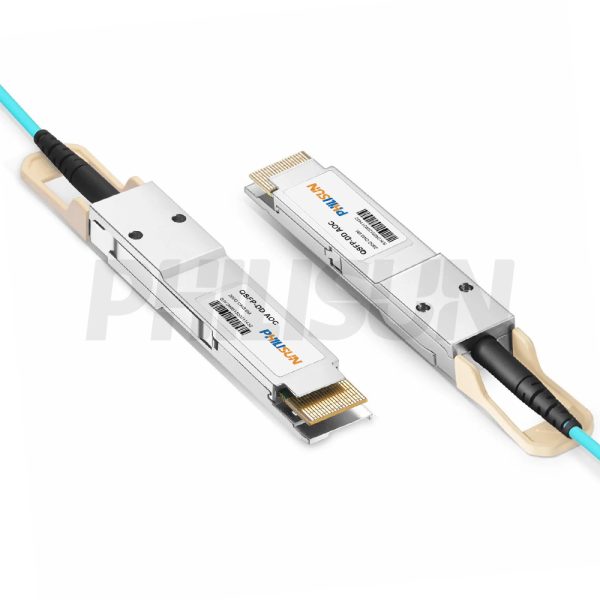

200G QSFP-DD to QSFP-DD Active Optical Cable (AOC)

Compliant with theSFF-8436 QSFP-DD MSA standard
Switch to Switch
Switch to GPU

Category: Brand:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Cable End Connector ASFP+Cable End Connector BSFP+
Jumper TypeDirect-AttachData Rate10G
Aggregate Bit Rate10.3125GbpsLane Bit Rate10Gbps
Number of Channels1Single Channel Rate10G
Array TransmitterVSCELArray ReceiverPIN
Minimum Bend Radius30mmFactory BrandPHILISUN
Center(Operating) Wavelength850nmBit Error Rate≤10-12
Fiber TypeOM3 MMF MAX 300mCable ColourAqua
Cable MaterialLSZH/OFNPCable Length Selection1-300 meter
Safety CertificationTUV/UL/FDAApplication Scenarios10 Gigabit Ethernet (10GbE)
ProtocolsSFF-8636/SFF-8431/SFP MSA
10 Gigabit Ethernet
1x InfiniBand QDR, DDR, SDR		DDMI(Commercial)YES
Supply Voltage3.3VPower Dissipation<0.8W
Operating Temperature0 to 70℃ (32 to 158℉)Storage Temperature-40 to 85℃ (-40to185℉)



PRODUCT PRESENTATION
The PHILISUN QSFP-DD(200G) Active Optical Cable is a direct-attach fiber assembly utilizing QSFP-DD connectors and the Multi-Mode Fiber (MMF) scheme. The product complies with the SFF-8665 MSA standard and is suitable for 200Gbps connections within racks and across adjacent racks. It uses OM3/OM4 Multimode Fiber. Its compact structure and fully sealed integrated optics reduce costs compared to conventional optical modules and jumpers, while significantly improving reliability and reducing maintenance. This AOC guarantees broad compatibility with major vendor platforms including Cisco, H3C, Huawei, Juniper, and Arista, and more.



AOC SERIES PRODUCTS



PRODUCTION & TESTING EQUIPMENT



PERFORMANCE PARAMETER
Absolute Maximum Ratings
Parameter Symbol Min. Max. Unit
Power Supply Voltage VCC -0.5 +3.6 V
Storage Temperature Tc -40 +85 ℃
Relative Humidity RH 0 85 %



Recommended Operating Conditions
Parameter Symbol Min. Typ. Max. Unit
Supply Voltage VCC 3.15 3.3 3.45 V
Supply Current Per End Icc – – 1210 mA
Case Operating Temperature Tca 0 – 70 ℃
Data Rate Per Lane DR – 25.78125 – Gbps
Fiber Bend Radius Rb 3 – – cm
Notes:
1.Supply current is shared between VCCTX and VCCRX.
2.In-rush is defined as current level above steady state current requirements.



Transmitter Specifications
Parameter Symbol Min. Typ. Max. Unit
Input Differential Impedance Rin 90 100 110 Ω
Differential Input Voltage Swing, Per Lane Vin 300 – 1100 mV
Transmit Disable Voltage VD 2.0 – VCC +0.3 V
Transmit Enable Voltage Ven Vee – Vee +0.8 V



Receiver Specifications
Parameter Symbol Min. Typ. Max. Unit
Differential Output Swing, per lane Vout 300 – 900 mV
Bit Error Rate BER – – 5E-5 –
Output Differential Impedance Rout 90 100 110 Ω
Loss of Signal -Asserted – 2.0 – VCC +0.3 V
Loss of Signal -Negated – Vee – Vee +0.8 V
Note：
1.BER=5E-5; PRBS 2^31-1@25.78125Gbps. Pre-FEC



TRANSCEIVER ELECTRICAL PAD LAYOUT



PIN DEFINITION
Pin Symbol Name/Description
1 GND Ground
2 Tx2n Transmitter Inverted Data Input
3 Tx2p Transmitter Non-Inverted Data Input
4 GND Ground
5 Tx4n Transmitter Inverted Data Input.
6 Tx4p Transmitter Non-Inverted Data Input
7 GND Ground
8 ModSelL Module Select.
9 ResetL Module Reset
10 Vcc Rx +3.3 V Power supply receiver
11 SCL 2-wire serial interface clock
12 SDA 2-wire serial interface data
13 GND Ground
14 Rx3p Receiver Non-Inverted Data Output
15 Rx3n Receiver Inverted Data Output
16 GND Ground
17 Rx1p Receiver Non-Inverted Data Output
18 Rx1n Receiver Inverted Data Output
19 GND Ground
20 GND Ground
21 Rx2n Receiver Inverted Data Output
22 Rx2p Receiver Non-Inverted Data Output
23 GND Ground
24 Rx4n Receiver Inverted Data Output
25 Rx4p Receiver Non-Inverted Data Output
26 GND Ground
27 ModPrsL Module Present
28 IntL Interrupt
29 VCC Tx +3.3 V Power supply transmitter
30 VCC1 +3.3 V Power Supply
31 InitMode Initialization mode; In legacy QSFP applications, the InitMode pad is called LPMODE
32 GND Ground
33 Tx3p Transmitter Non-Inverted Data Input
34 Tx3n Transmitter Inverted Data Input
35 GND Ground
36 Tx1p Transmitter Non-Inverted Data Input
37 Tx1n Transmitter Inverted Data Input
38 GND Ground
39 GND Ground
40 Tx6n Transmitter Inverted Data Input
41 Tx6p Transmitter Non-Inverted Data Input
42 GND Ground
43 Tx8n Transmitter Inverted Data Input
44 Tx8p Transmitter Non-Inverted Data Input
45 GND Ground
46 Reserved For future use
47 VS1 Module Vender Specific 1
48 Vcc Rx1 +3.3 V Power supply receiver
49 VS2 Module Vender Specific 2
50 VS3 Module Vender Specific 3
51 GND Ground
52 Rx7p Receiver Non-Inverted Data Output
53 Rx7n Receiver Inverted Data Output
54 GND Ground
55 Rx5p Receiver Non-Inverted Data Output
56 Rx5n Receiver Inverted Data Output
57 GND Ground
58 GND Ground
59 Rx6n Receiver Inverted Data Output
60 Rx6p Receiver Non-Inverted Data Output
61 GND Ground
62 Rx8n Receiver Inverted Data Output
63 Rx8p Receiver Non-Inverted Data Output
64 GND Ground
65 NC No Connect
66 Reserved For future use
67 VCC Tx1 +3.3 V Power supply transmitter
68 VCC2 +3.3 V Power Supply
69 Reserved For future use
70 GND Ground
71 Tx7p Transmitter Non-Inverted Data Input
72 Tx7n Transmitter Inverted Data Input
73 GND Ground
74 Tx5p Transmitter Non-Inverted Data Input
75 Tx5n Transmitter Inverted Data Input
76 GND Ground



PRODUCT CERTIFICATION



COMPATIBLE BRANDS
CONFIGURATION INFORMATION
