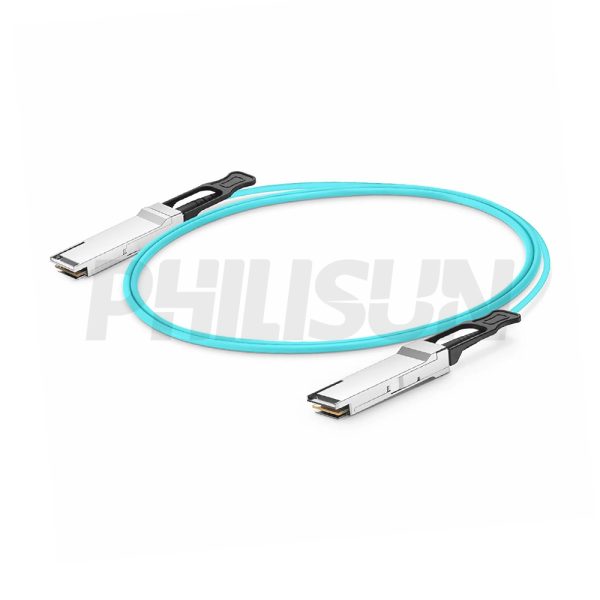

100G QSFP28 to QSFP28 Active Optical Cable (AOC)

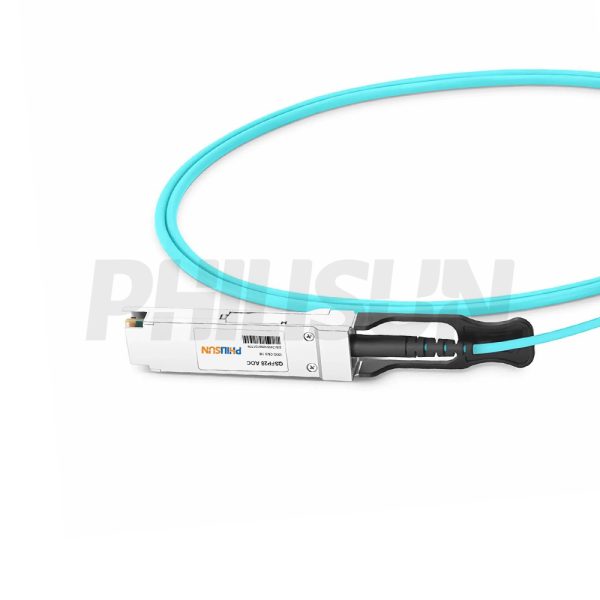

100G QSFP28 to QSFP28 Active Optical Cable (AOC) product detail view 1

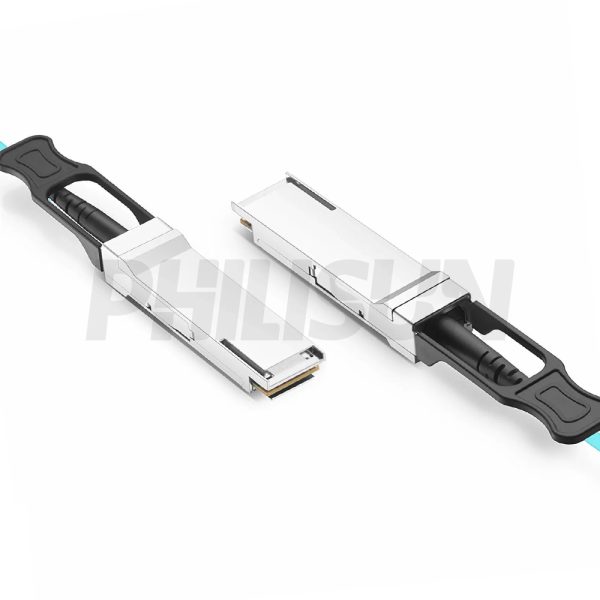

100G QSFP28 to QSFP28 Active Optical Cable (AOC) product detail view 2

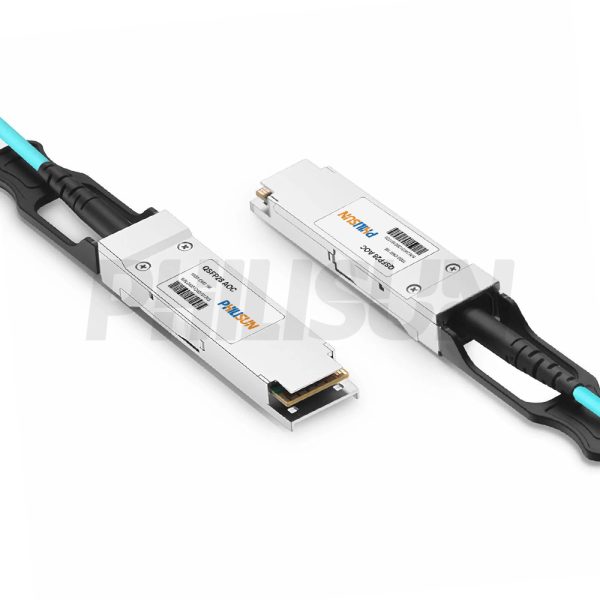

100G QSFP28 to QSFP28 Active Optical Cable (AOC) product detail view 3

100G QSFP28 to QSFP28 Active Optical Cable (AOC)

Compliant with QSFP28 MSA standard
Switch to Switch
Switch to GPU

Category: Brand: Related collections:
  • High Quality
  • Factory Outlet
  • Satisfaction Guarantee
  • Global Shipping
SPECIFICATIONS
Cable End Connector AQSFP28Cable End Connector BQSFP28
Jumper TypeDirect-AttachData Rate100G
Aggregate Bit Rate103.125GbpsLane Bit Rate25.78125Gbps
Number of Channels4Single Channel Rate25G
Array TransmitterVSCELArray ReceiverPIN
Minimum Bend Radius30mmFactory BrandPHILISUN
Center(Operating) Wavelength850nmBit Error Rate10-12
Fiber TypeOM3 MMF MAX 70m/OM4 MMF MAX 100mCable ColourAqua
Cable MaterialLSZH/OFNPCable Length Selection1-100meter
Safety CertificationTUV/UL/FDAApplication Scenarios100 Gigabit Ethernet (100GbE)
ProtocolsSFF-8665/QSFP MSA/IEEE 802.3 bmDDMI(Commercial)YES
Supply Voltage3.3VPower Dissipation<3.5W
Operating Temperature0 to 70℃ (32 to 158℉)Storage Temperature-20 to 85℃ (-4 to 185℉)



PRODUCT PRESENTATION
The PHILISUN QSFP28(100G) Active Optical Cable is a direct-attach fiber assembly utilizing QSFP28 connectors and the Multi-Mode Fiber (MMF) scheme. The product complies with the SFF-8665 MSA standard and is suitable for 100Gbps connections within racks and across adjacent racks. It uses OM3/OM4 Multimode Fiber. Its compact structure and fully sealed integrated optics reduce costs compared to conventional optical modules and jumpers, while significantly improving reliability and reducing maintenance. This AOC guarantees broad compatibility with major vendor platforms including Cisco, H3C, Huawei, Juniper, and Arista, and more.



AOC SERIES PRODUCTS
qsfp28 100G AOC aoc series products



PRODUCTION & TESTING EQUIPMENT
qsfp28 100G AOC aoc production and testing equipment



PERFORMANCE PARAMETER
Absolute Maximum Ratings
Parameter Symbol Min Typ. Max Unit Ref.
Storage Temperature TST -40 – 85 ℃ –
Relativeumidity (non-condensing) RH 0 – 85 % –
Operating Case Temperature TOPC 0 – 70 ℃ –
Supply Voltage VCC -0.3 – 3.6 V –
Input Voltage Vin -0.3 – Vcc+0.3 V –



Recommended Operating Environment
Parameter Symbol Min Typ. Max Unit Ref.
Operating Case Temperature TOP 0 – 70 ℃ –
Power Supply Voltage Vcc 3.135 3.3 3.465 V –
Data Rate, each Lane – – 25.78125 – Gb/s –
Control Input Voltage High – 2 – Vcc V –
Control Input Voltage Low – 0 – 0.8 V –



Electrical Characteristics
Parameter Symbol Min     Typ. Max Unit Ref.
PowerConsumption, each Terminal – – – 3.5 W –
Supply Current, each Terminal Icc – – 1060 mA –
Transceiver Power-on Initialization Time – – – 2000 ms 1
Transmitter (each Lane)
Single Ended Input Voltage Tolerance – -0.3 – 3.6 V –
AC Common Mode Input Voltage Tolerance – 15 – – mV RMS
Differential Input Voltage Swing Threshold – 50 – – mVpp LOSA Threshod
Differential Input Voltage Swing Vin,pp 180 – 1000 mVpp –
Differential Input Impedance Zin 90      100 110 Ohm –
Total Jitter – – – 0.40 UI –
Deterministic Jitter – – – 0.15 UI –
Receiver (each Lane)
Single Ended Output Voltage – -0.3 – 4 V –
AC Common Mode Output Voltage – – – 7.5 mV RMS
Differential Output Voltage Swing Vout,pp 300 – 1000 mVpp –
Differential Output Impedance Zout 90 100 110 Ohm –
Total Jitter – – – 0.3 UI –
Deterministic Jitter – – – 0.15 UI –



PIN ASSIGNMENT

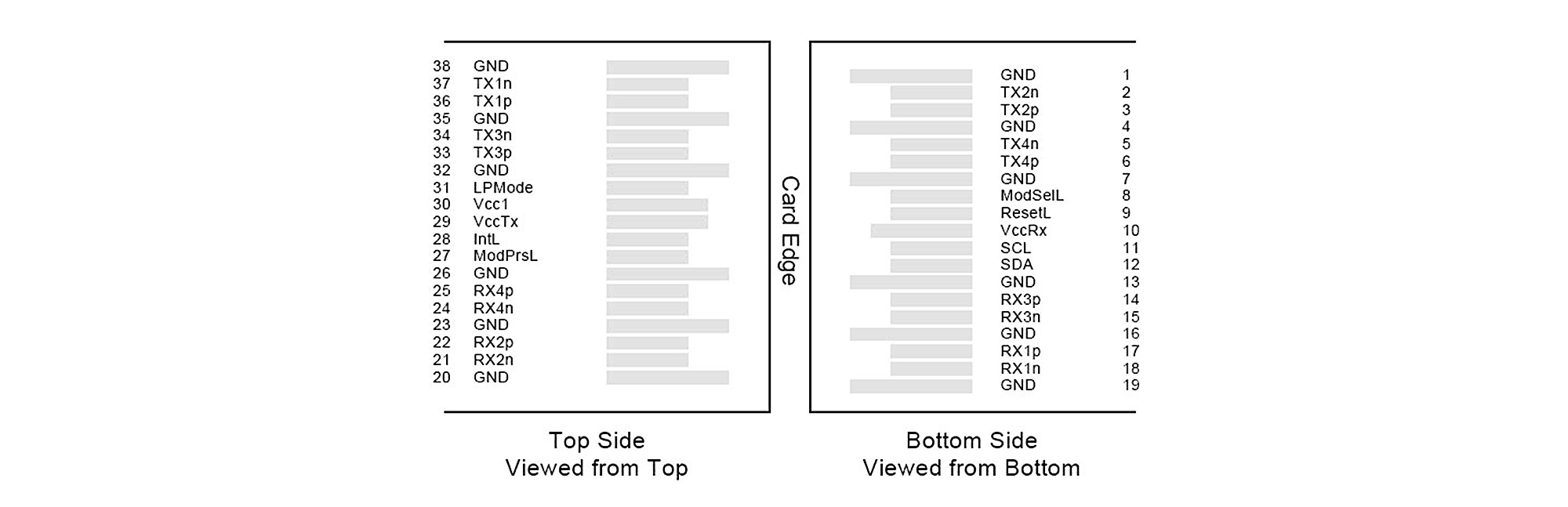

Pin Assignment QSFP-to QSFP

Figure – MSA compliant Connector

Pin Logic Symbol Description Notes
1 – GND Ground 1
2 CML-I Tx2n Transmitter Inverted Data Input –
3 CML-I Tx2p Transmitter Non-Inverted Data output –
4 – GND Ground 1
5 CML-I Tx4n Transmitter Inverted Data Input –
6 CML-I Tx4p Transmitter Non-Inverted Data output –
7 – GND Ground 1
8 LVTLL-I ModSelL Module Select –
9 LVTLL-I ResetL Module Reset –
10 – VccRx +3.3 V Power Supply Receiver 2
11 LVCMOS-I/O SCL 2-wire serial interface clock –
12 LVCMOS-I/O SDA 2-wire serial interface data –
13 – GND Ground 1
14 CML-O Rx3p Receiver Non-Inverted Data Output –
15 CML-O Rx3n Receiver Inverted Data Output –
16 – GND Ground 1
17 CML-O Rx1p Receiver Non-Inverted Data Output –
18 CML-O Rx1n Receiver Inverted Data Output –
19 – GND Ground 1
20 – GND Ground 1
21 CML-O Rx2n Receiver Inverted Data Output –
22 CML-O Rx2p Receiver Non-Inverted Data Output –
23 – GND Ground 1
24 CML-O Rx4n Receiver Inverted Data Output 1
25 CML-O Rx4p Receiver Non-Inverted Data Output –
26 – GND Ground 1
27 LVTTL-O ModPrsL Module Present –
28 LVTTL-O IntL Interrupt –
29 – VccTx +3.3V Power supply transmitter 2
30 – Vcc1 +3.3V Power supply 2
31 LVTTL-I LPMode Low Power Mode –
32 – GND Ground 1
33 CML-I Tx3p Transmitter Non-Inverted Data Input –
34 CML-I Tx3n Transmitter Inverted Data Output –
35 – GND Ground 1
36 CML-I Tx1p Transmitter Non-Inverted Data Input –
37 CML-I Tx1n Transmitter Inverted Data Output –
38 – GND Ground 1
Notes:
1.GND is the symbol for signal and supply (power) common for QSFP28 modules. All are common within the QSFP28 module and all module voltages are referenced to this potential unless otherwise noted. Connect these directly to the host board signal common ground plane.
2.VccRx, Vcc1 and VccTx are the receiving and transmission power suppliers and shall be applied concurrently. Recommended host board power supply filtering is shown in Figure 3 below. Vcc Rx, Vcc1 and Vcc Tx may be internally connected within the QSFP28 transceiver module in any combination. The connector pins are each rated for a maximum current of 1000mA.
