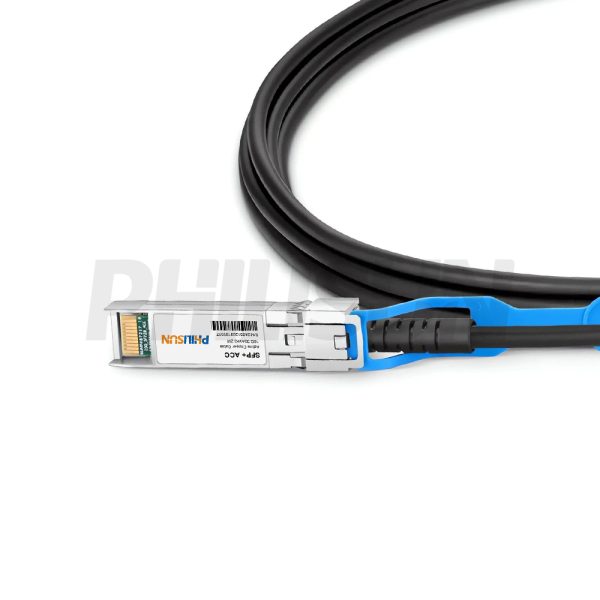

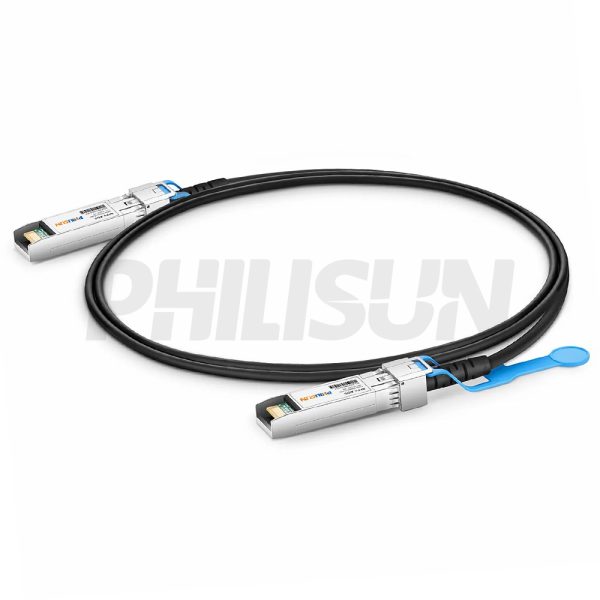

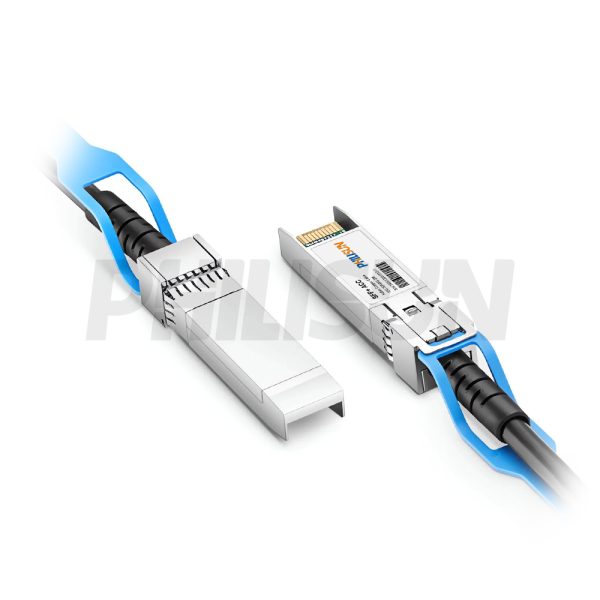

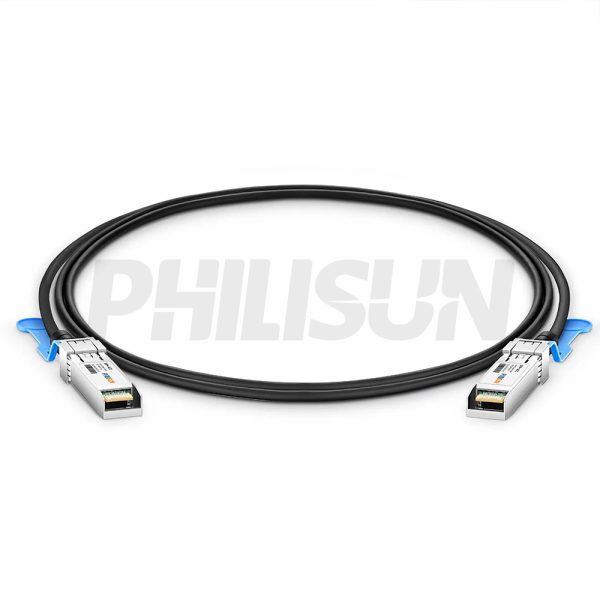

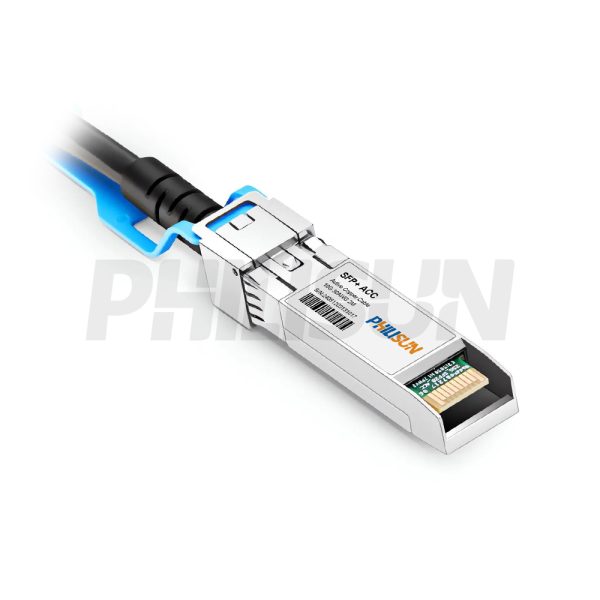

10G SFP+ to SFP+ Active Direct Attach Copper Twinax Cable (ACC)
Compliant with IEEE 802.3、SFF-8431、QSFP28 MSA standard
Switch to Switch
Switch to GPU
- High Quality
- Factory Outlet
- Satisfaction Guarantee
- Global Shipping
| SPECIFICATIONS | |||
|---|---|---|---|
| Cable End Connector A | SFP+ | Cable End Connector B | SFP+ |
| Jumper Type | Direct-Attach | Data Rate | 10G |
| Aggregate Bit Rate | 10.5Gbps | Lane Bit Rate | 10Gbps |
| Number of Channels | 1 | Single Channel Rate | 10G |
| Minimum Bend Radius | 5X Cable OD -Single, 10X Cable OD - Repeated | Factory Brand | PHILISUN |
| Attenuation | 24AWG:10dB/10m maximum 26AWG:10dB/8.5m maximum 28AWG:10dB/7m maximum 30AWG:8.4dB/5.5m maximum | Bit Error Rate | ≤10-12 |
| Shield | Braid/Foil | Wire AWG | 24AWG/26AWG/28AWG/30AWG |
| Cable Type | Active Twinax | Cable OD | 30AWG: 4.2mm 28AWG: 4.7mm 26AWG: 5.2mm 24AWG: 6.0mm |
| Cable Colour/Material | Black PVC(OFNR) | Cable Length Selection | 1-10 meter |
| Protocols | SFF-8472/SFF-8432/SFF-8431/SFP+ MSA 1x InfiniBand QDR, DDR, SDR 10 Gigabit Ethernet | Application Scenarios | 10 Gigabit Ethernet (10GbE) |
| Supply Voltage | 3.3V | Power Dissipation | <0.5W |
| Operating Temperature | 0 to 70℃ (32 to 158℉) | Storage Temperature | -40 to 85℃ (-40 to 185℉) |
PRODUCT PRESENTATION
The PHILISUN 10G SFP+ to SFP+ Active Copper Cable (ACC) is engineered to maintain low-latency aggregation while extending the reach of 10G copper connections beyond passive limits. Compliant with SFF-8431 and IEEE 802.3ae standards, this cable utilizes active twinax technology and integrated circuitry to ensure high signal integrity for reliable data transmission up to 10.3125 Gbps NRZ. Making it a critical, cost-effective alternative to optical solutions for extended distances, it is deployed in demanding enterprise environments for switch-to-switch stacking and high-performance server connectivity, supporting efficient, scalable 10G backbone architecture.
DAC SERIES PRODUCTS
PRODUCTION & TESTING EQUIPMENT
PERFORMANCE PARAMETER
| Absolute Maximum Ratings | |||||||||
| Parameter | Symbol | Min | Typ. | Max | Unit | ||||
| Standard Temperature | Tc | 0 | 25 | 70 | °C | ||||
| Storage Temperature | Ts | -5 | – | 85 | °C | ||||
| Relative Humidity | RH | 5 | – | 95 | % | ||||
| Supply Voltage | – | 3. 15 | 3.3 | 3.45 | V | ||||
| Data Rate Per Lane | – | 1 | 10.5 | – | Gbp/s | ||||
| Performance Specification | |||||||||
| Electrical | |||||||||
| Min. Dielectric Withstand Voltage | 300 VDC | ||||||||
| Insulation Resistance | 1000 Mohms | ||||||||
| Current Rating | 0.5 Amp Min/Signal Contact | ||||||||
| General | |||||||||
| Operating Temperature | 0 to 70 °C | ||||||||
| Flammability Rating | UL 94 V-0 | ||||||||
| Green Features | RoHS, Lead- Free | ||||||||
| Shield | Braid/Foil | ||||||||
| Marking | Mfg Name, Part#, Date Code | ||||||||
| Plug | |||||||||
| Backshell Material | Nickel- Plated Zinc Diecast | ||||||||
| Contact Material | PCB with Gold- Plated Pads | ||||||||
| Latch | Positive Latching w/Pull | ||||||||
| Insertion Force | 30N Max | ||||||||
| Withdrawal Force | 20N Max | ||||||||
| Retention Force | 90N Max | ||||||||
| Durability | 50 Cycles Min | ||||||||
| Cable | |||||||||
| Conductor | Solid | ||||||||
| Wire Gauge | AWG30, AWG28, AWG26, AWG24 | ||||||||
| Impedance | 100± 5 ohms | ||||||||
| Cable OD | AWG 30 :4.2 mm | ||||||||
| AWG 28 :4.7 mm | |||||||||
| AWG 26:5.2 mm | |||||||||
| AWG 24: 6.0 mm | |||||||||
| Jacket Type | PVC | ||||||||
| Bend Radius | 5X Cable OD | ||||||||
| Electrical Characteristics | |||||||||
| Test Type | Test Item | 24AWG | 26AWG | 28AWG | 30AWG | ||||
| Electrical Characteristics | Differential impedance | 100±5Ω | 100±5Ω | 100±5Ω | 100±5Ω | ||||
| – | Mutual capacitance | 14pF/ft nominal |
14pF/ft nominal |
14pF/ft nominal |
14pF/ft nominal |
||||
| – | Time delay | 1.31ns/ft nominal, (4.3 ns/m) nominal |
1.35ns/ft nominal |
1.35ns/ft nominal |
1.35ns/ft nominal, (4.3 ns/m) nominal |
||||
| – | Time delay skew(within pairs) | 80ps/10m maximum |
120ps/8.5m maximum |
120ps/7m maximum |
50ps/5.5m maximum | ||||
| – | Time delay skew(between pairs) | 350ps/10m maximum |
500ps/8.5m maximum |
500ps/7m maximum |
350ps/5.5m maximum |
||||
| – | Attenuation | 10dB/10m maximum @1.25Ghz |
10dB/8.5m maximum @1.25Ghz |
10dB/7m maximum @1.25Ghz |
8.4dB/5.5m maximum @1.25Ghz |
||||
| – | Conductor DC Resistance | 0.026Ω /ft maximum @20℃ |
0.04Ω/ft maximum @ 20℃ |
0.06Ω/ft maximum @20℃ |
0.01Ω/ft maximum @20℃ |
||||
| Physical Characteristics | Conductors (two pair) | 24AWG Solid, Silver plated copper |
26AWG Solid, Silver plated copper |
28AWG Solid, Silver plated copper |
30AWG Solid, Silver plated copper |
||||
| – | Insulation | Foam polyolefin |
Foam polyolefin |
Foam polyolefin |
Foam polyolefin |
||||
| – | Pair drain wire | 26AWG Solid, Silver plated copper |
28AWG Solid, Silver plated copper |
30AWG Solid, Silver plated copper |
30AWG Solid, Silver plated copper |
||||
| – | Overall cable shield | Aluminum/ polyester tape, 125% coverage, Tin plated copper braid, 38AWG, 85% coverage |
Aluminum/ polyester tape, 125% coverage, Tin plated copper braid, 38AWG, 85% coverage |
Aluminum/ polyester tape, 125% coverage, Tin plated copper braid, 38AWG, 85% coverage |
Aluminum/ polyester tape, 125% coverage, Tin plated copper braid, 38AWG, 85% coverage |
||||
| – | Outer diameter | 6.0 mm | 5.2 mm | 4.7 mm | 4.2 mm | ||||
| Pin Designation | |||||||||
| Pin | Logic | Symbol | Name/Description | Notes | |||||
| 1 | – | VeeT | Transmitter Ground | – | |||||
| 2 | LV-TTL-O | TX_ Fault | N/A | 1 | |||||
| 3 | LV-TTL- I | TX_ DIS | Transmitter Disable | – | |||||
| 4 | LV-TTL- I/O | SDA | Tow Wire Serial Data 5 LV | – | |||||
| 5 | LV-TTL- I | SCL | Tow Wire Serial Clock | – | |||||
| 6 | – | MOD_ DEF0 | Module present, connect to VeeT | – | |||||
| 7 | LV-TTL- I | RS0 | N/A | 1 | |||||
| 8 | LV-TTL-O | LOS | LOS of Signal | – | |||||
| 9 | LV-TTL- I | RS1 | N/A | 1 | |||||
| 10 | – | VeeR | Receiver Ground | – | |||||
| 11 | – | VeeR | Receiver Ground | – | |||||
| 12 | CML-O | RD- | Receiver Data Inverted | – | |||||
| 13 | CML-O | RD+ | Receiver Data Non- Inverted | – | |||||
| 14 | – | VeeR | Receiver Ground | – | |||||
| 15 | – | VccR | Receiver Supply 3.3V | – | |||||
| 16 | – | VccT | Transmitter Supply 3.3V | – | |||||
| 17 | – | VeeT | Transmitter Ground | – | |||||
| 18 | CML- I | TD+ | Transmitter Data Non- Inverted | – | |||||
| 19 | CML- I | TD- | Transmitter Data Inverted | – | |||||
| 20 | – | VeeT | Transmitter Ground | – | |||||
