10G SFP+ to SFP+ Active Optical Cable (AOC)

SPECIFICATIONS
Cable End Connector A	SFP+	Cable End Connector B	SFP+
Jumper Type	Direct-Attach	Data Rate	10G
Aggregate Bit Rate	10.3125Gbps	Lane Bit Rate	10Gbps
Number of Channels	1	Single Channel Rate	10G
Array Transmitter	VSCEL	Array Receiver	PIN
Minimum Bend Radius	30mm	Factory Brand	PHILISUN
Center(Operating) Wavelength	850nm	Bit Error Rate	≤10-12
Fiber Type	OM3 MMF MAX 300m	Cable Colour	Aqua
Cable Material	LSZH/OFNP	Cable Length Selection	1-300 meter
Safety Certification	TUV/UL/FDA	Application Scenarios	10 Gigabit Ethernet (10GbE)
Protocols	SFF-8636/SFF-8431/SFP MSA 10 Gigabit Ethernet 1x InfiniBand QDR, DDR, SDR	DDMI(Commercial)	YES
Supply Voltage	3.3V	Power Dissipation	<0.8W
Operating Temperature	0 to 70℃ (32 to 158℉)	Storage Temperature	-40 to 85℃ (-40to185℉)

PRODUCT PRESENTATION

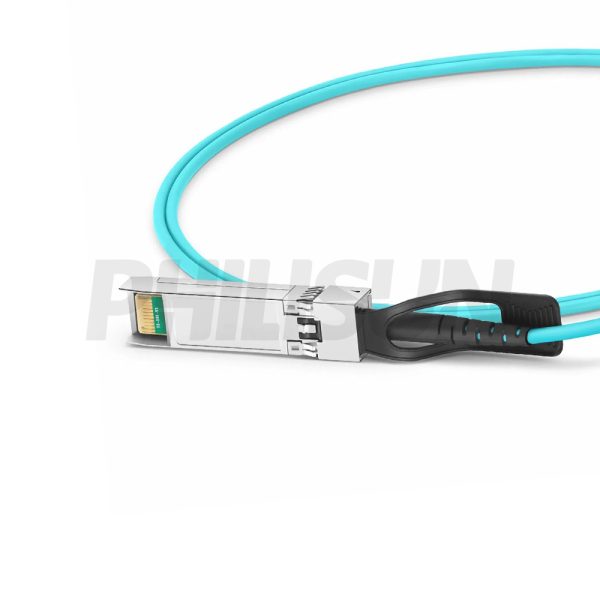

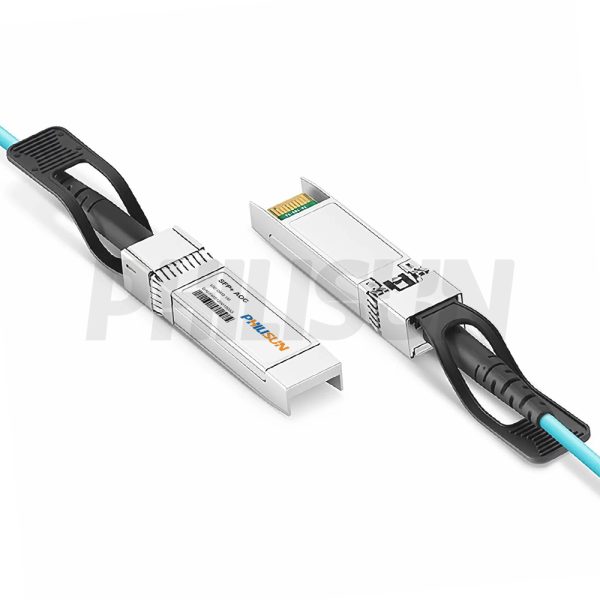

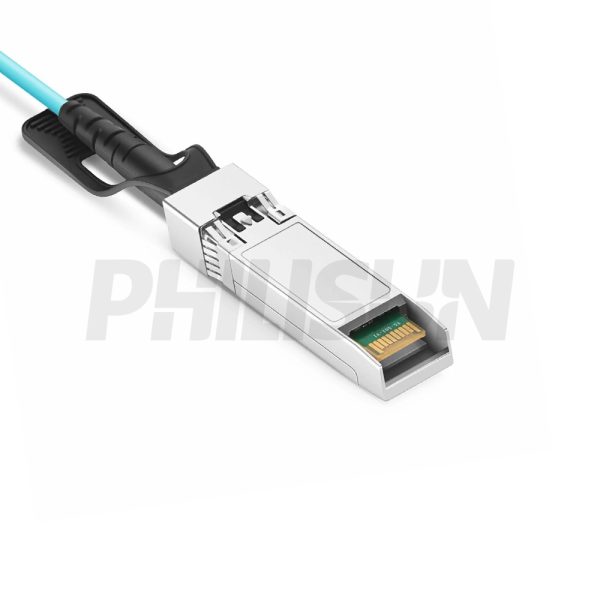

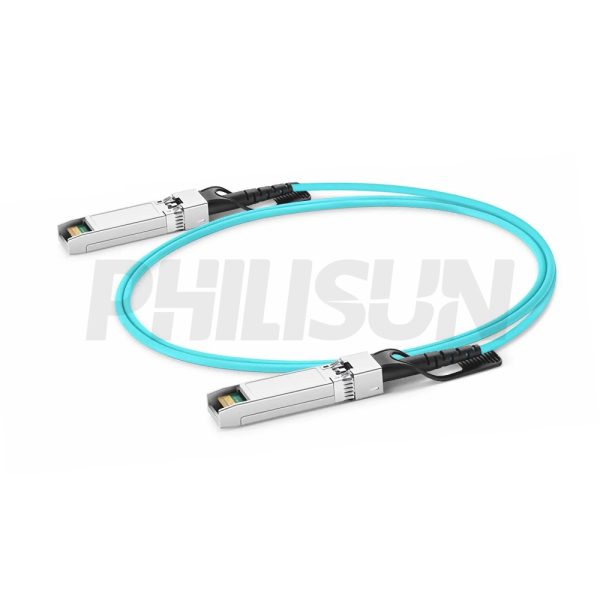

The PHILISUN SFP+(10G) Active Optical Cable is a direct-attach fiber assembly utilizing SFP+ connectors and the Multi-Mode Fiber (MMF) scheme. The product complies with the SFF-8431 MSA standard and is suitable for 10Gbps connections within racks and across adjacent racks. It uses OM3 Multimode Fiber. Its compact structure and fully sealed integrated optics reduce costs compared to conventional optical modules and jumpers, while significantly improving reliability and reducing maintenance. This AOC guarantees broad compatibility with major vendor platforms including Cisco, H3C, Huawei, Juniper, and Arista, and more.

AOC SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

PERFORMANCE PARAMETER

Absolute Maximum Ratings
Parameter	Symbol	Min	Typ.	Max	Unit	Notes
Operating Case Temperature	Tc	0	25	70	℃	–
Ambient Humidity	HA	5	–	85	%	1
+3.3V Supply Voltage	V CC3	3.135	3.3	3.465	V	–
+3.3V Supply Current	IVCC3	–	–	300	mA	–
Total Power Dissipation	PD	–	–	1	W	–
Input Control Voltage – High	ViH	2	–	Vcc+0.3	V	2
Input Control Voltage – Low	ViL	-0.3	–	0.8	V	2
Digital Output Voltag – High	VoH	2	–	Vcc+0.3	–	3
Digital Output Voltage – Low	VoL	0	–	0.8	–	3
Clock Rate-I2C	–	–	–	400	kHz	4
Notes: 1. Non-condensing. 2. For all control input pins: TX_DISABLE. 3. For all status output pins: RX_LOS, TX_FAULT. 4. For management interface.

SFP+ AOC Specifications
Parameter	Value	Units	Notes
Module Form Factor	SFP+	–	Supports SFF8431/SFF8432/SFF8472
Data rate per lane	From 1 to 10.3125	Gbps	No retimer or CDR devices embedded in the module.Allows operation at data-rates below 10.3125 Gbps
Protocols	1 GbE,10GbE 1/2/4/8 GFC SDR/DDR QDR	–	Ethernet, Fibre Channel, InfiniBand, Other Protocols,and Proprietary Data-rates as well
Bit Error Rate Performance	1.00E-15	–	–
Management Interface	Two-Wire Serial	–	Memory Map access Page A0h only per SFF-8472 Revision 11.0
Laser Output Power	Class 1	–	EN 60825-1 2007, EN 60825-2 A2 2010
Power consumption per end	275	mW	Nominal Power
Mechanical Specification	–	–	Mechanical specifications per SFF Committee SFF- 8432 Improved Pluggable Formfactor“IPF” Can be installed in any INF-8074 or SFF-8431/2 compliant Small Form Pluggable (SFP) port
Electrical Interface	20	pins	SFF Committee SFF 8431 Specifications for Enhanced 8.5 and 10 Gigabit Small Form Factor Pluggable Module“SFP+”

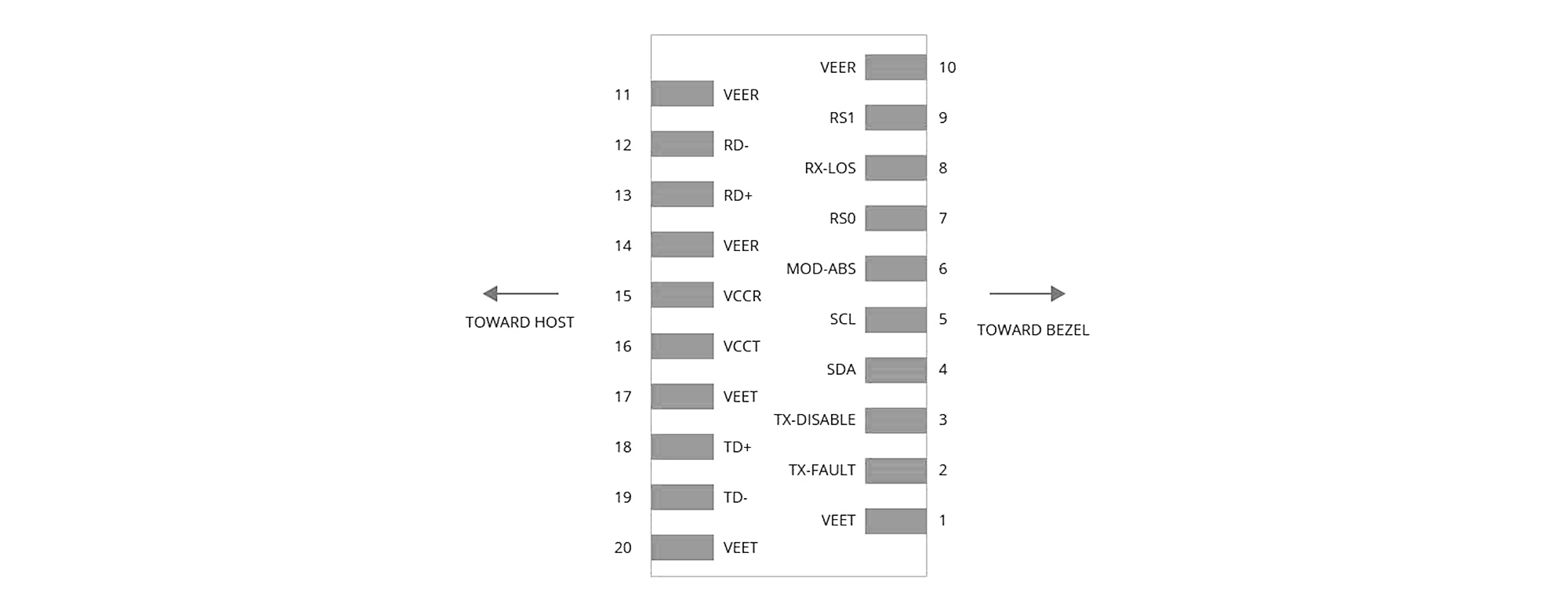

Pin	Logic	Symbol	Name/Description	Notes
1	–	VeeT	Module Transmitter Ground	1
2	LVTTL-O	TX_Fault	Module Transmitter Fault	2
3	LVTTL-I	TX_Disable	Transmitter Disable; Turns off transmitter laser output	3
4	LVTTL-I/O	SDA	2- write Serial Interface Data Line	–
5	LVTTL-I/O	SCL	2- write Serial Interface Clock	–
6	–	MOD_ABS	Module Absent, connected to VeeT or VeeR in the module	4
7	LVTTL-I	RS0	Not Implement	–
8	LVTTL-O	RX_LOS	Receiver Loss of Signal Indication	2
9	LVTTL-I	RS1	Not Implement	–
10	–	VeeR	Module Receiver Ground	1
11	–	VeeR	Module Receiver Ground	1
12	CML-O	RD-	Receiver Inverted Data Output	–
13	CML-O	RD+	Receiver Non-Inverter Data Output	–
14	–	VeeR	Module Receiver Ground	1
15	–	VccR	Module Receiver 3.3V Supply	–
16	–	VccT	Module Transmitter 3.3V Supply	–
17	–	VeeT	Module Transmitter Ground	1
18	CML-I	TD+	Transmitter Non-Inverted Data Input	–
19	CML-I	TD-	Transmitter Inverted Data Input	–
20	–	VeeT	Module Transmitter Ground	1
Notes: 1. The module signal ground pins, VeeR and VeeT, shall be isolated from the module case.2. This pin is an open collector/drain output pin and shall be pulled up with 4.7kΩ-10kΩ to Host_Vcc on the host board. Pull ups can be connected to multiple power supplies, however the host board design shall ensure that no module pin has voltage exceeding module VccT/R + 0.5V.3. This pin is an open collector/drain input pin and shall be pulled up with 4.7kΩ-10kΩ to VccT in the Module. 4. This pin shall be pulled up with 4.7kΩ-10kΩ to Host_Vcc on the host board.

Optical Characteristics
Parameter	Symbol	Min	Typ.	Max	Unit	Notes
Transmitter
Center Wavelength	λt	840	850	860	nm	–
RMS spettral width	Pm	–	–	Note 1	nm	–
Average Optical Power	Pavg	-6.5	–	-1	dBm	Note 2
Extinction Ratio	ER	3.5	–	–	dB	Note 3
Transmitter Dispersion Penalty	TDP	–	–	3.9	dB	–
Relative Intensity Noise	Rin	–	–	-128	dB/Hz	12dB reflection
Optical Return Loss Tolerance	–	–	–	12	dB	–
Receiver
Center Wavelength	λr	840	850	860	nm	–
Receiver Sensitivity	Psens	–	–	-11.1	dBm	Note 4
Stressed Sensitivity in OMA	–	–	–	-7.5	dBm	Note 4
Los function	Los	-30	–	-12	dBm	–
Overload	Pin	–	–	-1	dBm	Note 4
Receiver Reflectance	–	–	–	-12	dB	–
Notes: 1. Trade-offs are available between spectral width, center wavelength and minimum OMA, as shown in the table. 2. The optical power is launched into MMF. 3. Measured with a PRBS 231-1 test pattern @10.3125Gbps. 4. Measured with a PRBS 231-1 test pattern @10.3125Gbps, BER≤10-12.
