100G SFP-DD to SFP-DD Active Optical Cable (AOC)

SPECIFICATIONS
Cable End Connector A	SFP+	Cable End Connector B	SFP+
Jumper Type	Direct-Attach	Data Rate	10G
Aggregate Bit Rate	10.3125Gbps	Lane Bit Rate	10Gbps
Number of Channels	1	Single Channel Rate	10G
Array Transmitter	VSCEL	Array Receiver	PIN
Minimum Bend Radius	30mm	Factory Brand	PHILISUN
Center(Operating) Wavelength	850nm	Bit Error Rate	≤10-12
Fiber Type	OM3 MMF MAX 300m	Cable Colour	Aqua
Cable Material	LSZH/OFNP	Cable Length Selection	1-300 meter
Safety Certification	TUV/UL/FDA	Application Scenarios	10 Gigabit Ethernet (10GbE)
Protocols	SFF-8636/SFF-8431/SFP MSA 10 Gigabit Ethernet 1x InfiniBand QDR, DDR, SDR	DDMI(Commercial)	YES
Supply Voltage	3.3V	Power Dissipation	<0.8W
Operating Temperature	0 to 70℃ (32 to 158℉)	Storage Temperature	-40 to 85℃ (-40to185℉)

PRODUCT PRESENTATION

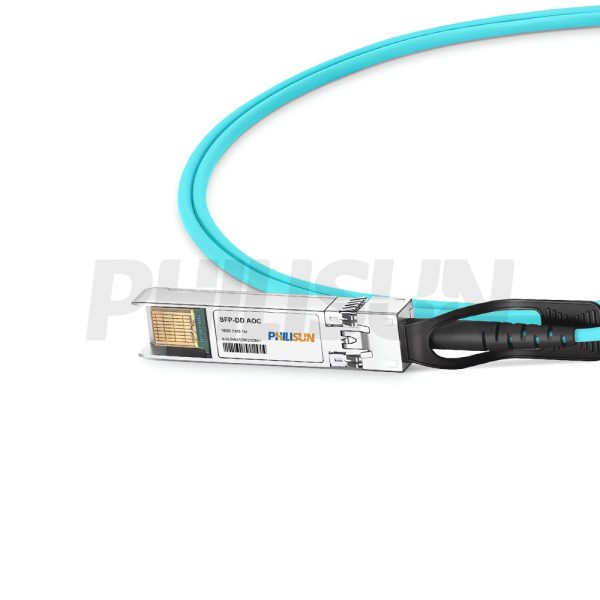

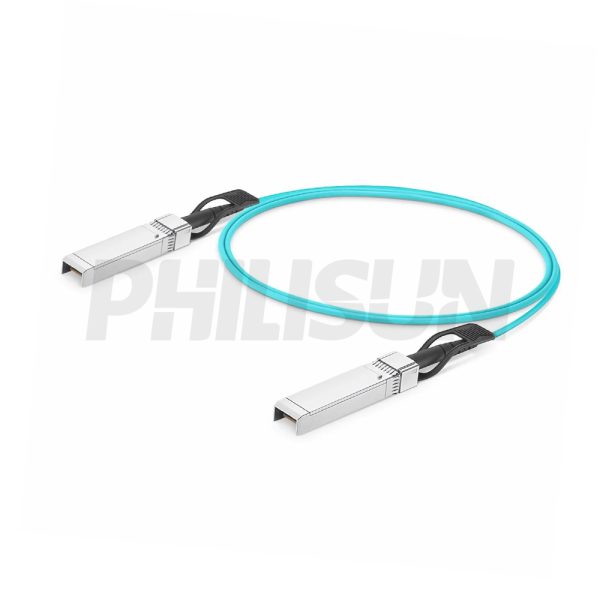

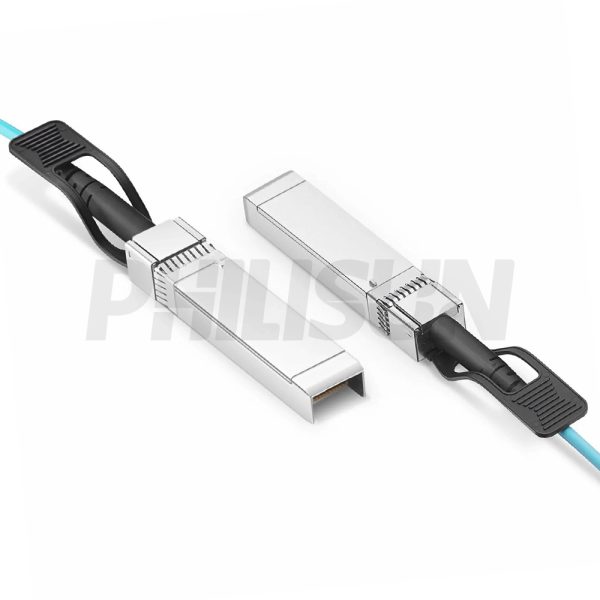

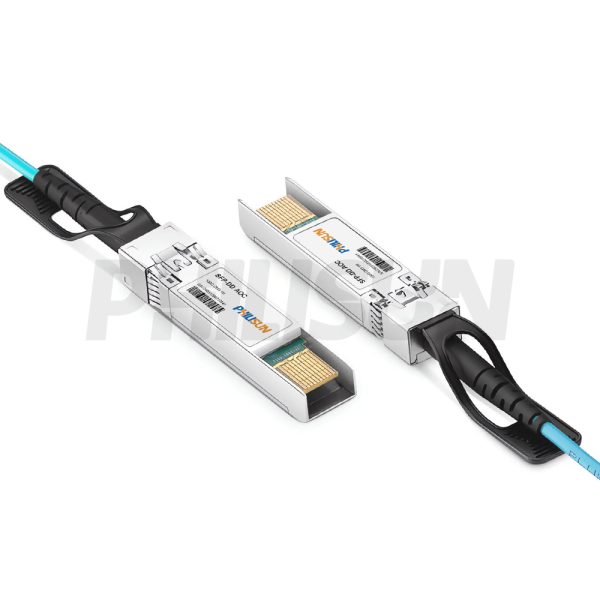

The PHILISUN SFP-DD(100G) Active Optical Cable is a direct-attach fiber assembly utilizing SFP-DD connectors and the Multi-Mode Fiber (MMF) scheme. The product complies with the SFF-8431 MSA standard and is suitable for 100Gbps connections within racks and across adjacent racks. It uses OM3/OM4 Multimode Fiber. Its compact structure and fully sealed integrated optics reduce costs compared to conventional optical modules and jumpers, while significantly improving reliability and reducing maintenance. This AOC guarantees broad compatibility with major vendor platforms including Cisco, H3C, Huawei, Juniper, and Arista, and more.

AOC SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

PERFORMANCE PARAMETER

Absolute Maximum Ratings
Parameters	Symbol	Min.	Max.	Unit
Power Supply Voltage	VCC	-0.5	+3.6	V
Storage Temperature	Tc	-40	+85	℃
Relative Humidity	RH	0	85	%

Recommended Operating Conditions
Parameter	Symbol	Min	Typical	Max	Unit
Supply Voltage	VCC	3.15	3.3	3.45	V
Supply current	Icc	–	–	1060	mA
Operating Case Temperature(Standard)	Tca	0	–	70	ºC
Data Rate per lane	DR	–	53.125	–	Gbps
Fiber Bend Radius	Rb	3	–	–	cm
Notes: 1. Supply current is shared between VccT ，VccR ，VccT1 and VccR1 2. In-rush is defined as current level above steady state current requirements.

Transmitter Specifications
Parameter	Symbol	Min	Typical	Max	Unit
Input differential impedance	Rin	–	100	–	Ω
Differential Data Input Swing	Vin	300	–	1100	mV
Transmit Disable Voltage	VD	2.0	–	VCC+0.3	V
Transmit Enable Voltage	Ven	Vee	–	Vee+0.8	V

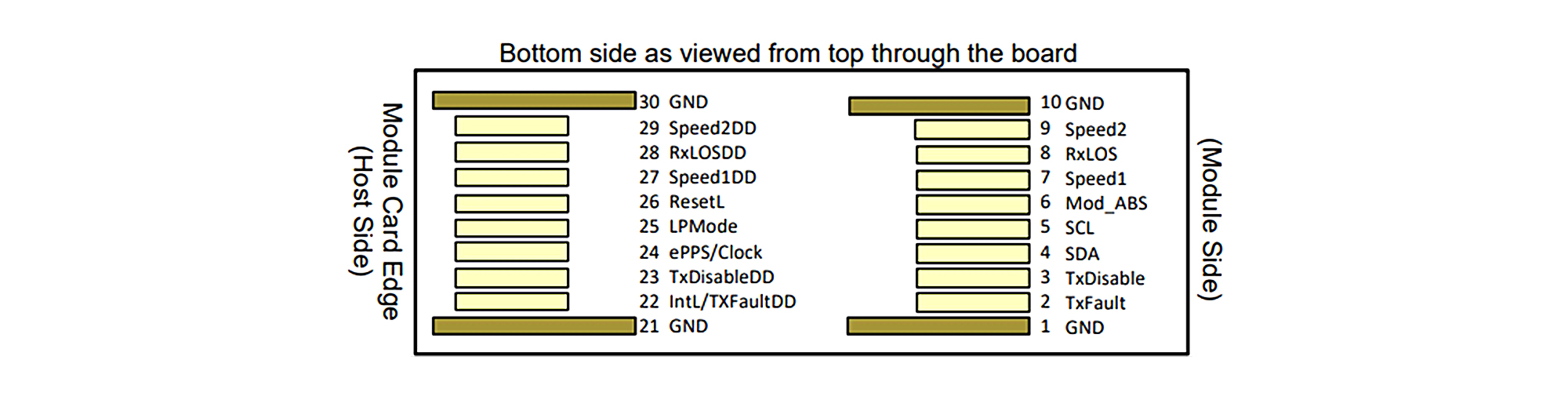

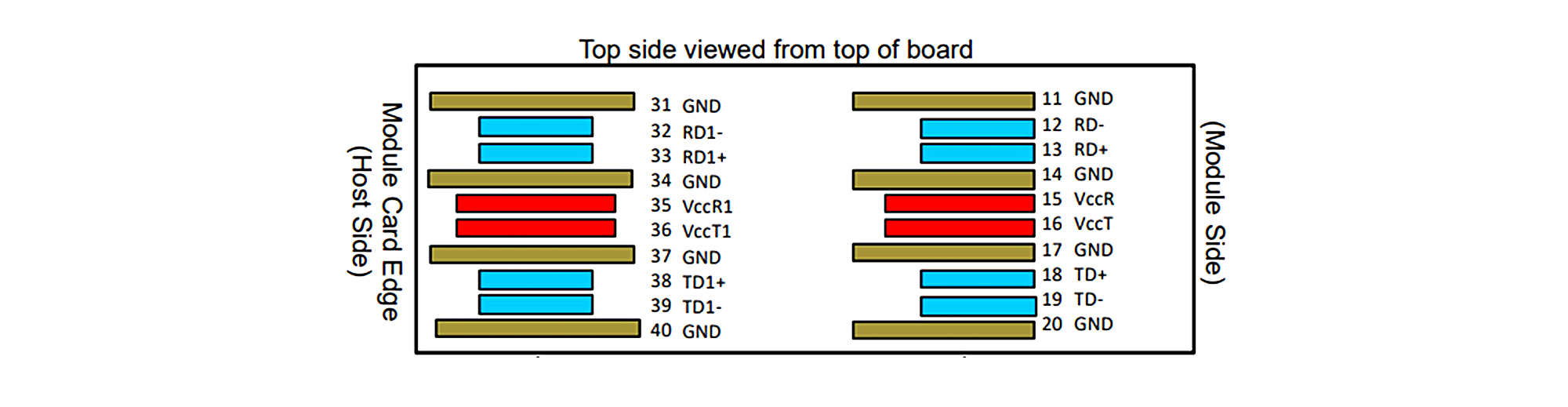

Pin	Symbol	Name/Description
1	GND	Ground
2	TxFault	Transmitter Fault
3	TxDisable	Transmitter Disable for classic SFP channel
4	SDA	2-wire Serial Interface Data Line
5	SCL	2-wire Serial Interface Clock Line
6	Mod_ABS	Module Absent. Grounded within the module
7	Speed1	Rx Rate Select for classic SFP channel
8	RxLOS	SFP channel Loss of Signal indication. Logic 0 indicates normal operation
9	Speed2	Tx Rate Select for classic SFP channel
10	GND	Ground
11	GND	Ground
12	RD0-	Receiver Inverted DATA out for classic SFP+ channel. AC Coupled
13	RD0+	Receiver DATA out for classic SFP+ channel. AC Coupled
14	GND	Ground
15	VccR	Receiver Power Supply
16	VccT	Transmitter Power Supply
17	GND	Ground
18	TD0+	Transmitter DATA in for classic SFP+ channel. AC Coupled
19	TD0-	Transmitter Inverted DATA in for classic SFP+ channel. AC Coupled
20	GND	Ground
21	GND	Ground
22	IntL/ TxFaultDD	Interrupt: optionally configured as TxFaultDD via TWI as described in the SFP-DD MIS
23	TxDisableDD	Transmitter Disable for DD channel
24	ePPS/Clock	Precision Time Protocol (PTP) reference clock input
25	LPMode	Low Power Mode Control
26	ResetL	Module Reset
27	Speed1DD	Rx Rate Select for DD channel
28	RxLOSDD	SFP DD channel Loss of Signal indication. Logic 0 indicates normal operation
29	Speed2DD	Tx Rate Select for DD channel
30	GND	Ground
31	GND	Ground
32	RD1-	Receiver Inverted DATA out for DD channel. AC Coupled
33	RD1+	Receiver DATA out for DD channel. AC Coupled
34	GND	Ground
35	VccR1	Receiver Power for DD channel
36	VccT1	Transmitter Power for DD channel
37	GND	Ground
38	TD1+	Transmitter DATA in for DD channel. AC Coupled
39	TD1-	Transmitter Inverted DATA in for DD channel. AC Coupled
40	GND	Ground

Receiver Specifications
Parameter	Symbol	Min	Typical	Max	Unit
Differential Data Output Swing	Vout	300	–	900	mV
Bit Error Rate	BER	–	–	2.4E-4	–
Output Differential Impedance	Rout	–	100	–	Ω
Loss of Signal -Asserted	–	2.0	–	VCC+0.3	V
Loss of Signal -Negated	–	Vee	–	Vee+0.8	V
Note： 1. BER=2.4E-4; PRBS31Q@26.5625GBd. Pre-FEC
