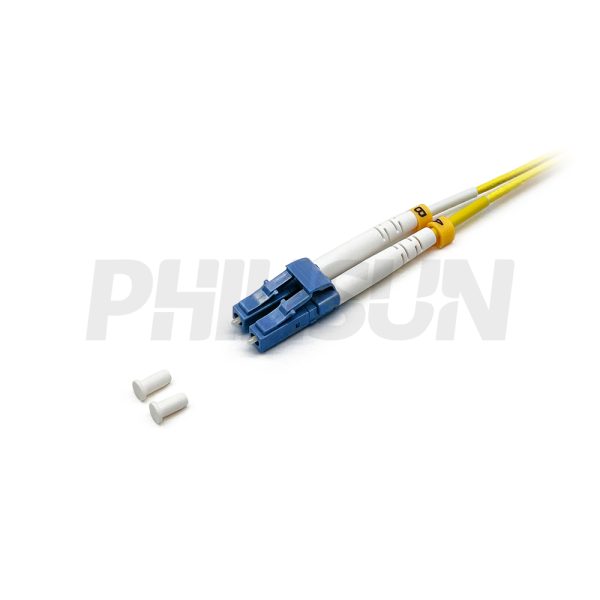

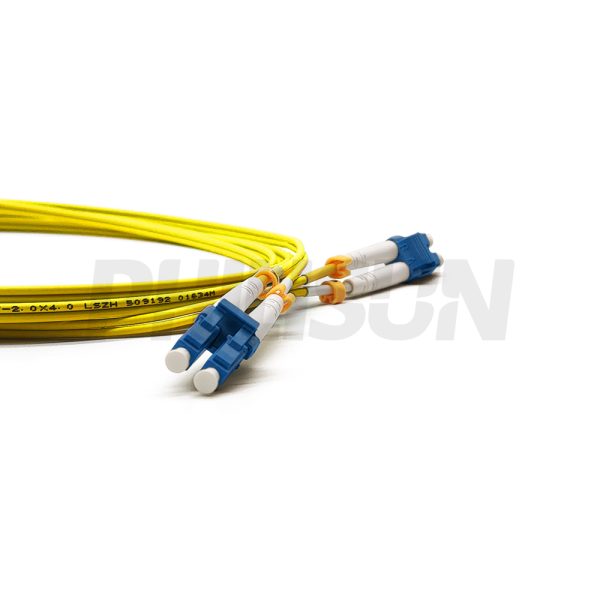

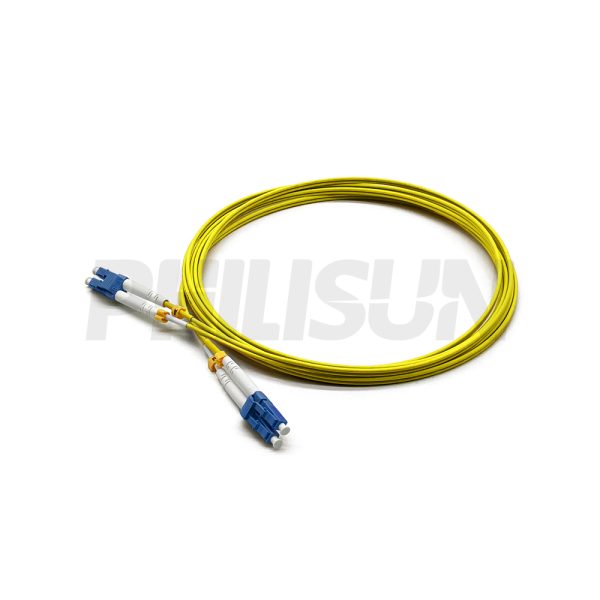

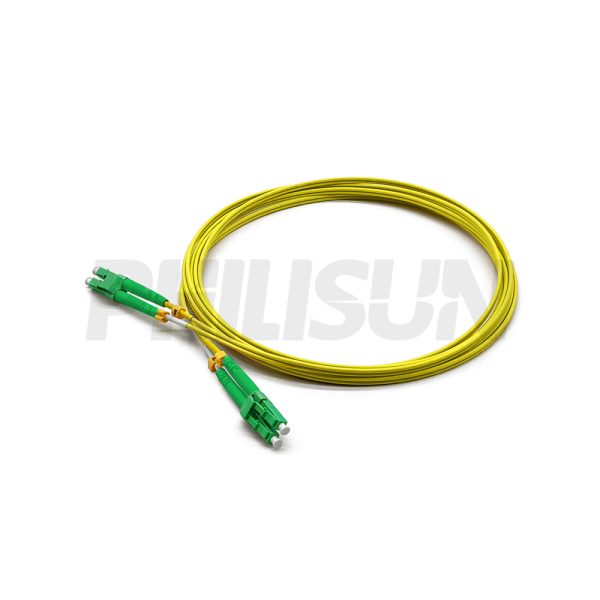

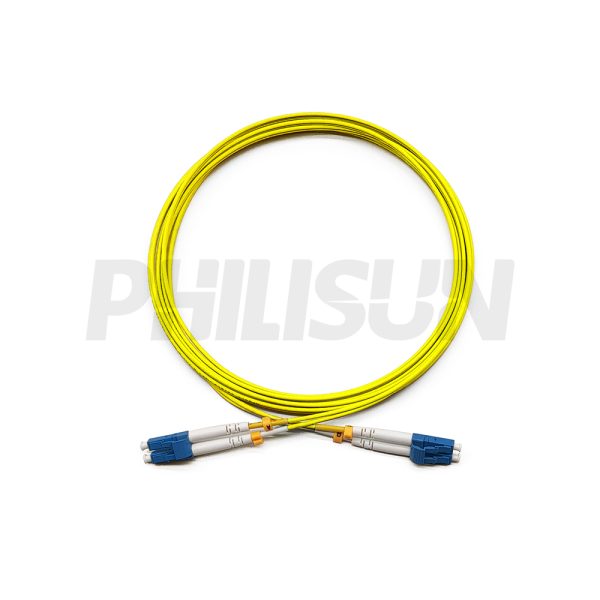

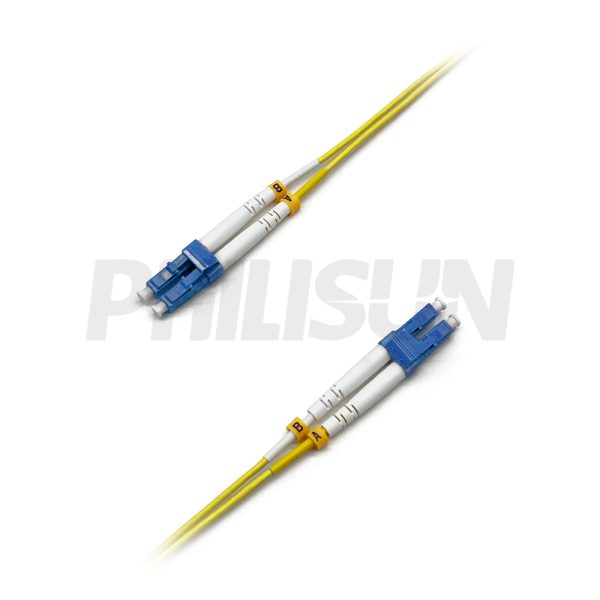

Fiber Optic Patch Cable, 2 Fibers, LC UPC/APC Duplex to LC UPC/APC Duplex, OS2 Singlemode, Yellow
1G/10G/25G/40G/100G/400G Ethernet
100G/200G/400G/800G/1.6T InfiniBand
- High Quality
- Factory Outlet
- Satisfaction Guarantee
- Global Shipping
| SPECIFICATIONS | |||
|---|---|---|---|
| Connector A | LC | Fiber Count | Duplex |
| Fiber Type | SM OS2 | Polish Type | UPC or APC |
| Ferrule Type | Grade A zirconia ceramic ferrule | Boot Type | Standard Boot/Short Boot/45°Boot/90°Boot |
| Connector Color | Blue/Green | RL | ≥50dB(UPC)≥60dB(APC) |
| IL | ≤0.3dB | Interchangeability | ≤0.2dB |
| Repeatability | ≤0.2dB | Working Wavelength | 1310/1550(SM) |
| Matching Cable Outer Diameter | 2.0/3.0mm | Cable Color | Yellow |
| Cable Material | PVC/LSZH/TPU or customized | Flame Retardant Grade | OFN/OFNR/OFNP |
| Fiber Brand | Corning/YOFC | Fiber Loss | 0.35db@1310nm/0.2dB@1550nm |
| Min.bending Radius(short term) | 10D | Min.bending Radius(long term) | 20D |
| Operating Temperature | -10 to 70℃ (14 to 158℉) | Durability | ≥500 times |
| Storage Temperature | -40 to 85℃ (-40 to 185℉) | ||
PRODUCT PRESENTATION
This LC to LC OS2 Singlemode Duplex Fiber Patch Cable provides vital interconnect and cross-connect for applications over data centers, telecommunication networks, and enterprise environments. As a pre-terminated cable, it enables a complete Plug & Play solution for rapid installation of large cabling systems. It utilizes bend-insensitive fiber which has less attenuation when bent or twisted compared with traditional cable, making installation and maintenance more efficient. This cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections and 100G/200G/400G/800G/1.6T InfiniBand connections, offering low signal attenuation and high bandwidth for long-distance transmission.
PATCH CORD & PIGTAIL SERIES PRODUCTS

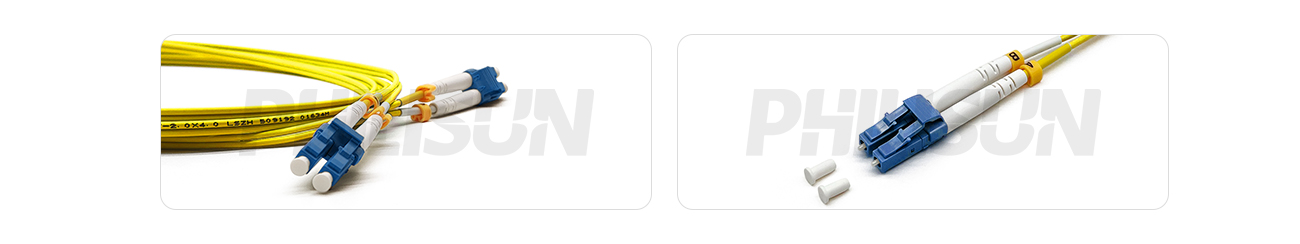

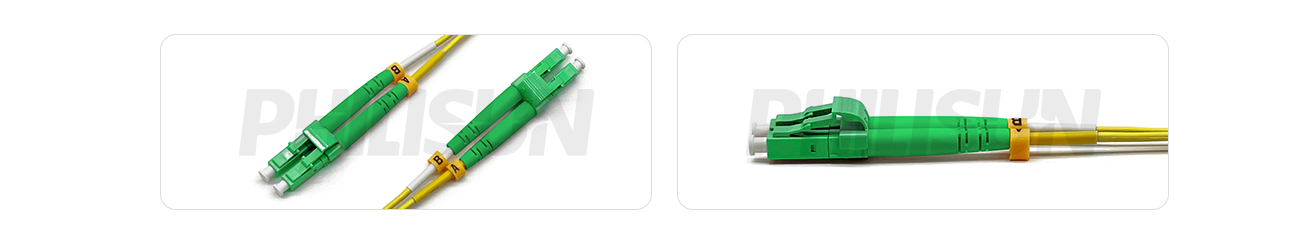

LC CONNECTOR

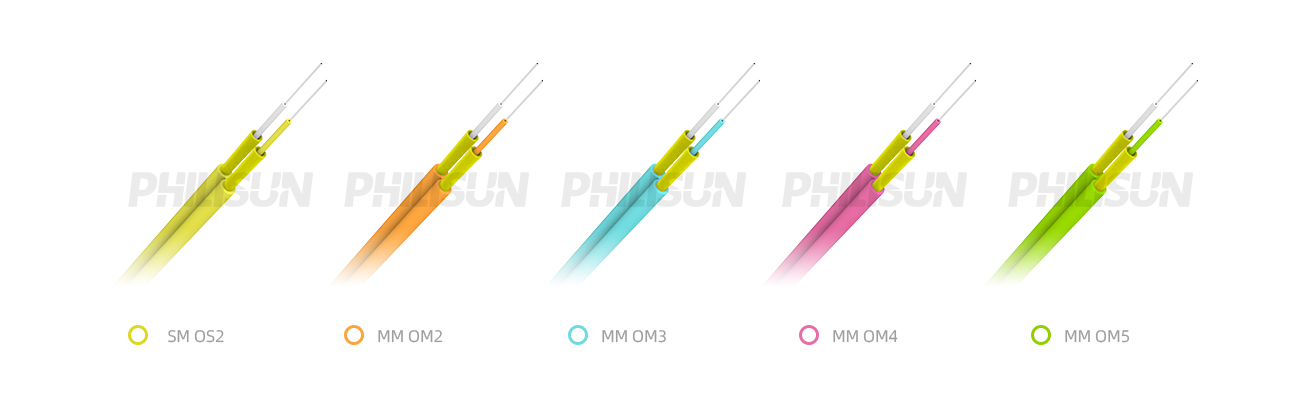

FIBER OPTIC CABLE TYPE

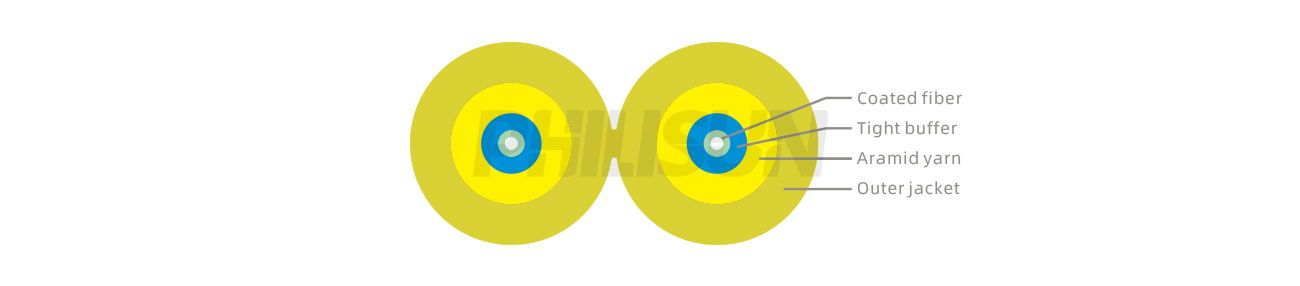

FIBER OPTIC CABLE STRUCTURE & PARAMETER
| Cable Parameter | |||
|---|---|---|---|
| Items | Specifications | ||
| Fiber Count | 2 | ||
| Tight/Loose buffer | Diameter | 0.85mm±0.05mm | |
| Material | PVC/LSZH | ||
| Color | White or customized | ||
| Jacket | Diameter | (1.9mm±0.1mm)×(3.9mm±0.2mm) | (2.9mm±0.1mm)×(5.9mm±0.2mm) |
| Material | PVC/LSZH | ||
| Color | Blue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua | ||
| Mechanical Performance | ||
|---|---|---|
| Items | Specifications | |
| Fiber Count | 2 | |
| Tension（Long Term）/ N | 90（Diameter 2.0mm） | 160（Diameter 3.0mm） |
| Tension（Short Term）/ N | 150（Diameter 2.0mm） | 300（Diameter 3.0mm） |
| Crush（Long Term）/ N/10cm | 200 | |
| Crush（Short Term）/ N/10cm | 1000 | |
| Min. Bend Radius（Dynamic）/mm | 50 | |
| Min. Bend Radius（Static）/mm | 30 | |
| Operating Temperature/℃ | -20～+60 | |
| Storage Temperature/℃ | -20～+60 | |
FIBER PARAMETER
| SM Fiber Parameter | ||||||||
|---|---|---|---|---|---|---|---|---|
| Items | Unit | G.652D | G.657A1 | G.657A2 | ||||
| Mode Field Diameter | 1310nm | μm | 9.1±0.4 | 8.8±0.4 | 8.8±0.4 | |||
| 1550nm | μm | 10.4±0.5 | 9.8±0.5 | 9.8±0.5 | ||||
| Cladding Diameter | μm | 125±1 | 125±0.7 | 125±0.7 | ||||
| Cladding Non-Circularity | % | ≤1 | ≤0.7 | ≤0.7 | ||||
| Core-Cladding Concentricity Error | μm | ≤0.6 | ≤0.5 | ≤0.5 | ||||
| Coating Diameter | μm | 245±7 | 245±5 | 245±5 | ||||
| Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ||||
| Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 | ||||
| Cable Cutoff Wavelength | nm | λcc≤1260 | λcc≤1260 | λcc≤1260 | ||||
| Cable Attenuation Coefficient | 1310nm | dB/km | ≤0.4 | ≤0.4 | ≤0.4 | |||
| 1550nm | dB/km | ≤0.3 | ≤0.3 | ≤0.3 | ||||
| MM Fiber Parameter | ||||||||
|---|---|---|---|---|---|---|---|---|
| Items | unit | 62.5/125 | 50/125 | OM3-150 | OM3-300 | OM4 | ||
| Core Diameter | μm | 62.5±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | ||
| Cladding Diameter | μm | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | ||
| Core Non-Circularity | % | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ||
| Cladding Non-Circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ||
| Core-Cladding Concentricity Error | μm | ≤1.5 | ≤1.5 | ≤1.0 | ≤1.0 | ≤1.0 | ||
| Coating Diameter | μm | 245±7 | 245±7 | 245±7 | 245±7 | 245±7 | ||
| Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ||
| Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ||
| OFL Bandwidth | 850nm | MHz·km | ≥160 | ≥500 | ≥700 | ≥1500 | ≥3500 | |
| 1300nm | MHz·km | ≥500 | ≥500 | ≥500 | ≥500 | ≥500 | ||
| Cable Attenuation Coefficient | 850nm | dB/km | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | |
| 1300nm | dB/km | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ||
PRODUCT CERTIFICATION
QUALITY ADVANTAGE
CONFIGURATION INFORMATION
