In the world of optical communication, fiber connectors play a crucial role — they form the physical interface that enables high-speed light transmission between fiber cables and equipment. From data centers and telecom networks to enterprise systems and industrial automation, the type of connector you choose can affect network performance, scalability, and maintenance efficiency.
As modern networks demand faster speeds and denser connections, understanding different fiber connector types — such as LC, SC, ST, FC, and MPO connectors — becomes essential. In this guide, PHILISUN, a trusted provider of fiber optic connectivity solutions, offers an in-depth overview to help professionals and network planners make informed decisions when designing or upgrading their optical systems.
What Is a Fiber Optic Connector?
A fiber optic connector is a mechanical device designed to precisely align and join the ends of optical fibers. Its primary function is to ensure that light signals pass through the connection point with minimal reflection and signal loss (insertion loss).
Each connector consists of three main parts:
- Ferrule: Holds the fiber in place and aligns it precisely.
- Connector body: Provides structural support and a coupling mechanism.
- Coupling device: Ensures the connectors fit securely in adapters or transceivers.
The connector design directly impacts factors like insertion loss, return loss, density, and durability, which are vital for maintaining stable, high-performance optical links.
How Fiber Connectors Work
Fiber connectors terminate the end of a fiber optic cable, aligning the tiny fiber cores (often just 9 μm or 50 μm wide) so that light passes cleanly between them. High-quality connectors minimize air gaps and misalignment, which can cause reflection and attenuation.
In modern data and telecom networks, fiber connectors are typically polished into different geometries — such as UPC (Ultra Physical Contact) and APC (Angled Physical Contact) — to optimize performance. APC connectors, for instance, feature an 8° angle that reduces back reflection, making them ideal for high-precision applications like FTTH and CATV.
Common Fiber Connector Types

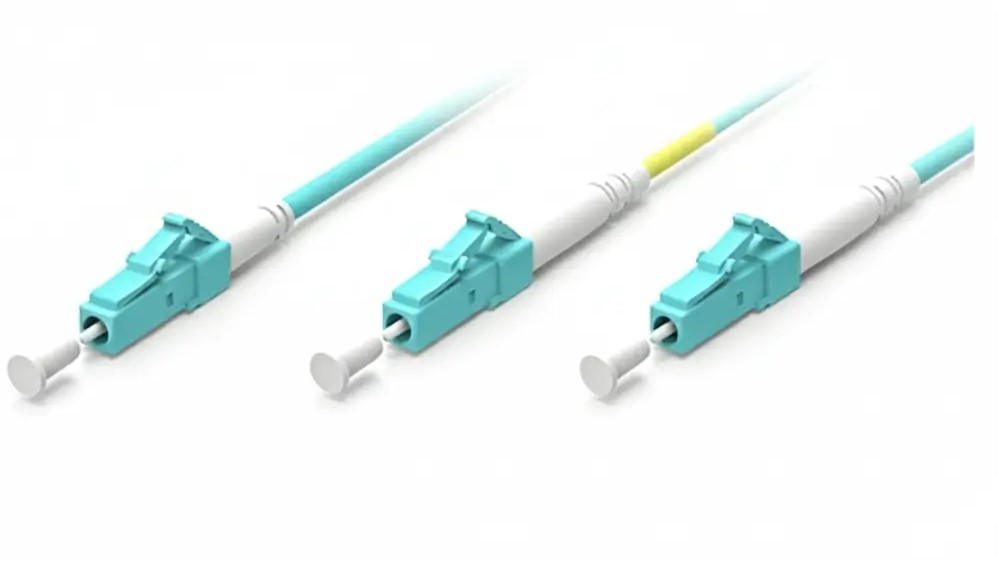

LC Fiber Connector
The LC (Lucent Connector), also known as the Little Connector, is one of the most common interfaces used in high-density optical applications today. It features a 1.25 mm ferrule — half the size of traditional connectors — allowing for compact, space-saving designs.
LC connectors use a push-pull latch mechanism, providing secure connections with easy handling. They deliver low insertion loss and are suitable for both single-mode and multimode fibers, making them a top choice for data centers, telecom systems, and transceiver modules (SFP/QSFP).
Its small form factor and precise alignment make the LC connector the modern standard for next-generation networking, where density and performance go hand in hand.

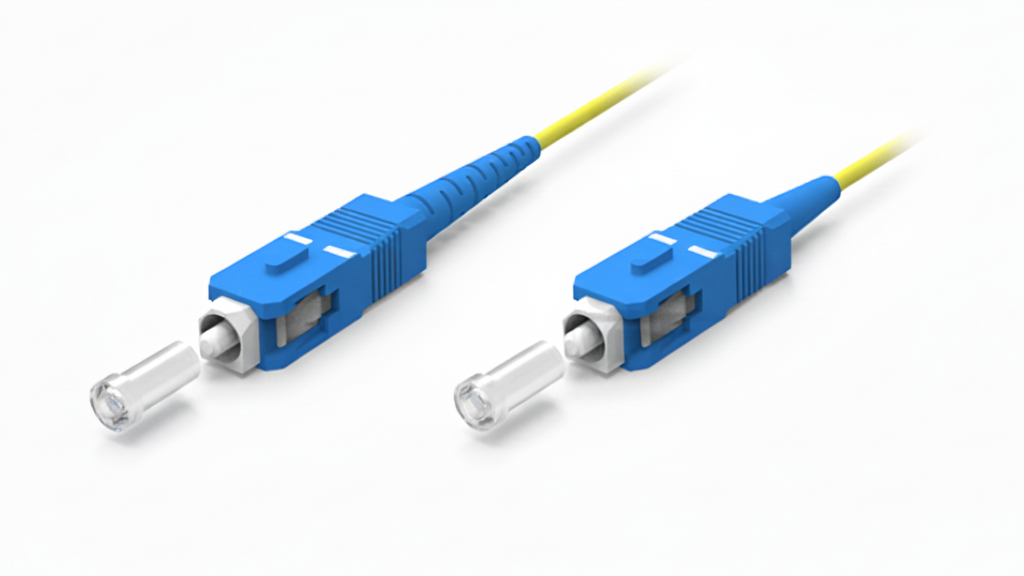

SC Fiber Connector
The SC (Subscriber Connector), developed by NTT, was one of the earliest push-pull connectors to gain widespread use. It features a 2.5 mm ferrule housed in a square plastic body and locks into place with a snap-in mechanism.
Reliable, affordable, and simple to use, SC connectors are frequently used in telecom systems, CATV networks, and data communication equipment. They are particularly favored for single-mode applications due to their stable optical performance and easy installation.
While larger than LC connectors, SCs remain common in patch panels and network distribution points, especially where ease of connection and durability are valued.

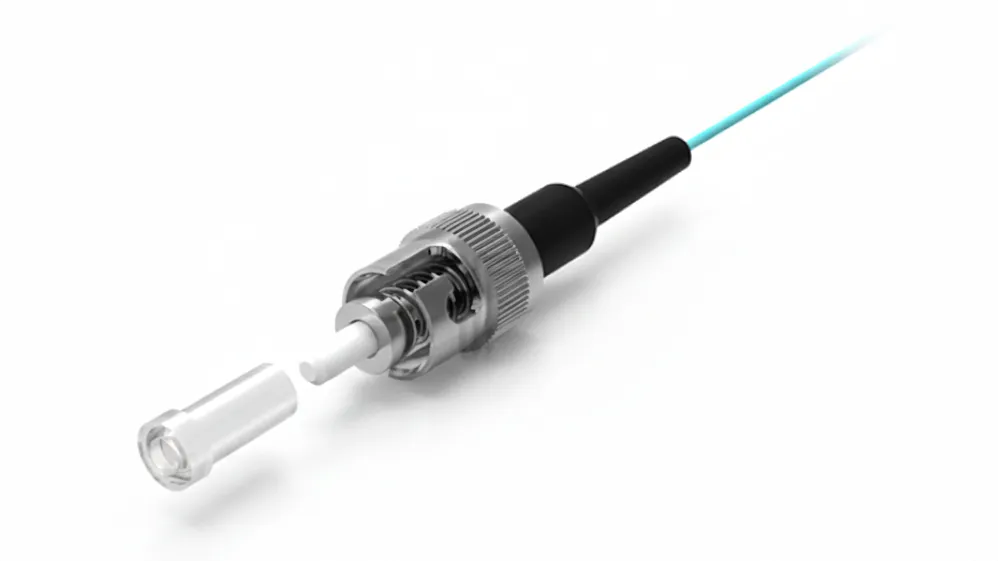

ST Fiber Connector
The ST (Straight Tip) connector was one of the earliest fiber connector types widely used in networking. Developed by AT&T, it uses a 2.5 mm ferrule within a metal or plastic cylindrical housing. Its bayonet-style coupling locks the connector in place with a simple twist motion.
ST connectors dominated LANs, campus networks, and industrial systems throughout the 1990s due to their robustness and ease of field termination. However, as networks evolved toward higher-density configurations, ST connectors have gradually been replaced by smaller interfaces like LC and MPO.
Still, they remain a reliable choice for legacy multimode systems and environments where rugged, mechanical stability is key.

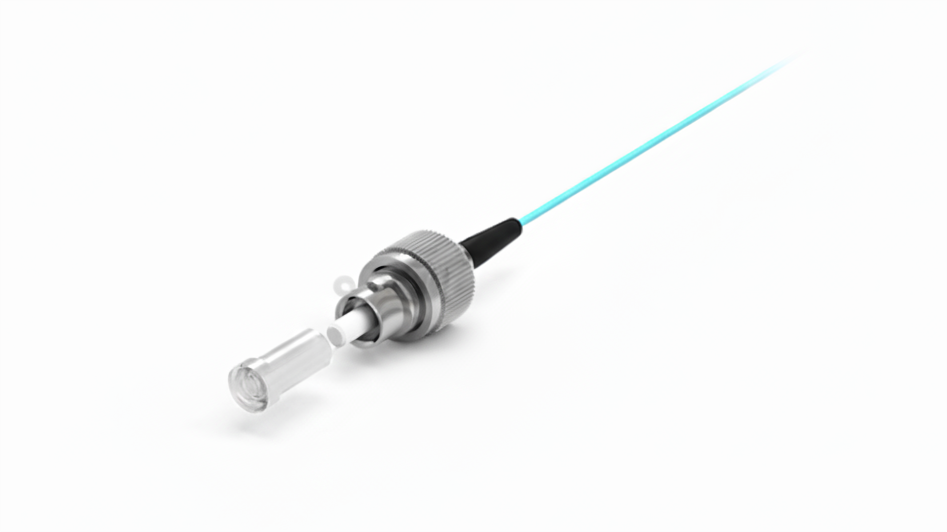

FC Fiber Connector
The FC (Ferrule Connector) is one of the earliest connector designs used for single-mode fiber. It features a threaded coupling mechanism, ensuring a stable and vibration-resistant connection.
This makes FC connectors particularly well-suited for test equipment, measurement systems, and long-distance telecommunication networks. Their 2.5 mm ceramic ferrule provides excellent alignment accuracy and optical performance.
Although the screw-on design takes longer to install than push-pull connectors, the FC remains relevant in applications demanding precision and mechanical stability.

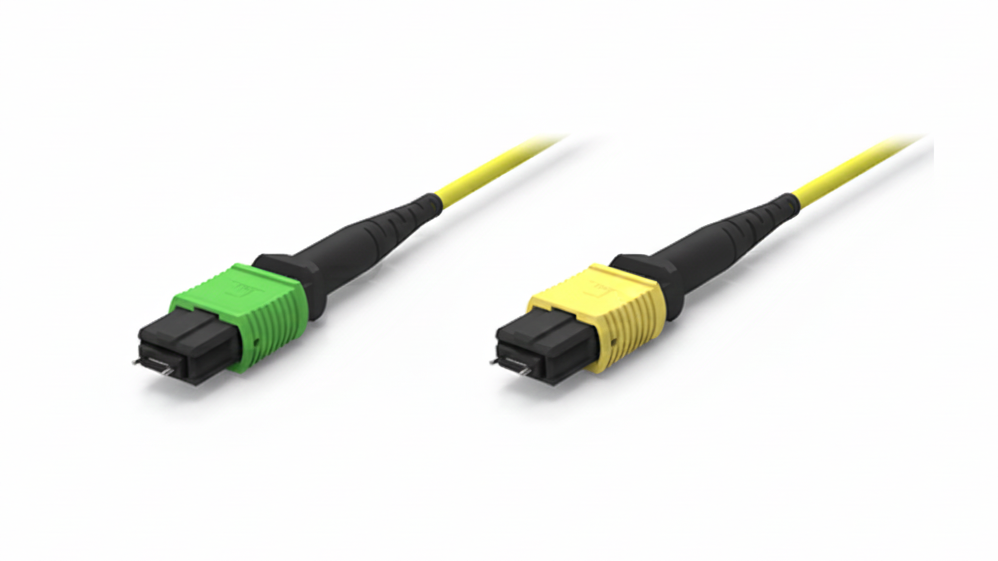

MPO / MTP Fiber Connector
The MPO (Multi-Fiber Push On) connector represents the future of high-density fiber cabling. With a single rectangular ferrule housing 12, 24, 48, or even 72 fibers, MPO connectors can handle multiple data lanes simultaneously.
Its enhanced version, the MTP connector (developed by US Conec), offers improved mechanical tolerances and optical performance, making it ideal for parallel optics and high-speed data transmission such as 40G, 100G, and 400G Ethernet.
MPO/MTP connectors are widely used in data centers and large-scale enterprise networks, where space efficiency and modular scalability are critical. Their plug-and-play design allows quick installation and easy reconfiguration, essential for modern optical infrastructure.
Comparison Overview
| Connector Type | Ferrule Size | Coupling Mechanism | Typical Applications |
| LC | 1.25 mm | Push-pull latch | Data centers, transceivers, high-density panels |
| SC | 2.5 mm | Push-pull snap-in | Telecom, CATV, distribution frames |
| ST | 2.5 mm | Bayonet twist lock | Legacy LANs, industrial networks |
| FC | 2.5 mm | Screw-on threaded | Instruments, test equipment, single-mode links |
| MPO/MTP | Multi-fiber | Push-on latch | Data center backbones, 40G/100G/400G networks |
Choosing the Right Fiber Connector
Selecting the right connector depends on several factors:
- Network speed & density – LC and MPO connectors excel in compact, high-speed setups.
- Application type – SC and FC remain reliable for telecom and precision testing.
- Budget & compatibility – ST connectors may be suitable for legacy upgrades or training labs.
PHILISUN provides a complete range of LC, SC, ST, FC, and MPO connectors and assemblies, all engineered to ensure low insertion loss, high return loss, and consistent optical performance for both enterprise and carrier-grade applications.
FAQs About Fiber Connector Types
Q1: Can I mix different fiber connector types in one system?
Yes, but you need hybrid adapters or patch cords (e.g., LC-SC or LC-ST) to ensure compatibility. Directly connecting different connector styles without proper adapters may cause signal loss.
Q2: What’s the most common fiber connector in data centers today?
The LC connector dominates in data centers due to its compact size and compatibility with modern transceivers. MPO/MTP connectors are also common for backbone cabling and parallel transmission.
Q3: Is there a difference between MPO and MTP fiber connectors?
Yes. MTP is an enhanced version of MPO with tighter manufacturing tolerances and better optical performance. MTP fiber connectors are often used where precision and reliability are crucial.
Q4: Are fiber connectors reusable?
In general, yes — as long as they are properly cleaned and maintained. Dust or oil contamination can drastically affect signal quality.
Q5: Which fiber connector type is best for 100G or 400G networks?
MPO/MTP fiber connectors are designed for parallel optics, making them the standard for 100G and 400G Ethernet networks in large-scale deployments.
Conclusion
Fiber connectors may be small components, but they have a big impact on network reliability and efficiency. From legacy ST and FC fiber connectors to compact LC and high-capacity MPO/MTP systems, each has its unique role and strengths.
As optical networks evolve toward higher speeds and denser architectures, selecting the right connector type becomes a key design decision. PHILISUN offers high-performance fiber connectors and assemblies tailored for various environments — ensuring every connection is precise, durable, and future-ready.
