Modern data centers rely on high-density fiber systems to support explosive growth in 40G, 100G, and 400G networks. As MPO/MTP connectivity becomes the backbone of these environments, one critical element often determines whether your cabling works perfectly—or fails immediately: MPO polarity. This article breaks down polarity fundamentals, common mistakes, best practices, and how to deploy MPO systems correctly from the start.
The Imperative of High-Density Fiber Cabling in Modern Data Centers

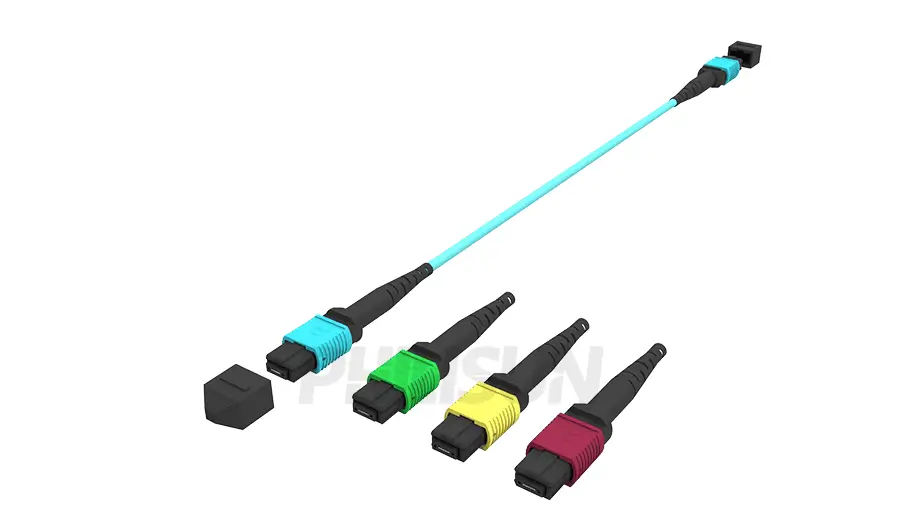

Why MPO/MTP Has Become Indispensable
High-density switching, massive east-west traffic, and growing cloud infrastructures have pushed traditional duplex cabling beyond its limits. MPO/MTP connectors simplify large-scale optical deployments by supporting 8, 12, 24, and even 48 fibers in a single compact interface—ideal for hyperscale and enterprise data center environments.
Space Saving and Rapid Deployment Benefits
MPO cables reduce cable bulk, increase airflow, and enable fast installation. Pre-terminated trunks and cassettes also accelerate deployment and decrease on-site labor costs.
Supporting 40G, 100G, 400G Ethernet
Parallel optics—required for 40G/100G/400G—depend heavily on MPO/MTP connectors. Their ability to support multiple transmit (Tx) and receive (Rx) channels simultaneously makes them the foundation of next-generation network architectures.
The Hidden Complexity: Understanding Fiber Polarity
Despite their advantages, multi-fiber connectors introduce one major challenge: maintaining correct Tx/Rx alignment.
The Challenge of Managing Multi-Fiber Connections
Each fiber inside an MPO cable has a specific position. If fiber #1 at the Tx side does not arrive at the correct Rx position on the other end, the link will fail—no matter how high-quality your components are. That is why polarity standards are essential.
Decoding MPO Fiber Polarity: The ABCs of Optical Flow
Polarity Type A: Straight-Through Wiring
Definition and Common Use Cases

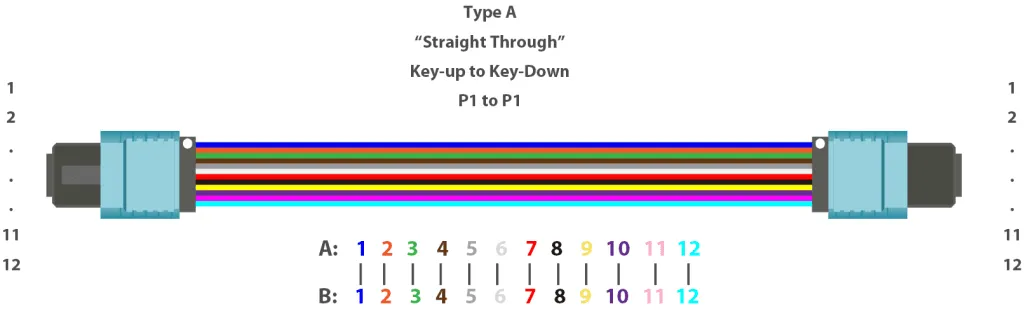

Type A trunks maintain fiber position 1-to-1. They are widely used with MPO cassettes or when deploying straight-through optical pathways.
Fiber Reversal at the Opposite End
Because Type A does not inherently flip fiber positions, polarity is restored through the cassettes, not the cable itself.
Polarity Type B: Cross-Over Wiring
Definition and Common Use Cases

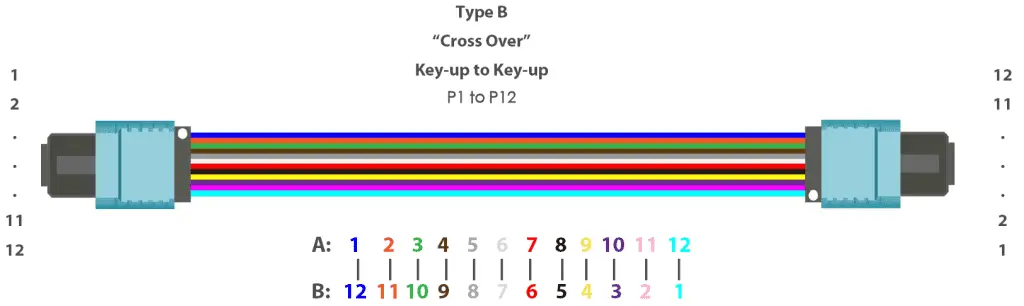

Type B trunks reverse the fiber mapping: fiber 1 → fiber 12, fiber 2 → fiber 11, etc. This is typically used for direct transceiver-to-transceiver links.
Achieving End-to-End Transmit/Receive Alignment
Because Type B provides a 1-to-12 flip, it automatically aligns Tx/Rx pairs at both ends without needing cassettes.
Polarity Type C: Paired-Fiber Flip
Definition and Niche Applications

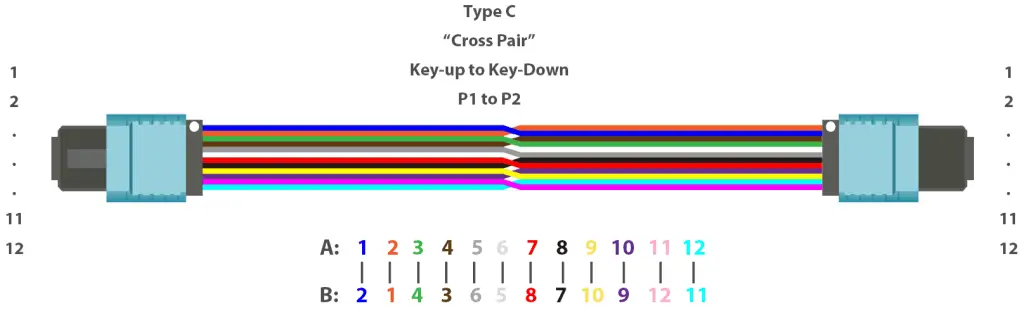

Type C trunks flip fibers in pairs (1↔2, 3↔4, 5↔6). This is most commonly used in specific duplex-based systems inside MPO-LC breakout environments.
The Less Common, More Complex Option
Due to its specialized structure, Type C is the least common option in modern 40G/100G/400G systems.
Comparison Table: MPO Polarity Types A/B/C
| Polarity Type | Fiber Mapping | Best For | Advantages | Notes |
| Type A | Straight 1→1 | MPO-to-cassette-to-LC | Simple pathway; widely used | Polarity restored in cassettes |
| Type B | Reversed 1→12 | Direct MPO-to-MPO | Ideal for 40G/100G links | No cassettes required |
| Type C | Paired flips | LC duplex systems | Ensures duplex reversal | Least common in high-speed systems |
The Impact of Incorrect Polarity: Why It Matters
Diagnosing Common Polarity Errors
“No Link” or “Link Down” Issues
Incorrect Tx/Rx alignment immediately prevents the link from establishing optical communication.
Sporadic Connection Drops and Performance Degradation
Partial alignment or improper component mixing may cause intermittent performance issues—especially dangerous in a production data center.
The Cost of Mistakes
Downtime, Troubleshooting, and Rework Expenses
Polarity mistakes often lead to expensive labor rework, unnecessary hardware replacements, and prolonged outages.
Project Delays and Resource Drain
Even small polarity mismatches can derail deployment schedules and absorb valuable engineering resources.
Best Practices for MPO Fiber Polarity Management
Standardizing Your Approach
Choosing a Consistent Polarity Strategy for Your Data Center
Define Type A/B/C usage rules and document them before deployment.
Clear Labeling and Documentation
Every trunk, cassette, and panel must include labeling to indicate pathway direction.
Leveraging Key Components
MPO Cassettes and Adapter Panels for Simplified Management
High-quality cassettes convert MPO to duplex LC and restore polarity automatically.
Universal MPO Cabling Systems with Reversible Connectors
Some modern systems allow reversible polarity—reducing the chance of errors.
Essential Testing and Verification
Using Fiber Optic Testers for Polarity Validation
Dedicated MPO test kits confirm continuity, mapping, and loss.
Visual Inspection and Continuity Checks
Quick checks prevent avoidable errors before installation.
