The Core Conflict: Density vs. Simplicity
In the rapidly evolving landscape of data center architecture, the humble fiber optic connector is a point of critical decision. As network speeds skyrocket from 10G to 400G and beyond, the physical infrastructure supporting this data must evolve. This evolution has created a central conflict for engineers: the battle between simplicity and density.
This conflict is perfectly embodied by the two most dominant connectors in the industry: the LC Connector and the MPO Connector.
The LC connector is the reliable, familiar workhorse. It’s simple, easy to manage, and understood by all. The MPO connector is the high-density powerhouse, the only viable solution for pushing 100G and 400G speeds in a dense, parallel fashion.
But which one is “better”? The truth is, that’s the wrong question. The real question is, “Which one is right for the job?” This guide will break down the anatomy, use cases, pros, and cons of each, and—most importantly—explain how they are not just competitors, but partners in the modern data center.
What is an LC Connector? (The Legacy Workhorse)
The LC (Lucent Connector) connector is arguably the most successful fiber optic connector of the past two decades. If you have worked in networking, you know it intimately.

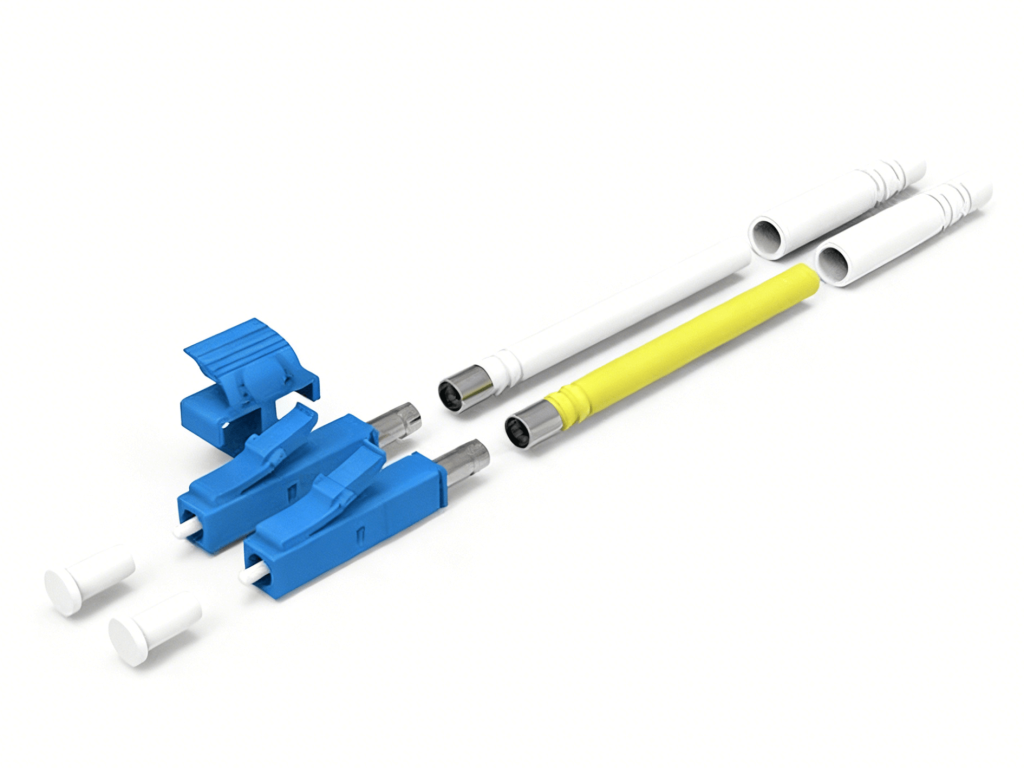

Anatomy of the LC Connector (1.25mm Ferrule)
The LC connector is a “small form factor” connector. Its key feature is a 1.25mm ferrule—the tiny ceramic sleeve that holds the single strand of fiber. This small size is what allowed it to replace its bulkier predecessors (like the SC or ST connector).
It’s most commonly used in a duplex configuration, where two separate fiber connectors (one for Transmit, one for Receive) are clipped together into a single, two-part housing. This Duplex LC is the standard connector for most 1G, 10G, and 25G transceivers.
Typical Use Cases: 1G, 10G, 25G, and… 100G?
You will find LC connectors everywhere:
- 1G/10G/25G Links: The SFP, SFP+, and SFP28 transceivers used for these speeds almost exclusively feature a duplex LC port.
- Patching: Connecting servers to switches, or switches to patch panels.
- Long-Reach 100G/400G: This is a key point of confusion. A 100G-LR4 or 400G-LR8 transceiver also uses an LC connector. This is because these “Long Reach” (LR) optics use WDM (Wavelength Division Multiplexing) to send multiple “colors” of light down a single fiber pair, rather than using parallel fibers.
The Pros: Simplicity, Reliability, Familiarity
- Simplicity: It’s a simple, two-fiber (Tx/Rx) system. Polarity is easy to manage—if the link doesn’t come up, you just unclip the duplex and flip the A and B fibers.
- Reliability: It’s a mature, proven technology with low insertion loss.
- Familiarity: Every engineer and tech on-site knows how to handle, clean, and test an LC connector.
The Cons: The “Port Density” Problem
The LC connector’s weakness is its “one-to-one” nature. One connector, one fiber link. As switch faceplates become crowded with 48 or 64 ports, and as speeds demand multiple fibers, the LC connector becomes a physical bottleneck. You simply can’t fit enough of them on a switch to support the density required by modern 100G/400G fabrics.
What is an MPO Connector? (The High-Density Standard)
The MPO (Multi-fiber Push-On) connector is the data center’s answer to the density problem. It is the high-speed standard.
Anatomy of the MPO Connector (Multi-Fiber Ferrule)
The MPO connector is a marvel. It contains multiple fibers (typically 8, 12, or 24) in a single ferrule that is barely larger than a single LC connector. A 12-fiber MPO connector holds 6 duplex links. A 24-fiber MPO holds 12.
This is a parallel solution. Instead of one Tx/Rx pair, you have 4, 8, or 12 Tx/Rx pairs in a single “push-on” connection.
Typical Use Cases: 40G, 100G, 400G, and Trunks
- 40G/100G SR4: This is the killer app. A 100G-SR4 (Short Reach, 4-lane) transceiver uses 8 fibers (4 Tx, 4 Rx). The MPO-12 connector is the native interface for this.
- High-Speed Trunks: Running a single MPO trunk cable between two racks (e.g., a 144-fiber cable with 12 MPO connectors) instead of 72 separate duplex LC cables.
- Breakout Cabling: Connecting a 100G MPO port to four 25G LC ports (more on this later).
The Pros: Unmatched Density and Speed
- Density: The MPO connector enables massive port density. You can have 32 100G ports on a 1U switch, something unimaginable with LC connectors alone.
- Speed: It is the only practical way to deliver parallel fiber optics, like 100G-SR4 or 400G-SR8.
- Scalability: A single MPO trunk cable provides a scalable migration path. You can install a 12-fiber trunk today for one 100G link, and use the same trunk for a 400G link tomorrow.
The Cons: Complexity (Hello, Polarity!)
With great power comes great responsibility. The MPO’s multi-fiber nature introduces a significant challenge: Polarity. Polarity is the management of Tx-to-Rx paths. In an MPO-12, is Pin 1 (Tx) on one end connecting to Pin 12 (Rx) on the other? Or Pin 1? Or Pin 2? This is why MPO cables come in different polarity types (Type A, B, C), and using the wrong one will kill the link.
Head-to-Head: MPO vs. LC
| Feature | LC Connector | MPO Connector |
| Fiber Count | 1 (Simplex) or 2 (Duplex) | 8, 12, 16, 24, 32+ |
| Connector Type | Single-fiber ferrule (1.25mm) | Multi-fiber ferrule |
| Primary Use | 1G, 10G, 25G, WDM (LR4) Links | 40G, 100G, 400G (Parallel) Links, Trunks |
| Density | Low | Extremely High |
| Polarity Mgmt. | Simple (manually flippable) | Complex (Type A, B, C) |
| Cleaning | Simple (one ferrule) | Complex (multiple fibers, requires scope) |
| Cost (Connector) | Low | High |
| Cost (Total Link) | It can be higher in high-density builds due to cable volume. | It can be lower in high-density builds due to trunking. |
Why You Can’t Just “Choose” One: How MPO and LC Work Together
The most important takeaway for any network designer is that MPO and LC are not enemies. The modern data center is a hybrid ecosystem where these two connectors work together to create an efficient, scalable network.
Here’s how.
Scenario 1: The MPO Trunk + MPO-LC Cassette (Structured Cabling)
This is the most common “structured cabling” solution.
- The “Trunk”: You run a single, high-fiber-count MPO Trunk Cable between your main distribution rack and your Top-of-Rack (ToR) switch.
- The “Enclosure”: In the ToR rack, this MPO trunk plugs into the back of a Fiber Patch Panel Enclosure.
- The “Cassette”: Inside the enclosure is an MPO-to-LC Cassette. This is a small, modular box. Its back has an MPO port. Its front has 6 or 12 duplex LC ports.
- The “Patch”: You then use standard LC Patch Cords to connect your servers and 10G/25G devices to the front of the cassette.
Result: You get the high-density, clean installation of an MPO trunk for 90% of the run, and the simple, familiar LC interface for the final connection to your servers.
Scenario 2: The MPO-LC Breakout Cable (In-Rack)
This is the solution for in-rack aggregation.
- The “Switch”: You have a 100G switch port (QSFP28) that you want to connect to four 25G servers (SFP28).
- The “Cable”: You use an MPO-to-4xLC Breakout Cable.
- The “Connection”: The MPO end plugs into the 100G (QSFP28-SR4) transceiver. The other end “breaks out” into four duplex LC connectors, which plug directly into the four 25G (SFP28-SR) transceivers in the servers.
Result: You’ve used one switch port to connect to four devices, maximizing density and leveraging the switch’s “breakout mode” capability.
Scenario 3: The Transceiver Dictates the Connector (SR4 vs. LR4)
Let’s look at two 100G transceivers:
- 100G-SR4: “Short Reach, 4-lane.” It uses 8 parallel fibers (4 Tx, 4 Rx). Its native connector must be MPO.
- 100G-LR4: “Long Reach, 4-wavelength.” It uses 1 single fiber (with 4 “colors” of light) for Tx and 1 for Rx. Its native connector must be LC.
Here, the choice is made for you by the application. You don’t choose “MPO vs. LC”; you choose “short-reach parallel” or “long-reach WDM.”
The Future: Is the LC Connector Dead?
Not at all. While MPO (and its successor, MPO-16/MPO-32) is the clear future for high-speed, parallel, short-reach optics (400G, 800G), the LC connector remains the undisputed king of simplicity.
- It will remain the standard for single-wavelength (WDM, BiDi) optics for the foreseeable future.
- It will remain the primary interface for patching and server connections at 10/25/50G.
- Its simplicity makes it the preferred choice for any link that doesn’t absolutely require parallel optics.
FAQ: MPO vs. LC Connectors
Q: Can I plug an MPO cable into an LC port?
A: No. They are physically incompatible in every way. You must use a cassette or breakout cable to transition between the two.
Q: What is MTP, and how is it different from MPO?
A: MTP® is a high-performance, trademarked brand of MPO connector from US Conec. It has patented features for better mechanical performance. The two are 100% inter-connectable. Think of MTP as the “premium” version of the MPO standard.
Q: Which is cheaper, MPO or LC?
A: A single LC connector is far cheaper than a single MPO connector. But an MPO-based solution (like a trunk cable) is often far cheaper than running 6 or 12 individual LC cables, due to reduced labor and cable volume.
Conclusion: Using the Right Connector for the Right Job
The MPO vs. LC debate isn’t about which is better; it’s about which is smarter for your specific application.
- LC Connectors are your simple, reliable, single-link solution. They are the king of 10G/25G and long-reach WDM optics.
- MPO Connectors are your high-density, high-speed solution. They are the only choice for 40G+ parallel optics and the most efficient way to run high-fiber-count trunks.
A modern data center designer is fluent in both, using MPO for the high-density “superhighways” (trunks) and using LC (often fed by MPO cassettes) for the final “off-ramps” to the servers.
