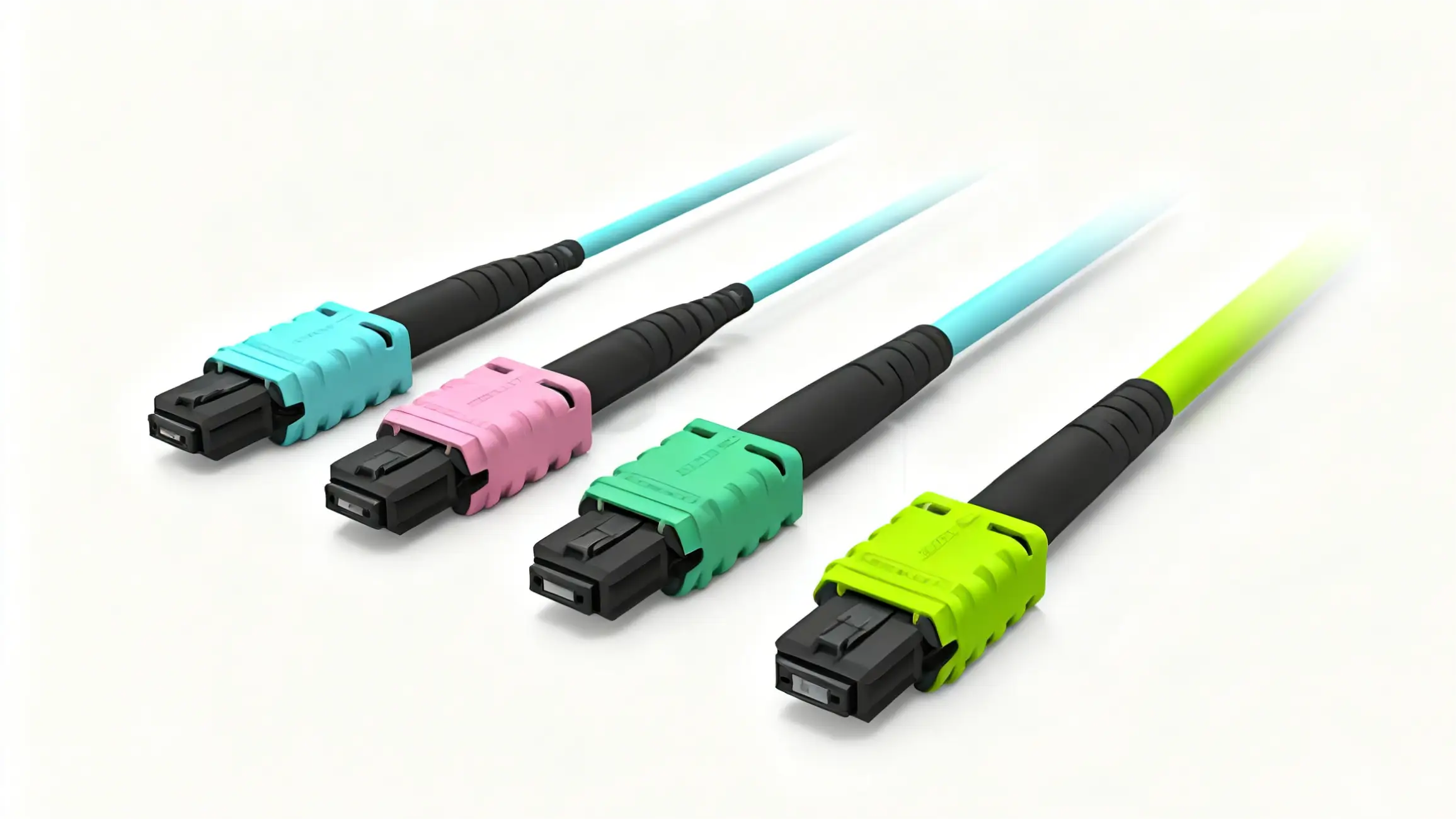

MTP® vs. MPO: What’s the Difference?

MPO is the generic standard, MTP® is the elite version. This guide reveals critical design differences, why MTP® offers lower loss, and how to choose the right PHILISUN connector for your data center link budget.

In the relentless pursuit of speed and density within modern data centers, MPO (Multi-fiber Push On) connectors have become the standard for high-bandwidth fiber optic cabling. Yet, a common source of confusion persists: the distinction between “MPO” and “MTP®.” Are they the same? Is one always better? And crucially, what does this difference truly mean for your network’s performance and budget?

For network architects and engineers, the answer lies not in brand preference but in a meticulous optical link budget analysis. This guide will cut through the marketing noise to illuminate the critical engineering differences, demonstrating when the precision of an MTP connector is absolutely essential and when a high-quality standard MPO connector from PHILISUN offers perfect performance and significant cost savings. We’ll equip you with the knowledge to make informed decisions for your 40G, 100G, and even 400G infrastructure.

MPO vs. MTP®: A Foundational Clarification

Let’s begin by defining the terms to avoid further confusion:

  • MPO (Multi-fiber Push On): This is the generic industry standard for a multi-fiber connector, defined by IEC-61754-7 and TIA-604-5 (FOCIS 5). Any connector that adheres to these specifications for its ferrule (fiber holding part), housing, and latching mechanism can be called an MPO. MPO connectors typically contain 8, 12, or 24 fibers.
  • MTP®: This is a registered trademark of US Conec, a leading US-based manufacturer. An MTP connector is a specific, high-performance brand of MPO connector. It is engineered to tighter tolerances and includes several patented design improvements over generic MPO connectors.

The Analogy: Think of MPO as the broad category “car,” and MTP as a specific model like a “Mercedes-Benz.” All MTP connectors are MPO compliant, but not all MPO connectors possess the advanced features and performance characteristics of an MTP connector.

The Engineering Divergence: Where MTP® Elevates Performance

The core differences between a generic MPO and a genuine US Conec MTP connector lie in their internal mechanical design, directly impacting optical performance and durability. These nuances are crucial when evaluating your optical link budget.

Insertion Loss (The Decisive Factor):

  • Generic MPO: Typically manufactured to industry standards with an average insertion loss (IL) of 0.50dB to 0.75dB per mated pair. For standard data center links, this often suffices.
  • MTP® Elite (Low Loss): Engineered to surpass standard requirements, achieving typical insertion losses of 0.35dB or even lower per mated pair. This seemingly small difference of 0.4dB becomes hugely significant in complex, high-speed links.

Guide Pin Design and Alignment:

  • Generic MPO: Often uses plastic or less precisely manufactured metal guide pins. Over hundreds of mating cycles, these can wear, chip, or deform, leading to misalignment and increased insertion loss.
  • MTP® Connector: Features patented, precision-engineered stainless steel guide pins with elliptical, chamfered tips. This design ensures highly accurate fiber alignment, minimizes debris accumulation from repeated matings, and significantly enhances durability and consistent performance over the connector’s lifetime.

Ferrule Float Mechanism:

  • Generic MPO: May have limited or no “float” in the ferrule, making it more susceptible to misalignment if the cable experiences side-load pressure.
  • MTP® Connector: Incorporates a patented “floating ferrule” design. This allows the ferrule to move independently within the connector housing. This critical feature ensures that even when the cable is under tension or bent, the physical contact between the mated fiber end-faces remains perfectly aligned and consistent, preventing signal degradation.

Removable Housing:

  • MTP® Connector: Features a removable housing, which is a significant advantage for field maintenance. It allows technicians to re-polish the ferrule, change pin configurations (male/female), or even reconfigure the fiber polarity after initial installation, offering unparalleled flexibility.

The Link Budget Reality Check: When MTP® Becomes Indispensable

Understanding the theoretical differences is one thing; applying them to your network’s optical link budget is another. This is where the choice between MPO and MTP® becomes a critical engineering decision, not just a preference.

Every optical link has a maximum allowable loss (link budget) defined by the transceiver’s specifications (e.g., IEEE standards). Exceeding this budget results in a non-functional or unreliable link.

Scenario A: The Multi-Connection 100G-SR4 Link (MTP® is Essential)

  • Requirement: A 100GBASE-SR4 link connects a core switch to an aggregation switch 100 meters away, passing through three patch panel connections (6 MPO mated pairs) and using two MPO jumper cables and two MPO jumper trunk cables.
  • 100G-SR4 Link Budget: The IEEE 802.3bm standard specifies a maximum channel insertion loss of ~1.9dB for 100GBASE-SR4 over OM4 fiber.
  • With Standard MPO: 6 mated pairs x 0.75dB/pair = 4.5dB total connector loss. (This doesn’t even include fiber attenuation).
    • Result: The link will fail dramatically, being far beyond the 1.9dB budget.
  • With MTP® Elite: 6 mated pairs x 0.35dB/pair = 2.1dB total connector loss.
    • Result: Still slightly over, demonstrating the critical need for meticulous design, but much closer to the target. Further optimization (e.g., fewer connections, even lower-loss components) would be required, but MTP® is clearly the only viable starting point.

Scenario B: The Simple Direct-Connect Patch (Standard MPO is Sufficient)

  • Requirement: A direct connection between two adjacent Top-of-Rack switches using a single 1-meter MPO jumper.
  • Link Budget: For such a short, direct link, the loss budget is extremely generous.
  • With Standard MPO (0.75dB): Total loss is far below the budget.
  • Result: A high-quality standard MPO cable provides perfectly reliable performance. Opting for an MTP® Elite cable here would be an unnecessary expense without any tangible performance benefit.

PHILISUN’s Pragmatic Approach: Performance Without Overpayment

At PHILISUN, we believe in providing optimal network solutions that balance peak performance with cost-efficiency. Our philosophy is simple: don’t overpay if you don’t have to.

That’s why we offer a comprehensive range of both:

  • High-Quality Standard MPO Cabling: Engineered to meet stringent industry standards, perfect for less demanding links where cost-effectiveness is a priority.
  • Authentic US Conec MTP® Elite Cabling: Featuring the guaranteed low insertion loss and advanced mechanical design for mission-critical, high-speed, multi-connection links where every decibel counts.

Our expert team is equipped to help you calculate your specific optical link budget requirements for your 40G, 100G, or 400G optical transceiver deployments. This ensures you invest in precisely the right cabling solution—one that guarantees flawless performance without incurring unnecessary “MTP® tax” where it’s not required.

FAQ Section

  • Q: Are MTP® and MPO connectors physically compatible?
    • A: Yes, absolutely. They share the same physical form factor and will mate perfectly with each other and with standard MPO/MTP® ports on network equipment. The differences are internal, affecting performance and durability.
  • Q: How can I identify a genuine MTP® connector?
    • A: Genuine MTP® connectors from US Conec usually feature the “US Conec” logo or the “MTP” mark molded onto the connector housing. PHILISUN guarantees the authenticity of all US Conec components in our MTP® product line.
  • Q: Can I mix standard MPO and MTP® connectors within the same fiber link?
    • A: Yes, you can. However, always remember that the overall performance of the link will be impacted by the highest insertion loss component. If you mix, the link budget calculation must account for the higher loss of the standard MPO components.
  • Q: What fiber types are available for MPO/MTP® cabling?
    • A: Both MPO and MTP® connectors are available with various fiber types, including multimode (OM3, OM4, OM5) and single-mode (OS2), supporting diverse distance and bandwidth requirements.
